Wireless AC1200 Dual Band VDSL ADSL Modem Router

DSL-3782

  • Product Status: End of Life

The DSL-3782 Wireless AC1200 Dual-Band VDSL/ADSL Modem Router is a versatile, high-performance router for the home and small office. With integrated VDSL, supporting download speeds of up to 100 Mbps, the latest Wireless AC Wi-Fi technology, firewall protection, Quality of Service (QoS) and 4 Fast Ethernet switch ports, the DSL-3782 provides all the functions needed to establish a secure and high-speed connection to the Internet.

Fast and Reliable Home Network

This Modem Router creates a blazing fast home network that connects all of your devices to your broadband Internet connection. Concurrent dual-band 802.11ac brings you the future of high-bandwidth wireless connectivity, allowing you to stream HD video, make Internet voice calls, and surf the Internet from every corner of your home without interruption. Fast Ethernet ports provide high-speed wired connections for up to four PCs or other devices. It's stylish, easy to use, and provides you with a reliable network for today and tomorrow.

Smooth Streaming with Wireless AC

The DSL-3782 uses Wireless AC technology, which provides a combined Wi-Fi speed of up to 1.2 Gbps* (867 AC + 300 N). The router operates on both the 2.4 GHz and 5 GHz wireless bands at the same time using concurrent dual-band technology and internal antennas. This allows you to browse the web, chat and e-mail using the 2.4 GHz band on your smartphone or tablet, while simultaneously streaming digital media, playing online games, or making Internet voice calls using the 5 GHz band on your computer.

File Sharing Right at Your Fingertips

The DSL-3782 lets you connect a USB storage device and instantly share documents, movies, pictures, and music. You can put your music library on a USB drive and share it with your entire home. You can show photos on the living room TV while a family member watches a movie on their computer. You can stream media files to multiple devices without interruption, or save them to your device for offline playback. The intuitive interface lets anyone immediately connect to a variety of entertainment options stored securely on your own storage device.



Works with Your Existing Devices

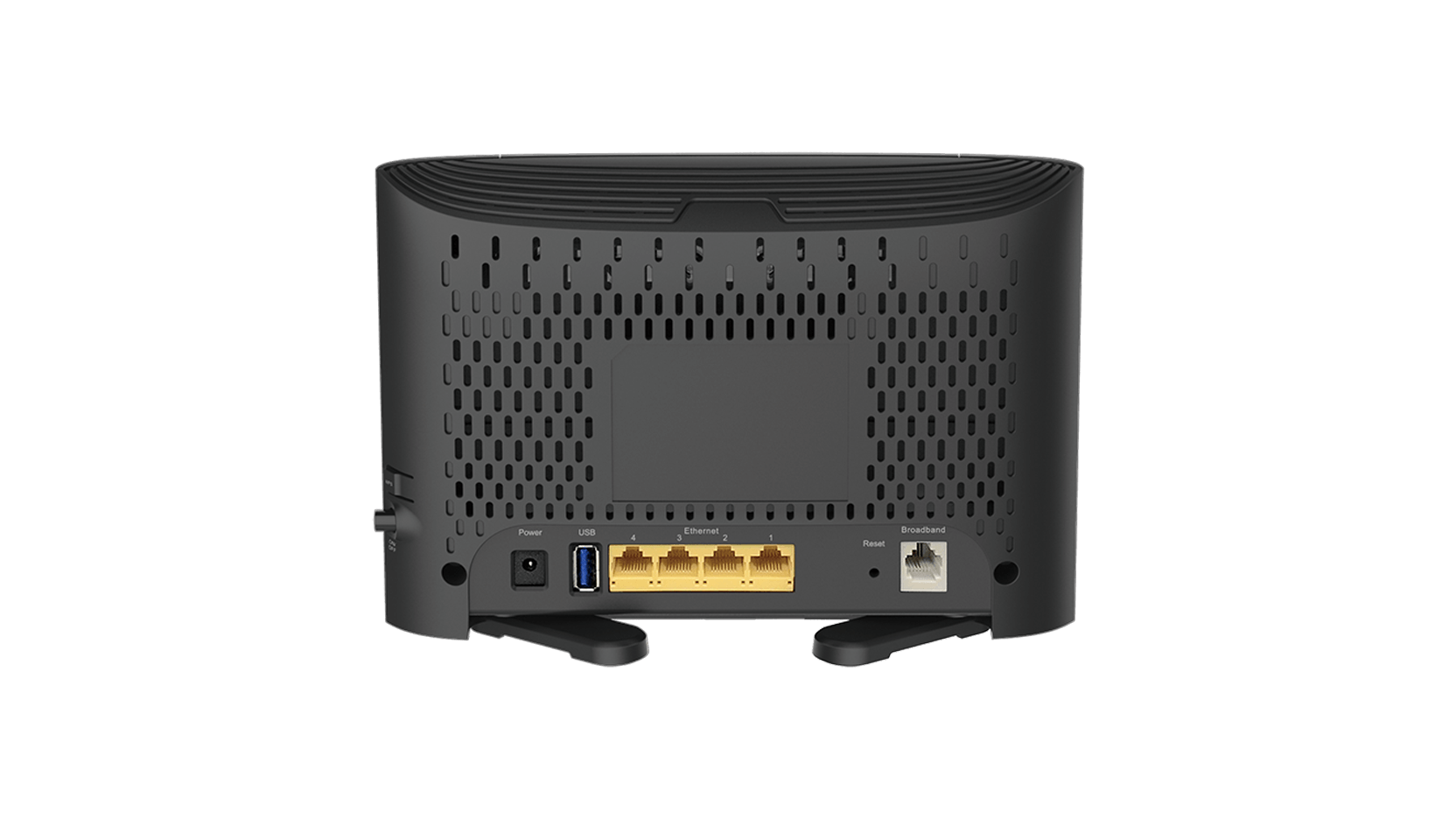

The Wireless AC1200 Dual-Band VDSL/ADSL Modem Router is backward compatible with existing 802.11n, 802.11g and 802.11b wireless equipment, ensuring compatibility with a wide range of wireless devices. In addition, it includes four Ethernet ports for connecting Ethernet-enabled PCs, print servers, and other devices, making the DSL-3782 the logical choice for users wanting a versatile and fast Wi-Fi modem router.



Easy to Set Up and Secure

Getting started is simple with the easy setup wizard. Simply log onto the web-based configuration through your browser and follow a few easy steps to get your home network up and running. You can also set up a secure network with the touch of a button using Wi-Fi Protected Setup (WPS). Simply press the respective WPS buttons on each devices to instantly establish a secure connection to a new device. Rest assured that your network is secure with WPA/WPA2 wireless encryption and built-in dual active firewalls (SPI and NAT) so you can shop online and do your online banking with confidence.


* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11n, 802.11g, and 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link 802.11ac devices.

Related Products

Wireless AC1300 MU-MIMO Wi-Fi USB Adapter
DWA-182
Find out more
Wireless AC1200 Dual Band PCI Express Adapter
DWA-582
Find out more
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Wired interface
4 x Fast Ethernet LAN
ADSL2/2+
VDSL2
USB ports
1 x USB 2.0
DLNA
Supported
This product was phased out on: 15/05/2019
This product's last date of support is on: 14/05/2021
Version Date Type File Size
Datasheet - PDF 0.52mb Download
Version Description Date Type File Size
Manual - 08-09-2016 - - Download
Manual Manual - PDF 6.44mb Download
Version Description Date Type File Size
QIG - 30-07-2016 - - Download
Quick Installation Guide Quick Installation Guide - PDF 0.62mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
Firmware v1.01 Firmware 28-07-2016 - Download
Version Description Date
CE doc 1.30 RevA1 CE document 04-09-2019 Download
CE doc 1.20 - 30-08-2017 Download
CE document DSL-3782 CE DoC 26-01-2017 Download
