10/100 to 100BaseFX (SC) Singlemode Media Converter


  • Dostupnost produktu: End of Life

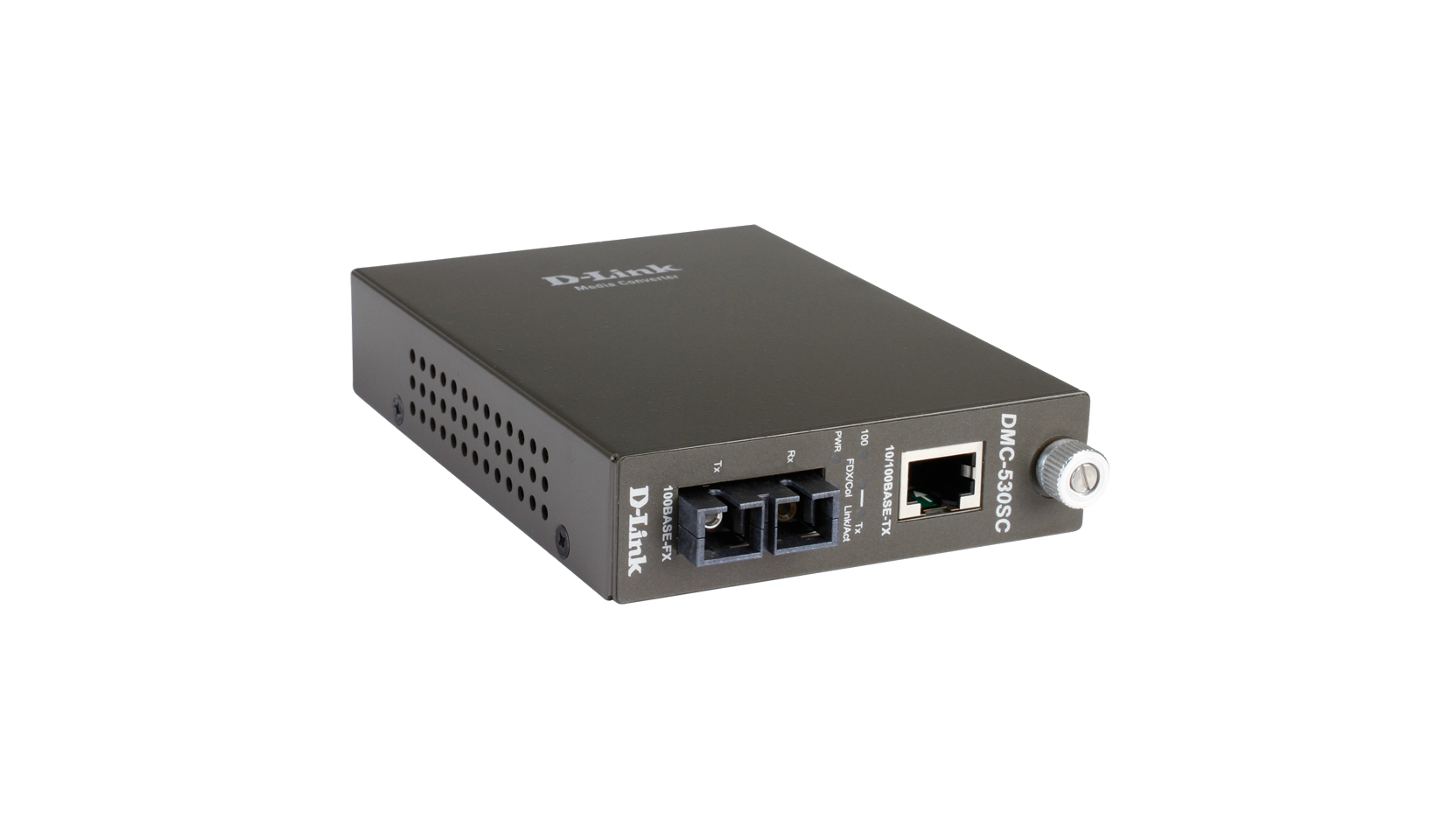

Supporting signals up to 30KM apart, the DMC-530C converts 10/100Mpbs 10BASE-T-100BASE-TX Fast Ethernet twisted pair signals to 100BASE-FX single-mode signals.

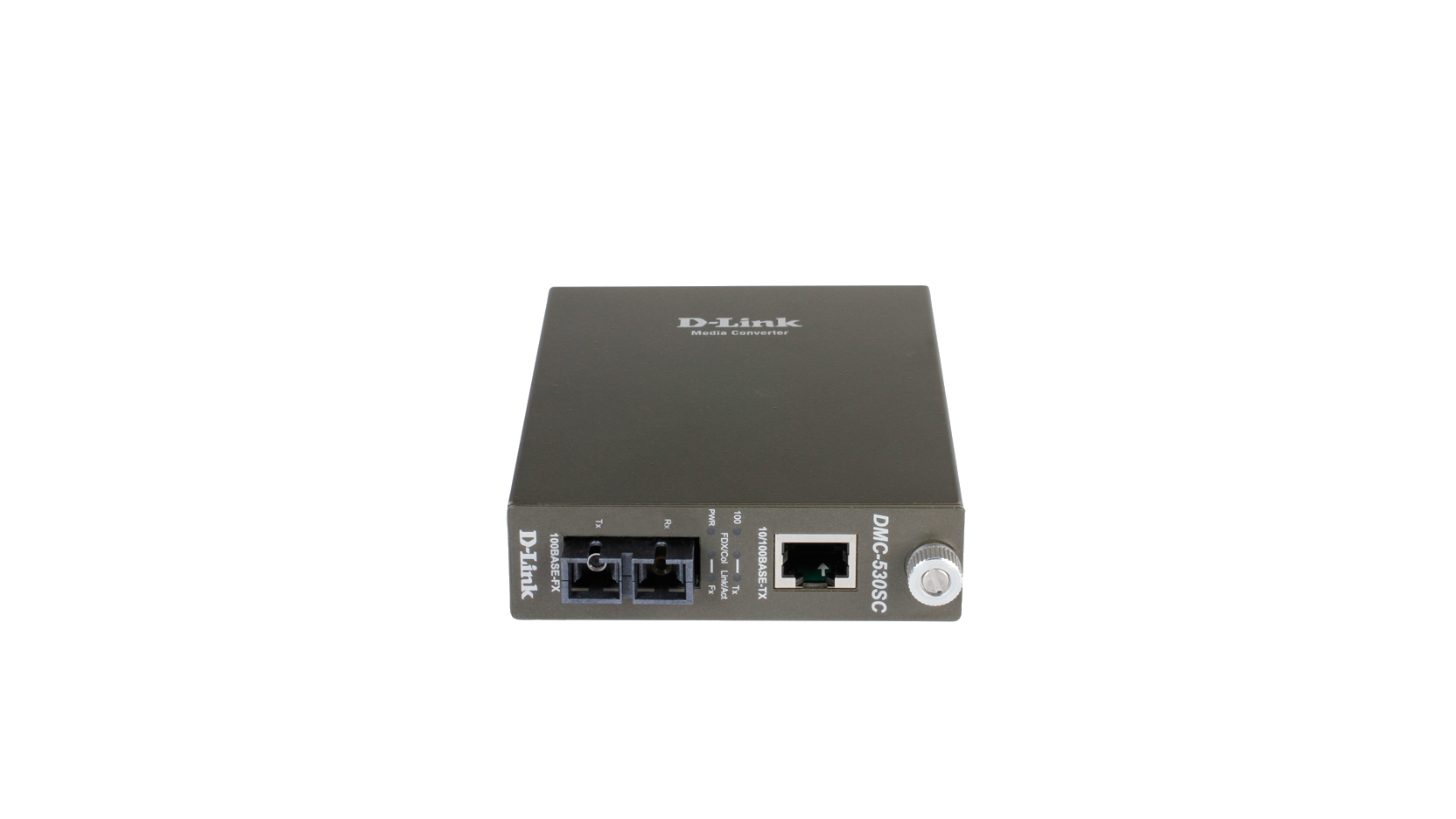

The DMC-515SC, DMC-530SC, and the DMC-560SC convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 15 - 60 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided.

DMC-515SC: this media converter supports maximum 15 km fiber cable distance.
DMC-530SC: this media converter supports maximum 30 km fiber cable distance.
DMC-560SC: this media converter supports maximum 60 km fiber cable distance.

The media converters come with their own solid metal case housing, LED status indicators and external AC power adapters.

They can be used as stand-alone converters, or installed in a DMC-1000 chassis. In case you install them in the chassis, you will remove their metal cases and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own external AC adapters. All media converters are hot-swappable when used with the chassis.

Technické specifikace produktu

LED Indicators
  • Power
  • 100Mbps Speed (for twisted-pair port)
  • Full Duplex/Collision (for twisted-pair and fiber ports)
  • LINK/ACT (for twisted-pair port)

  • 120 x 88 x 25 mm

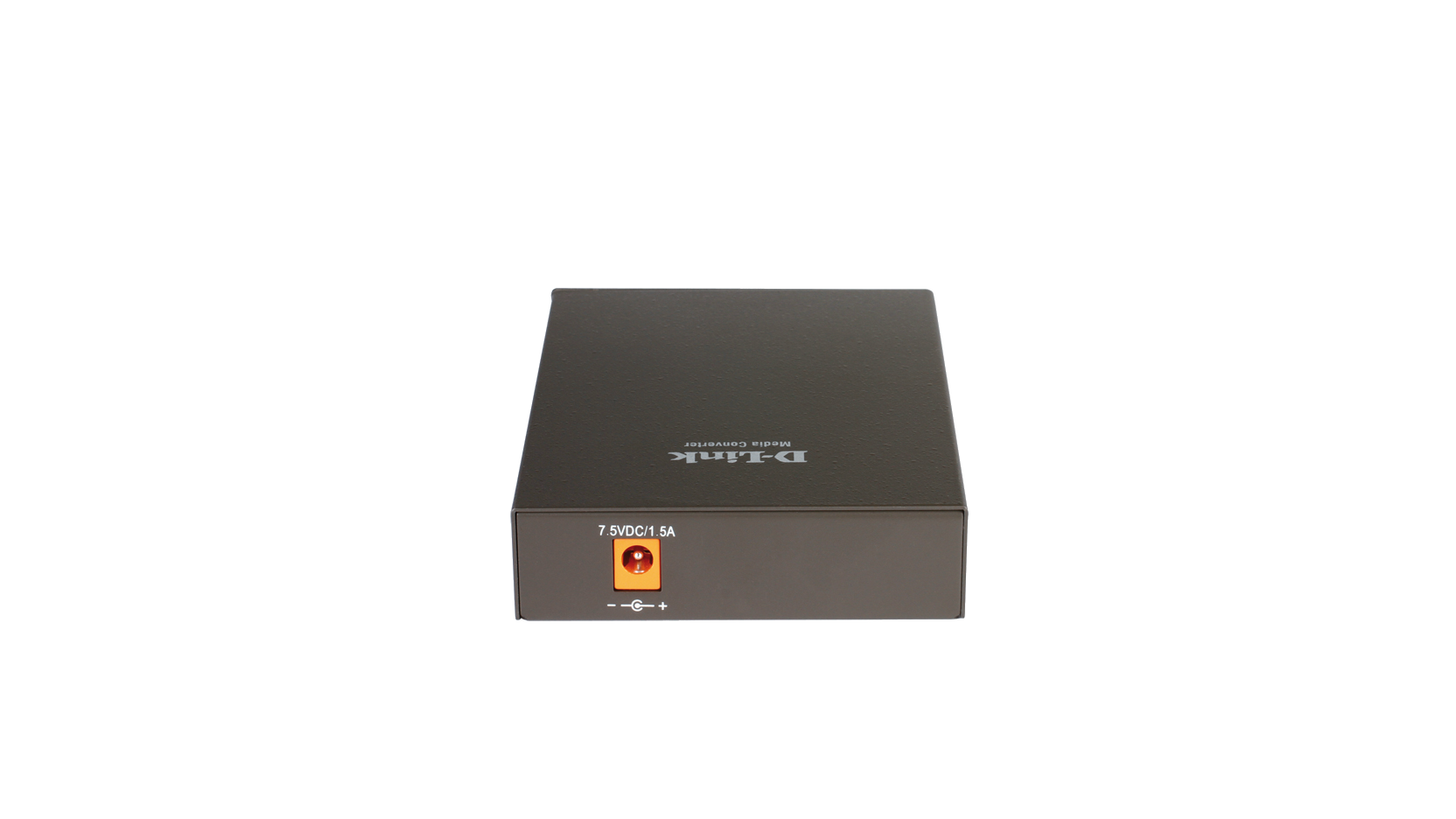

Power Input
  • 7.5V 1.5A
  • Through external AC power adapter

Operation Temperature
  • 0° -  40° C

Storage Temperature
  • -25° -  70° C

  • 10  ~  90% non-condensing

Emission (EMI)
  • FCC Class B
  • VCCI Class B
  • CE Class B
  • C-Tick


Tento produkt byl ukončen: 02/04/2017
This product's last date of support is on: 02/04/2019
Version Date Type File Size
Datasheet (English) - PDF 0.28mb Stáhnout
Version Description Date Type File Size
Manual v1 (English) Manual v1 (English) - PDF 0.26mb Stáhnout
Version Description Date Type File Size
1.00 Quick Installation Guide (English) - PDF 0.19mb Stáhnout
Version Description Date
CE doc UKCA 1.90 RevD7 CE documentation 11.05.2022 Stáhnout
CE doc UKCA 1.70 RevD7 CE documentation 17.10.2021 Stáhnout
CE doc 1.60 RevD7 CE documentation 31.01.2021 Stáhnout
CE doc 1.50 RevD7 CE documentation 27.05.2020 Stáhnout
DEU_DoC_D2_RevA Certificate of Declaration D2 27.05.2009 Stáhnout
