How to Setup WDS with VLAN – DWL-6700AP
How can I make a WDS bridge between two DWL-6700AP (on the 5GHz frequency band) and to channel 2 VLANs (for customers connected over the 2.4GHz frequency band)?

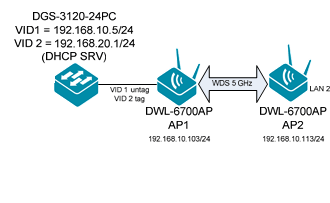

Topology:

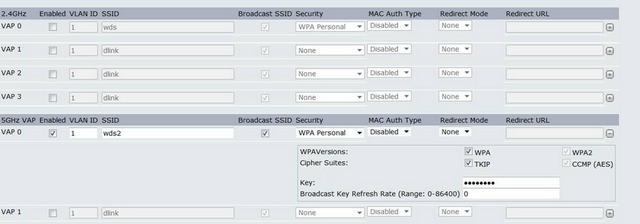

Step 1 - Open the configuration page of the DWL-6700AP first (AP1) and configure the Wi-Fi network (SSID)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0003.png?h=224&w=640)
Step 2 - Same procedure for the second DWL-6700AP (AP2), configure the same Wi-Fi network (SSID) as the first (with the same security key)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0003.png)
Step 3 - Then configure the WDS bridge, crossing the MAC addresses of the AP and selecting the same SSID and key on the 2 APs

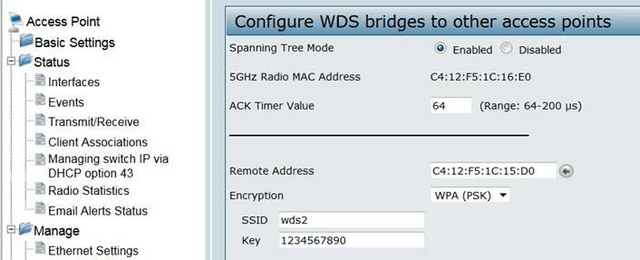

AP1 (as with "remote address" the MAC address of AP2)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0004.png)

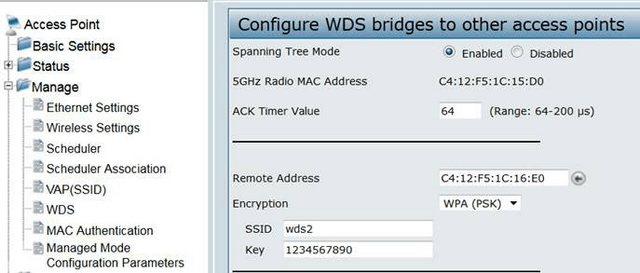

AP2 (as with "remote address" the MAC address of AP1)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0005.png)

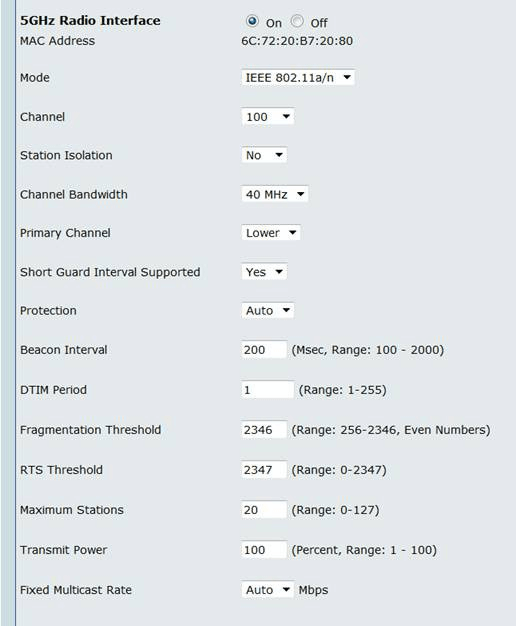

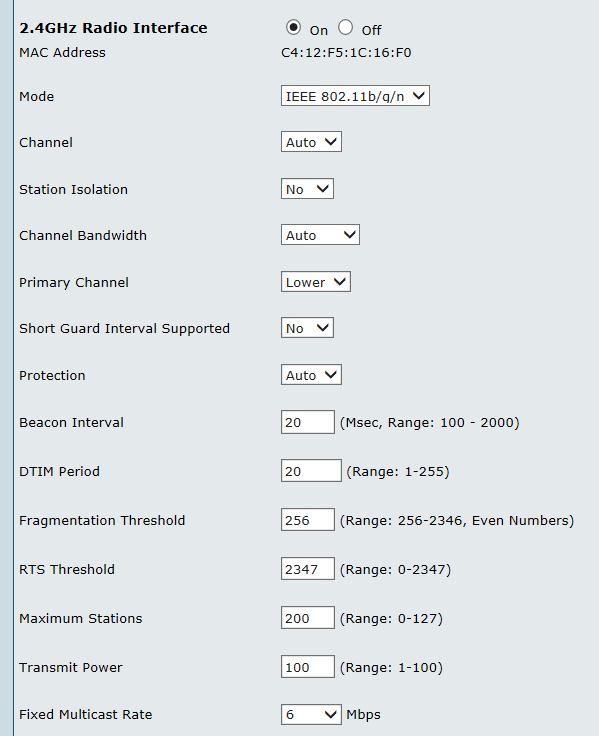

Step 4 - Configure the radios on the DWL-6700AP 2 for the 2.4GHz frequency, you can leave a car channel, against for frequency 5GHz (used for WDS) you must use the same channel
AP1 & AP2
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0006.png?h=736&w=599)
AP1 & AP2
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0007.png?h=626&w=516)
Step 5 - Then configure SSIDs on the 2.4GHz frequency band in their corresponding VLAN ID

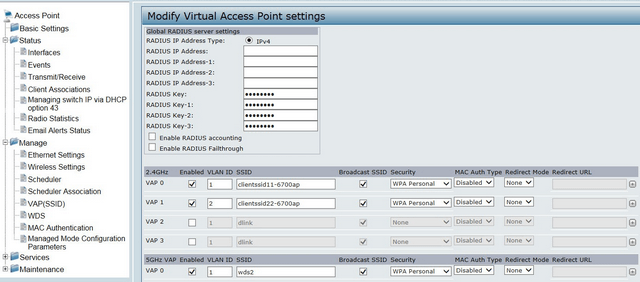

AP1:
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0008.png)

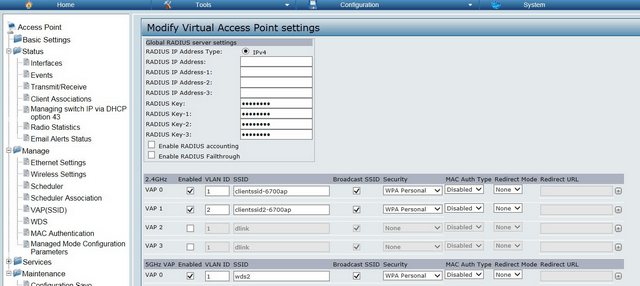

AP2 :
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0009.png)
Topology:
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0002.png)
Step 1 - Open the configuration page of the DWL-6700AP first (AP1) and configure the Wi-Fi network (SSID)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0003.png?h=224&w=640)
Step 2 - Same procedure for the second DWL-6700AP (AP2), configure the same Wi-Fi network (SSID) as the first (with the same security key)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0003.png)
Step 3 - Then configure the WDS bridge, crossing the MAC addresses of the AP and selecting the same SSID and key on the 2 APs
AP1 (as with "remote address" the MAC address of AP2)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0004.png)
AP2 (as with "remote address" the MAC address of AP1)
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0005.png)
Step 4 - Configure the radios on the DWL-6700AP 2 for the 2.4GHz frequency, you can leave a car channel, against for frequency 5GHz (used for WDS) you must use the same channel
AP1 & AP2
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0006.png?h=736&w=599)
AP1 & AP2
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0007.png?h=626&w=516)
Step 5 - Then configure SSIDs on the 2.4GHz frequency band in their corresponding VLAN ID
AP1:
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0008.png)
AP2 :
![](/bg/bg/-/media/faqs/fr/dwl/dwl-6700ap-wds-vlan0009.png)
