How to Recover the Access-Point DAP-3690
Before beginning we must keep in mind that the DAP-3690 is an outside AP, so you do not have a button to perform the reset. The only method by which you can restore factory settings is using the console port connected to a PC
Step 1 - Connect one end of the supplied console cable to the console port
of the DAP-3690 and the other to an available serial port on the PC (that you will use to connect to the AP)
Step 2 - Run HyperTerminal on the PC. (If you do not have HyperTerminal installed you can download it from Microsoft or use another program such as Putty.)
• Go to the Start menu
• Select All the programs
• Select Accessories
• Select Communications
• Select HyperTerminal
![DAP_3690_Como_instalar_firmware_de_recuperacion2](/bg/bg/-/media/faqs/es/dap/dap_3690_como_instalar_firmware_de_recuperacion2.png)

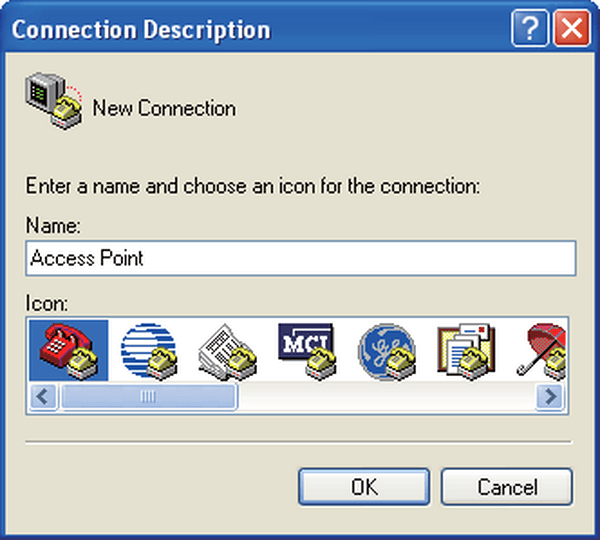

Step 3 - Enter a new connection name

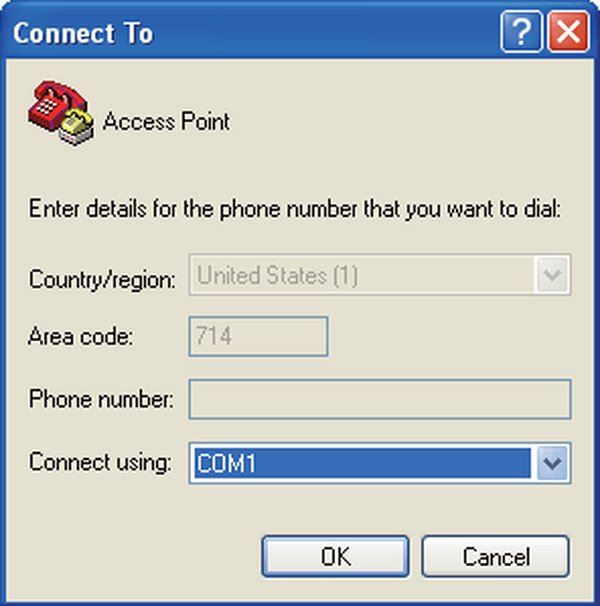

Step 4 - Select the appropriate COM port
![D-Link](/bg/bg/-/media/faqs/es/dap/dap_3690_como_instalar_firmware_de_recuperacion4.png?h=606&w=600)
If you do not know the COM port number to use from entering the device manager and verify the information in Ports (COM and LPT)
In our case we will use a USB-to-Serial adapter we specify the COM4
Step 5 – Configure the port settings as below
![D-Link](/bg/bg/-/media/faqs/es/dap/dap_3690_como_instalar_firmware_de_recuperacion6.png)

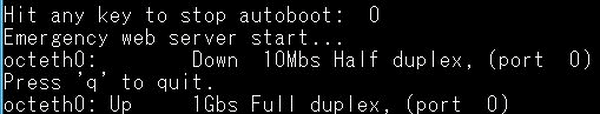

Step 6 - Press the "q" key when the U-boot appears. This will initiate an emergency web interface to load the firmware recovery
Step 7 - Connect your PC to LAN2 access point, then set a static IP on your computer within an IP range - for example: 192.168.0.51
Step 8 - Open your web browser and enter the IP address of 192.168.0.50 to access the DAP-3690 via the web recovery and restore interface
Step 9 - In order to restore the firmware or need to access without username and password, you will need the previous version of firmware1.00rc011. You can download from the following link:
1.00rc011
Step 10 - Select the firmware file above (that you downloaded onto your computer and click "Upgrade"
Step 11 - After updating turn off the access point and re-enter the console
Step 12 - Wait to load the system and then enter the following command:
Run the unquoted: "factorydefault set" command to reset your DAP-3690
With the above command, the DAP-3690 will have been reset to factory defaults and all configuration and erase the administrators password
