10G мулти-гигабитов Смарт управляеми превключватели/суичове

DXS-1210 Series

  • състоянието на продукта (Revision B1): Live
  • Free centralised management with Nuclias Connect
  • 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
  • Layer 2 management and security, with Layer 3 Lite features
  • Industry standard full CLI, web-based GUI, console port
  • Static Routing and MSTP
  • D-Link Limited-Lifetime Warranty after registration

Свалете таблицата с характеристики.

Where to buy
10G Multi-Gigabit

10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.

Web-based GUI

Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.

Layer 2 Features

Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).

Layer 3 Lite Features

Such as IP Interfaces, ARP, IPv6 Neighbor Discovery (ND), Default Routing and Static Routing.

Energy Saving Technology

Powers down any unused ports, and includes LED shut-off, port shut-off, port standby.

Quality of Service (QoS)

Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.

Network Security

D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.

Limited Lifetime Warranty & Next Day Service

Register to enjoy D-Link Limited Lifetime Warranty support. We’ll also send out a replacement product to you on the next business day after acceptance of product failure.

Learn more


Affordable 10G capabilities, for a reliable high-speed network.

Add 10-Gigabit Ethernet connectivity to your network with these cost-effective switches. Designed to work as the network core for Small to Medium Businesses (SMBs) or as an aggregation switch in a larger Enterprise.

Extensive Layer 2 & Layer 3 Lite features.

The DXS-1210 series includes layer 2 features such as port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). They also support IP interfaces, ARP, IPv6 Neighbor Discovery (ND), default routing, IPv4/IPv6 static routing, IGMP and MLD Snooping, auto voice and surveillance VLAN, LLDP and LLDP-MED.

Improved intranet performance
Inter-VLAN routing allows traffic to be routed between VLANs without passing through the router, reducing the load on the router as well as the backbone networks.

Security and QoS controls for priorities
Security controls for protection of the network, and QoS ensures essential traffic reaches its destination.





Seamless integration.

The DXS-1210 Series comes with both RJ45 and SFP+ ports capable of connecting to Cat. 6 and fibre for 10G Ethernet. This means the DXS-1210 series can provide a flexible solution for upstream or downstream server connections, making network deployment easier.

Security with every port.

The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.

These switches also feature Address Resolution Protocol (ARP) spoofing prevention which further protects the network from cyber attacks. They also use packet control ACLs to block invalid packets that contain fake ARP messages.

The Access Control List (ACL) helps protect the internal IT network through permission-based network access.

The DHCP server screen feature filters DHCP replies on unauthorised ports to prevent them from being assigned an IP address.

And support for 802.1X port-based and host-based authentication allows the network to be authenticated through external RADIUS servers.

QoS and Bandwidth Control for network priorities.

The DXS-1210 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, to make faster VoIP and video surveillance deployments.

If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.



Auto Surveillance VLAN
Automatically detects and assigns video surveillance traffic to a high-priority VLAN by creating distinct broadcast domains to guarantee that quality real-time video is transferred.

Auto Voice VLAN
Enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.

As a result, the voice and video packets take precedence over other packets. And with bandwidth control, more bandwidth can be reserved for important functions.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Комуникацията с нас е лесна

Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

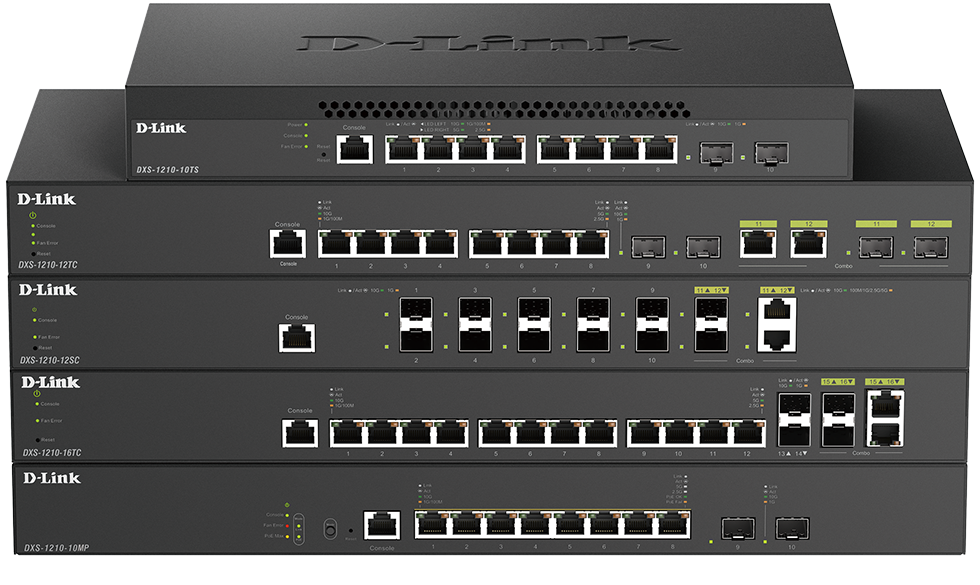

In the series

DXS-1210-10TS
  • 8 x 100/1000/2.5G/5G/10GBASE-T ports
  • 2 x 10G SFP+ ports
  • 200 Gbps switching capacity
DXS-1210-12TC
  • 8 x 100/1000/2.5G/5G/10GBASE-T ports
  • 2 x 10G SFP+ ports
  • 2 x 100/1000/2.5G/5G/10GBASE-T/SFP+ combo ports
  • 240 Gbps switching capacity
DXS-1210-12SC
  • 10 x 10G SFP+ ports
  • 2 x 100/1000/2.5G/5G/10GBASE-T/SFP+ combo ports
  • 240 Gbps switching capacity
DXS-1210-16TC
  • 12 x 100/1000/2.5G/5G/10GBASE-T ports
  • 2 x SFP+ ports
  • 2 x 100/1000/2.5G/5G/10GBASE-T/SFP+ combo ports
  • 320 Gbps switching capacity
DXS-1210-28T
  • 24 x 10GBASE-T ports
  • 4 x 10/25G SFP28 ports1
  • 680 Gbps switching capacity
DXS-1210-28S
  • 24 x 10G SFP+ ports
  • 4 x 10GBASE-T ports
  • 560 Gbps switching capacity

Подобни продукти

D‑View 7 система за мрежово управление
DV-700
Разбери повече
Гигабитови струпваеми Smart управляеми суичове
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Разбери повече
Интелигентни+ Управляеми Гигабитови Суичове
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Разбери повече

Технически характеристики

Type
Smart managed
Number of ports
16 to 30 ports
5 to 14 ports
Layer
Layer 2+
Main type of ports
100/1000/2.5G/5G/10GBASE-T Ethernet
Type of uplink ports
10GbE SFP+
Combo 10GBASE-T/SFP+
Switching capacity
200 Gbps
240 Gbps
320 Gbps
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Auto Voice VLAN
IP interfaces
16
Static route for IPv4/IPv6
IPv4 - 32
IPv6 - 32
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL type
VLAN-based
ACL based on packet contents
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
LLDP
Supported
LLDP-MED
Supported
ICMPv6
Supported

1 On DXS-1210-28T, ports 25-28 must operate at the same speed. i.e., either at 10G or 25G.
