Power Over Ethernet Adapter


  • състоянието на продукта (Revision A): End of Life

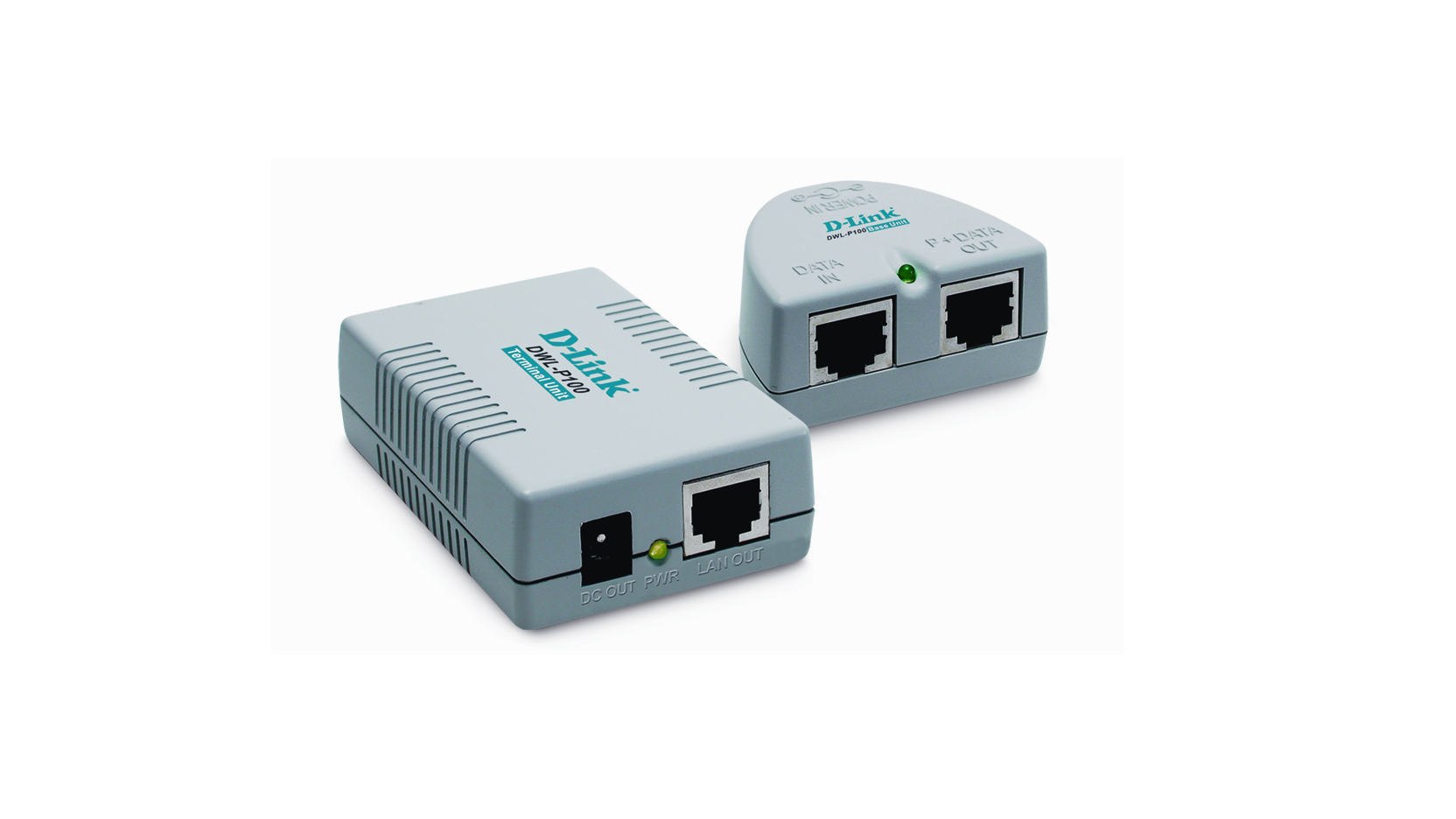

The DWL-P100 Power Over Ethernet (POE) Adapters are accessory items designed to supply operational power to devices with an Ethernet port and power requirements that do not exceed 5 Volts/1 Amp.

D-Link introduces another revolutionary product - the D-Link DWL-P100 Power Over Ethernet (POE) Adapter. It delivers data and electrical power to access points using standard Category 5 Ethernet cable. This eliminates the need for electrical cable and power converters at each access point location.

The DWL-P100 Power Over Ethernet (POE) Adapter is easy to install. It 's Plug n Play and requires no tools or software. Best of all, the DWL-P100 is light weight and compact size means you can locate it virtually anywhere and never know it 's there. The DWL-P100 transfers data on Category 5 Ethernet cable pairs 1/2 and 3/6. Power is transmitted on unused Ethernet pairs 4/5 and 7/8. It has an operational range of up to 328 ft./100m, which is a requirement of the Fast Ethernet standard.

Terminal Unit With the DWL-P100 you can mount devices such as an access point virtually anywhere in a building without worrying about the location of a power supply.

Технически характеристики

Power Over Ethernet Includes
  • 1 base unit
  • 1 terminal unit

Category 5 Pin Power Usage
  • Data: pins 1, 2, 3, 6
  • Power: pins 4, 5, 7, 8

Output Voltage
  • Input: 48VDC, 400mA
  • Output: 5VDC, 2.5A

Ethernet Cable
  • Data rate: 10/100Mbps
  • TIA/EIA 568 Cat. 5
  • Connector: RJ-45

  • Base unit: 53 x 42 x 25 mm
  • Terminal unit: 80 x 53 x 25 mm

Operating Temperature
  • 0 ° to 40 °C

Storage Temperature
  • -20° to 70 °C

Operating Humidity
  • Up to 90% non condensing

EMI Certification
  • FCC Part 15 Class B
  • CE Class B

Power Adapter Safety Certifications
  • UL
  • TUV

Product Support Section

Този продукт ще бъде прекратен на: 05/03/2007
Последната дата на поддръжка на този продукт е: 04/03/2009
Версия Дата Тип Размер на файла
Datasheet (English) - PDF 0.19mb Свали
Версия Описание Дата Тип Размер на файла
Manual (English) Manual (English) 2.2.2005 г. PDF 0.17mb Свали
Версия Описание Дата Тип Размер на файла
Quick installation guide (English) 11.8.2008 г. PDF 0.65mb Свали
Версия Описание Дата
DEU_CE_B1_RevA Certificate of Declaration B1 3.4.2006 г. Свали
DEU_CE_RevA Certificate of Declaration 18.7.2003 г. Свали
