Wireless AC1300 Wave 2 Dual-Band Unified Access Point with Smart Antenna
DWL-6620APS
- състоянието на продукта (Revision A): Live
- 802.11ac Wave 2, up to 1.3 Gbps* speeds
- 2x2 Internal D-Link Smart Antennas
- Up to 32 virtual access points per access point
- Multi-User Multiple-Input Multiple-Output (MU-MIMO)
- Quality of Service (QoS)
- Link aggregation
- Register for Limited Lifetime Warranty
Свалете таблицата с характеристики.
Where to buyWave 2 has landed. Connect to more.
Unparalleled performance makes the DWL-6620APS Wireless AC1300 Wave 2 Unified Access Point a must-have upgrade that allows your wireless customers in high-density areas to reliably connect to more, with faster throughput and flexibility. Perfect for medium to large-scale Wi-Fi networks.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_01_overview.png?h=562&w=2000&la=bg-BG&hash=261D4A9D130E4BB4C5461839CAC2C37B)
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_02_wirelessspeed.png)
AC1300 Wave 2 Wi-Fi
Combined wireless speeds of up to 1.3 Gbps* with 802.11ac Wave 2 technology.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_03_upgradenetwork.png)
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_04_bandwidth.png)
D-Link Smart Antenna
Improved throughput and coverage by reducing co-channel interference, bringing more reliability in high-density areas.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_05_seamlessroaming.png)
Band steering
Automatically steers traffic to the fastest, least congested band.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_06_smartgreen.png)
Smart, secure & green
The wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saves power and increases network security.

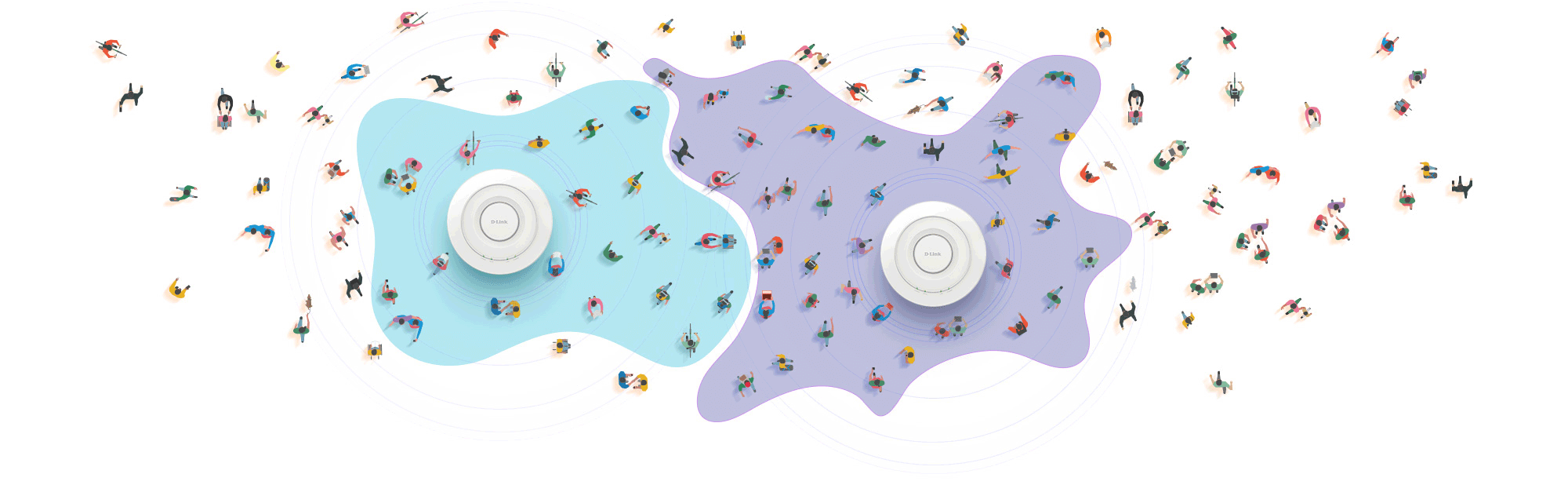

Smart Antenna Technology
D-Link’s Smart Antenna technology processes algorithms used to identify spatial signal signatures such as Direction Of Arrival, and uses them to calculate beamforming vectors which are then used to target the wireless client and achieve the best possible throughput.
The fast channel selection feature scans all channels and rapidly selects the one with the least interference. And the Null Steering capability curtails the power in the direction of interference to mitigate its influence. With these capabilities the D-Link Smart Antenna strengthens the connection reliability in real-time and delivers an optimised wireless user experience.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_08_smartantenna.png?h=618&w=2000&la=bg-BG&hash=13D4070F2EDE0A9A00D1B8274D844837)

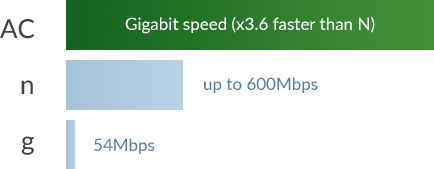

Greater Speed & Connectivity
It provides unparalleled connectivity by using the 802.11ac Wave 2 standard. High combined data rates of 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n) can be delivered over the air and Wi-Fi Multimedia (WMM) together with 802.1p Quality of Service (QoS) can give time-sensitive traffic like Voice over IP (VoIP) or video streaming a higher priority ahead of other traffic.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_09_diagram.png?h=169&w=434&la=bg-BG&hash=C5AAF5470C13855B394E86D665001551)

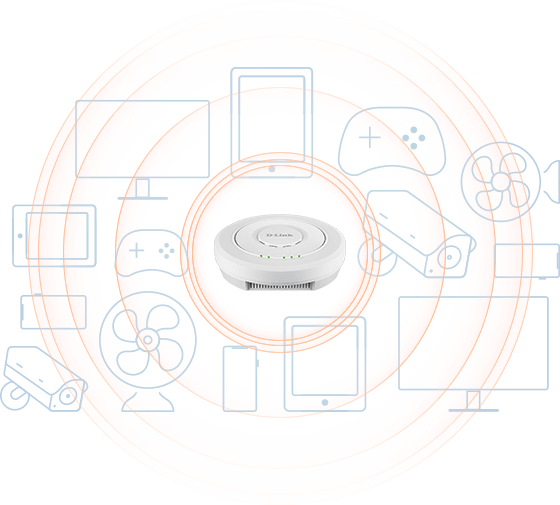

Efficiency multiplied
Support for 802.11ac Wave 2 MU-MIMO technology enables the access point to communicate with multiple clients simultaneously, resulting in significantly improved network capacity and throughput.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_10_upgradenetwork.png?h=505&w=560&la=bg-BG&hash=D5D7B31F4AA31C992826277042F0C7BB)

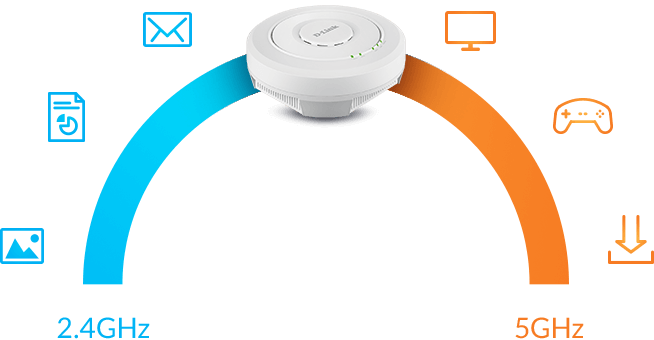

Dual-Band Wireless for efficient performance
The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers.
Airtime fairness ensures that equal airtime is given to each client, providing improved performance even when slower devices are connected.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_11_dualband.png?h=340&w=654&la=bg-BG&hash=92AF871CC6F83FFDBD0AE186FFF05316)
Centrally Manage your Wireless Network

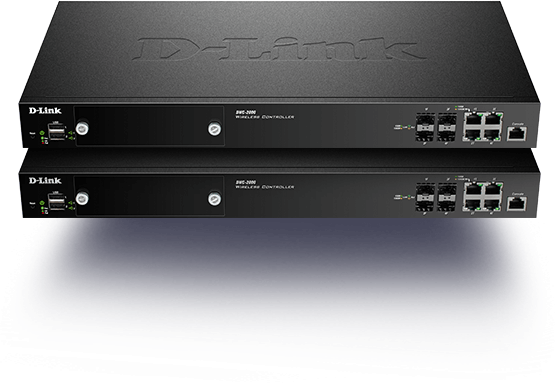

When deployed in combination with D-Link Wireless Controllers (DWC-1000/DWC-2000), up to 1,024 DWL-6620APS access points can be centrally managed. Once the APs are discovered by the controller, any configuration can be pushed to them as a group, instead of doing so individually. Additionally, Radio Frequency (RF) resource management1 allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.
1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Wireless Controllers (DWC-1000/DWC-2000)![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_12_manage.png?h=383&w=560&la=bg-BG&hash=3962622F16963A02DD1C11C4CD232110)
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_13_dlinkassist.png?h=556&w=2000&la=bg-BG&hash=9BCDAA3E63A4814E65C980DCF4A6F783)
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
![](/bg/bg/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_14_assistlogo.png?h=92&w=224&la=bg-BG&hash=54B21CBA9B019488534DEA0D54D0D019)
Тук сме, за да помогнем
![](/bg/bg/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=bg-BG&hash=382AC39FE30601D0DFD6EE6AEF3A105D)
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
![](/bg/bg/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=bg-BG&hash=BF6E065BFF702C3480B254A0AA2D2DDB)
Комуникацията с нас е лесна
Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.
![](/bg/bg/-/media/product-pages/common/callouts/icon_limitedlifetime_warranty.png?h=113&w=108&la=bg-BG&hash=E951711742D6F78DC9ECD9D1DFF06EFA)
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Подобни продукти
![](/bg/bg/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=bg-BG&hash=C5AE2910E9B99FFC6B4844FA0EAB6D2E)
![DWC 1000 Front](/bg/bg/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=bg-BG&hash=15A1E5F48DD7BF08D0C55C5F7C17ABCC)
Технически характеристики
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded smart antenna |
Power-over-Ethernet
|
Yes |
Wired interface
|
2 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) |
Advanced features
|
Fast Roaming MU-MIMO Smart Antenna SmartBeam SmartConnect band optimisation |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
* 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n). Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Wireless Controllers (DWC-1000/DWC-2000)
2 The 2x2 smart antenna supports up to 81sets of radio patterns. The omni-directional mode is one such pattern.
