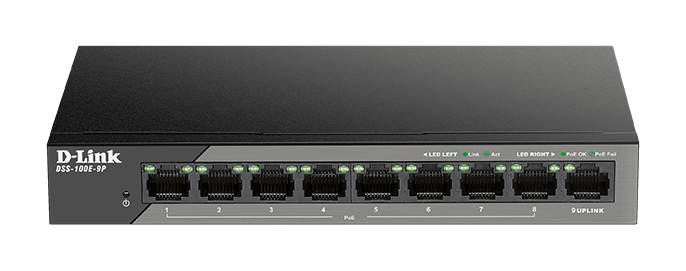

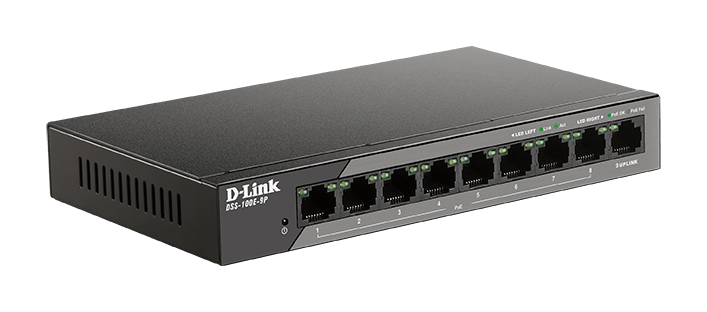

Fast Ethernet PoE Unmanaged Surveillance Switches
DSS-100E Series
- състоянието на продукта (Revision A1): End of Sale
Simple, robust, professional
Fast Ethernet PoE Unmanaged Surveillance Switches.
Designed for surveillance deployments with high PoE+ power budgets, the DSS-100E Series Switches allows security cameras to be deployed at an extended distance without the need for any additional equipment, providing flexibility and convenience while saving on installation costs.
Long Range PoE Delivery
Connect and power cameras up to 250 metres away without the need for additional PoE extenders.
Power Your Devices
Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.
Reliable PoE Connections
Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.
High PoE power budget
Total PoE power budget of up to 230W, with up to 30W on each port.
Built for surveillance
No configuration required. Automatically detects when the switch itself and devices are it’s added to the network.
Gigabit Uplink
Reduces bottlenecks by providing ample bandwidth for connecting back to the core of your network.
Plug & Play Installation
Simply connect the switch to your network and you’re ready to go.
2 години гаранция
Защитени от един от световните лидери в бранша.

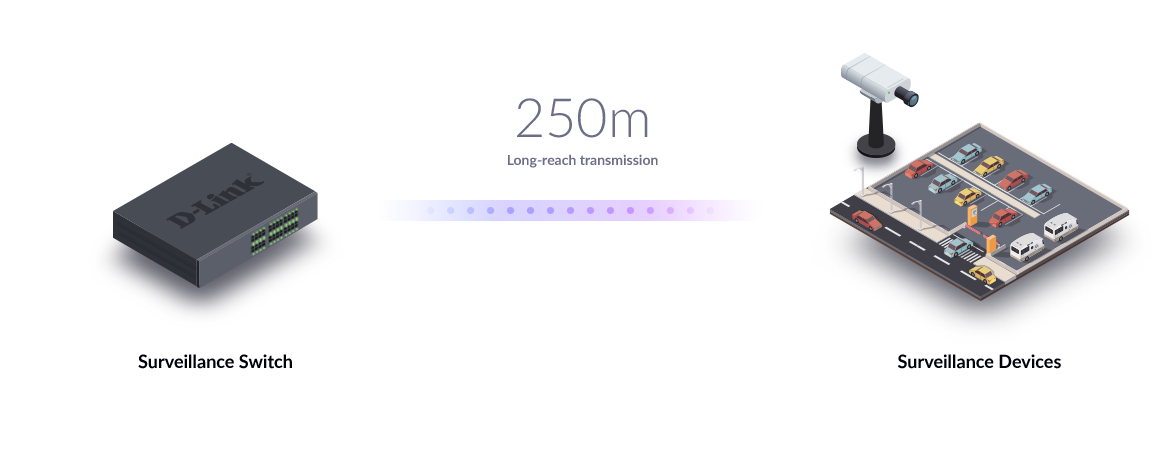

Go the distance, without loss in power transmission.
Deploy IP cameras in more areas with the DSS-100E switch series’ long-range PoE transmission distance support of up to 250 metres1. And with high PoE+ power budgets across the switch series, more security cameras can be deployed further away without the need for any additional equipment, ideal for expanding any surveillance network.

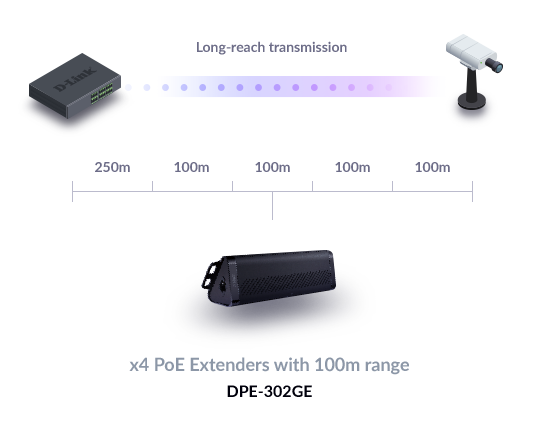

250m not enough? Reach up to 650m.
The DSS-100E series of surveillance switches can be combined with the DPE-302GE PoE Extender to maximise your PoE camera deployment distance to a maximum of 650m, drastically lowering the cost for installing any PoE Ethernet devices..
Protection you can rely on for every port.
The series supports 6kV surge protection to defend your surveillance network against lightning and power-related incidents. The shield will prevent damage to the network and ensures no interruptions or blackouts in your surveillance systems.
Intelligent plug & play.
Simply plug in, and you’re ready to go. The DSS-100E series makes adding IP cameras, IP phones and other PoE capable devices quick and easy. The switch automatically detects connected devices and ensures optimal performance without the fuss of managing the network.
Saves your budget, and the planet.
The switch can automatically detect when network traffic is being passed through ports, and powers them down when not in use. Good for saving on operating costs, and better for the environment too.
Тук сме, за да помогнем
Над 35 години опит в сферата на компютърните мрежи
Експерти в създаването на комплексни иновативни решения за малки фирми и големи корпорации
Комуникацията с нас е лесна
Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.
2-годишна гаранция от D-Link
Предоставена от световен лидер в бранша.
Подобни продукти
Технически характеристики
|
Type
|
Unmanaged |
|---|---|
|
Number of ports
|
16 to 30 ports 5 to 14 ports |
|
Layer
|
Layer 2 |
|
Main type of ports
|
100BASE-TX Fast Ethernet |
|
Type of uplink ports
|
1000BASE-T Gigabit Ethernet Combo 1000BASE-T/SFP |
|
Switching capacity
|
3.6 Gbps 7.2 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Long range PoE
|
Supported
|
|
Number of PoE ports
|
16 8 |
|
PoE power budget
|
See datasheet See datasheet |
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Desktop Rackmountable |
|
Housing
|
Metal |
|
MAC address
|
2K 4K |
1 Compatible with a wide selection of D-Link PoE-enabled cameras. Please check with your local D-Link customer service for more information. Up to 250 metres connectivity may be affected by cabling quality. We recommend customers to test compatibility before actual physical deployment.
Product Support Section
| Версия | Дата | Тип | Размер на файла | |
|---|---|---|---|---|
| Datasheet EN | - | 0.34mb | Свали |
| Версия | Описание | Дата | Тип | Размер на файла | |
|---|---|---|---|---|---|
| QIG 9P 1.01 RevA1 | Quick Install Guide | 21.5.2020 г. | - | - | Свали |
| QIG 9P 1.00 RevA1 | Quick Install Guide | 4.3.2020 г. | - | - | Свали |
| QIG 18P 1.00 RevA1 | Quick Install Guide | 2.1.2020 г. | - | - | Свали |
| QIG 18P 1.01 RevA1 | Quick Install Guide | 2.1.2020 г. | - | - | Свали |
| QSG 9P 1.00 RevA1 | Quick Setup Guide | 6.12.2019 г. | - | - | Свали |
| Версия | Описание | Дата | |
|---|---|---|---|
| CE doc UKCA 6P 1.00 RevA1 | CE Document | 17.10.2021 г. | Свали |
| CE doc UKCA 18P 1.00 RevA1 | CE Document | 17.10.2021 г. | Свали |
| CE doc UKCA 26P 1.00 RevA1 | CE Document | 17.10.2021 г. | Свали |
| CE doc UKCA 9P 1.00 RevB1 | CE Document | 17.10.2021 г. | Свали |
| CE doc 18P 1.00 RevA1 | CE Document | 17.4.2020 г. | Свали |
| CE doc 9P 1.00 RevA1 | CE Document | 18.3.2020 г. | Свали |
