5 Megapixel Varifocal Outdoor Dome Network Camera

DCS-6517

  • състоянието на продукта: End of Sale

There's a new version of this product:

8 Megapixel H.265 Outdoor Dome Camera

DCS-4618EK

See Newer Product

There's a new version of this product:

DCS-4618EK

8 Megapixel H.265 Outdoor Dome Camera

Overview

  • 4K Ultra HD 8-megapixel sensor
  • Vandal-proof IK10-housing
  • IP66 Weather-Resistant
  • Motorised varifocal lens
  • 30m Night Vision with WDR & LowLight+
  • PoE for easy installation
  • Easy remote management with D-ViewCam

See Newer Product

Overview

  • 4K Ultra HD 8-megapixel sensor
  • Vandal-proof IK10-housing
  • IP66 Weather-Resistant
  • Motorised varifocal lens
  • 30m Night Vision with WDR & LowLight+
  • PoE for easy installation
  • Easy remote management with D-ViewCam

See Newer Product

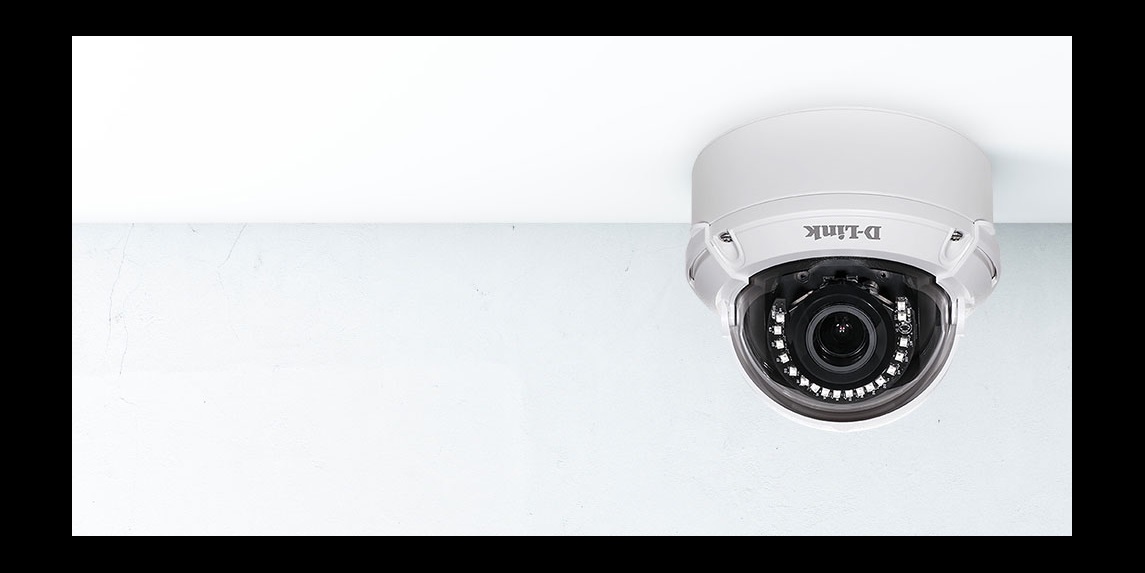

The D-Link DCS-6517 5 Megapixel Varifocal Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for businesses and enterprises. It uses a 5 megapixel progressive scan CMOS sensor to deliver truly superior quality video as well as support the latest H.265 High Efficiency Video Coding standard to maximise network bandwidth. Power over Ethernet (PoE) and a rugged, weatherproof design makes this camera extremely reliable and ideal for deployment in any surveillance application.

Built for the Outdoors

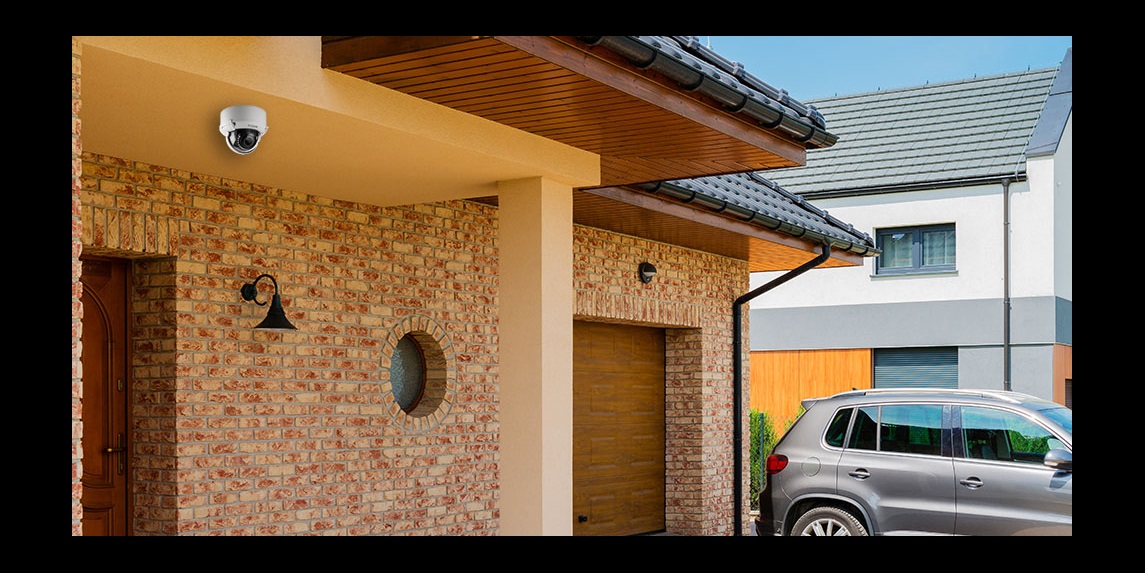

Specially built for outdoor use, the DCS-6517 has an IP67 weatherproof housing that protects it from dirt and rain. The durable housing has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that are prone to vandalism.


Continuous Monitoring

The DCS-6517 also has built-in smart IR LED illuminators with a 20 metre range, allowing the camera to keep watch even in complete darkness. To maximise bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording.


Flexible Connectivity

The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Robust Management Software

Includes D-ViewCam™, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location.
Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Подобни продукти

Functional Cable for DCS-6517, DCS-7513, DCS-7517
DCS-11
Разбери повече

Технически характеристики

Indoor/outdoor
Indoor
Outdoor
Type
Dome
Connectivity
Wired PoE
Resolution
5 megapixel
Image sensor
1/2.9'' 5 megapixel WDR progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)
2560 x 1920 (other)
Lens
2.8-12 mm
F1.4
Motorised Varifocal
Angle of View (H/V/D)
75° ~ 24° / 55° ~ 18° / 96° ~ 30°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
20 m
Wide Dynamic Range(WDR)
Supported
Optical Zoom
4.2x
Privacy Masks
5 zones
Vandal Proof
Supported
2-way audio
Supported
External Microphone Input
Supported
External Speaker Output
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC SDXC (max 128 GB)
Power Consumption
10 W
Features
ONVIF
Video Format
H.264
H.265
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Tamper Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
Този продукт ще бъде прекратен на: 08/06/2022
Последната дата на поддръжка на този продукт е: 08/06/2027
