2
Years Warranty
3G
Network Support
300 Mbps
Capability
MIMO
Technology
Integrated Wireless Connectivity

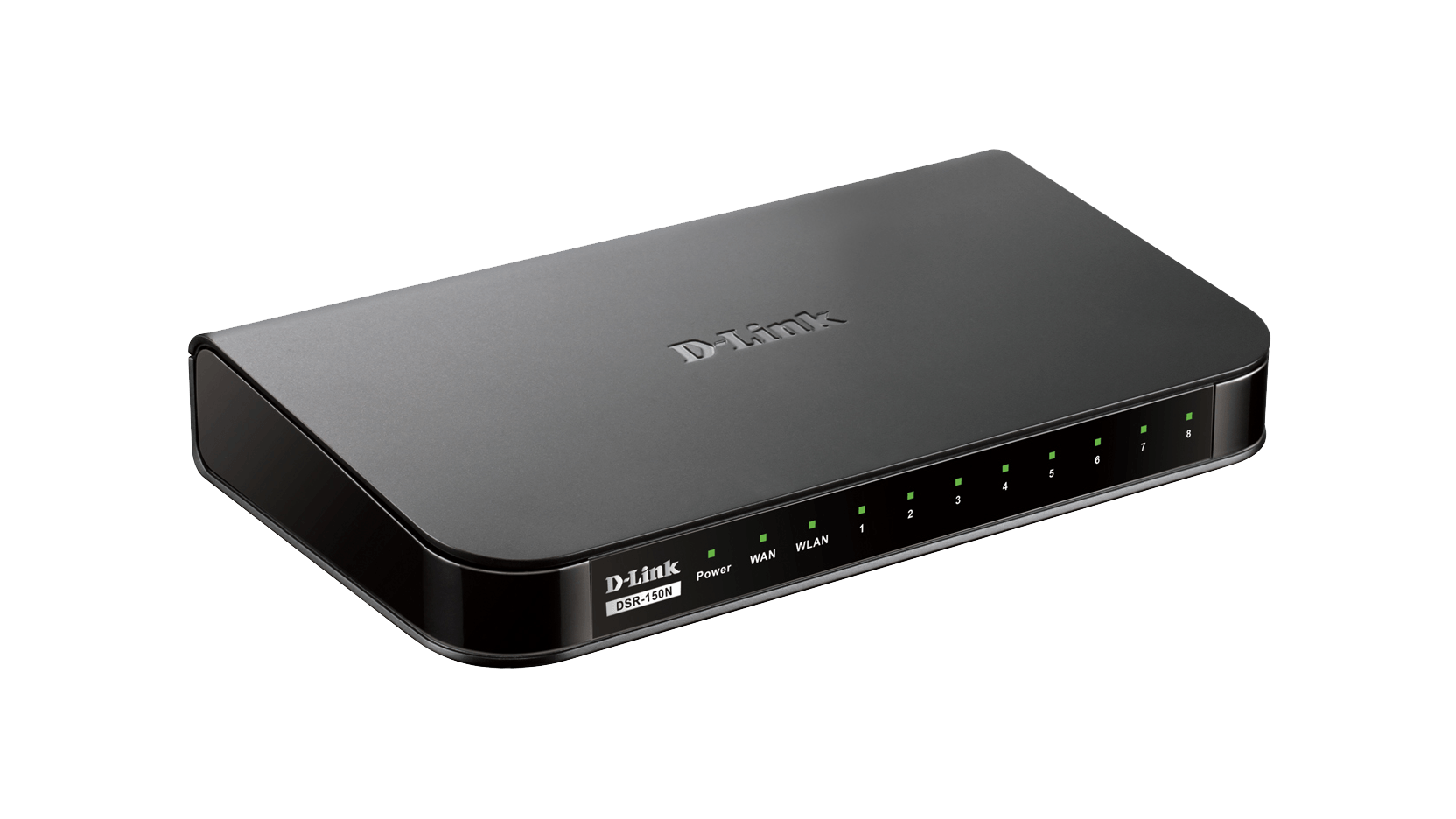

The DSR-150N Wireless VPN Security Router is an all-in-one networking solution. Integrated high-speed IEEE 802.11n wireless technology offers comparable performance to traditional wired networks, but with fewer limitations. Support for separate Virtual LANs (VLANs) means the network can be partitioned, for instance to enable visitors to connect to the Internet without giving them access to the full corporate network.
Flexible Deployment Options
With 3G mobile Internet connectivity support via an optional 3G USB dongle3. This 3G network capability offers the ability to stay connected when wired Internet is not available or as a backup if the wired Internet connection fails.
Security
This affordable, high performance router also enables businesses to secure their network whether in the office, at home or out on the road. You and your colleagues can stay connected to the office anywhere, anytime.
Complete VPN features, as well as IPSec Hub and Spoke technology, ensures secure communication between mobile employees and offices.
Features
VPN
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network.
SSL
A Secure Sockets Layer (SSL) VPN tunnel provides remote access to a central corporate network
GRE
5 Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database
IPSec
Site-to-site VPN tunnels use IP Security (IPSec) Protocol
PPTP
Point-to-Point Tunneling Protocol (PPTP)
L2TP
Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links
Efficient Green Technology
D-Link Green Wi-Fi and D-Link Green Ethernet features save power and help cut energy usage costs. The D-Link Green WLAN Scheduler shuts down your wireless network automatically according to a schedule you define, allowing you to turn it off during off-peak hours, saving energy and keeping your network secure. The D-Link Green Ethernet feature can detect if a link is down on a port, and automatically puts that port into a sleep mode that drastically reduces the amount of power used. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green-certified devices an environmentally responsible choice.
1 Available through future firmware upgrade.
2 Maximum wireless signal rate derived from IEEE Standard 802.11. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
3 The following 3G dongles are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5*/A6*, DWM-157*, Huawei E1550, E173, and EC306.* The dongles marked with * will be supported through firmware upgrades.
Технически характеристики
Type
|
VPN security router |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Single-band |
Wireless speed
|
300 Mbps 2.4 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
2 dBi for 2.4 GHz |
Wired interface
|
1 x Fast Ethernet WAN 8 x Fast Ethernet LAN |
USB ports
|
1 x USB 2.0 |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) |
Advanced features
|
MIMO |
Maximum number of SSIDs
|
4 |
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
Firewall throughput
|
95 Mbps |
VPN throughput (3DES)
|
40 Mbps |
Concurrent sessions
|
20000 |
Firewall policies
|
200 |
Internet connection type
|
Multiple PPPoE PPPoE/L2TP/PPTP Static/Dynamic IP |
Firewall system
|
Dynamic DNS Inter-VLAN route NAT, PAT Static route Web content filtering |
Networking
|
3G redundancy DHCP relay DHCP server/client IEEE802.1q VLAN IP multicast IPv6 VLAN (port-based) |
VPN tunnels
|
26 |
IPSec tunnels
|
10 |
PPTP/L2TP tunnels
|
1 |
Encryption methods
|
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL RC4-128, 3DES, AES |
VPN features
|
Dead Peer Detection Hub and Spoke IP Authentication Header (AH) IP Encapsulating Security Payload (ESP) IPSec NAT Traversal IPSec/PPTP/L2TP Server VPN Tunnel Keep Alive |
Bandwidth management
|
Maximum bandwidth control Port-based QoS |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
