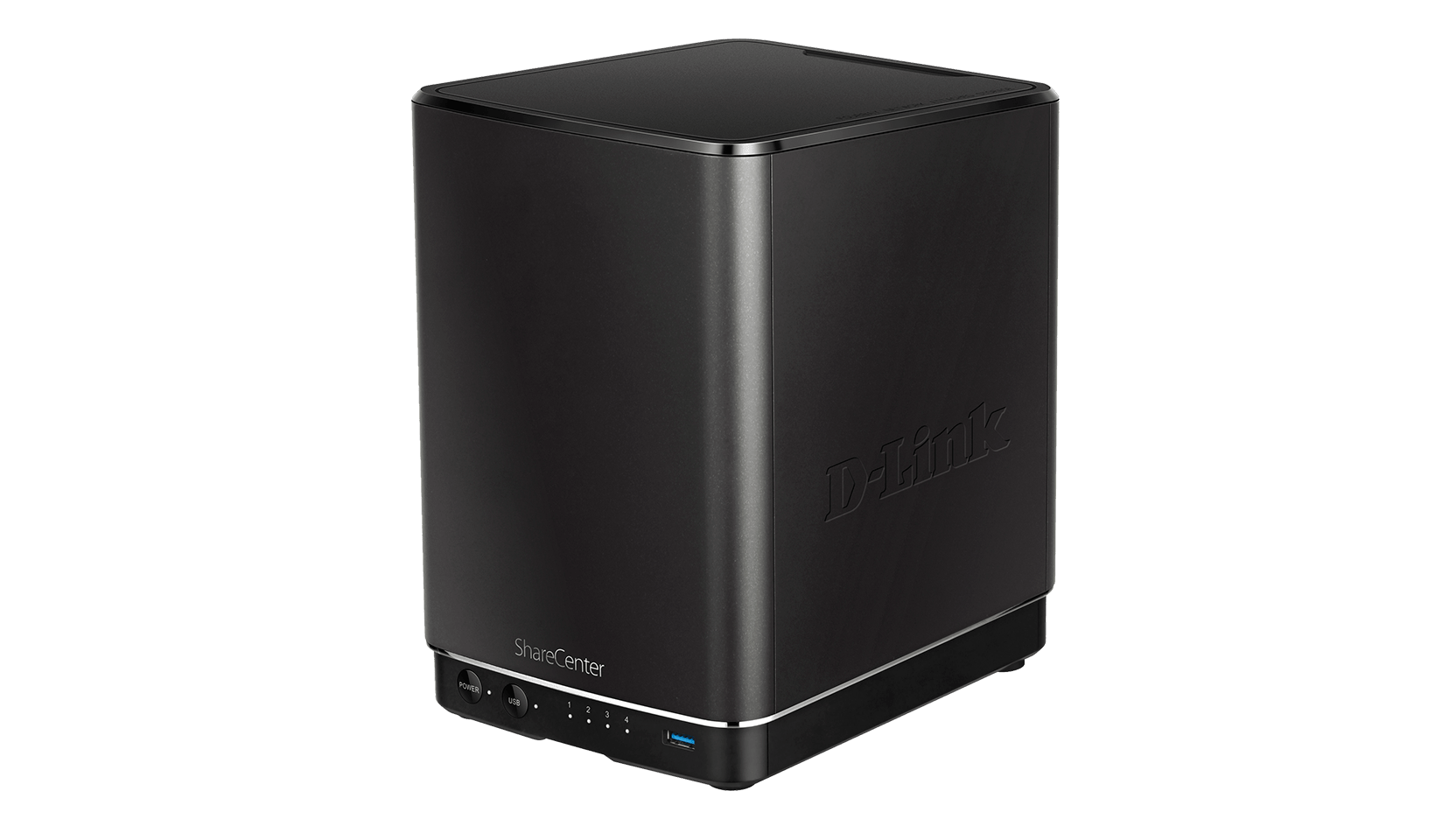

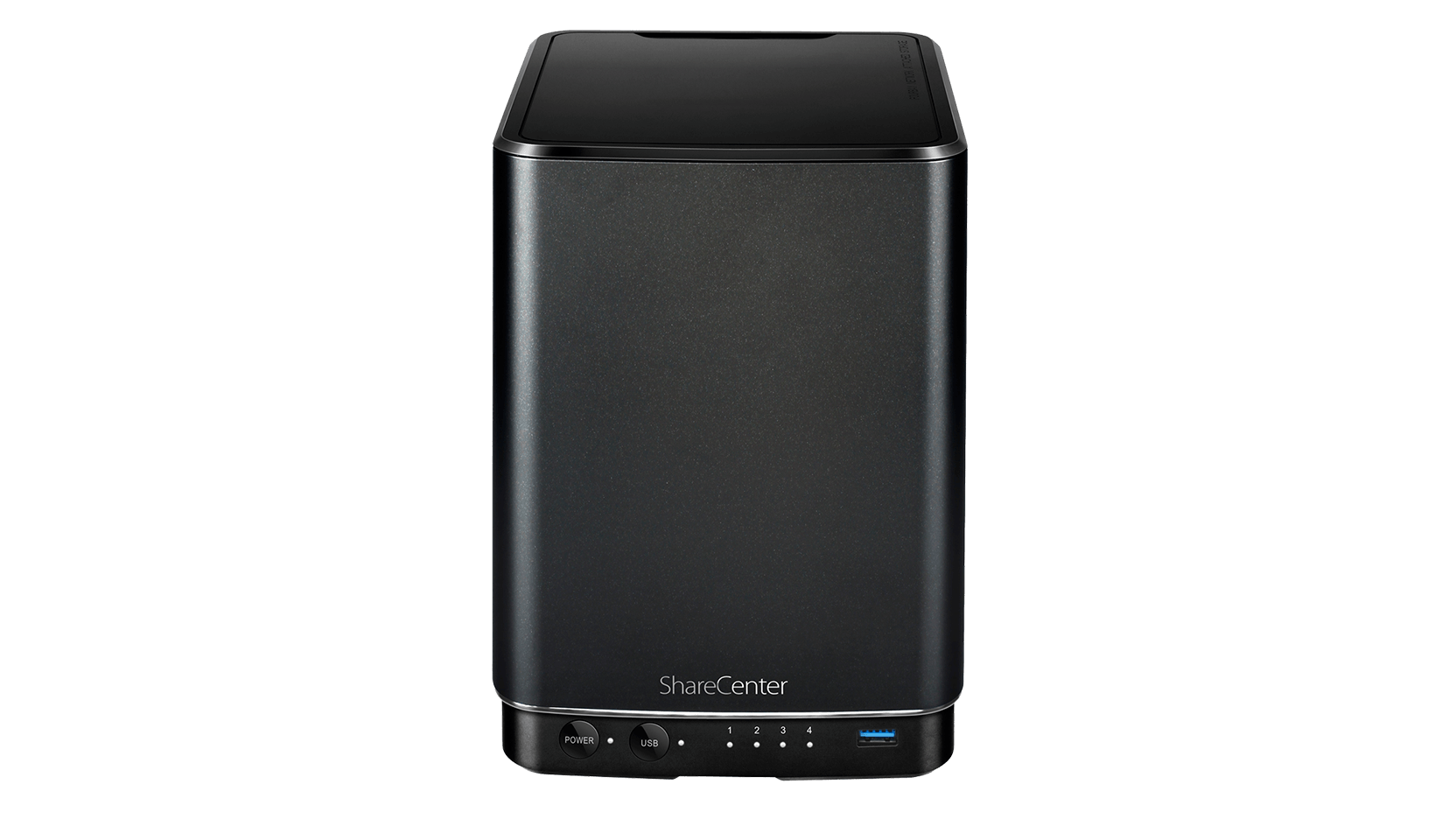

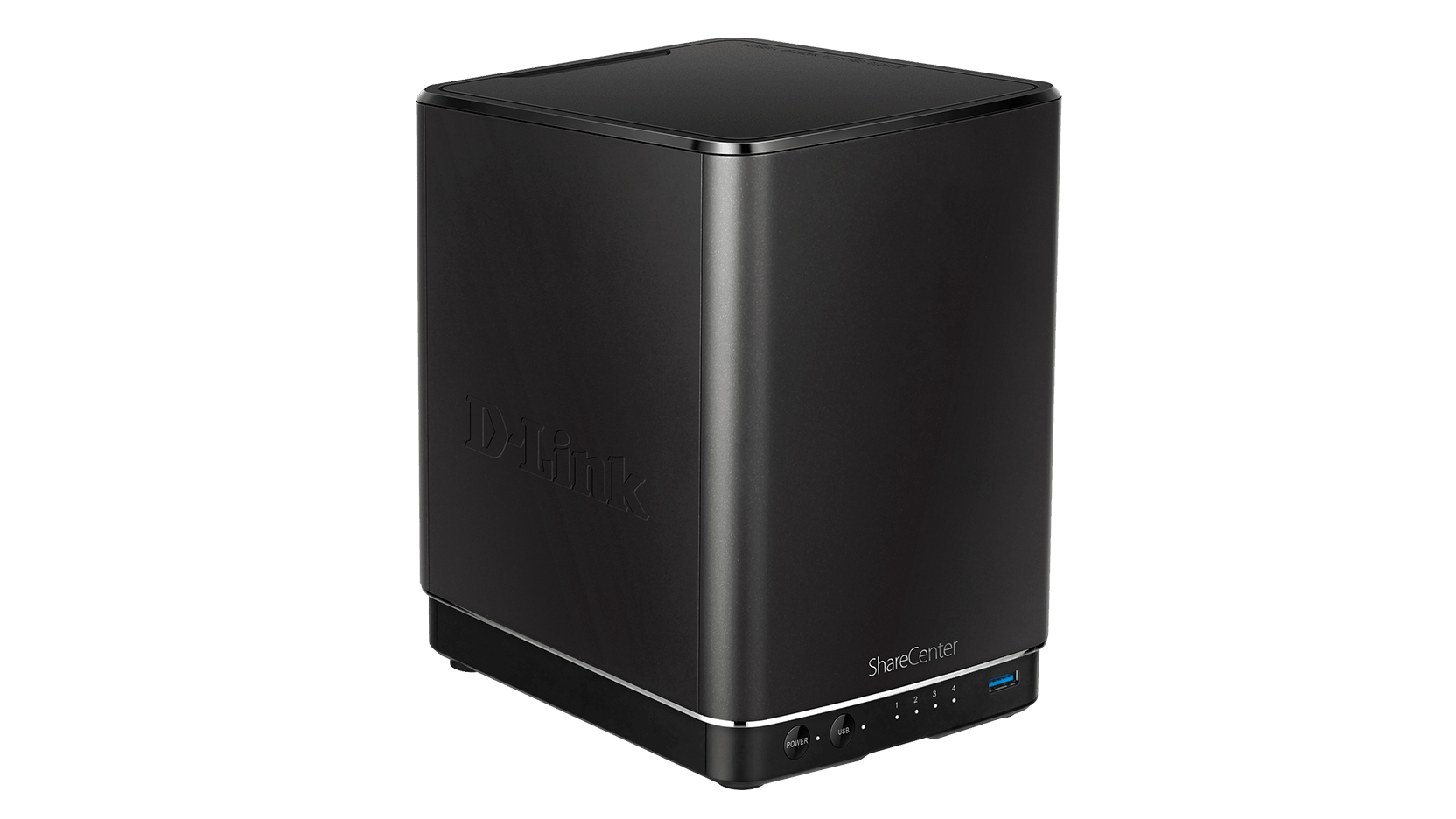

ShareCenter™+ 4-Bay Cloud Network Storage Enclosure

DNS-340L

  • състоянието на продукта (Revision A): End of Life

Create your own personal cloud with the DNS-340L ShareCenter+ 4-Bay Cloud Network Storage Enclosure - an easy-to-use solution for accessing, sharing and backing up your important data. Multiple RAID options allow you to keep all of your business or personal data safely stored and protected, and still have it at your fingertips with this sleek, high-performance network storage enclosure.

mydlink

Product Highlights

Create your personal cloud storage

Access your files from anywhere on any computer or on iOS and Android smartphones and tablets with the free mydlink™ Access-NAS app

Stream, store, and backup

watch HD entertainment, manage your files, and back up your most important data securely

Built-in smart library

allows you to effortlessly organise your music and photos. Surveillance Center allows you to create a surveillance network with mydlink-enabled cameras without complicated setup

Easy to setup and access

Simply open the top, insert up to 4 hard drives and follow the step-by-step setup wizard

Share Your Files from Anywhere

The ShareCenter+ 4-Bay Cloud Network Storage Enclosure includes a web enabled file server which allows you to download your documents, photos, and other multimedia files from wherever you are.

Once configured, simply log into your ShareCenter+ using the friendly web user interface to view a list of available files.

Stream Digital Media With a Built-in Media Server

Back up your digital media files to the ShareCenter+ for safekeeping, and enjoy the benefits of the built-in DLNA Certified UPnP AV media server. Stream digital content to compatible media players such as the PlayStation 3, Microsoft Xbox 360/One or directly to a smart TV. You can also enjoy photo, music and video streaming remotely through mobile devices.

More Than Just a Network Attached Storage

The DNS-340L includes smart library applications that allow you to organise your music and photos effortlessly. Music Center allows you to manage your music collection with integrated music player and Apple AirPlay support whilst Photo Center lets you create albums and manage photos, and share through social networks such as Facebook, Picasa and Flickr. Surveillance Center gives you the ability to set up a comprehensive surveillance system with mydlink-enabled cameras without complicated setup. Additional third party add-on applications are available to allow you to do even more with the DNS-340L.

Easy Installation and Setup

The DNS-340L can accept 3.5” internal SATA hard drives up to 6 TB1, and installing drives is as simple as popping the top, attaching the hard drive holders and then sliding them into place. Remove the top to access the drive bays, then just slide in your storage drives into place and you’re ready. USB ports on the front and back of the ShareCenter+ can be used to attach a multifunction USB printer, an Uninterruptible Power Supply (UPS), or an external USB storage drive to use with the one-touch backup function.

Combined with a D-Link Cloud Router, the DNS-340L can also take advantage of Zero Configuration Setup. Zero Configuration technology greatly simplifies the configuration of your DNS-340L. Simply choose the RAID type you need and Zero Configuration will do the rest for you.

Flexible, Versatile and Reliable Network

With an extensive range of hard drive modes (Standard, JBOD, RAID 0, 1, 5, 10, 1+0), users can choose the configuration best suited to their needs. Standard mode creates two separately accessible hard drives. JBOD combines both drives to create a single, easy to use volume. RAID 0 combines both drives in a “striped” configuration, which provides maximum performance. RAID 1 creates a copy of your data on both drives, providing maximum protection. RAID 5 combines space from three of your hard drives and uses the fourth drive as a parity drive. RAID 10 protects data against loss of non-adjacent disks and uses the disk striping technique to speed up operation when retrieving data from disk storage. The DNS-340L is hot swap enabled meaning you can easily replace a failed drive and your data will automatically be copied to the new drive, allowing the ShareCenter+ to return to its full level of protection and ensuring your files remain safe.



The DNS-340L supports the iSCSI protocol for data transfer over local networks. Have high-speed, secure access to your ShareCenter+ across multiple servers and virtual machines, with redundancy protection to keep your shared data available even when unexpected failures occur. The iSCSI protocol provides a fast, secure, low-cost alternative to traditional fibre channels by utilising existing IP network infrastructure. Ideal for networks running multiple application servers which require centralised storage, the DNS-340L’s iSCSI feature helps you manage your business storage needs more effectively and efficiently, while saving costs on dedicated network infrastructure.

1 Maximum capacity may change as hard drive technology develops. Please refer to www.dlink.com for the latest hard drive compatibility information.

Технически характеристики

Type
NAS/iSCSI Unified Storage
Enclosure form factor
Tower
CPU
Marvell 88F6707 1.2 GHz
FLASH
128 MB
SDRAM
512 MB
Number of drive bays
4
Drive interface
SATA I/II
Drive form factor
3.5 inch
Maximum storage capacity
24 TB
Network interface
2 x Gigabit Ethernet
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
3
D-Link Green with power saving mode and smart fan
Supported
CHAP
Supported
802.1 q VLAN
Supported
Multiple drive configuration
JBOD
RAID 0/1/10/5
standard
RAID migration non-RAID to RAID 1
Supported
RAID migration non-RAID to RAID 5
Supported
RAID migration non-RAID to RAID 5
Supported
Drive format
EXT4
Scan disk
Supported
SMART
Supported
Volume encryption
Supported
Disk/RAID roaming
Supported
Windows Active Directory service support
Supported
User account management
Supported
Maximum number of user accounts
256
Group account management
Supported
Maximum number of group accounts
32
User/group quota management
Supported
Network share management
Supported
Maximum number of managed shared forlders
128
ISO mount management
Supported
Maximum concurrent connections via FTP
10
Maximum concurrent connections via Samba
64
Schedule backup from PC to NAS
Supported
Schedule local backups
Supported
Schedule remote backups
Supported
Apple Time Machine support
Supported
Cloud storage backup
Amazon S3
D-Link Vault
Dropbox
Google Drive
USB backup
Supported
mydlink (access and sync, mobile app support)
Supported
FTP/HTTP/P2P downloads
Supported
File sharing protocol
CIFS/NFS/Web File Manager/AFP/WebDAV
Network streaming service
DLNA
iTunes Server
UPnP AV
Add-on support
Supported
Photo Center
Supported
Surveillance Center
Supported
Web interface through browser
Supported
E-mail/SMS notification
Supported
System/FTP log
Supported
SNMP
Supported
Resource monitor
Supported
Този продукт ще бъде прекратен на: 29/10/2017
Последната дата на поддръжка на този продукт е: 29/10/2019
Версия Дата Тип Размер на файла
- PDF 0.57mb Свали
Версия Описание Дата Тип Размер на файла
Product manual Product manual 7.1.2015 г. - - Свали
Версия Описание Дата Тип Размер на файла
Quick installation guide Quick installation guide 7.1.2015 г. PDF 1.19mb Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
1.08 DNS-340L firmware 31.7.2018 г. - Свали
Версия Описание Дата
Setup Wizard 1.08 - 9.10.2018 г. Свали
Setup Wizard for WIN Setup Wizard for WIN 2.11.2016 г. Свали
Setup Wizard for MAC Setup Wizard for MAC 2.11.2016 г. Свали
Storage Utility for Mac Use this software to discover and map your DNS-340L.
Release notes included.
2.11.2016 г. Свали
Storage Utility for Windows Use this software to discover and map your DNS-340L.
Release notes included.
2.11.2016 г. Свали
Share Center Sync for Windows Backup software for Windows 2.11.2016 г. Свали
MySurveillance addon MySurveillance addon
Use this addon to monitor and record from D-Link cameras.
11.2.2016 г. Свали
AjaXplorer addon

Release notes included

26.1.2016 г. Свали
Setup Wizard You can find the latest version of the Setup Wizard on the Mydlink Download page. Click Download to go there now.
Make sure to select the correct model and version.
13.1.2016 г. Свали
Audiostreamer addon Audiostreamer addon 7.1.2015 г. Свали
Blog addon Blog addon 7.1.2015 г. Свали
D-Link Vault addon D-Link Vault addon 7.1.2015 г. Свали
Joomla addon Joomla addon 7.1.2015 г. Свали
PhotoCenter addon PhotoCenter addon 7.1.2015 г. Свали
Squeeze Center addon Squeeze Center addon 7.1.2015 г. Свали
Xunlei addon

Xunlei addon

7.1.2015 г. Свали
aMule addon aMule addon 7.1.2015 г. Свали
phpBB addon phpBB addon 7.1.2015 г. Свали
php admin addon php admin addon 7.1.2015 г. Свали
transmission addon

transmission addon

7.1.2015 г. Свали
Версия Описание Дата
Compatibility Compatibility list for disks, printers, UPS and cameras 23.11.2015 г. Свали
CE declaration CE declaration 7.1.2015 г. Свали
