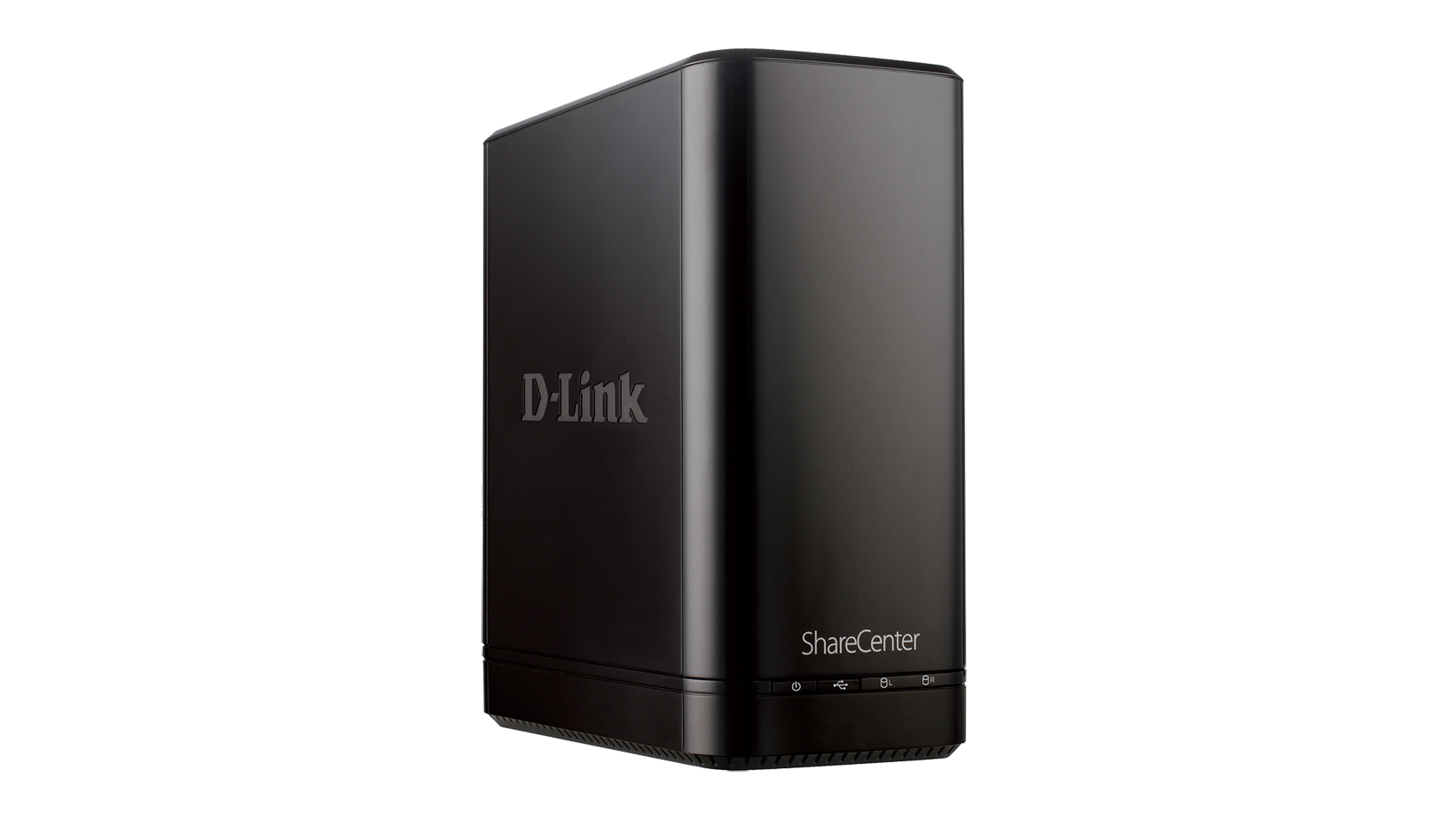

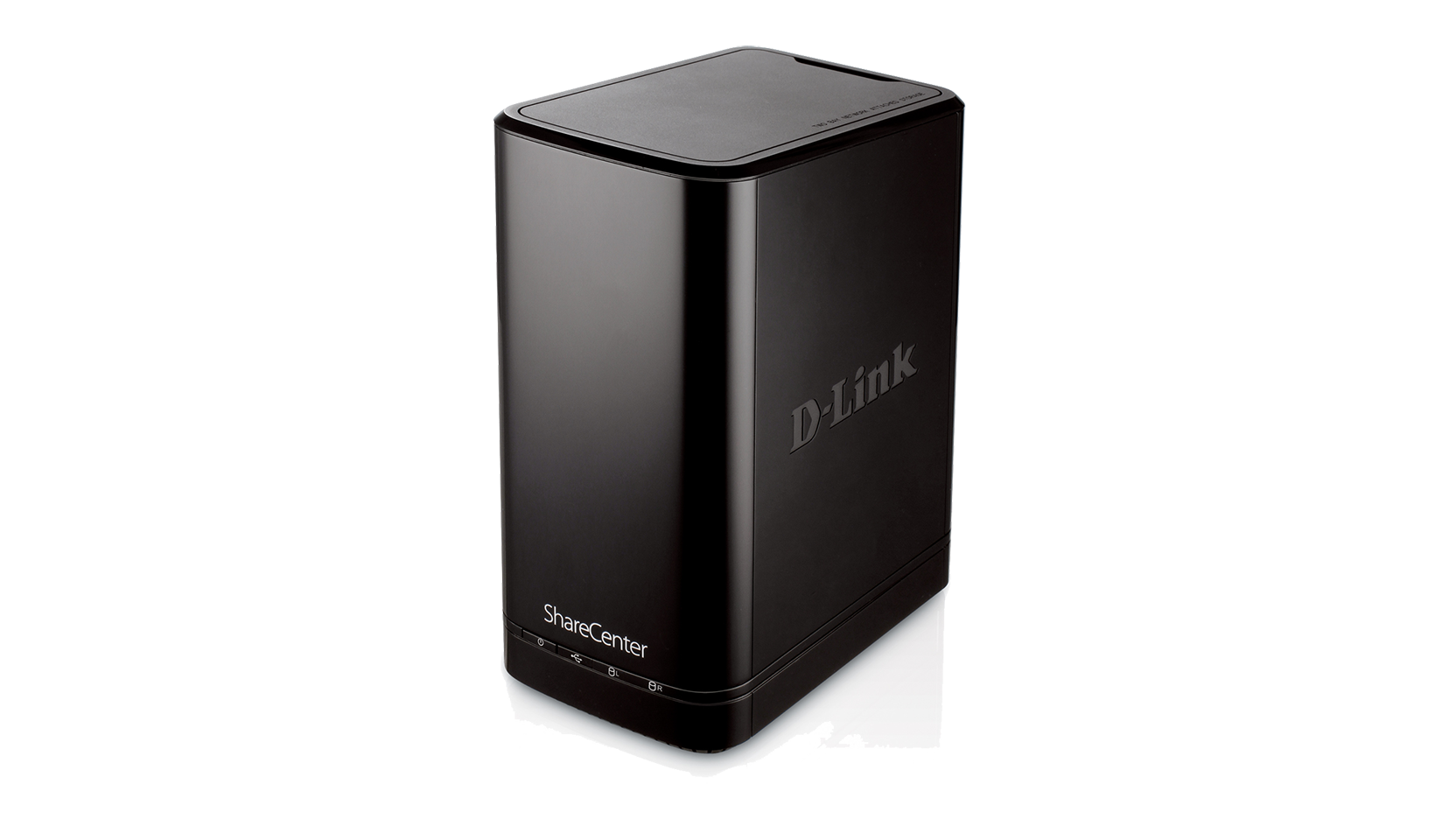

The ShareCenter™ 2-Bay Network Storage, when used with internal SATA drives*, enables homes and offices to share documents, music, photos, and videos across the network and on the Internet, so family members, friends, or employees can easily access them. This device also allows for the creation of a central network point for backing up files and the built-in RAID 1 mirroring technology protects these files from drive failure. This device can be used to stream music, photos, and videos to UPnP AV compatible network media players. The ShareCenter™ 2-Bay Network Storage is also available with preinstalled hard disk drives with 1TB, 2TB or 4TB storage*.
Safely Share Digital Files Locally And Over The Internet
The ShareCenter™ 2-Bay Network Storage Enclosure, when used with internal SATA drives*, enables users to share documents, files, and digital media such as music, photos, and videos with other users on a home or office network. Remotely accessing files through the Internet is also possible using the built-in secure FTP server and web file server. Keep data safe by giving rights to specific users or groups and assign them to folders with specific read/write permissions. This function is ideal for the home, where children’s access can be restricted to only age-appropriate materials.
Stream Digital Media Content With Built-in Media Server
Back up your digital media files to the ShareCenter™ for safekeeping, and enjoy the benefits of the built-in UPnP AV media server. Stream digital content to compatible media players such as the PlayStation 3, Microsoft Xbox 360, or D-link’s Boxee Box.
Access Your Personal Files From Anywhere

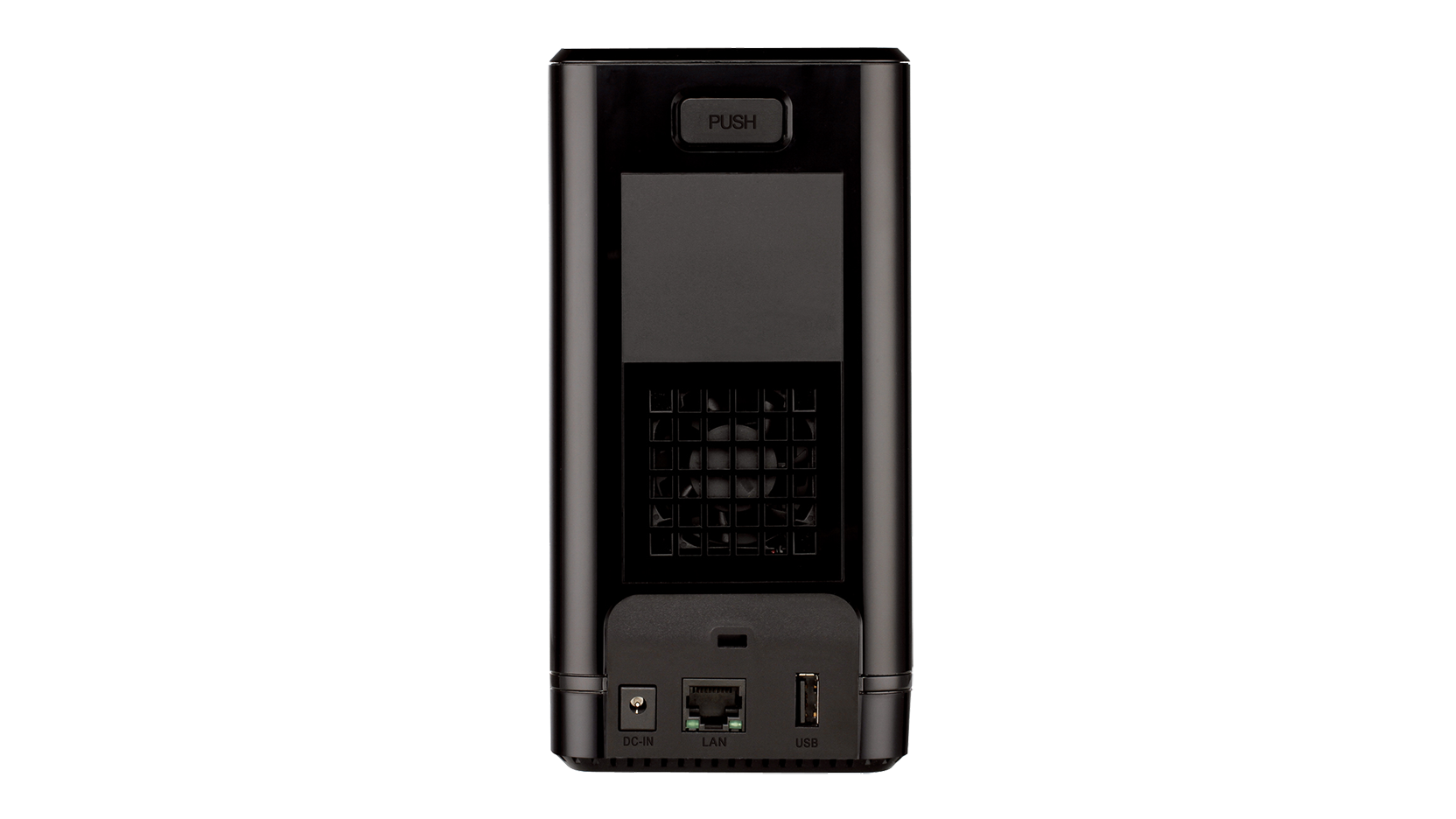

The ShareCenter™ includes a web file server which allows you to download your documents, photos, and other multimedia files from anywhere. Once configured, simply log into your ShareCenter™ using the friendly web user interface to view a listing of available files. A convenient USB port on the front of the ShareCenter™ can be used to attach external USB storage drives, USB printers, or an Uninterruptible Power Supply (UPS) for monitoring.
Enjoy Performance, Protection, And Flexibility
The availability of four different hard drive modes (Standard, JBOD, RAID 0, RAID 1) allows users to choose the configuration best suited to their needs. Standard mode creates two separately accessible hard drives. JBOD combines both drives to create a single, easy to use volume. RAID 0 combines both drives in a “striped” configuration, which provides the highest performance when using a Gigabit Ethernet connection. RAID 1 creates a copy of your data on both drives, providing maximum protection; if one drive fails while configured as RAID 1, the unaffected drive continues to function as a single drive until the failed drive is replaced. The new drive will then be re-mirrored, allowing the ShareCenter™ to return to its full level of protection.
Robust Software Included
The included CD contains D-Link’s Setup Wizard and Easy Search Utility, which allows users to locate the ShareCenter™ anywhere on the network. Once located, they can use the utility to map the hard drive(s) so they will appear in “My Computer” on their PC. Backup software is also included on the CD, allowing users to back up valuable files from a computer to the ShareCenter™ manually, according to a schedule, or in real-time. Real-time backups are a great way to safeguard against unforeseen data-loss.
Simple upgrade with Enhanced RAID Roaming
Enhanced RAID roaming allows the users to easily upgrade to the cloud NAS experience. Simply install existing hard drives from compatible D-Link NAS models into the Cloud Network Storage Enclosure and your data can be accessed from anywhere. There is no need to reformat, reconfigure or migrate your data (please refer to specifications for information on compatible upgrade models).
D-Link Green™
For consumers interested in reducing their energy costs and helping to save the environment, D-Link Green™ products provide eco-friendly alternatives without compromising performance. This device uses hard drive power management and Smart Fan speed control to reduce energy costs, minimize noise, and prolong the lifespan of your hard drives.
*SATA drives are not included with the DNS-320. DNS-320-1TB, DNS-320-2TB, DNS-320-4TB includes preinstalled 1TB, 2TB and 4TB storage respectively. Please refer hard disk compatibility list in the download section for more information.
Продуктови награди
Технически характеристики
Type
|
Network Attached Storage |
---|---|
Enclosure form factor
|
Desktop |
CPU
|
Marvell 88F6281 800 MHz |
FLASH
|
128 MB |
SDRAM
|
128 MB |
Number of drive bays
|
2 |
Drive interface
|
SATA I/II |
Drive form factor
|
3.5 inch |
Maximum storage capacity
|
8 TB |
Network interface
|
1 x Gigabit Ethernet |
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
|
1 |
D-Link Green with power saving mode and smart fan
|
Supported
|
Multiple drive configuration
|
JBOD RAID 0/1 standard |
RAID migration non-RAID to RAID 1
|
Supported
|
Drive format
|
EXT3 |
Scan disk
|
Supported
|
SMART
|
Supported
|
Disk/RAID roaming
|
Supported
|
User account management
|
Supported
|
Maximum number of user accounts
|
256 |
Group account management
|
Supported
|
Maximum number of group accounts
|
32 |
User/group quota management
|
Supported
|
Network share management
|
Supported
|
Maximum number of managed shared forlders
|
128 |
Maximum concurrent connections via FTP
|
10 |
Maximum concurrent connections via Samba
|
64 |
Schedule backup from PC to NAS
|
Supported
|
Schedule local backups
|
Supported
|
Schedule remote backups
|
Supported
|
Apple Time Machine support
|
Supported
|
Cloud storage backup
|
Amazon S3 D-Link Vault Dropbox Google Drive |
USB backup
|
Supported
|
FTP/HTTP/P2P downloads
|
Supported
|
File sharing protocol
|
CIFS/NFS/Web File Manager/AFP/WebDAV |
Network streaming service
|
DLNA iTunes Server UPnP AV |
Web interface through browser
|
Supported
|
E-mail/SMS notification
|
Supported
|
System/FTP log
|
Supported
|
