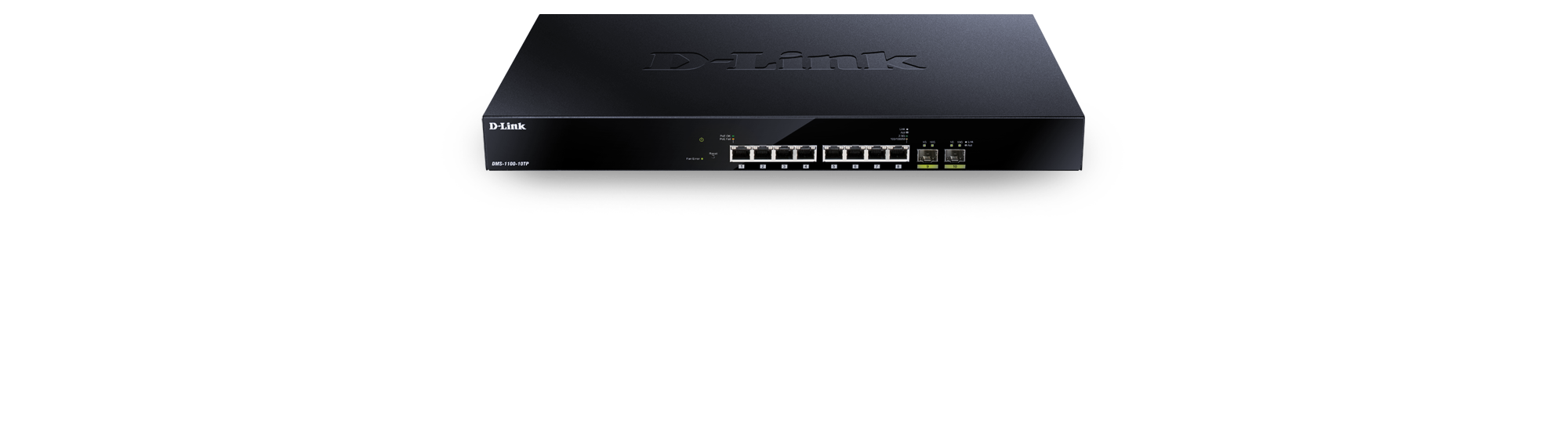

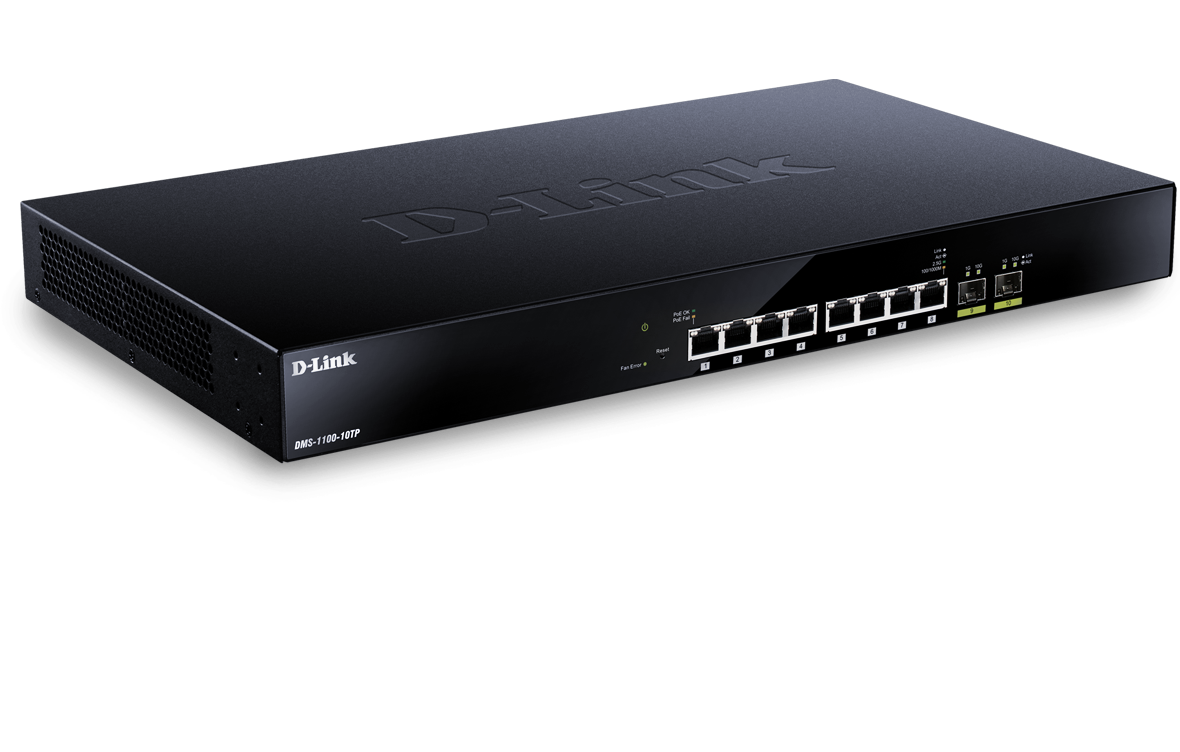

10-Port Multi-Gigabit PoE Smart Managed Switch

DMS-1100-10TP

  • състоянието на продукта (Revision A1): Live
  • x8 2.5 Gigabit PoE/PoE+ ports
  • x2 10 Gigabit SFP+ uplink ports
  • Layer 2 management and security
  • PoE options up to 240W power budget
  • Designed for Wi-Fi 6 access points
  • Limited Life Warranty after registration

Свалете таблицата с характеристики.

Where to buy
10G Multi-Gigabit

10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.

2.5 Gigabit PoE ports

8 x 100/1000/2.5GBASE-T PoE/PoE+ ports for rapid and reliable Ethernet connections and power to devices via a single cable.

Web-based GUI

Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.

Layer 2 Features

Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).

Quality of Service (QoS)

Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.

Network Security

D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.

Energy Saving Technology

Supports LED shutoff, and complies with IEEE 802.3az Energy Efficient Ethernet (EEE).

Futureproof your network. Ready for Wi-Fi 6.

Ideal for businesses looking to upgrade to Wi-Fi 6, the DMS-1100-10TP has 2.5 Gigabit PoE ports and 10 Gigabit SFP+ uplink ports, providing the multi-gigabit connectivity needed to maximise throughput between access points and the network infrastructure.

Affordable 10G capabilities, for a reliable high-speed network.

Add 10-Gigabit Ethernet connectivity to your network with this cost-effective switch. Integrate it into existing Gigabit Ethernet network infrastructures while simultaneously futureproofing the network.

Ready for Wi-Fi 6.

You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Learn more

Extensive Layer 2 features.

Utilise a full line up of Layer 2 features such as: port mirroring, Spanning Tree Protocol (STP/MSTP/RSTP),Link Aggregation Control Protocol (LACP), IGMP and MLD Snooping, auto voice and surveillance VLAN 2.0, and LLDP and LLDP-MED.



PoE and PoE+, with budgets up to 270W

Includes a high-power budget for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.





Security with every port.

The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability. 
This switch also features support for traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, and DoS attack prevention.

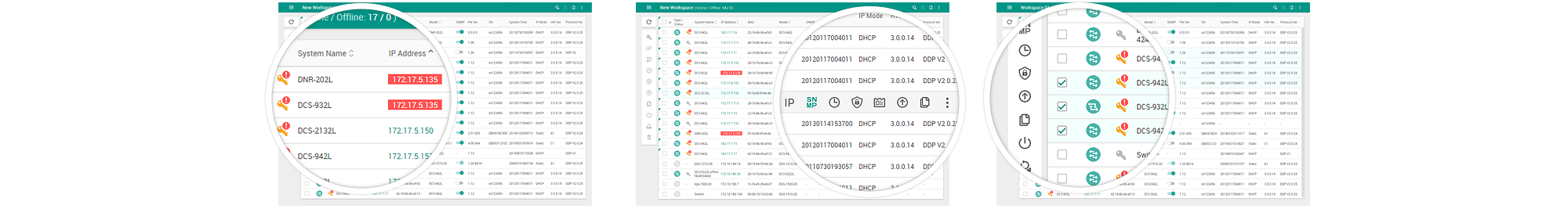

Versatile network management options.

The DMS-1100-10TP can be configured quickly and easily through the web-based management interface. Built-in smart wizard and dual configuration give network administrators more options and flexibility.

Also supports D-View Network Management Software that allows central management of critical network characteristics such as availability, reliability, resilience, and security.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Комуникацията с нас е лесна

Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Подобни продукти

7-Port Multi-Gigabit Unmanaged Switch
DMS-107
Разбери повече
6-Port Multi-Gigabit Unmanaged Switch
DMS-106XT
Разбери повече
Layer 3 Stackable Smart Managed Switches
DGS-1520-28, DGS-1520-28MP, DGS-1520-52, DGS-1520-52MP
Разбери повече
10G мулти-гигабитов Смарт управляеми превключватели/суичове
DXS-1210-10TS, DXS-1210-12TC, DXS-1210-12SC, DXS-1210-16TC
Разбери повече

Технически характеристики

Type
Smart managed
Number of ports
5 to 14 ports
Layer
Layer 2
Main type of ports
2.5GBASE-T Ethernet
Type of uplink ports
10GbE SFP+
PoE options
802.3af
802.3at
Number of PoE ports
8
PoE power budget
See datasheet
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
MAC-based
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
8
Bandwidth control
1 Kbps minimum granularity
SNMP (v1/v2c/v3)
Supported
LLDP
Supported
LLDP-MED
Supported
