The DAP-3410 is a Wireless N Outdoor Access Point with PoE Pass-Through ideal for expanding wireless coverage or increasing signal strength of any wireless network. Built to withstand harsh environments, the DAP-3410 excels in connecting separate networks that are not joined by a physical cable.
Simplified outdoor connectivity
Low cost Outdoor Access Point, with high power radio design the DAP-3410 is ideal for providing wireless connectivity between two locations.
Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.

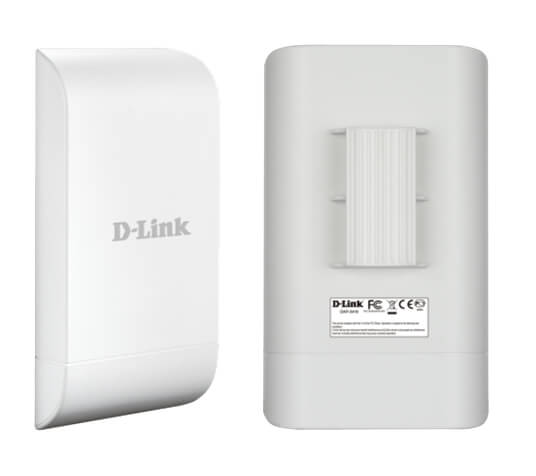

Attractive Design
Featuring a clean unobtrusive design, the DAP-3410 can be mounted easily onto any wall or pole. Designed with a PoE pass-through port, the DAP-3410 can also be used to provide power to other devices such as an external camera for added security.
Product Highlights
Durable
Built to withstand harsh outdoor environments and be waterproof to the IPX6 standard
Flexible
PoE powered with PoE pass-through to allow for flexible installation, as well as supply additional power and network connectivity to other PoE powered devices, such as a network camera
Adaptable
With 7 operational modes including access points, WDS, WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater, the DAP-3410 meets the needs of any situation.
Secure
Secure wireless connectivity using WPA/WPA2 data encryption and MAC address filtering wireless access can be controlled
5Ghz Single-Band Wireless
With a high power radio design and built-in high gain sector antenna,
the DAP-3410 supports up to 300Mbps throughput for the 5Ghz band
Технически характеристики
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Single-band |
Wireless speed
|
300 Mbps 5 GHz |
Antenna type
|
Embedded sector antenna |
Antenna gain
|
15 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
2 x Fast Ethernet LAN |
Indoor/outdoor
|
Outdoor |
Type of housing
|
Plastic |
IP rating
|
IPX6 |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Advanced features
|
MIMO |
Maximum number of SSIDs
|
8 |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
SSID broadcast disable
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
