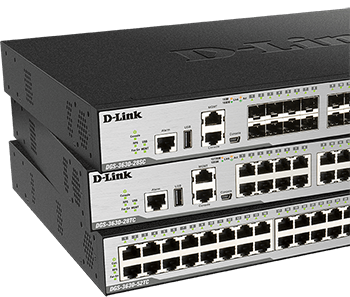

Gigabit L3 Stackable Managed Switches

DGS-3630 Series

  • Stato del prodotto: In produzione
The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.

Download the datasheet.

Elenco negozi

Stackable Managed Switches



  • Designed for Small to Medium Businesses, Enterprises and ISPs
  • Deliver high performance, flexibility, fault tolerance, and advanced software features
  • Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
  • High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
  • DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.



Outperforming the competition



The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Download the full report







Versatile Management

The DGS-3630 Series provides:

  • Network Assistant Utility
  • Industry-standard CLI

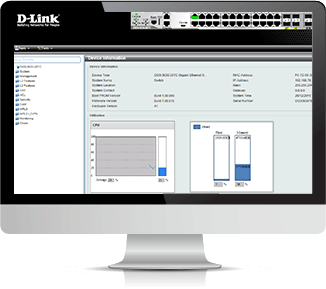

  • Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

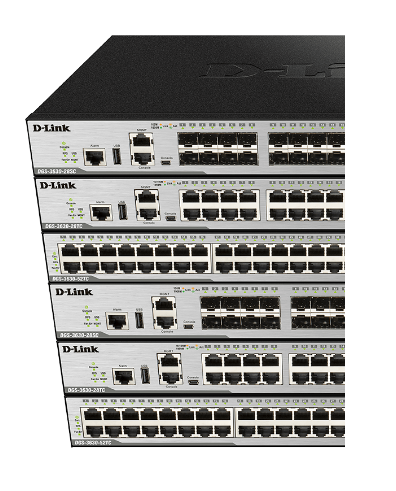

High Availability and Flexibility

Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.






Security, Performance & Availability

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

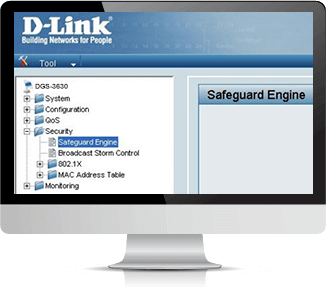

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

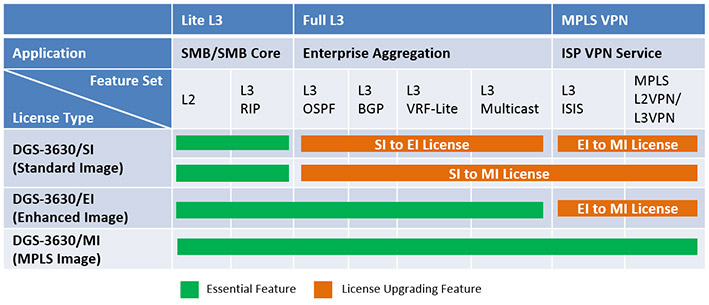

Multiple Software Images*

The DGS-3630 Series is designed for use with three different software images:

  • Standard Image (SI)
  • Enhanced Image (EI)
  • MPLS Image (MI)

Please refer to the Specifications tab or download the product datasheet for more information.



*Please check with you local D-Link sales office for MPLS license availability

Prodotti correlati

D-View 7 Network Management System
DV-700
Maggiori informazioni
SFP+ 10GBASE-SR Multi-Mode Fibre Transceiver (300m)
DEM-431XT
Maggiori informazioni
10GBase-LR SFP+ Transceiver (10 Km)
DEM-432XT
Maggiori informazioni
Transceiver SFP / mini-GBIC 1 porta 1000BASE-LX
DEM-310GT
Maggiori informazioni
Transceiver SFP / mini-GBIC 1 porta 1000BASE-SX
DEM-311GT
Maggiori informazioni

Technical Specifications

Functions & Features

High Availability and Flexibility

  • 20/44 10/100/1000BASE-T ports or 20 SFP ports
  • 4 Combo 10/100/1000BASE-T/SFP ports
  • 4 10 GbE SFP+ uplink ports
  • Switch Resource Management (SRM) for flexible management of system resources
  • 6 kV surge protection on all RJ-45 access ports
  • IEEE 802.3af/at PoE (DGS-3630-28PC/52PC)

Reliability

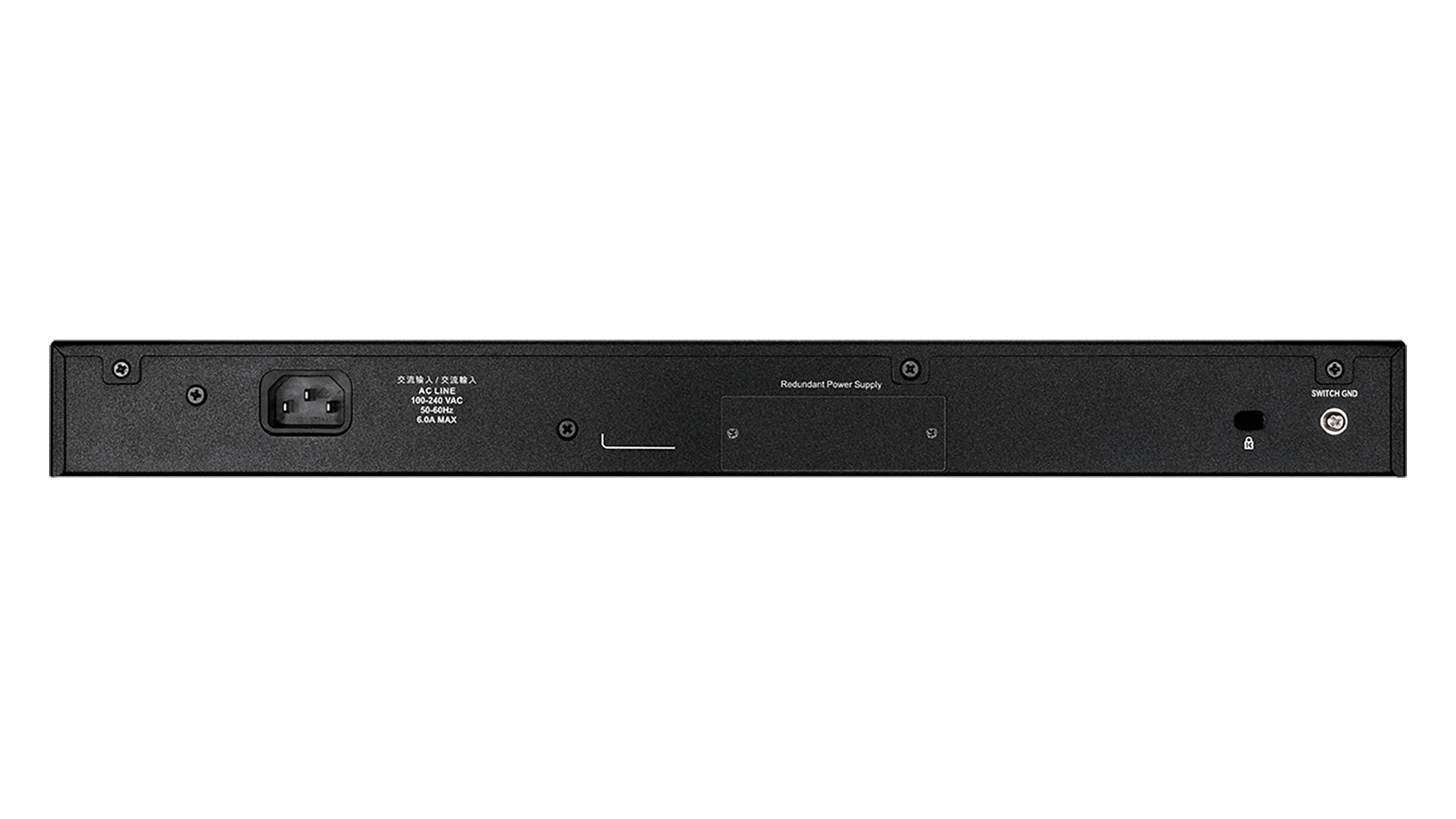

  • Redundant Power Supply (RPS) support
  • IEEE 802.1D/802.1w/802.1s Spanning Tree
  • Loopback Detection (LBD)
  • Ethernet Ring Protection Switching (ERPS)

High Bandwidth Stacking

  • Physical stack of up to 9 units, 432 GbE ports
  • Supports long-distance stacking over fiber
  • 80 Gbps per device physical stacking bandwidth

Operations, Administration, and Maintenance

  • IEEE 802.3ah Ethernet Link OAM
  • IEEE 802.1ag/ITU-T Y.1731 Service OAM

Easy Management

  • RJ-45/mini-USB console port
  • Management and alarm ports
  • USB port for firmware and configuration files
  • Easy-to-use web GUI and industry-standard CLI



Technical Specifications

General

Interfaces

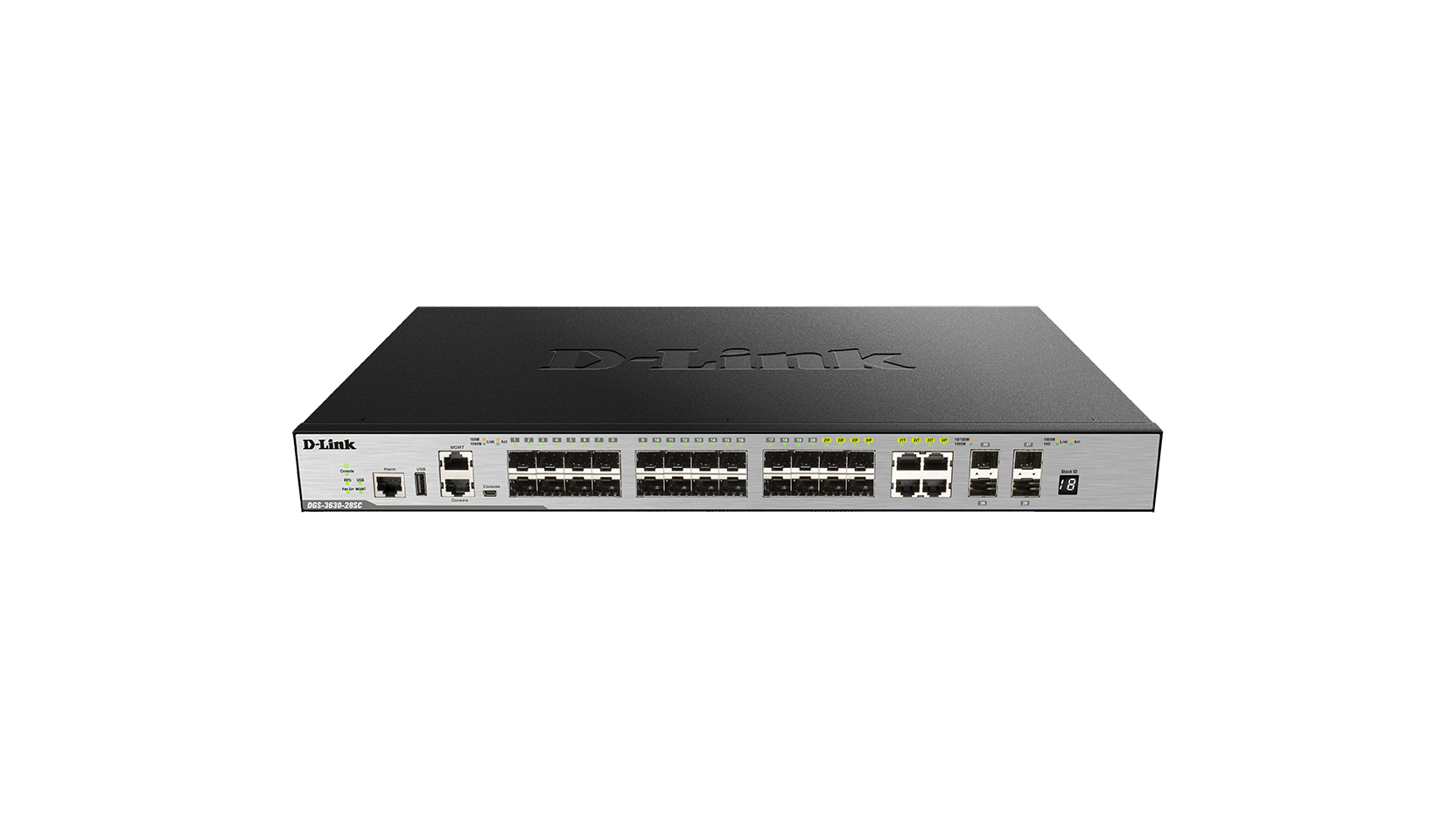

  • DGS-3630-28SC
    • 20 x SFP port
    • 4 x 1000BASE-T/SFP combo ports
    • 4 x 10 GbE SFP+ ports
  • DGS-3630-28TC
    • 20 x 10/100/1000BASE-T ports
    • 4 x 1000BASE-T/SFP combo ports
    • 4 x 10 GbE SFP+ ports

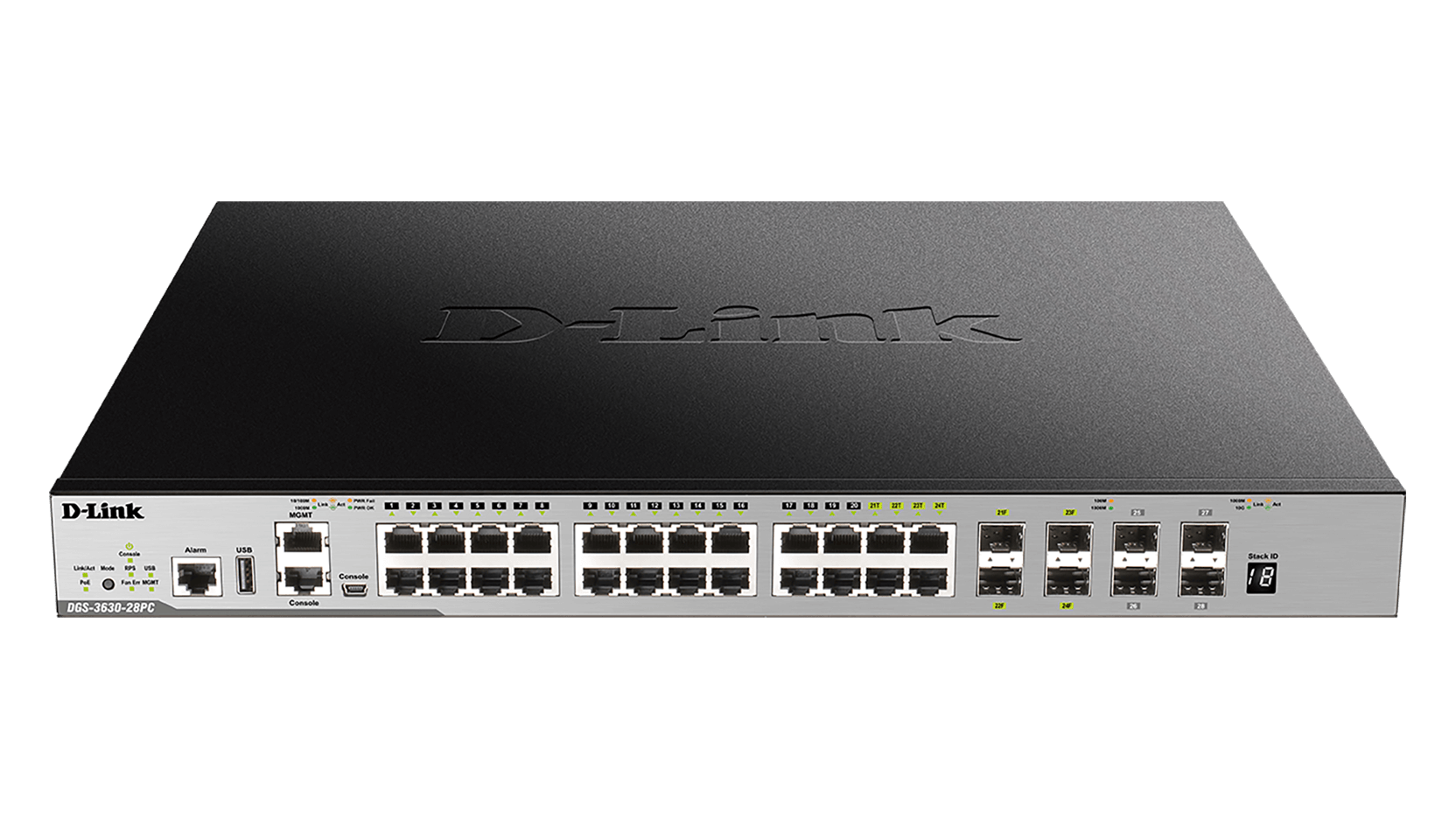

  • DGS-3630-28PC
    • 20 x 10/100/1000BASE-T PoE ports
    • 4 x 1000BASE-T PoE/SFP combo ports
    • 4 x 10 GbE SFP+ ports

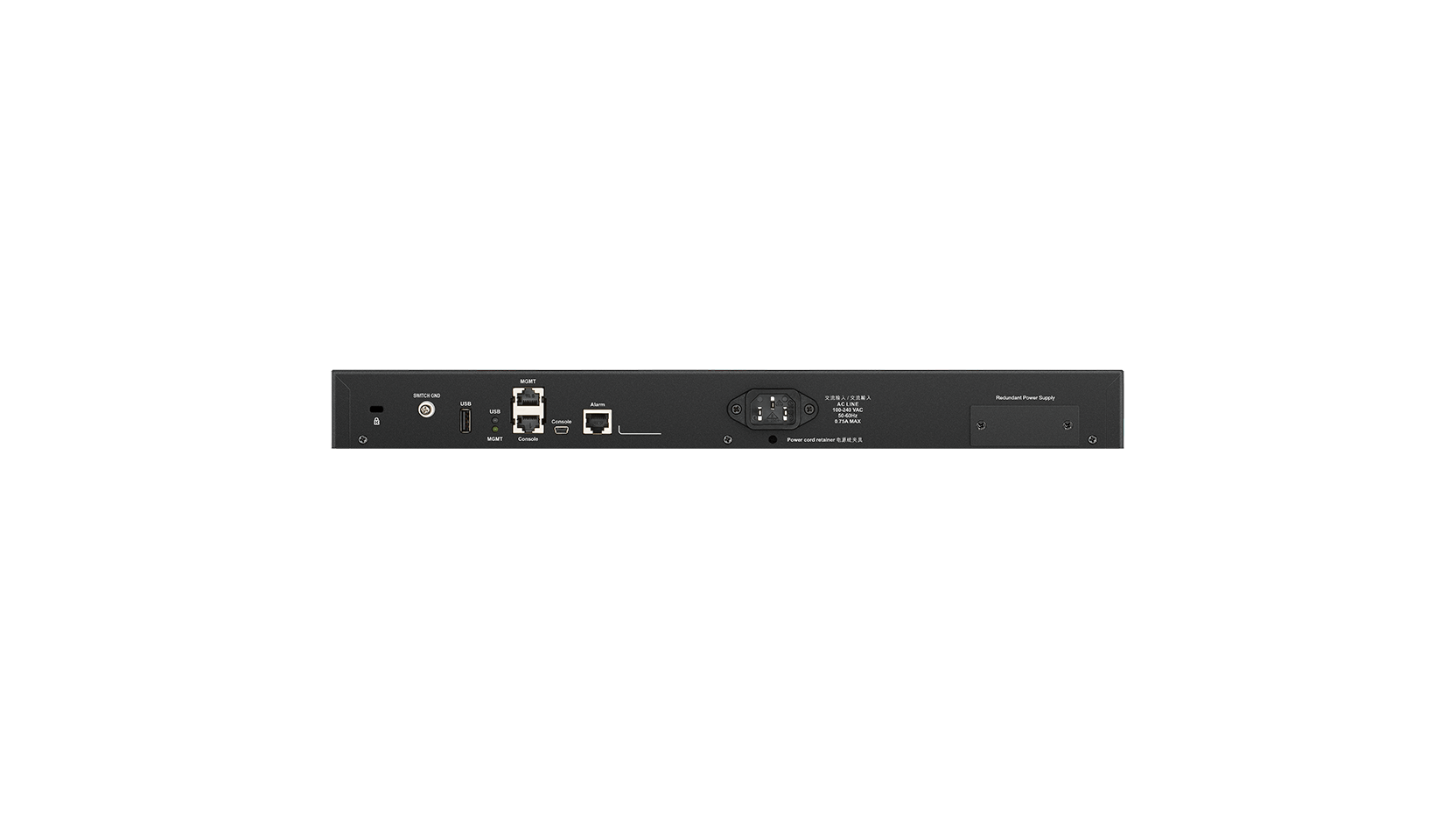

  • DGS-3630-52TC
    • 44 x 10/100/1000BASE-T ports
    • 4 x 1000BASE-T/SFP combo ports
    • 4 x 10 GbE SFP+ ports

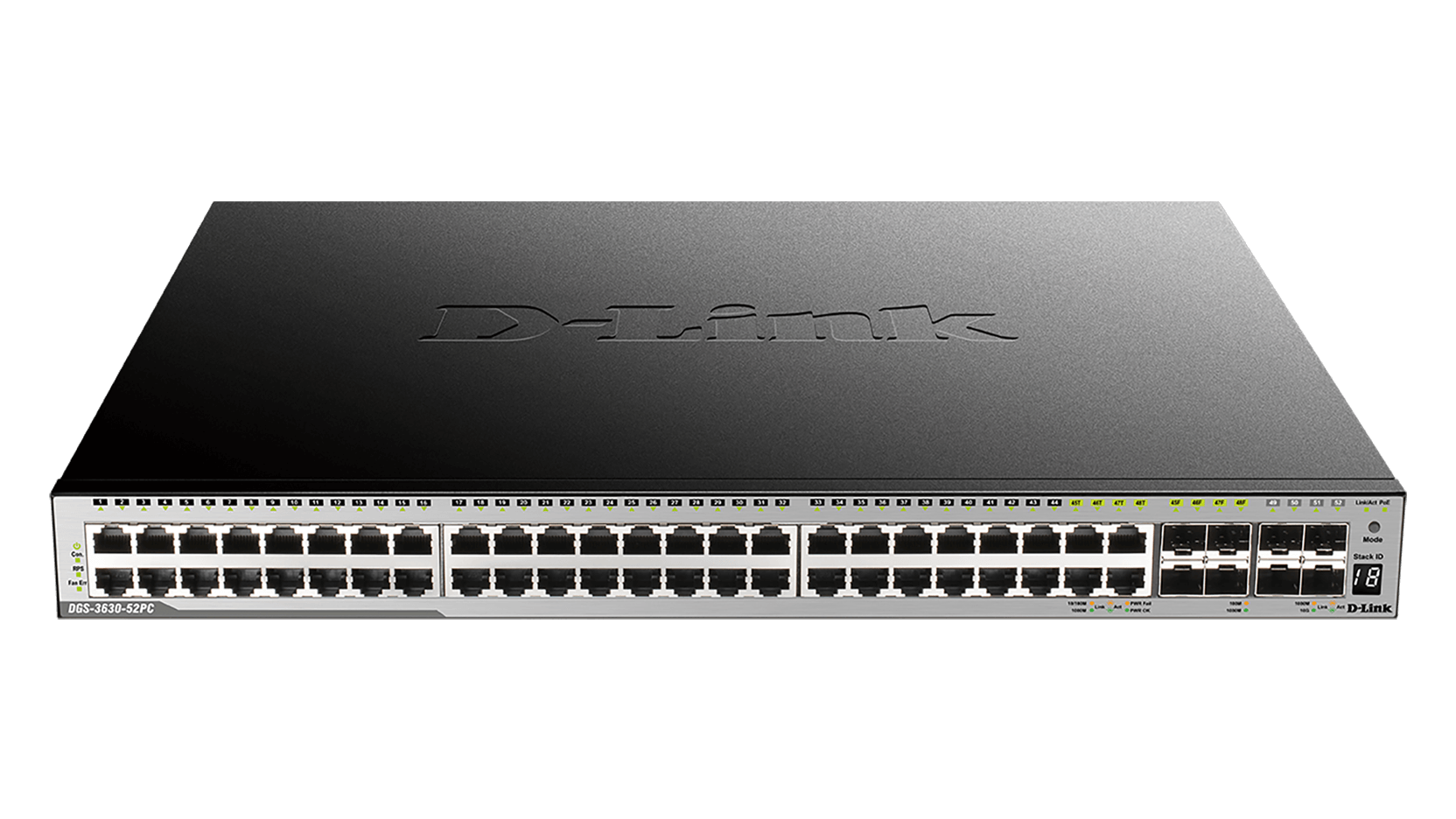

  • DGS-3630-52PC
    • 44 x 10/100/1000BASE-T PoE ports
    • 4 x 1000BASE-T PoE/SFP combo ports
    • 4 x 10 GbE SFP+ ports



Console Port

  • RJ45 and Mini USB console ports for out-of-band CLI management



Management Port

  • 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management



Alarm Port

  • 1 RJ-45 port



USB Port

  • 1 USB 2.0 Type A port



Performance



Switching Capacity

  • DGS-3630-28SC: 128 Gbps

  • DGS-3630-28TC: 128 Gbps

  • DGS-3630-28PC: 128 Gbps

  • DGS-3630-52TC: 176 Gbps

  • DGS-3630-52PC: 176 Gbps



Maximum Packet Forwarding Rate

  • DGS-3630-28SC: 95.24 Mpps

  • DGS-3630-28TC: 95.24 Mpps

  • DGS-3630-28PC: 95.24 Mpps

  • DGS-3630-52TC: 130.95 Mpps

  • DGS-3630-52PC: 130.95 Mpps



Packet Buffer

  • 4 MBytes



MAC Address Table

  • 68K entries4



IPv4 Routing Table

  • 16K entries



IPv6 Routing Table

  • 7K entries



IPv4 Forwarding Table

  • 32K entries4



IPv6 Forwarding Table

  • 16K entries$



Jumbo Frame Size

  • 12 KBytes



Power over Ethernet (PoE) (DGS-3630-28PC and DGS-3630-52PC only)

PoE Standard

  • IEEE 802.3af/at



PoE Power Budget

  • 370 W (740 W with DPS-700 RPS redundant power supply)

Physical/Environmental



MTBF

  • DGS-3630-28SC: 280,612.09 hours

  • DGS-3630-28TC: 300,190.46 hours

  • DGS-3630-28PC: 259,222.76 hours

  • DGS-3630-52TC: 263,936.78 hours

  • DGS-3630-52PC: 199,929.76 hours



Acoustics

  • DGS-3630-28SC: 56 dB(A)

  • DGS-3630-28TC: 52.7 dB(A)

  • DGS-3630-28PC: 48.2 dB(A)

  • DGS-3630-52TC: 53.9 dB(A)

  • DGS-3630-52PC: 51.9 dB(A)



Heat Dissipation

  • DGS-3630-28SC: 216.81 BTU/h

  • DGS-3630-28TC: 144.58 BTU/h

  • DGS-3630-28PC: 1600.31 BTU/h

  • DGS-3630-52TC: 212 BTU/h

  • DGS-3630-52PC: 1653.85 BTU/h



Power Input

  • 100 to 240 VAC 50/60 Hz



Maximum Power Consumption

  • DGS-3630-28SC: 63.58 W

  • DGS-3630-28TC: 42.4 W

  • DGS-3630-28PC: PoE off: 44.3 W, PoE on: 469.3 W

  • DGS-3630-52TC: 62 W

  • DGS-3630-52PC: PoE off: 54.1 W, PoE on: 485 W



Standby Power Consumption

  • DGS-3630-28SC: 30.1 W

  • DGS-3630-28TC: 28.1 W

  • DGS-3630-28PC: 34.6 W

  • DGS-3630-52TC: 36 W

  • DGS-3630-52PC: 44.6 W



Dimensions

  • DGS-3630-28SC/28TC/52TC: 441 x 259.8 x 44 mm (17.4 x 10.2 x 1.73 inches)

  • DGS-3630-28PC/52PC: 441 x 380 x 44 mm (17.4 x 15 x 1.73 in)



Weight

  • DGS-3630-28SC: 3.79 kg (8.36 lb)

  • DGS-3630-28TC: 3.74 kg (8.25 lb)

  • DGS-3630-28PC: 5.88 kg (12.96 lbs)

  • DGS-3630-52TC: 4.04 kg (8.91 lb)

  • DGS-3630-52PC: 6.30 kg (13.89 lbs)



Ventilation

  • DGS-3630-28SC/28TC/52TC: 2 x smart fans3

  • DGS-3630-28PC/52PC: 4 x smart fans3



Operating Temperature

  • -5 to 50 °C (23 to 122 °F)



Storage Temperature

  • -40 to 70 °C (-40 to 158 °F)



Operating Humidity

  • 10% to 95% RH



Storage Humidity

  • 5% to 95% RH



Safety Certifications

  • cUL, CB, CE, CCC, BSMI



EMI/EMC

  • CE, FCC Class A, C-Tick, VCCI, BSMI, CCC



Software Features



Stackability

  • Physical Stacking

    • Up to 80 Gbps stacking bandwidth

    • Up to 9 switches in a stack

    • Ring/chain topology support

  • Virtual Stacking/Clustering of up to 32 units

    • Supports D-Link Single IP Management

    • Up to 20 Gbps stacking bandwidth



L2 Features

  • MAC Address Table : up to 68K entries4

  • Flow Control

    • 802.3x Flow Control when using Full Duplex

    • HOL Blocking Prevention

  • Spanning Tree Protocol

    • 802.1D STP

    • 802.1w RSTP

    • 802.1s MSTP

    • Root Guard

    • Loop Guard

  • Jumbo Frame: up to 12 Kbytes

  • 802.1AX Link Aggregation

    • Max. 32 groups per device, 8 ports per group

  • ERPS (Ethernet Ring Protection Switching) version 2

  • Port Mirroring

    • Supports One-to-One, Many-to-One

    • Supports Mirroring for Tx/Rx/Both

    • Supports 4 mirroring groups

  • Flow Mirroring

    • Supports Mirroring for Rx

  • VLAN Mirroring

  • RSPAN

  • L2 Protocol Tunneling



VLAN

  • 802.1Q

  • 802.1v Protocol-based VLAN

  • Double VLAN (Q-in-Q)

    • Port-based Q-in-Q

    • Selective Q-in-Q

  • Port-based VLAN

  • MAC-based VLAN

  • Subnet-based VLAN

  • Private VLAN

  • VLAN Group

    • Max. 4K VLAN groups

    • Max. 4094 VIDs

  • Multicast VLAN (ISM VLAN for IPv4/IPv6)

  • Voice VLAN

  • Auto Surveillance VLAN

  • VLAN Trunking

  • GVRP: Up to 4K dynamic VLANs

  • Asymmetric VLAN



L2 Multicast

  • MLD Snooping

    • MLD v1/v2 Snooping

    • Supports up to 4K MLD groups4

    • Host-based MLD Snooping Fast Leave

    • Supports 64 static MLD groups

    • MLD Snooping Querier

    • Per VLAN MLD Snooping

    • MLD Proxy Reporting

  • IGMP Snooping

    • IGMP v1/v2/v3

    • Supports up to 8K MLD groups4

    • Supports 64 static IGMP groups

    • Per VLAN IGMP Snooping

    • IGMP Snooping Querier

    • Host-based IGMP Snooping Fast Leave

  • PIM Snooping



L3 Features

  • IPv4 ARP/IPv6 ND: support up to 32K/16K4

    • 512 Static ARP

  • Gratuitous ARP

  • IP Interface

    • Supports 256 interfaces

  • Loopback Interface

  • Proxy ARP

    • Support local ARP proxy

  • IPv6 Tunneling

    • Static

    • ISATAP

    • GRE

    • 6to4

  • VRRP v2/v3

  • IP Helper



L3 Routing

  • Supports 16K hardware routing entries shared by IPv4/IPv6

    • 1 entry consumed by each IPv4 route

    • 2 entries consumed by each IPv6 route

  • Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv62

    • 1 entry consumed by each IPv4 route

    • 2 entries consumed by each IPv6 route

  • Static Route

    • Max. 512 IPv4 entries

    • Max. 256 IPv6 entries

  • IPv4/IPv6 Default Route

  • PBR (Policy-based Route)

  • Null Route

  • Route Preference

  • Route Redistribution

  • Graceful Restart (GR) Helper

  • BFD (Bidirectional Forwarding Detection)

    • IPv4/v6 Static Route

    • RIP

    • VRRP

  • RIPv1/v2/ng



L3 Multicast

  • IGMP/MLD Filtering



QoS (Quality of Service)

  • 802.1p

  • 8 queues per port

  • Queue Handling

    • Strict Priority (SP)

    • Weighted Round Robin (WRR)

    • Strict + WRR

    • Weighted Deficit Round Robin (WDRR)

  • Congestion Control

    • Weighted Random Early Detection (WRED)

  • 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port

  • Bandwidth Control

    • Port-based (Ingress/Egress, min. granularity 8 Kb/s)

    • Flow-based (Ingress/Egress, min. granularity 8 Kb/s)

    • Per queue bandwidth control (min. granularity 8 Kb/s)

  • Policy Map

    • Remark 802.1p priority

    • Remark IP precedence/DSCP

    • Time based QoS

  • CoS based on:

    • Switch Port

    • Inner/ outer 802.1p Priority

    • Inner/ outer VID

    • MAC address

    • Ether Type

    • IP address

    • ToS/IP Preference

    • DSCP

    • Protocol Type

    • TCP/UDP port

    • IPv6 Traffic Class

    • IPv6 Flow Label

  • Three Color Marker

    • trTCM

    • srTCM



ACL (Access Control List)

  • ACL based on:

    • 802.1p priority

    • VID

    • MAC address

    • EtherType

    • LLC

    • VLAN

    • IP address

    • IP preference/ToS

    • DSCP mask

    • Protocol type

    • TCP/UDP port number

    • IPv6 Traffic Class

    • IPv6 Flow Label

  • Max. ACL entries:

    • Ingress (hardware entries): 4K

    • Egress (hardware entries): 1K

    • VLAN Access Map Numbers: 3K

  • Time-based ACL



Green

  • Energy Effeciency Ethernet (EEE)

  • Power Saving By Link Status

  • Power Saving By Cable Length

  • Power Saving By LED Shut-Off

  • Power Saving By Port Shut-Off

  • Power Saving By System Hibernation



Security

  • Port Security

    • Supports up to 12K MAC addresses per port/VLAN/system

  • Broadcast/Multicast/Unicast Storm Control

  • D-Link Safeguard Engine

  • DHCP Server Screening

  • Dynamic ARP Inspection

  • IP Source Guard

  • DHCP Snooping

  • IPv6 Snooping

  • Dynamic ARP Inspection (DAI)

  • DHCPv6 Guard

  • IPv6 Route Advertisement (RA) Guard

  • IPv6 ND Inspection

  • Duplicate Address Detection (DAD)

  • ARP Spoofing Prevention

    • Max. 64 entries

  • L3 Control Packet Filtering

  • Unicast Reverse Path Forwarding (URPF)

  • Traffic Segmentation

  • SSL

    • Supports TLS 1.0/1.1/1.27

    • Supports IPv4/IPv6 access

  • SSH

    • Supports SSH v2

    • Supports IPv4/IPv6 access

  • BPDU Attack Prevention

  • DOS Attack Prevention

  • NetBIOS/NetBEUI filtering



AAA

  • 802.1X Authentication

    • Supports Port/Host-based access control

    • Identity-driven Policy Assignment

    • Dynamic VLAN Assignment

    • Bandwidth Control Assignment

    • ACL Assignment

  • Web-based Access Control (WAC)

    • Supports Port/Host-based access control

    • Identity-driven Policy Assignment

    • Dynamic VLAN Assignment

    • Bandwidth Control Assignment

    • ACL Assignment

    • Support IPv4/IPv6 access

    • Support HTTPS

  • Compound Authentication

  • MAC-based Access Control (MAC)

    • Supports Port/Host-based access control

    • Identity-driven Policy Assignment

    • Dynamic VLAN Assignment

    • Bandwidth Control Assignment

    • ACL Assignment

  • Guest VLAN

  • Microsoft® NAP

    • Support 802.1X NAP

    • Support DHCP NAP

  • Privilege Level for Management Access

  • RAIDUS and TACACS+ Authentication

  • Authentication Database Failover

  • RADIUS/TACACS+ Accounting



OAM (Operations, Administration, and Maintenance)

  • Cable Diagnostics

  • 802.3ah Ethernet Link OAM

  • D-Link Unidirectional Link Detection (DULD)

  • Dying gasp

  • 802.1ag Connectivity Fault Management (CFM)

  • Y.1731 OAM

  • Optical Transceiver Digital Diagnostic Monitoring (DDM)



Management

  • NTPv3/v4

  • Precision Time Protocol (PTP)

  • Web-based GUI

    • Support IPv4/IPv6 access

    • Support SSL (HTTPS)

  • Command Line Interface (CLI)

  • Telnet Server for IPv4/IPv6 access

  • Telnet Client for IPv4/IPv6

  • SNMP

    • Support v1/v2c/v3

    • Support IPv4/IPv6 access

  • SNMP Trap

  • TFTP Client for IPv4/IPv6

  • FTP Client for IPv4/IPv6

  • IPv4 SFTP Server

  • RCP

  • System Log for IPv4/IPv6 Syslog Server

  • SMTP

  • RMONv1

    • Supports 1,2,3,9 groups

  • RMONv2

    • Supports ProbeConfig group

  • Command Logging

  • LLDP/LLDP-MED

  • D-Link Discover Protocol (DDP)

  • DHCP Client option 12

  • DHCP Auto-configuration

  • DHCP Auto-image

  • DHCP Relay option 60/61/62/18/37/125

  • DHCP/DHCPv6 Local Relay

  • DHCP Server

    • Support IPv4/IPv6 address assignment

  • DHCPv6 Prefix Delegation (PD)

  • Multiple Images/ Multiple Configurations

  • DNS Relay for IPv4/IPv6

  • DNS Client for IPv4/IPv6

  • Debug Command

  • Password Recovery/ Encryption

  • Ping/ Traceroute for IPv4/IPv6

  • Microsoft® Network Load Balancing (NLB)

  • Switch Resource Management (SRM)

  • sFlow

  • D-Link License Management System (DLMS)



Enhanced Image (EI) Features



VLAN

  • Super VLAN



L3 Routing

  • BGP

    • BGPv4/v4+

    • 4bytes AS

    • Text/MD5 for BGPv4

  • VRF-Lite

    • IPv4 Static Route

    • RIPv1/v2

    • OSPFv2

    • BGPv4

  • Bidirectional Forwarding Detection (BFD) for OSPF

  • OSPF

    • OSPF v2/v3

    • OSPF passive interface

    • Stub/NSSA area

    • OSPF equal cost route

    • Text/MD5 for OSPFv2



L3 Multicast

  • IGMPv1/v2/v3
  • MLDv1/v2
  • IGMP/MLD Proxy
  • DVMRPv3
  • PIM-DM/SM/SSM/SDM
  • SSM Mapping for IPv4/IPv6
  • Multicast Source Discovery Protocol (MSDP)



MPLS Image (MI) Features



L3 Routing

  • IS-IS v4/v6



MPLS

  • Label Distribution Protocol (LDP)

  • PHP (Penultimate hop popping )

  • Virtual Private Wire Service (VPWS)

  • Virtual Private LAN Service (VPLS)

  • BGP/MPLS VPN

    • Multiprotocol extensions for BGP4

    • Virtual Routing Forwarding (VRF)

  • LSP/VCCV/MPLS Ping/Traceroute



MIB/IETF Standards

  • RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure

  • RFC1212 Concise MIB Definitions

  • RFC1213 MIBII

  • RFC1215 MIB Traps Convention

  • RFC1493, RFC4188 Bridge MIB

  • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 SNMP MIB

  • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906,

  • FC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB

  • RFC271, RFC1757, RFC2819 RMON MIB

  • RFC2021 RMONv2 MIB

  • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 Ether-like MIB

  • RFC2668 802.3 MAU MIB

  • RFC2674, RFC4363 802.1p MIB

  • Interface Group MIB

  • RFC2618 RADIUS Authentication Client MIB

  • RFC4022 MIB for TCP

  • RFC4113 MIB for UDP

  • RFC2620 RADIUS Accounting Client MIB

  • RFC2925 Ping & TRACEROUTE MIB

  • TFTP uploads and downloads (D-Link MIB)

  • Trap MIB (D-Link MIB)

  • RFC4293 IPv6 MIB

  • RFC4293 ICMPv6 MIB

  • Entity MIB

  • RIPv2 MIB

  • OSPF MIB

  • IPv4 Multicast Routing MIB

  • PIM MIB for IPv4

  • IP Forwarding Table MIB

  • RFC4293 IPv6 SNMP Mgmt Interface MIB

  • DDM MIB (D-Link MIB)

  • Private MIB

  • MIB for D-Link Zone Defense

  • DDP MIB

  • LLDP-MED MIB

  • RFC791 IP

  • RFC768 UDP

  • RFC793 TCP

  • RFC792 ICMPv4

  • RFC2463, RFC4443 ICMPv6

  • RFC826 ARP

  • RFC1338, RFC1519 CIDR

  • RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers

  • RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748 Extensible Authentication Protocol (EAP)

  • RFC2571 SNMP Framework

  • RFC2572 SNMP Message Processing and Dispatching

  • RFC2573 SNMP Applications

  • RFC2574 User-based Security Model for SNMPv3

  • RFC1981 Path MTU Discovery for IPv6

  • RFC2460 IPv6

  • RFC2461, RFC4861 Neighbor Discovery for IPv6

  • RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration

  • RFC2464 IPv6 over Ethernet and definition

  • RFC2767 Dual Stack Hosts using the ‘Bump-In-the-Stack’ Technology

  • RFC3513, RFC4291 IPv6 Addressing Architecture

  • RFC2893, RFC4213 IPv4/IPv6 dual stack function

  • RFC3484 Default Address Selection for Internet Protocol version 6



Optional License Upgrades



DGS-3630-28SC-SE-LIC

  • DGS-3630-28SC Standard Image to Enhanced Image License



DGS-3630-28TC-SE-LIC

  • DGS-3630-28TC Standard Image to Enhanced Image License



DGS-3630-28PC-SE-LIC

  • DGS-3630-28PC Standard Image to Enhanced Image License



DGS-3630-52TC-SE-LIC

  • DGS-3630-52TC Standard Image to Enhanced Image License



DGS-3630-52PC-SE-LIC

  • DGS-3630-52PC Standard Image to Enhanced Image License



DGS-3630-28SC-SM-LIC

  • DGS-3630-28SC Standard Image to MPLS Image License



DGS-3630-28TC-SM-LIC

  • DGS-3630-28TC Standard Image to MPLS Image License



DGS-3630-28PC-SM-LIC

  • DGS-3630-28PC Standard Image to MPLS Image License



DGS-3630-52TC-SM-LIC

  • DGS-3630-52TC Standard Image to MPLS Image License



DGS-3630-52PC-SM-LIC

  • DGS-3630-52PC Standard Image to MPLS Image License



Optional Management Software



DV-700-N25-LIC

  • D-View 7 - 25 Node License



DV-700-N250-LIC

  • D-View 7 - 250 Node License



DV-700-P10-LIC

  • D-View 7 - 10 Probe License



Optional 10 Gbps SFP+ Transceivers



DEM-431XT

  • 10GBASE-SR Multi-mode, OM1:33M/OM2:82M/OM3:300M (w/o DDM)



DEM-432XT

  • 10GBASE-LR Single-mode, 10 km (w/o DDM)



Optional 1 Gbps SFP Transceivers



DEM-310GT

  • 1000BASE-LX Single-mode, 10 km



DEM-311GT

  • 1000BASE-SX Multi-mode, 550 m



DEM-312GT2

  • 1000BASE-SX Multi-mode, 2 km



Optional 10 Gbps SFP+ Direct Attach Cables



DEM-CB100S

  • 10 GbE SFP+ 1 m Direct Attach Cable



DEM-CB300S

  • 10 GbE SFP+ 3 m Direct Attach Cable



Optional Redundant Power Supplies



DPS-500A

  • AC Redundant Power Supply



DPS-700

  • AC Redundant Power Supply for PoE models



1 Depending on the currently used image version, additional Enhanced and MPLS Image features can be accessed by purchasing the appropriate upgrade license.
2 Only DGS-3630 Series switches with the same image version can be physically stacked. For example, a DGS-3630 Series switch running the Standard Image can only be stacked with another DGS-3630 Series switch running the Standard Image.
3 For non-PoE models, by default, the fan speed is low. When the temperature inside the chassis exceeds 36 °C (97 °F), the fans switch to high speed until the temperature drops below 33 °C (91 °F). For PoE models, by default, the fan speed is low. When the temperature inside the chassis exceeds 37 °C (98 °F), the fans switch to high speed. When the temperature in the chassis reaches between 22 °C to 27 °C (71 °F to 80 °F), the fans switch to medium speed. When the temperature inside the chassis drops below 22 °C (71 °F), the fans switch to low speed.
4 Based on maximum value of Switch Resource Management (SRM).
5 Stacking cable and USB flash card not included.
6 Supported in future firmware release.
7 Supported in firmware revision R2.0.

Versione Data Tipo Dimensioni file
Datasheet - PDF 0.45mb Download
Versione Descrizione Data Tipo Dimensioni file
Manual Manual 21/08/2017 - - Download
CLI Reference Guide CLI Reference Guide 15/02/2017 PDF 7.08mb Download
HW Installation Guide HW Installation Guide 15/02/2017 PDF 3.94mb Download
Web UI Reference Guide Web UI Reference Guide 15/02/2017 PDF 14.02mb Download
Versione Descrizione Data
Firmware 1.00.032 Firmware 29/03/2016 Download
MiB file 1.00 MiB file 29/03/2016 Download
Versione Descrizione Data
1.12.0 USB driver for Consol 29/03/2016 Download
Versione Descrizione Data
DEU_At_A_Glance_EN DGS-3630 Series At A Glance - Download
DEU_Feature_Comparison_EN DGS-3630 Series Feature Comparison - Download
DEU_28SC_CE_Declaration DGS-3630-28SC CE DoC - Download
DEU_28TC_CE_Declaration DGS-3630-28TC CE DoC - Download
DEU_52TC_CE_Declaration DGS-3630-52TC CE DoC - Download
