Wireless AC1200 Simultaneous Dual Band PoE Access Point
DAP-2660
- Product Status: End of Sale
There's a new version of this product:
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
See Newer ProductThere's a new version of this product:
DAP-2662
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
Overview
- 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
- WiFi4EU ready, 2x2 MU-MIMO with beamforming
- Gigabit, PoE-capable LAN port
- Free Nuclias Connect network management software
- Limited Lifetime Warranty & Free Next Business Day Service
![](/ro/ro/-/media/product-pages/dap/2662/dap_2662_a1_front.png?h=853&w=855&la=ro-RO&hash=F5D9E17D252D23D6E71F7F9D8B056AA0)
Overview
- 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
- WiFi4EU ready, 2x2 MU-MIMO with beamforming
- Gigabit, PoE-capable LAN port
- Free Nuclias Connect network management software
- Limited Lifetime Warranty & Free Next Business Day Service
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
![](/ro/ro/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=ro-RO&hash=293C10D50F114868B15BB0EB9ED73BA9)
Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
![](/ro/ro/-/media/product-pages/dap/2682/slices/dap2682_05_controller.png?h=640&w=490&la=ro-RO&hash=B346E1DC4ED469C38775F011933D4B5E)
Performance without Compromise
Utilising industry leading Wireless AC Chipset, the DAP-2660 delivers 4 times the speed of Wireless N by supporting simultaneous dual-band performance
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_performance.jpg)
Broadcast on 16 SSID Simultaneously
Supports up to 16 SSIDs, 8 per Band, including Station Isolation
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_16_ssid.jpg)

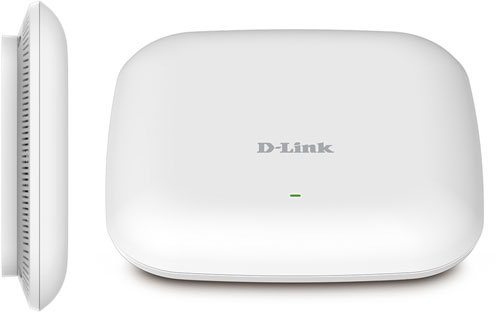

Attractive Design

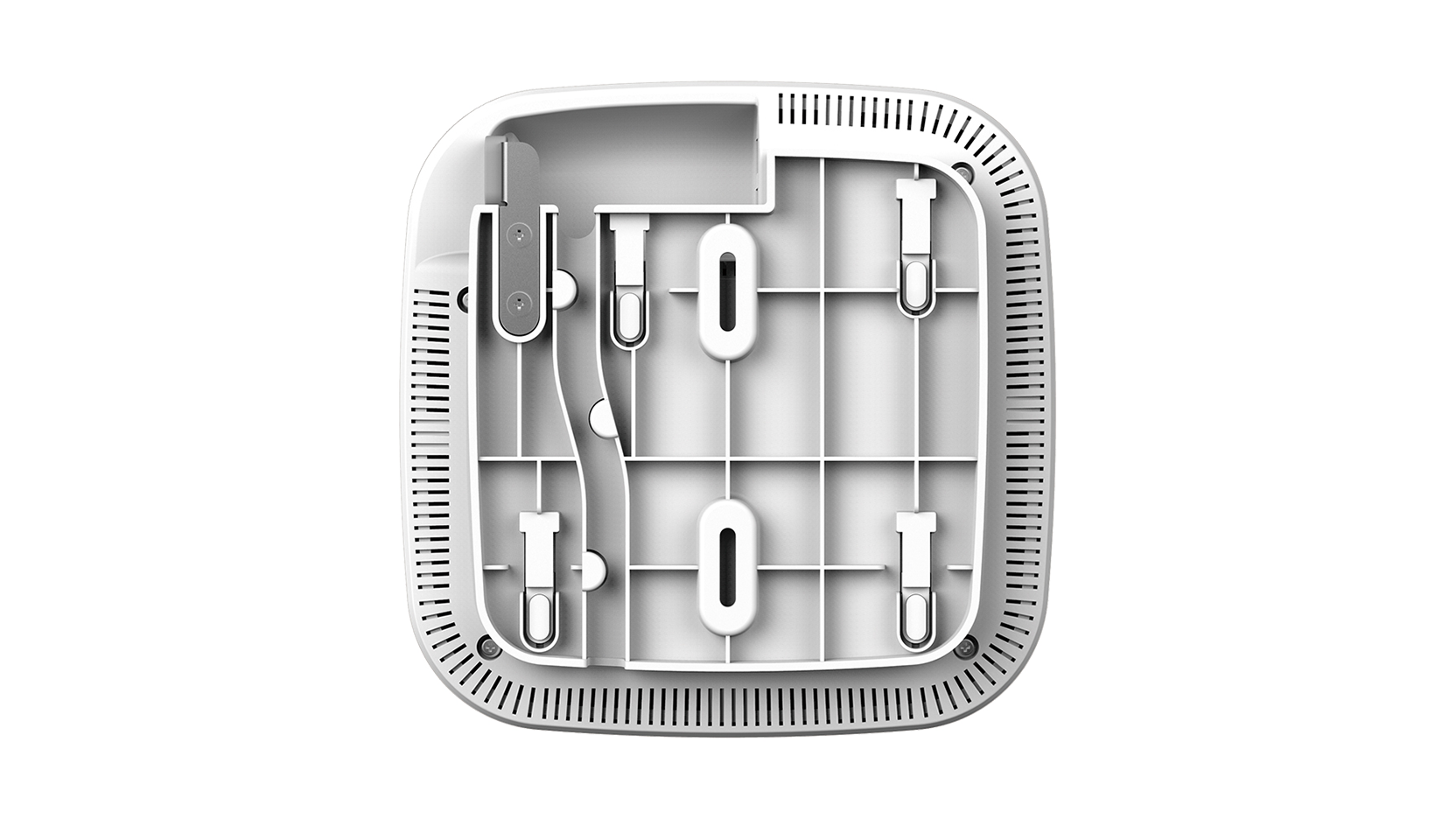

Featuring a clean modern design, the DAP-2660 can be mounted easily onto any wall or ceiling (mounting clips included). Designed with a standard PoE power requirements, the DAP-2660 can easily be deployed and configured in any network.
![](/ro/ro/-/media/images/b2b_icons/access_points/wireless_ac.jpg)
![](/ro/ro/-/media/images/b2b_icons/access_points/speed1220.jpg)
![](/ro/ro/-/media/images/b2b_icons/access_points/range100m.jpg)
![](/ro/ro/-/media/images/b2b_icons/access_points/dual_band.jpg)
![](/ro/ro/-/media/images/b2b_icons/access_points/cwm.jpg)
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_attractive_design.jpg)
Wireless Range
The DAP-2660 has a wireless range of up to 100m and enhanced networking features like bandsteering to ensure wireless signal continuity.
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_wireles_range.jpg)
Simultaneous Dual-Band Wireless
Supports up to 1200Mbps. Up to 900Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_dual_band.jpg)
Manage up to 1000 APs
Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_1000_aps.jpg)
Scalable, flexible, centralised AP management
Manage up to 1000 Access Points from a central location, regardless of geography.
![](/ro/ro/-/media/product-pages/dap/2660/dap_2660_scalable.jpg)
Product Comparison
Wireless AC
![]() |
![]() |
|||
---|---|---|---|---|
DAP-2660 | DAP-2695 | |||
Wireless Standard | B, G, N, AC | B, G, N, AC | ||
Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
2.4GHz Throughput | 300Mbps | 300Mbps | ||
5GHz Throughput | 867Mbps | 1300Mbps | ||
Aspect | Indoor | Indoor | ||
Range* | 100m | 100m |
Wireless N
![]() |
![]() |
![]() |
||
---|---|---|---|---|
DAP-2310 | DAP-2360 | DAP-2690 | ||
Wireless Standard | B, G, N | B, G, N | B, G, N | |
Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
5GHz Throughput | - | - | 300Mbps | |
Aspect | Indoor | Indoor | Indoor | |
Range* | 100m | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
![](/ro/ro/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=ro-RO&hash=7EEE41E7D503A11B465B733357FC19EB)
![](/ro/ro/-/media/product-pages/dgs/1210/f1/dgs12101010p10mp20262828p28mp5252mpf1image-lside1.png?h=100&w=103&la=ro-RO&hash=E61D1F53736F6DC8E12F950BCAB26F96)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless AC |
Frequency band mode
|
Dual-band simultaneous |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Advanced features
|
MIMO |
Maximum number of SSIDs
|
8 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
Management platform
|
Nuclias Connect |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
