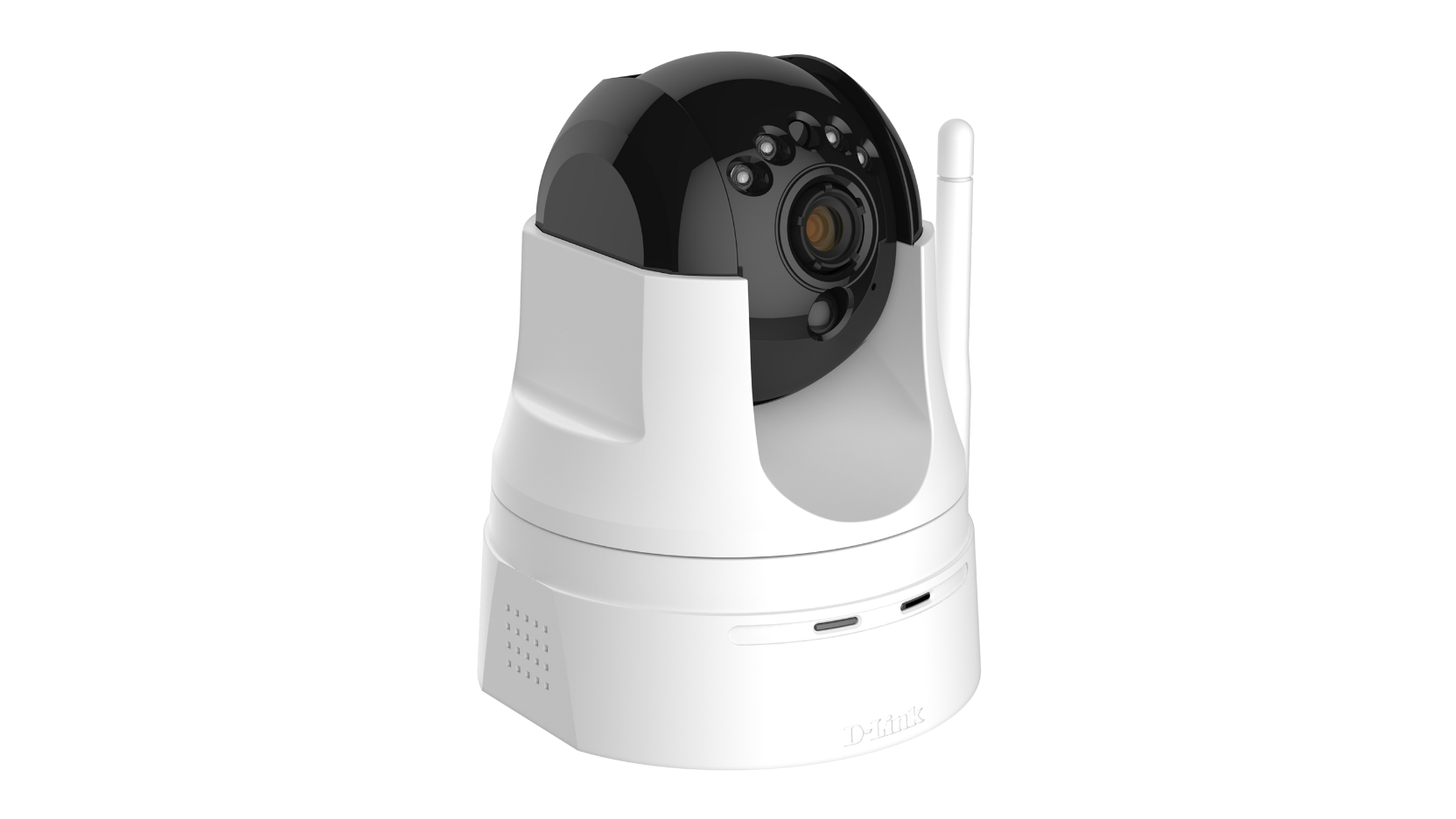

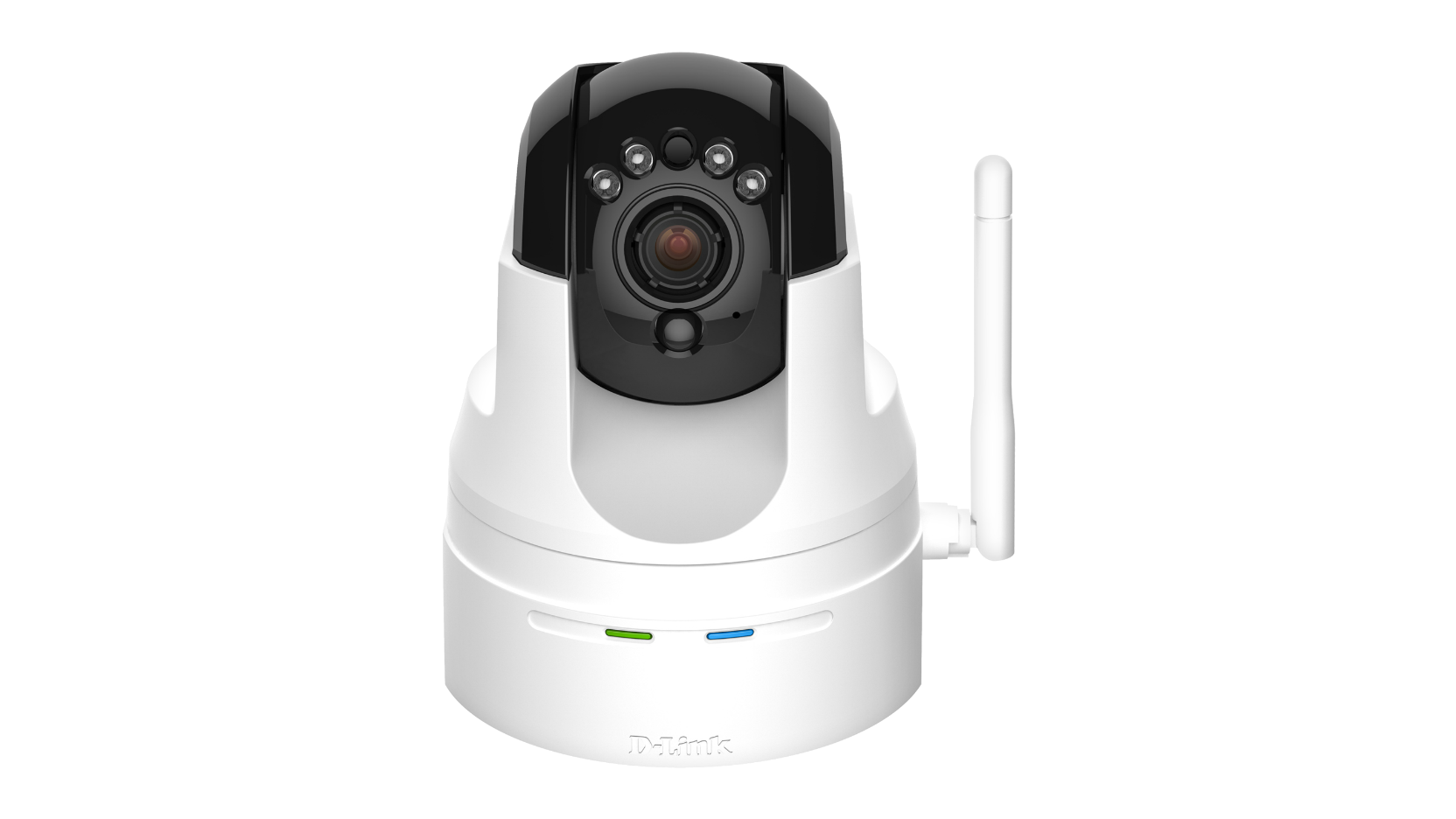

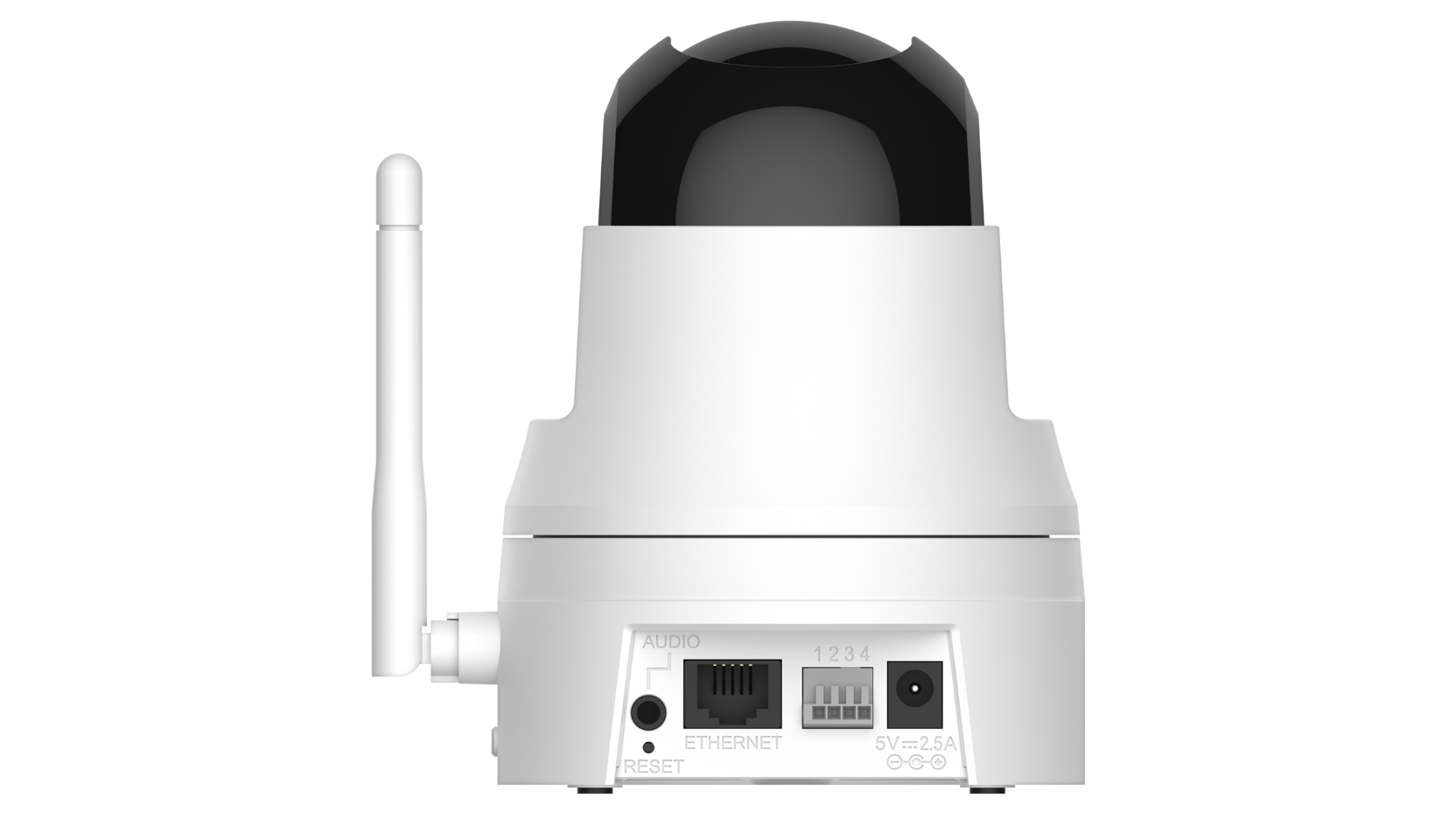

Cloud PTZ Camera

DCS-5222L

Product Status: End of Life

The DCS-5222L Cloud PTZ Camera is a wireless pan/tilt network camera with megapixel resolution designed for indoor surveillance applications and detailed remote monitoring. The camera is also mydlink™-enabled, which provides user-friendly setup and instant remote viewing through the secure mydlink™ website or through the free mydlink™ Lite app for iOS, Android or Windows Phone devices.

Full-featured Wireless Surveillance Camera

The DCS-5222L Cloud PTZ Camera is ideal for small and medium business applications which require coverage of a large area, or remote monitoring. It gives you detailed, 24-hour remote surveillance of a large area by using a megapixel high-resolution HD image sensor for highquality video and a built-in IR illuminator for low-light surveillance. The DCS-5222L can also be connected to your network wirelessly, allowing you to place the camera anywhere that has a Wi-Fi signal, eliminating the need to install additional network cabling.

mydlink™: the easiest way to setup up your camera and monitor your home

Connecting a camera on your network and accessing it has traditionally required complex configuration. mydlink™ makes it easy to access your camera from wherever you are, whenever it’s convenient for you. Using the free mydlink™ Lite app for iOS and Android smartphones and tablets, you can connect and setup your mydlink™ camera without turning on a computer. A step-by-step guide has your camera up and running in a matter of minutes.

Through the mydlink™ Lite app, you can set up a free mydlink™ account which allows you to view and manage your camera from any Internet connected computer. If you have more than one camera, you can add it to your existing mydlink™ account and watch all your cameras from a single location.

Accessing your cameras on the go is easy too. Just download the free mydlink™ Lite app for your iPhone or Android device and you can quickly and easily view your camera feed from anywhere with a wireless or 3G/4G LTE connection. You can even access videos recorded onto the included SD card and talk back through the app with 2-way audio support. Thanks to this app, you can monitor on-the-go even if you don’t have access to a computer.

If you have a mydlink™-enabled Cloud Router, setting up and configuring your DCS-5222L is a snap, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable - the camera will automatically be added to your account.

Sharp Image Monitoring from Different Angles

With sharp, responsive pan/tilt movement and digital zoom, the Cloud PTZ Camera gives you full control, so you can quickly scan a wide area from a variety of angles, and 10x digital zoom lets you zoom in on specific areas for more detail. The DCS-5222L can also be set to automatically move to specific preset positions, allowing the camera to patrol particular areas of interest within a surveillance area.

A Complete Surveillance System¹

The DCS-5222L includes a built-in CPU, allowing it to function as a complete, standalone surveillance tool. Recordings can be made continuously, whenever movement is detected, or according to a predefined schedule. E-mail notifications can be sent when motion is detected, keeping you informed of what is happening, no matter where you are. The built-in microSD slot² allows the camera to record independently. The DCS-5222L can also be used as part of a multi-camera surveillance system through the included D-ViewCam™ software, which supports up to 32 cameras.

¹ D-ViewCam software included is not Mac-compatible.
² SD card not included.

Product Awards

DCS 5222L Gadget Plaza Review

DCS-5222L Technikblog Review

PC Active

PCM

IP cameras are on the rise and gaining popularity, especially wireless models where you can easily view images via your smartphone. Rugged, waterproof models with night vision are also becoming more common.

Specs

Indoor/outdoor	Indoor
Resolution	HD 1 megapixel
Image sensor	1/4" 1 megapixel progressive scan CMOS
Maximum Video Resolution	1280 x 720 (16:9) 960 x 720 (other)
Lens	3.6 mm F2.0
Infrared-Cut Removable Filter	Supported
Night vision	Supported
Night vision range	8 m
PIR(Passive Infrared)sensor	Supported
Motorised Pan/Tilt	Supported
Privacy Masks	3 zones
2-way audio	Supported
Built-in Microphone	Supported
Built-in Speaker	Supported
External Microphone Input	Supported
External Speaker Output	Supported
Connectivity	Wireless Wired
External Card Slot	MicroSD SDHC (max 32 GB)
App Support	mydlink
Video Format	H.264 MJPEG
Multi-Stream	Supported
Mobile Stream	Supported
Features	ONVIF
Digital Zoom	10x
Motion Detection	Supported
Event Recording	Supported
E-mail Notification	Supported
Recording to NAS	Supported
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio.
