HD Wireless N Day/Night Outdoor Cloud Camera

DCS-2330L

  • Product Status: End of Life

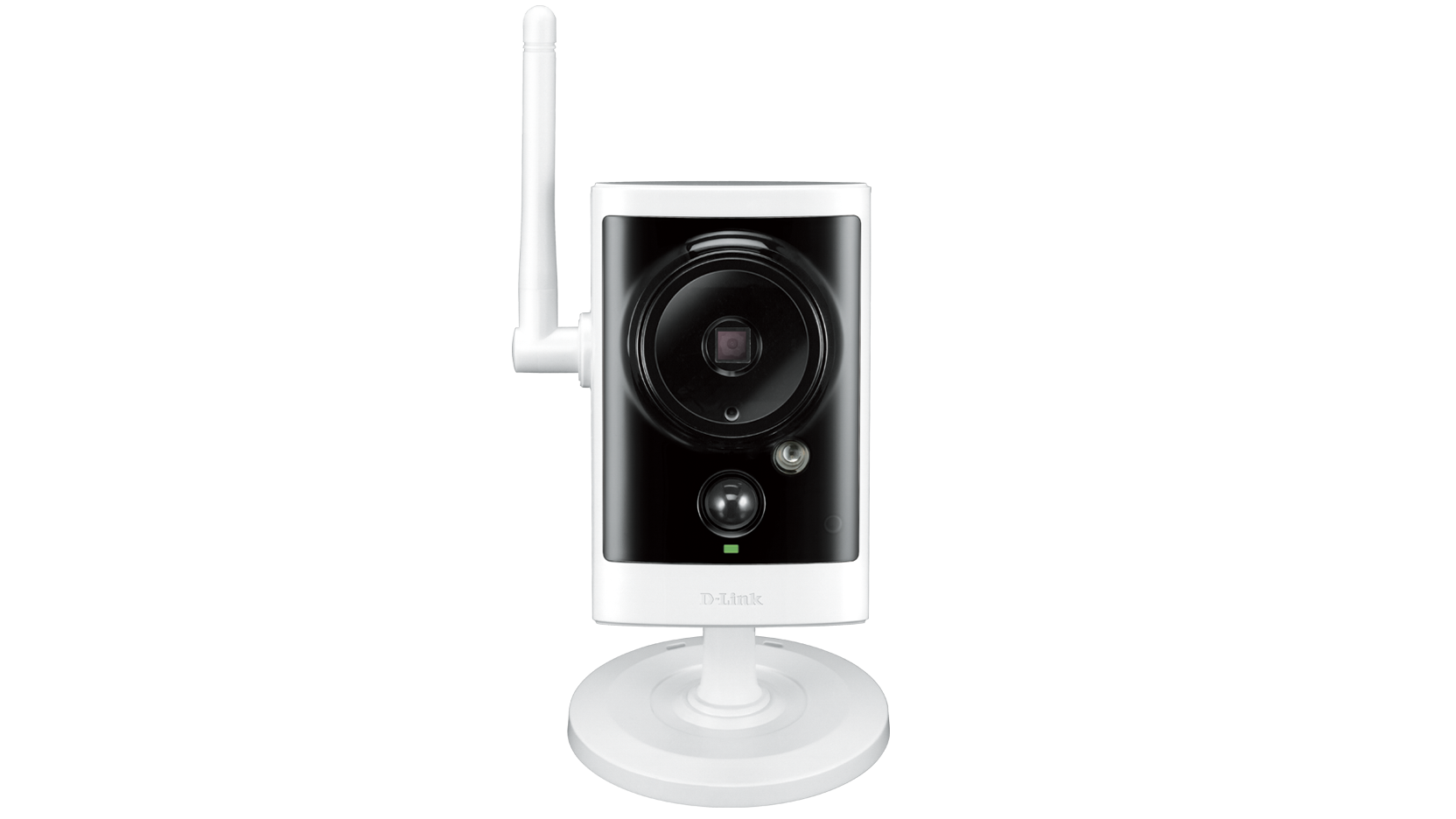

The DCS-2330L HD Wireless N Day/Night Outdoor Cloud Camera is the perfect solution for monitoring an outdoor area 24 hours a day from anywhere. This mydlink™-enabled network camera is built to last with rugged metal housing, while the megapixel image sensor and infrared night vision give you high-quality resolutions up to 720p HD - even in complete darkness.

24/7 HD Surveillance

The DCS-2330L is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 720p HD1. This gives you sharp, high-resolution snapshots and videos with rich detail, so you can capture important details often missed by lower resolution cameras. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.

An infrared cut removable (ICR) filter is also built into the DCS-2330L, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with the IR LED illuminator, this camera can monitor an area even in complete darkness.



mydlink™: the easiest way to setup up your camera and monitor your home

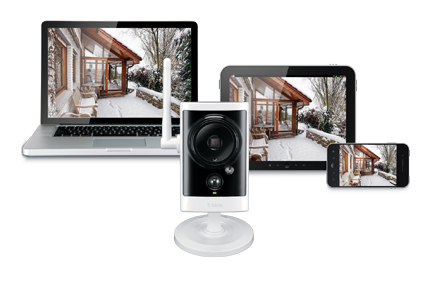

Connecting a camera on your network and accessing it has traditionally required complex configuration. mydlink™ makes it easy to access your camera from wherever you are, whenever it’s convenient for you. Using the free mydlink™ Lite app for iOS and Android smartphones and tablets, you can connect and setup your mydlink™ camera without turning on a computer. A step-by-step guide has your camera up and running in a matter of minutes. Through the mydlink™ Lite app, you can set up a free mydlink™ account which allows you to view and manage your camera from any Internet connected device. If you have more than one camera, you can add it to your existing mydlink™ account and watch all your cameras from a single location.

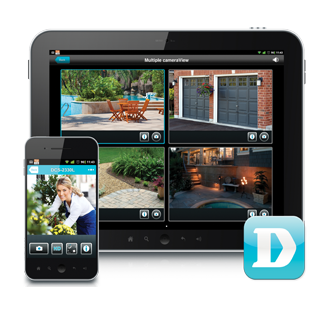

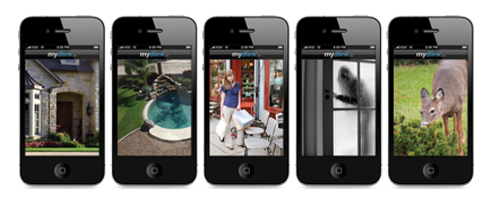

Accessing your cameras on the go is easy too. Just download the free mydlink™ Lite app for your iPhone or Android device and you can quickly and easily view your camera feed from anywhere with a wireless or 3G/4G LTE connection. You can even access videos recorded onto the included SD card. Thanks to this app, you can monitor on-the-go even if you don’t have access to a computer.

If you have a mydlink™-enabled Cloud Router, setting up and configuring your DCS-2330L is easy, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable - the camera will automatically be added to your account.

Click here to find out more about mydlink™

Built for the Outdoors

Built for outdoor use, the DCS-2330L has an IP65 weatherproof housing that protects it from the elements. Wireless N connectivity means you can put it anywhere within range of your wireless network, giving you the freedom to install it right where you need camera coverage. A passive infrared (PIR) motion sensor provides enhanced motion detection to minimise false alarms.

A Complete, Expandable Surveillance Solution

This mydlink™ camera includes a MicroSD card slot and a pre-installed 16Gb MicroSD card to record audio and video directly onto the camera, without the need of a computer. You can setup the camera to record only when motion is detected for up to 7 days2 via the camera’s intuitive web interface. Once the MicroSD card is at full capacity, older footage will be recorded over. The camera can also send e-mail alerts whenever motion is detected. All these features can be easily configured via the web-based configuration, which makes this camera a truly comprehensive home monitoring system.

If you want to expand your surveillance options, D-Viewcam3 management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

1 Frame rates when streaming video may vary depending on network conditions and method used.
2 Based on 5 hours of motion detection per day at a constant bitrate of 1 Mbps.
3 D-ViewCam software included is not Mac-compatible.

Specs

Indoor/outdoor
Outdoor
Type
Box
Connectivity
Wired

Wireless
Resolution
HD 1 megapixel
Image sensor
1/4" 1 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 720 (16:9)

960 x 720 (other)
Lens
3.45 mm

F2.0
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
5 m
PIR(Passive Infrared)sensor
Supported
Privacy Masks
3 zones
Built-in Microphone
Supported
External Card Slot
MicroSD SDHC (max 32 GB, 16 GB included)
App Support
mydlink
Features
ONVIF
Video Format
H.264

MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 28/07/2020
This product's last date of support is on: 28/07/2022
How to install and use the Mydlink Lite app on your iPhone/iPad
How to remove a camera from your Mydlink account
How to Log into a Mydlink camera
How to Setup and Install a Mydlink camera
How to configure time on a Mydlink camera
How to record to the SD card on a Mydlink camera
How to configure Motion Detection on a Mydlink camera
