Wireless AC1200 DualBand Unified Access Point

DWL-6610APE

  • Product Status (Revision B): Live
The DWL-6610APE Wireless AC1200 Dual-Band Unified Access Point is designed for small to medium businesses and enterprises, providing unparalleled bandwidth and flexibility for medium to large scale Wi-Fi networks. Featuring the latest 802.11ac technology on its 5 GHz band, the DWL-6610APE allows you to deploy more devices and provide greater throughput for your wireless clients.

Download the datasheet.

Where to buy

Performance without Compromise

The DWL-6610APE is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610APE can be discreetly deployed anywhere.

Key Features

Wireless AC 1200

Maximum combined wireless speed of 1200 Mbps.*

Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including station isolation.

Dual Band

Supports both 2.4Ghz and 5Ghz bands simultaneously.

Unified Wireless

Access points can be managed by unified wireless controller.

Smart Design

The DWL-6610APE can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610APE adheres to strict fire codes for placement in air passageways.

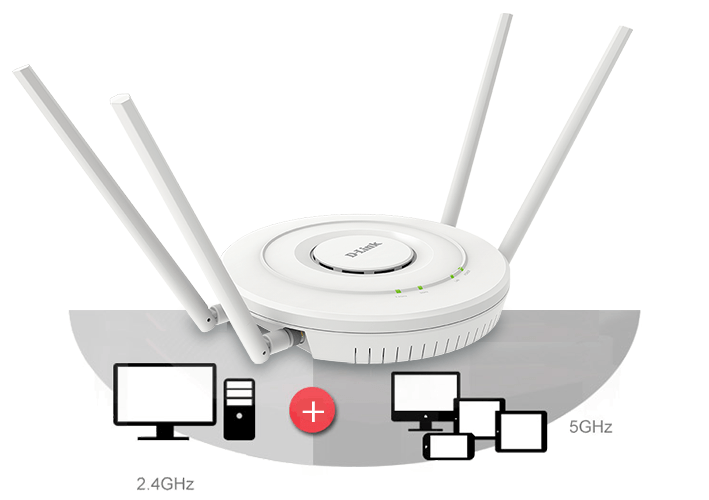

Band Steering technology

With band steering, the DWL-6610APE detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

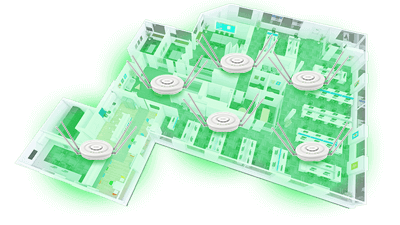

Versatility Built as standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610APE coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.

Secure and Green Design

The DWL-6610APE has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

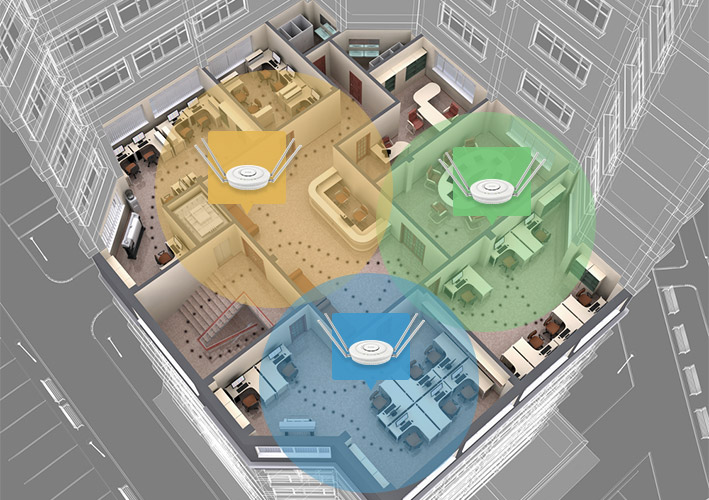

Fast Seamless Roaming

Combining the DWL-6610APE with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

Management platforms

D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.

Simultaneous Dual-Band

Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band

* Maximum wireless signal rate derived from IEEE standard 802.11ac specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Related Products

Wireless Controller
DWC-1000
Find out more
DWC 1000 Front
Wireless Controller
DWC-2000
Find out more
Wireless AC1200 Dual-Band Unified Access Point
DWL-6610AP
Find out more
Type
Hardware-managed AP
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
4 detachable omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
Fast Roaming
MIMO
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
DWS-4026
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
