ADSL2+ Ethernet Modem

DSL-320B

  • Product Status: End of Life

The DSL-320B ADSL2+ Ethernet Modem is a high-speed broadband modem which connects to any computer with an available Ethernet port, or to a broadband router to share high-speed Internet access with a group of users at the office. Featuring the latest ADSL2/+ standards, this modem provides speeds of up to 24 Mbps downstream and 2 Mbps upstream.

  • Works with all major ISPs: built-in extensive European ISP database
  • Web site filtering for parental control
  • Modern black/silver style housing
  • Quality of Service (QoS) for traffic prioritisation
  • Up and running in minutes with D-Link DCC wizard

D-Link Click‘n Connect (DCC), an intuitive software wizard that runs directly from the product CD-ROM, helps install and configure the device without any prior knowledge required. Strong security is included, with comprehensive firewall and filtering capabilities for parental control. Other features include browser-based management, VPN pass-through to allow secure connections from home to the office network and Quality of Service (QoS) for traffic prioritization.

ADSL2+ Ethernet Modem
The DSL-320B ADSL2+ Ethernet Modem is a high-speed broadband modem for home and office use. Supporting the latest ADSL2+ standard, it provides speeds of up to 24 Mbps downstream and 2 Mbps upstream.

Simultaneous telephone and Internet access
ADSL technology lets you talk on the phone and surf the Internet at the same time. The connection is always on, so Web surfing and e-mail are instantly available at any time. There are no dial-up waiting times or busy signals.

Designed for single computer use
The modem includes one ADSL port for connection to the phone line, and one Ethernet port for connection to your computer. Unlike USB models, it does not require any drivers. More than one computer can share the Internet connection, by using one of our broadband routers.

High speed broadband with Quality of Service (QoS)
Along with instant connectivity, you can surf the Internet at very high speeds. The modem even identifies delay-sensitive data, such as videos or graphic-intensive Internet games and gives them higher priority which keeps the experience smooth and responsive.

Internet Security
Unlike USB models, this modem does not leave you vunerable: a comprehensive firewall is included to repel Denial of Service (DoS) attacks and protect your computer from hacking attempts. Strong parental controls allow you to block certain web site addresses, preventing users from viewing inappropriate content. This can be adjusted according to the time of the day (scheduling). The modem also supports multiple VPN pass-through to let you securely access office files and e-mail from home.

Quick and simple installation
With the D-Link Click’n Connect (DCC) installation wizard, even the least experienced user can connect to the Internet within minutes, just by running the product CD. In just a few simple steps, you are taken through establishing physical connections (power and cabling), selecting your ISP from the drop-down menu and finally connecting to the Internet.

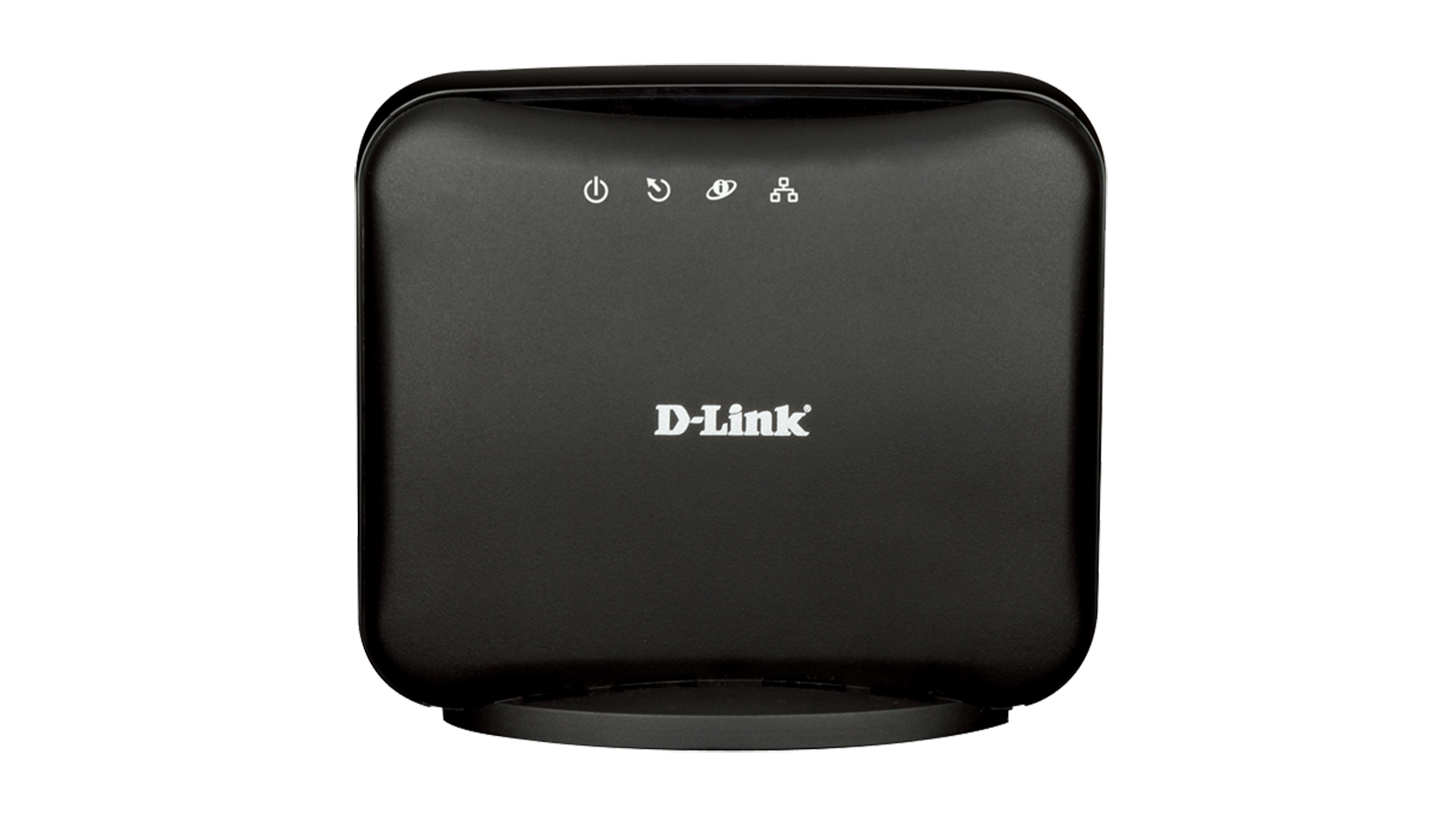

Actual product appearance may differ from the image displayed on this page



Wired interface
1 x Fast Ethernet LAN
ADSL2/2+
This product was phased out on: 18/12/2019
This product's last date of support is on: 17/12/2021
Version Date Type File Size
DSL-320B datasheet - PDF 0.39mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 1.22mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 2.02mb Download
Version Description Date Type
Firmware fixes security vulnerabilities 1.25 Firmware fixes security vulnerabilities.
Instructions included.
30.4.2013 - Download
Version Description Date
DCC Utility Rev D DCC Utility 13.1.2011 Download
Version Description Date
CE doc Revision D2 CE document 09.12.2009 Download
