What this product does
The ShareCenter™ 2-Bay Network Storage Enclosure, when used with internal SATA drives1, enables homes and small offices to share documents and files across the network and on the Internet. This enclosure also allows for the creation of a central network point for backing up files and the built-in RAID 1 mirroring technology protects these files from drive failure. Add-on applications can be installed to further extend functionality.
Easily access and share your photos, movies, music, files and more via mydlink™ Cloud mobile app
This ShareCenter™ Cloud Storage device enables you to share documents and media content such as photos, music and videos on a home network or over the Internet. The mydlink Cloud mobile app allows you to share documents and access photos, music and video stored in your D-Link ShareCenter™ right from your mobile device.
Once connected, you can instantly open or send files, folders, pictures or videos from your mobile device with just a click. mydlink Cloud makes it easy to work directly with your NAS files, no matter where you are — and even listen to music in the background at the same time.
If you have with further technical knowledge you can manage the contents of their ShareCenter™ from any FTP client.
Stream digital media content with the built-in Media Server
The built-in UPnP media server will stream the media content on your Sharecenter™ to any compatible media player such as the PlayStation 3, Microsoft Xbox 360, and D-Link Boxee Box over your local network. The Sharecenter™ 2-Bay Network Storage Enclosure allows for multiple simultaneous streams, so you can watch a movie on your entertainment centre while someone else listens to music streamed over their computer.
Safely share digital files locally and over the Internet
The ShareCenter™ 2-Bay Network Storage, when used with internal SATA drives1, enables users to share documents and files with other users on the same network. Users can also gain remote access to their files over the Internet using the built-in web/file server or the secure FTP server. Keep data safe by giving rights to specific users or groups and assign them to folders with specific read/write permissions. This is ideal for an office environment with sensitive employee-specific data or at home when parents want to restrict their children’s access to certain material . The ShareCenter™ also supports Apple Time Machine which allows users to easily back up any Mac computers running OS X (10.5 or later).
Do more with Surveillance, Photo and Audio Center as well as powerful add-on applications
Powerful add-on applications extend NAS functionality and allow you to do more with your ShareCenter™. Surveillance Center allows you to access and configure D-Link IP cameras on the same network to record, monitor and playback. Photo and Audio Center allows you to generate photo and music libraries that can be easily managed and shared. Enjoy even more add-ons as they become available in the future.
Connect USB printers, storage devices, and UPS monitors
Share a USB printer or scanner within the network by connecting it to the USB 2.0 port. You may also plug in an external hard drive or flash storage device and share it with the entire network. A convenient USB push button allows you to instantly copy the data on a USB flash storage device to the NAS. Additionally, the ShareCenter™ supports UPS monitoring via USB to help maintain data integrity during a power failure.
Enjoy performance, protection, and flexibility
The availability of four different hard drive modes (Standard, JBOD, RAID 0, RAID 1) allows users to choose the configuration best suited to their needs. Standard mode creates two separately accessible hard drives. JBOD combines both drives to create a single, easy to use volume. RAID 0 combines both drives in a “striped” configuration, which provides the highest performance when using a Gigabit Ethernet connection. RAID 1 creates a copy of your data on both drives, providing maximum protection; if one drive fails while configured as RAID 1, the unaffected drive continues to function as a single drive until the failed drive is replaced. The new drive will then be re-mirrored, allowing the ShareCenter™ to return to its full level of protection.
Simple upgrade with Enhanced RAID Roaming
Enhanced RAID roaming allows the users to easily upgrade to the cloud NAS experience. Simply install existing hard drives from compatible D-Link NAS models into the Cloud Network Storage Enclosure and your data can be accessed from anywhere. There is no need to reformat, reconfigure or migrate your data (please refer to specifications for information on compatible upgrade models).
D-Link Green™
For businesses interested in reducing their energy costs and helping to save the environment, D-Link Green™ products provide eco-friendly alternatives without compromising performance. This device uses D-Link Green Ethernet, Hard Drive power management and Smart Fan speed control to reduce energy costs, minimize noise, and prolong the lifespan of your hard drives.
Also available with 1TB or 2TB Hard Drives installed (DNS-325-1TB and DNS-325-2TB).
1 Hard drives only included for DNS-325 1TB (1 x 1TB) and DNS-325 2TB (1 x 2TB). RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. May not work with older generation SATA drives. For a list of SATA drives that have been tested to work with the ShareCenter™, visit D-Link support websites.

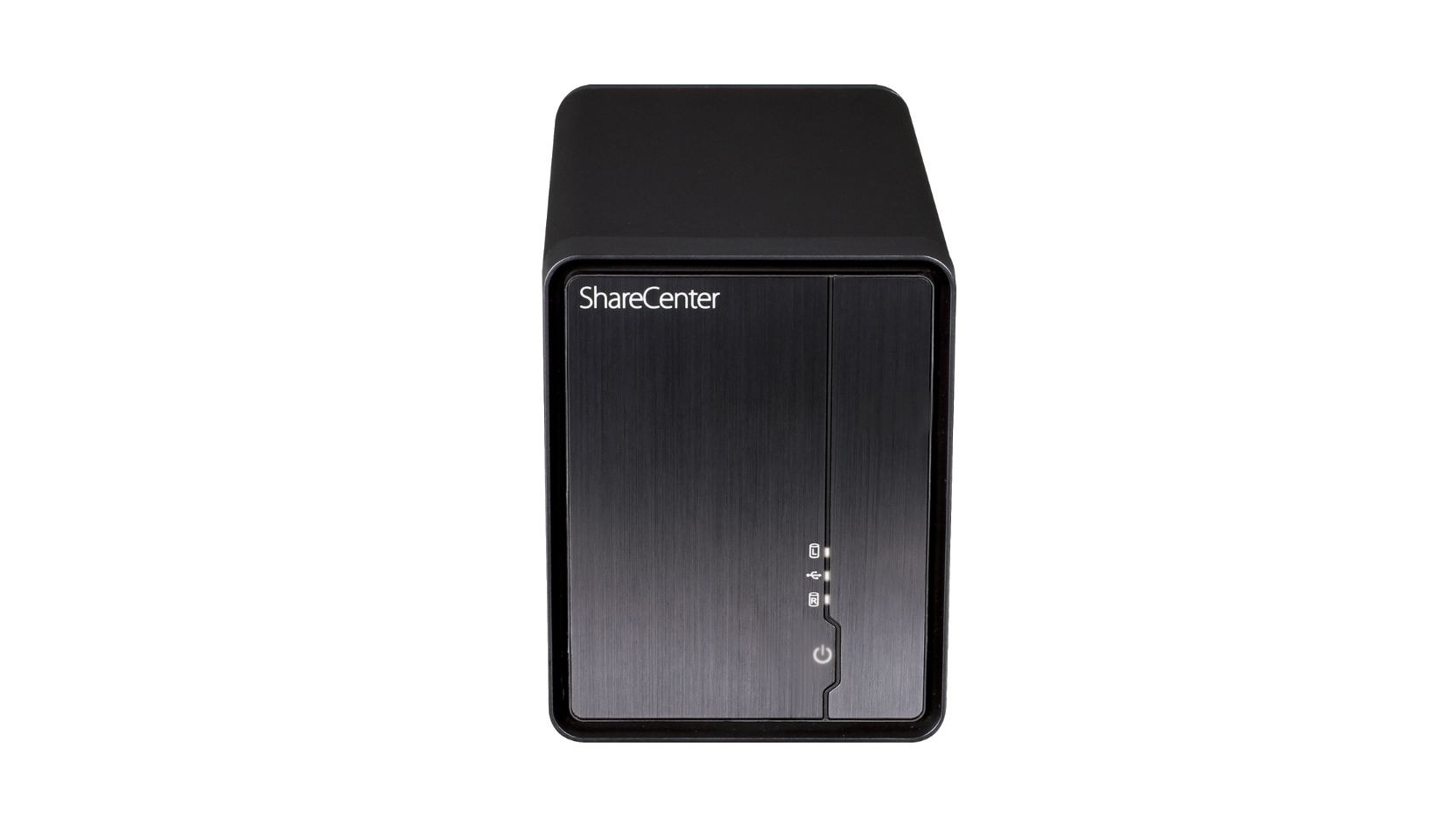

Actual product appearance may differ from the image displayed on this page
Specs
Type
|
Network Attached Storage |
---|---|
Enclosure form factor
|
Desktop |
CPU
|
Marvell 88F6281 1.2 GHz |
FLASH
|
128 MB |
SDRAM
|
256 MB |
Number of drive bays
|
2 |
Integrated hard disk drives
|
1 TB (1 x 1TB) 2 TB (1 x 2TB) |
Drive interface
|
SATA I/II |
Drive form factor
|
3.5 inch |
Maximum storage capacity
|
8 TB |
Network interface
|
1 x Gigabit Ethernet |
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
|
1 |
D-Link Green with power saving mode and smart fan
|
Supported
|
Multiple drive configuration
|
JBOD RAID 0/1 standard |
RAID migration non-RAID to RAID 1
|
Supported
|
Drive format
|
EXT3 |
Scan disk
|
Supported
|
SMART
|
Supported
|
Disk/RAID roaming
|
Supported
|
User account management
|
Supported
|
Maximum number of user accounts
|
256 |
Group account management
|
Supported
|
Maximum number of group accounts
|
32 |
User/group quota management
|
Supported
|
Network share management
|
Supported
|
Maximum number of managed shared forlders
|
128 |
ISO mount management
|
Supported
|
Maximum concurrent connections via FTP
|
10 |
Maximum concurrent connections via Samba
|
64 |
Schedule backup from PC to NAS
|
Supported
|
Schedule local backups
|
Supported
|
Schedule remote backups
|
Supported
|
Apple Time Machine support
|
Supported
|
Cloud storage backup
|
Amazon S3 |
USB backup
|
Supported
|
mydlink (access and sync, mobile app support)
|
Supported
|
FTP/HTTP/P2P downloads
|
Supported
|
File sharing protocol
|
CIFS/NFS/Web File Manager/AFP/WebDAV |
Network streaming service
|
DLNA iTunes Server UPnP AV |
Add-on support
|
Supported
|
Photo Center
|
Supported
|
Surveillance Center
|
Supported
|
Web interface through browser
|
Supported
|
E-mail/SMS notification
|
Supported
|
System/FTP log
|
Supported
|
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Product manual | Product manual | - | 8.92mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
- | - | 0.88mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
My Surveillance addon | My Surveillance addon | 14.3.2016 | Download |
Software: MyDlink Cloud Package v2.38 2.38 | Software: MyDlink Cloud Package v2.38 |
28.7.2014 | Download |
Software: Yahoo Widget 2.01 2.01 | Software: Yahoo Widget 2.01 | 01.10.2012 | Download |
Software: Audio streamer Package 2.01 2.01 | Software: Audio streamer Package 2.01 | 30.8.2012 | Download |
Software: GPL Code v1.00 1.00 | Software: GPL Code v1.00 | 30.8.2012 | Download |
Software: Amule Package 2.01 2.01 | Software: Amule Package 2.01 | 03.8.2012 | Download |
Software: Setup Wizard v1.0.4.3 1.043 | Software: Setup Wizard v1.0.4.3 | 10.1.2012 | Download |
Software: Storage Utility v5 5.000 | Software: Storage Utility v5 | 06.4.2011 | Download |
Software: Ajaxplorer 2.01 2.01 | Software: Ajaxplorer 2.01 | - | Download |
Software: Blog Package 2.01 2.01 | Software: Blog Package 2.01 | - | Download |
Software: Photocenter Package v2.01 2.01 | Software: Photocenter Package v2.01 | - | Download |
Software: PnP X-Treiber v1.00 1.00 | Software: PnP X-Treiber v1.00 | - | Download |
Software: Squeeze Center Package v2.02 2.02 | Software: Squeeze Center Package v2.02 | - | Download |
