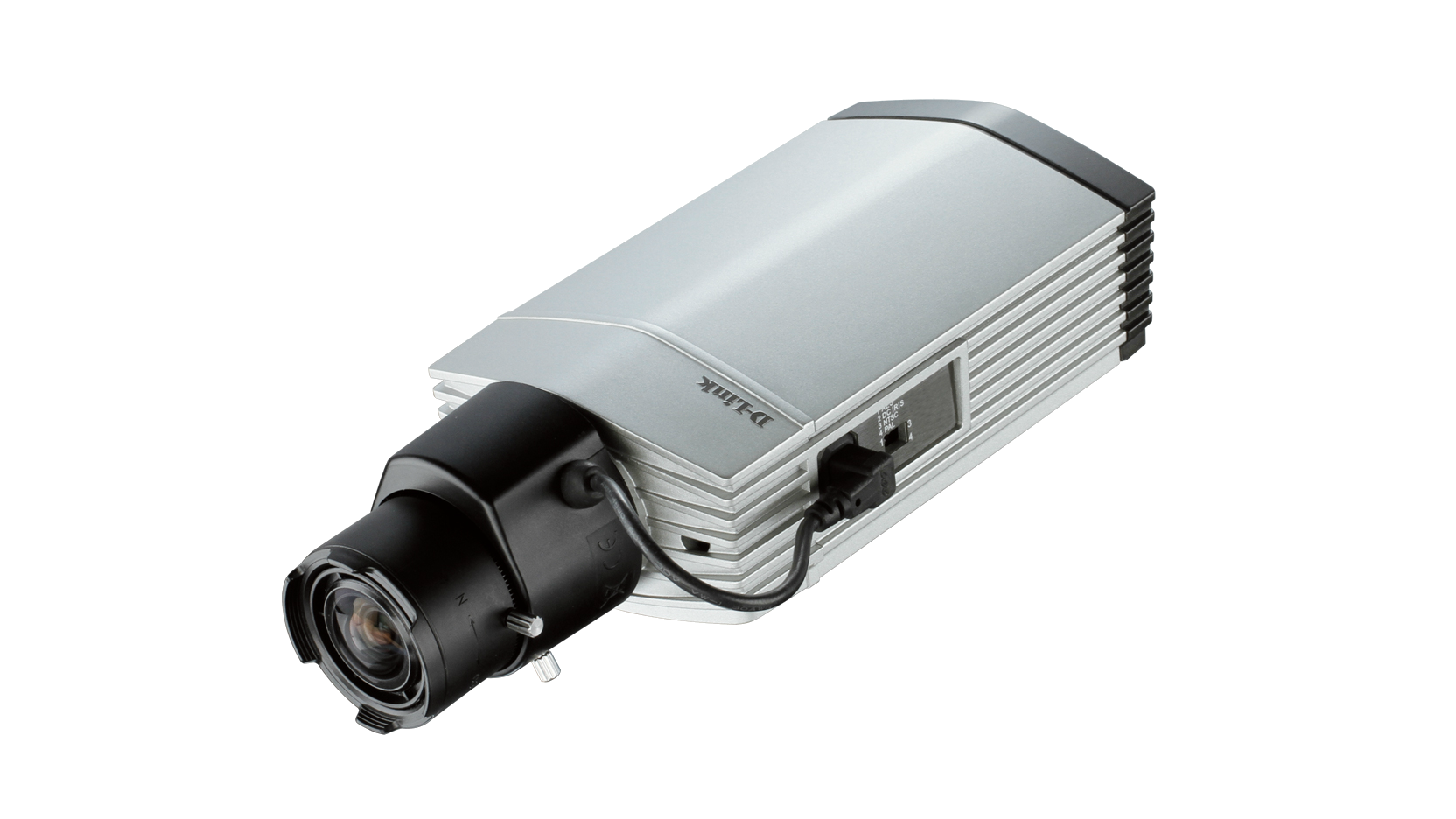

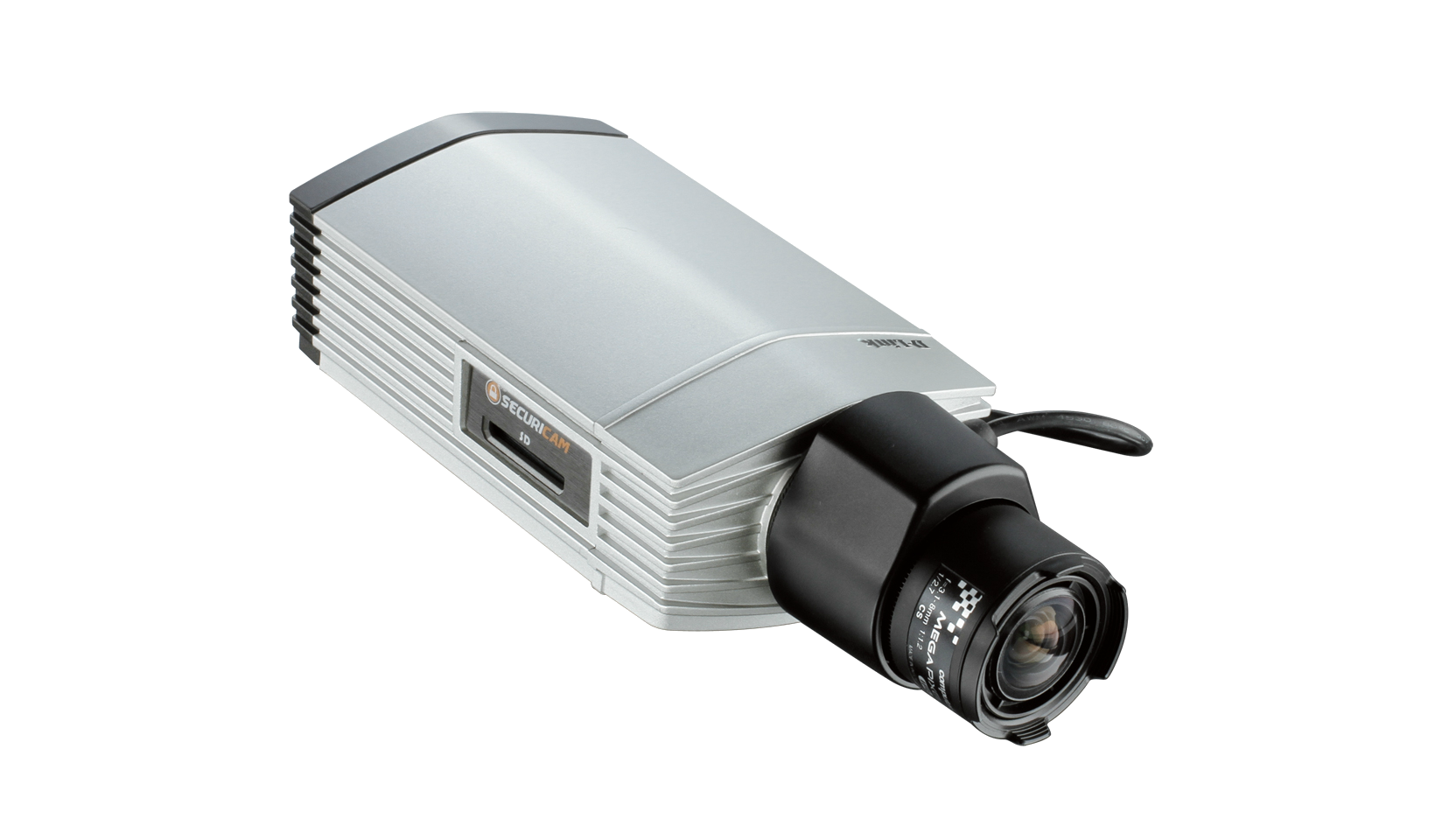

Full HD WDR PoE Day/Night Fixed Network Camera

DCS-3716

  • Product Status: End of Life

High Resolution Surveillance

The D-Link DCS-3716 is a high-end HD Day & Night Network Camera, equipped with a 1/2.8" 3 Megapixel WDR Progressive Scan CMOS sensor and a 3.1-8mm auto iris lens. The camera can capture Full HD video at resolutions of up to 1920 x 1080 (maximum 2048 x 1536) at frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.

Wide Dynamic Range (WDR) Applications

The Wide Dynamic Range (WDR) function provides properly exposed video even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-3716 ideal for high-contrast environments such as such as lobbies, entryways and shipping docks.

Multiple Video Streams

The DCS-3716 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. Each streaming profile can be independently configured with its own resolution, frame rate and compression type. The DCS-3716 also supports full-time analog video out, useful for aiming & focusing the camera or for use with an existing public view monitor.

Flexible Connectivity

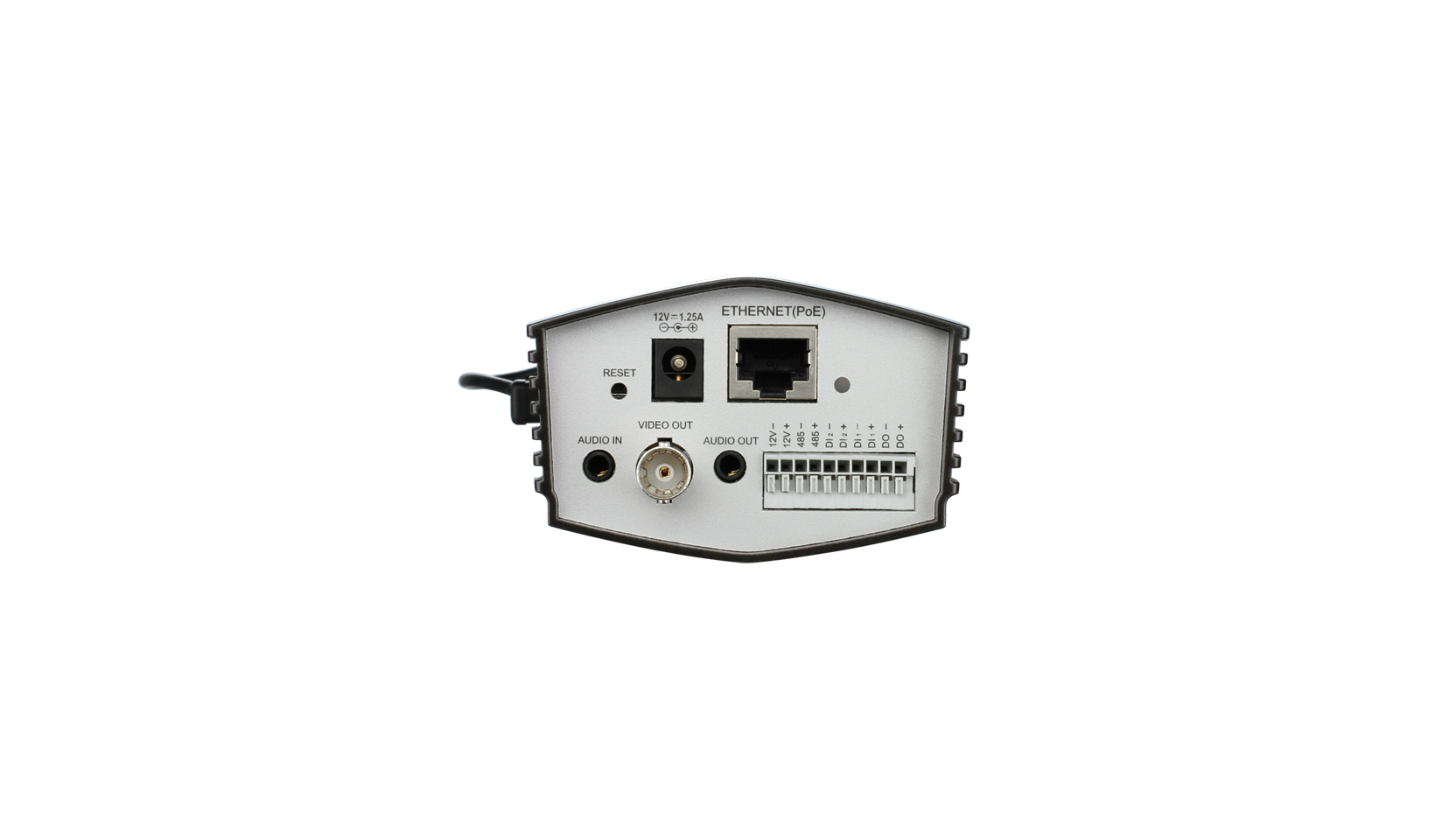

The DCS-3716 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3716 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays. An RS-485 interface provides connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3716.

D-ViewCam™ for Management

The included D-ViewCam™ IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras. Supporting up to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and events for various security applications. The D-ViewCam™ software is included free of charge with the DCS-3716.

Easy to Configure and Operate

This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network.

Open Network Video Interface Forum (ONVIF)

ONVIF is an open industry forum for the development of a global standard for the interface of IP-based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-3716 is ONVIF-compliant and therefore compatible with many third party Video Management Software (VMS) solutions. For more information on ONVIF and compatible D-Link network cameras, please click here.

Actual product appearance may differ from the image displayed on this page.

Indoor/outdoor
Indoor
Type
Box
Connectivity
Wired PoE
Resolution
3 megapixel
Image sensor
1/2.8" 3 megapixel WDR progressive scan CMOS (Sony Exmor)
Maximum Video Resolution
1920 x 1080 (16:9)
2048 x 1536 (other)
Lens
3.1-8 mm
CS Mount
DC iris varifocal
F1.2
Infrared-Cut Removable Filter
Supported
Wide Dynamic Range(WDR)
Supported
Optical Zoom
2.6x
Privacy Masks
3 zones
Analouge Output
BNC
2-way audio
Supported
External Microphone Input
Supported
External Speaker Output
Supported
Digital Input/Output(DI/DO)
2/1
External Card Slot
SD SDHC (max32 GB)
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 02/06/2018
This product's last date of support is on: 01/06/2020
Version Date Type File Size
Datasheet (English) - PDF 0.87mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Version Description Date Type File Size
Manual v3.30 (English) Manual v3.30 (English) - PDF 13.79mb Download
Manual v1.0 (English) Manual v1.0 (English) - PDF 6.68mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 2.82mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.13.06 Release notes included 21.10.2015 - Download
1.14.00 Release notes included 21.10.2015 - Download
Firmware 1.12

Firmware

26.2.2015 - Download
Firmware 1.10.01

Firmware

03.6.2013 - Download
Version Description Date
Device Pack 1.5.4

Device Pack

18.2.2014 Download
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.2.2014 Download
Setup Wizard 1.05 Setup Wizard 02.4.2012 Download
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.9.2016 Download
DEU_IP_Surveillance_Cheat_Sheet - 06.6.2014 Download
CE Declaration CE Declaration 01.5.2011 Download
