Full HD Wireless Day/Night Network Camera

DCS-2230

  • Product Status: End of Life
The DCS-2230 is a versatile surveillance solution that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2230 also includes a built-in IR cut filter, making it suitable for both day and night applications. Additionally, the DCS-2230 is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet network. The DCS-2230 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.

Wireless N Connectivity


The DCS-2230 includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. The DCS-2230 also includes a standard Ethernet port for connections to traditional wired networks.

ePTZ For Surveying Regions Of Interest

The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera’s 2 mexapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures.

Easy To Configure And Operate

This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember your IP address. You may also view up to 32 cameras from a central location using the included D-ViewCam software. D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform administrators of suspicious or unusual activities.

Open Network Video Interface Forum (ONVIF) compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. DCS-2230 is ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.

Centralised management with D-ViewCam™

The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

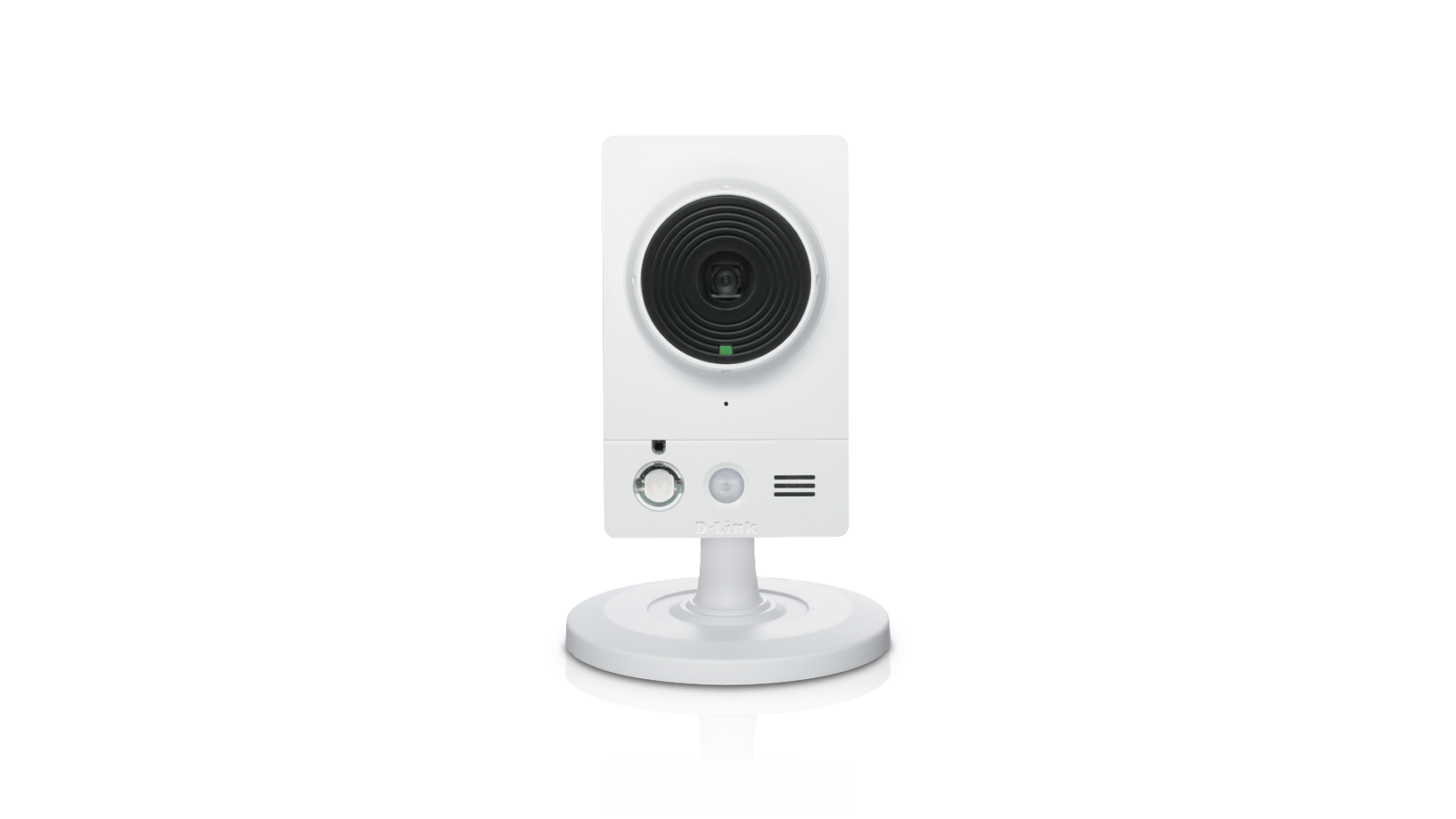

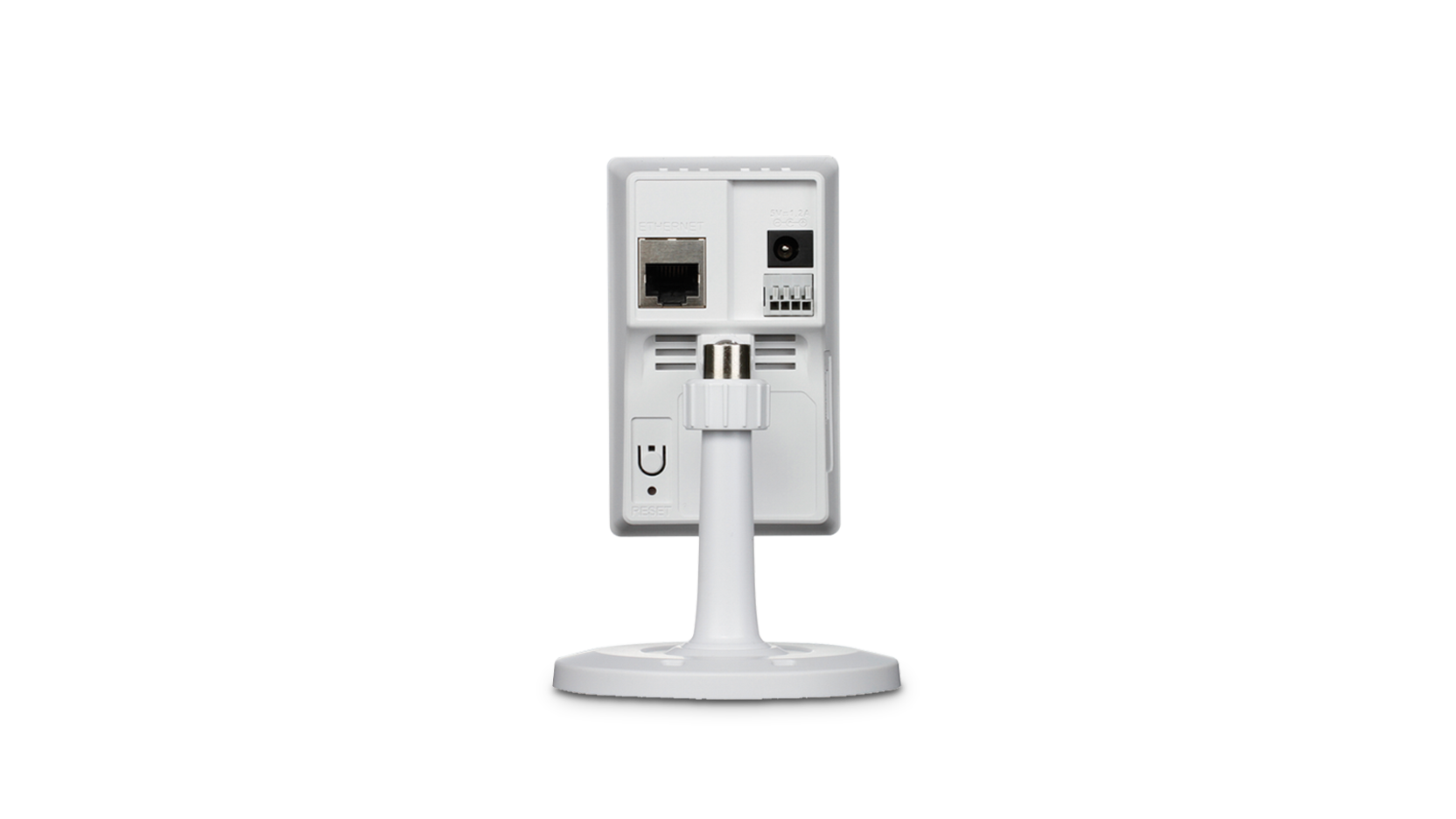

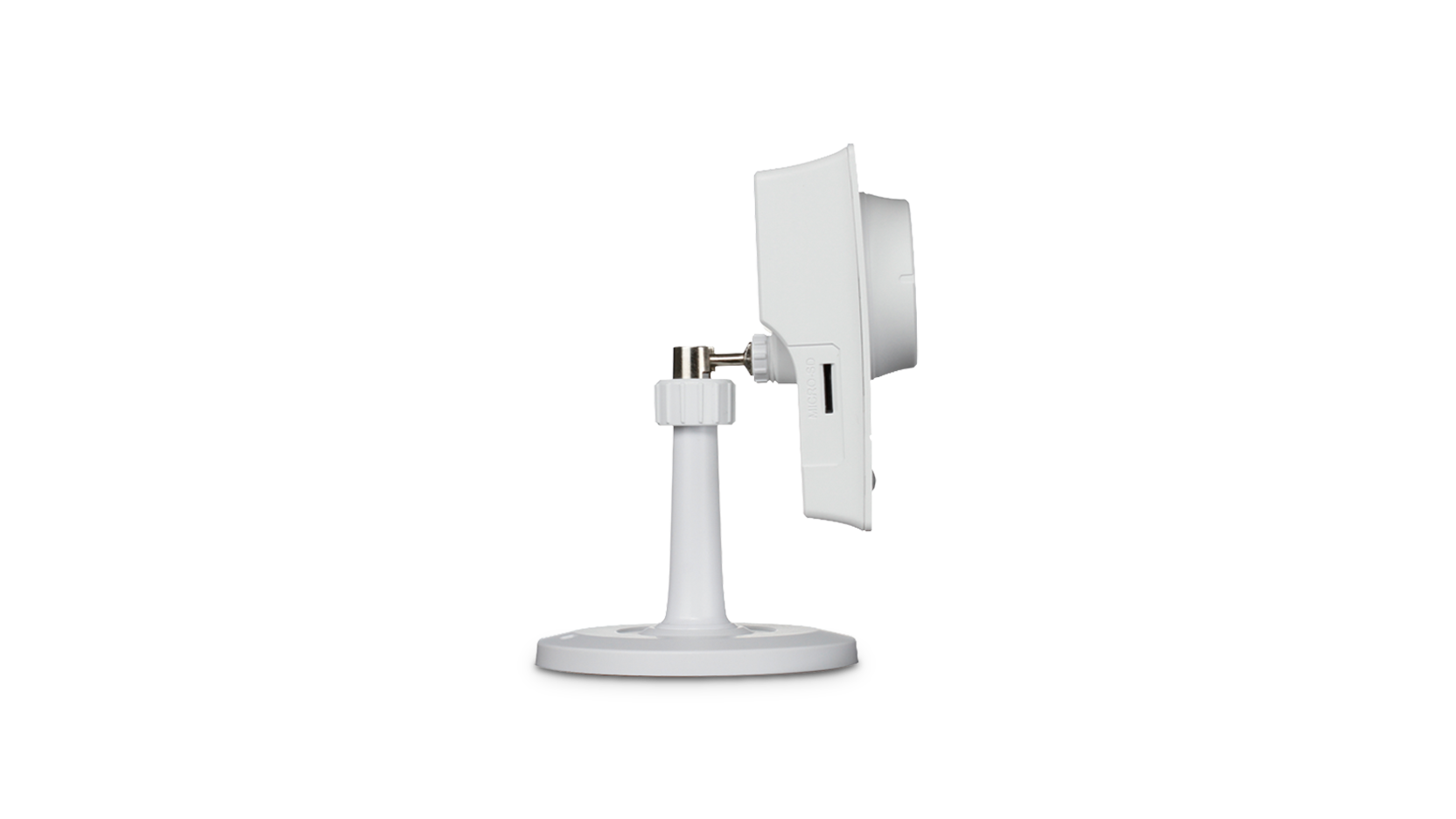

Actual product appearance may differ from the image displayed on this page
Indoor/outdoor
Indoor
Connectivity
Wireless
Resolution
Full HD 2 megapixel
Image sensor
1/2.7" 2 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 800 (other)
1920 x 1080 (16:9)
Lens
4.37 mm
F2.0
Fixed
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
5 m
PIR(Passive Infrared)sensor
Supported
Privacy Masks
3 zones
2-way audio
Supported
Built-in Microphone
Supported
Built-in Speaker
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC (max 32 GB)
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 16/07/2016
This product's last date of support is on: 16/07/2018
Version Date Type File Size
Datasheet (English) - PDF 1.03mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Version Description Date Type File Size
Manual v3.30(English) Manual v3.30 (English) - PDF 13.79mb Download
Manual v1.0 (English) Manual v1.0 (English) - PDF 5.07mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 1.13mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.25.00 Firmware 20.10.2016 - Download
1.23.02 Release notes included 21.10.2015 - Download
1.24.00 Firmware 19.10.2015 - Download
Firmware Release notes included 1.22.00 Firmware
Release notes included
07.1.2015 - Download
Version Description Date
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.2.2014 Download
Device Pack 1.5.4

Device Pack

18.2.2014 Download
Software Setup Wizard 1.05 Software Setup Wizard 14.9.2012 Download
Version Description Date
CE doc 1.11 Revision A2 CE document 21.2.2017 Download
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.9.2016 Download
CE doc 1.02 CE document 24.11.2014 Download
DEU_IP_Surveillance_Cheat_Sheet - 06.6.2014 Download
CE Declaration CE Declaration 14.8.2012 Download
