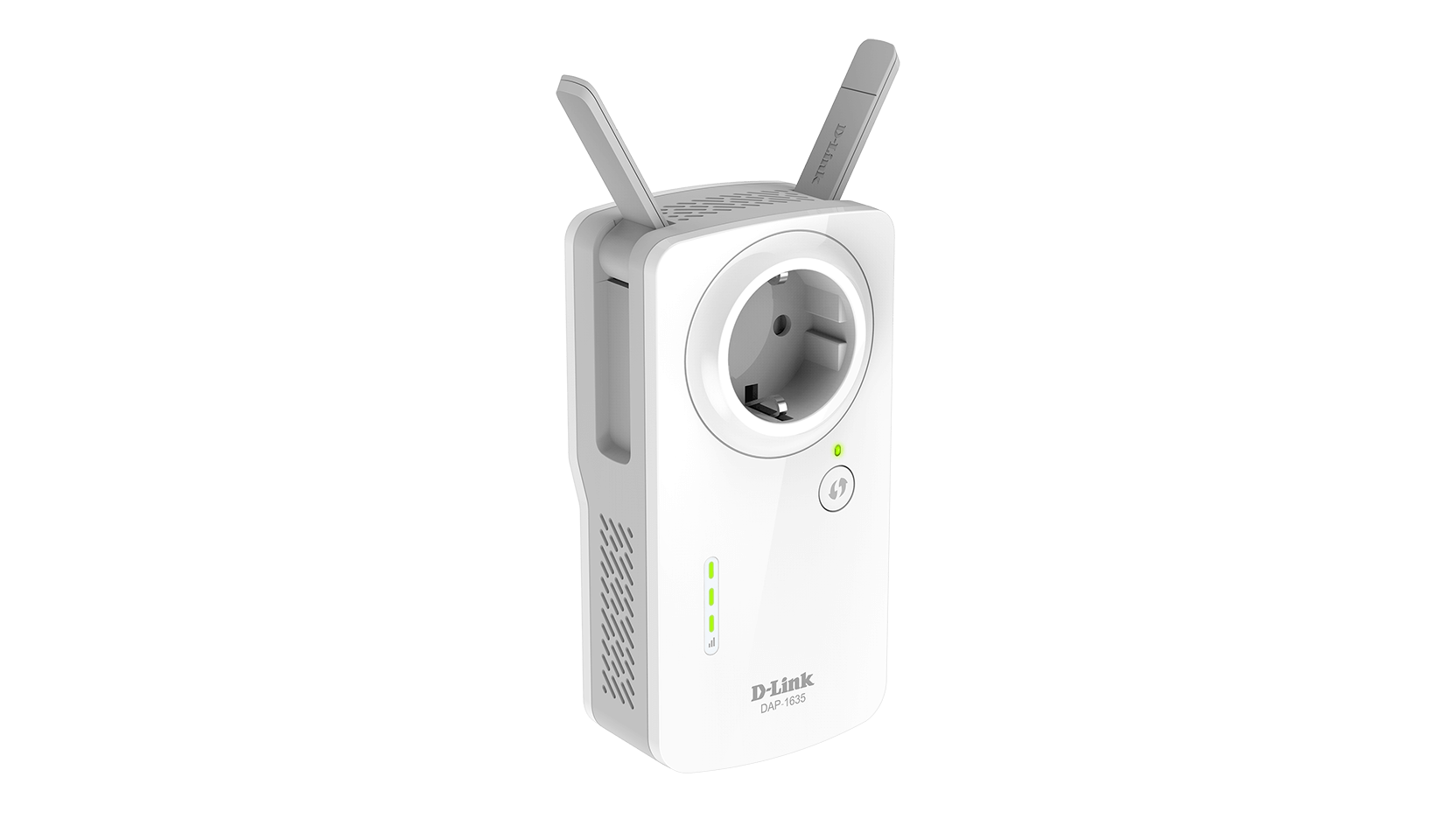

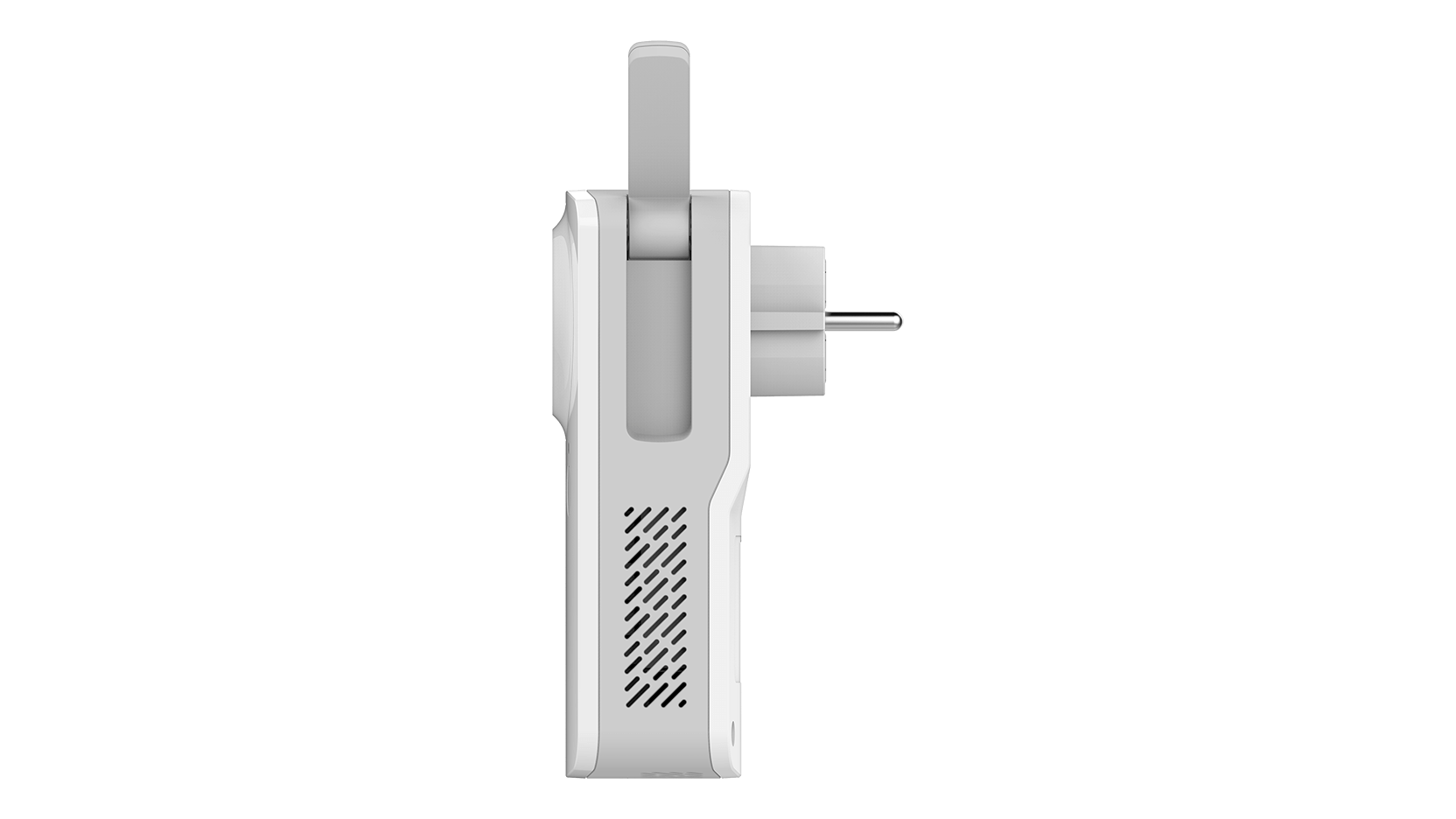

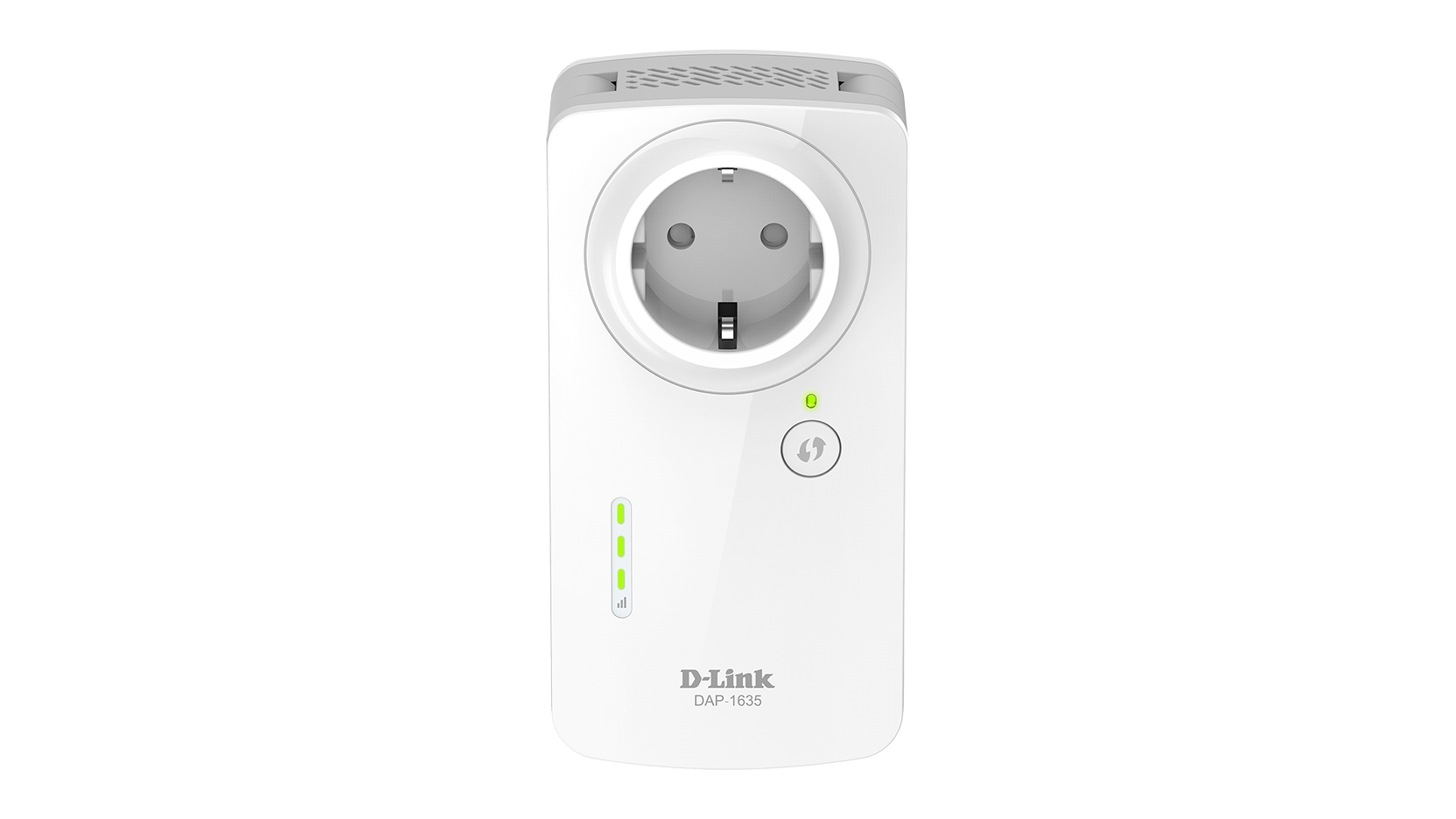

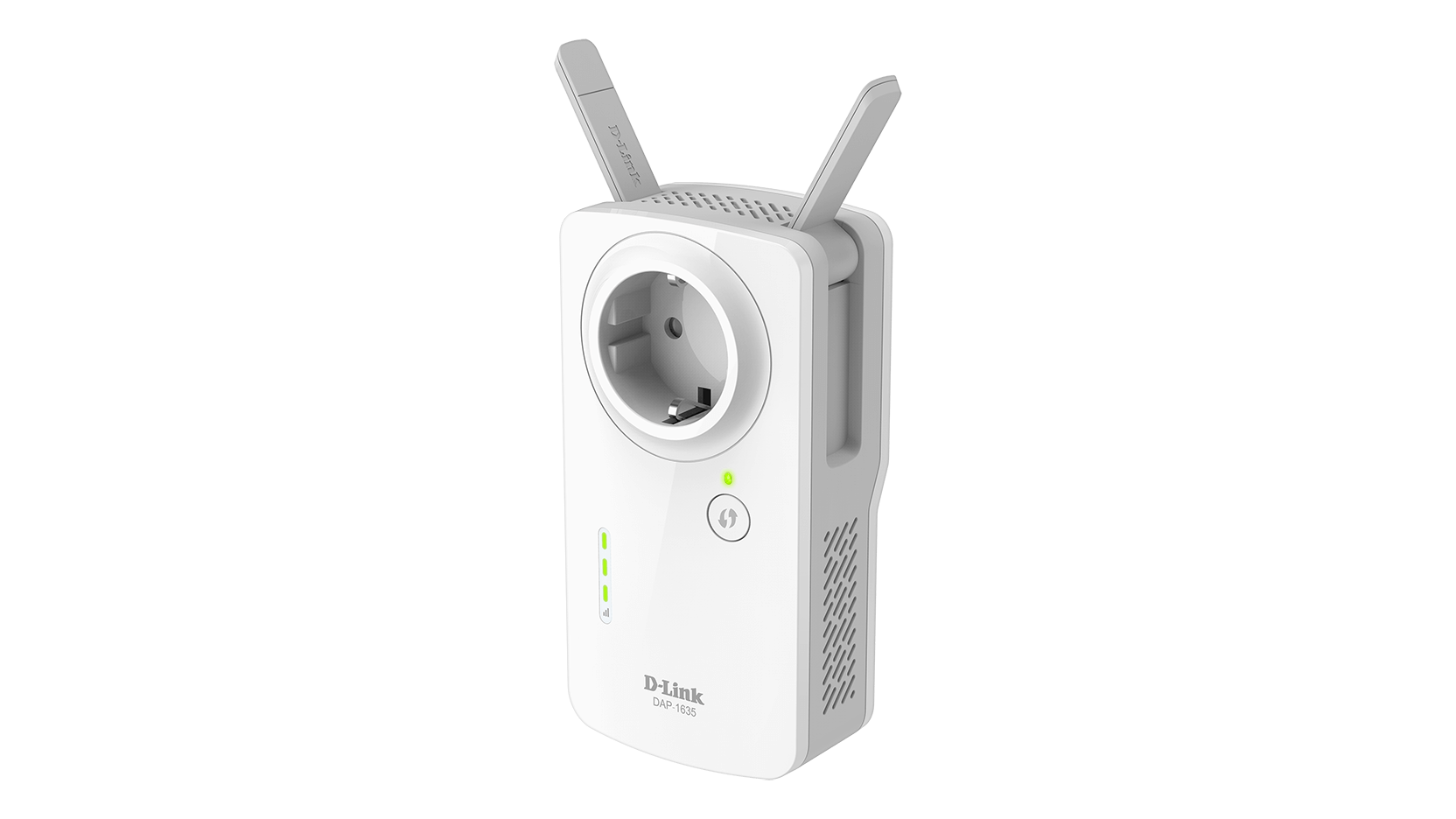

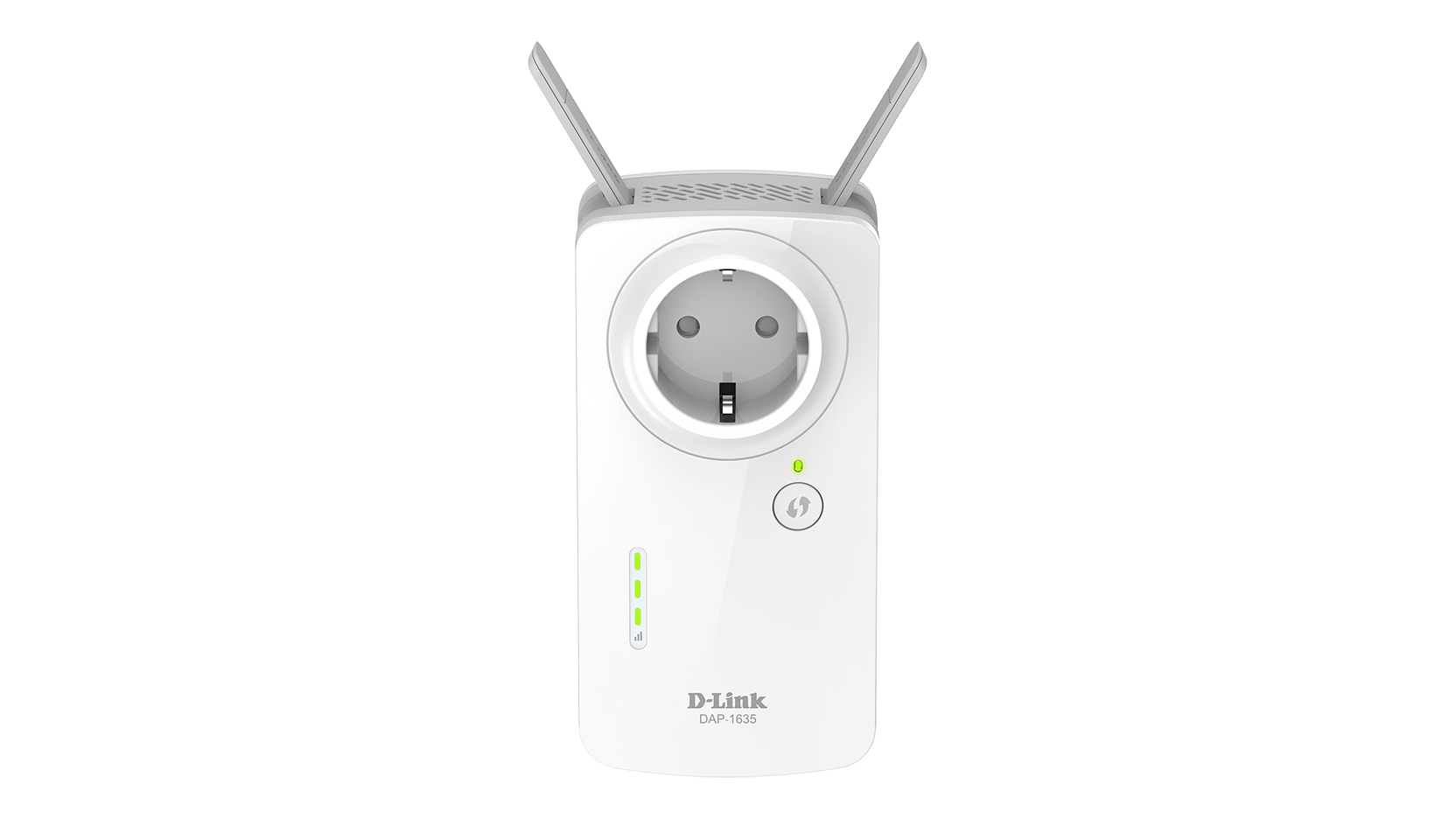

AC1200 WiFi Range Extender with Power Passthrough

DAP-1635

  • Product Status: End of Life

Extend your Wi-fi

The DAP-1635 AC1200 Wi-Fi Range Extender with Power Passthrough allows you to quickly and easily extend an existing Wi-Fi network without taking up an electrical outlet.

Key Features

Expand your Wi-Fi coverage

Plug in to expand your wireless home network.

Smart Signal Strength LEDs

Helps you find the best location in your home for optimal coverage.

Passthrough Socket

Allows you to continue to use the power socket, to power another device

Dual Band 11AC Wireless

Two simultaneous wireless networks for optimal speed.

Extend your wireless network

Increase the coverage of your home Wi-Fi network with high-speed AC1200 technology, offering combined wireless speeds of up to 1200 Mbps*.

Dual-band technology helps to reduce interference from neighbouring Wi-Fi networks, allowing you to enjoy a fast, reliable wireless connection.

The DAP-1635 is also backwards compatible with older wireless devices in your network.

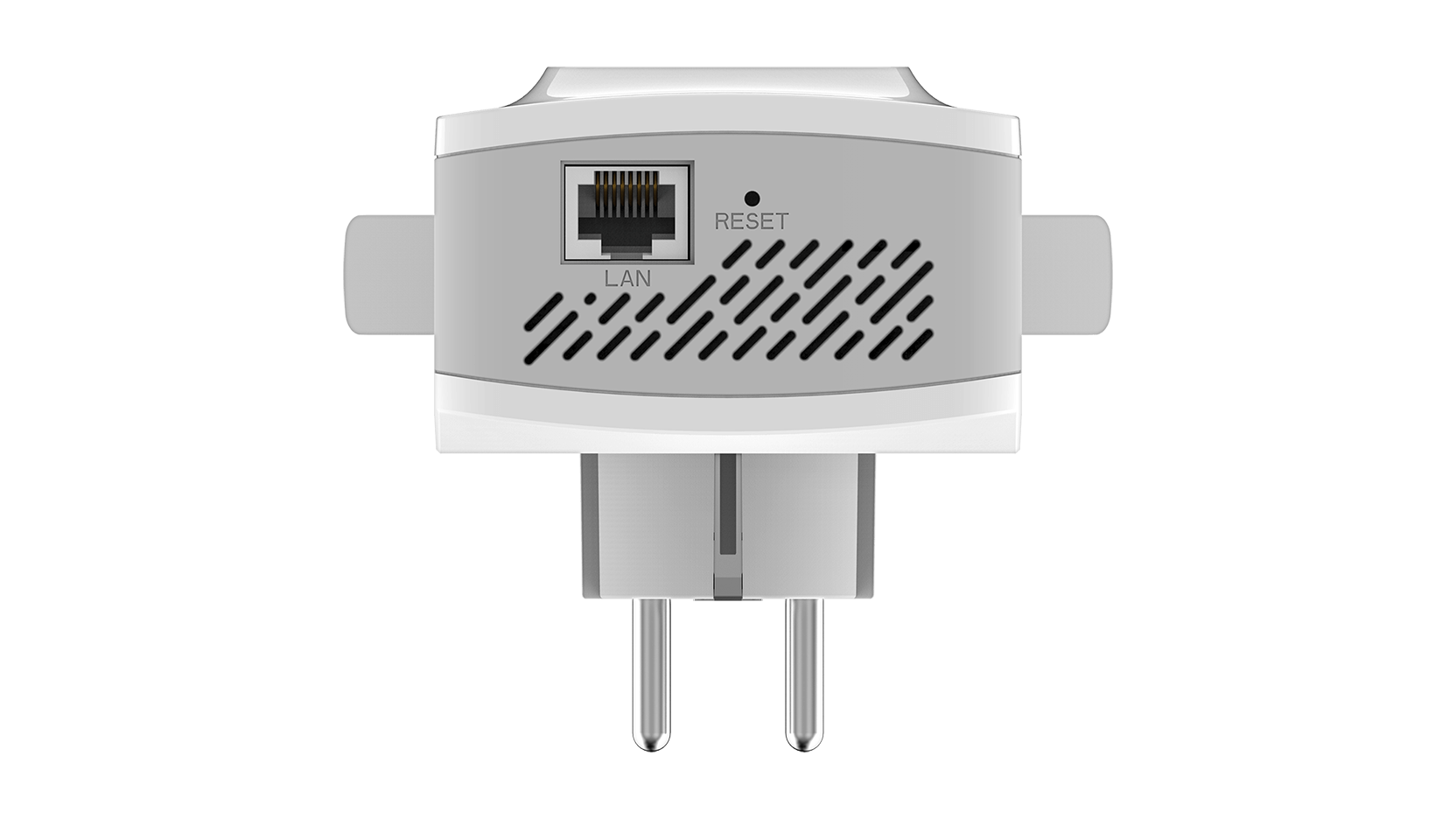

Wired Ethernet

You can also use the built-in Gigabit Ethernet port and your home’s existing wired Ethernet cabling to extend wireless coverage without worrying about signal strength.

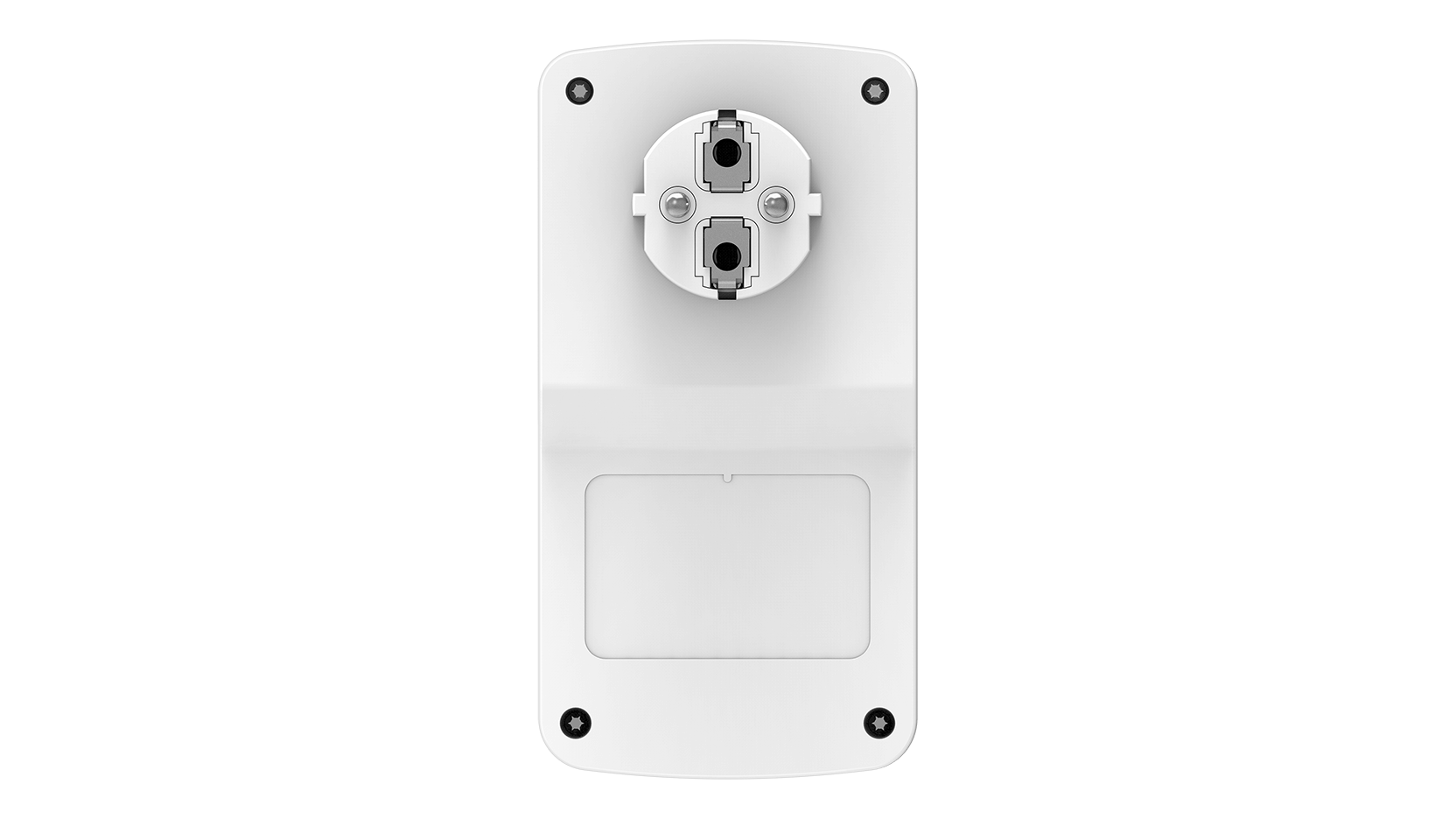

Passthrough Socket

The power passthrough design ensures that your electrical outlet remains available to power another electrical appliance.

Easy to set up and easy to use

Setting up the AC1200 Wi-Fi Range Extender is simple. You can use one-touch configuration by pushing the WPS push-button on the DAP-1635 and on your router or access point, and the DAP-1635 will automatically configure itself.

Alternatively, you can use the supported QRS Mobile app on your iOS or Android smartphone or tablet to set up the DAP-1635 easily without needing a computer. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.

Visual signal indicator

For optimal Wi-Fi coverage without any guessing, plug in the extender and use the LED signal indicator to find the best location to extend your network.

Compact and convenient design

The DAP-1635 is ideal for use at home or a small office and is ready to use by simply plugging it in. The visual Wi-Fi Signal Indicator LED makes finding a suitable location simple.

Its wall-plug design saves you the hassle of dealing with a power cord and its sleek, unobtrusive appearance blends easily into your home decor.

* Maximum wireless signal rate derived from IEEE Standard 802.11ac, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Related Products

AC1300 Wi-Fi Range Extender
DAP-1620
Find out more
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Foldable
Wired interface
1 x Gigabit Ethernet LAN
Passthrough power socket
Supported
Wireless modes
Wireless client
Wireless extender
This product was phased out on: 09/09/2019
This product's last date of support is on: 08/09/2021
Version Date Type File Size
Datasheet - PDF 0.23mb Download
Version Description Date Type File Size
Manual Manual 12.1.2017 - - Download
Version Description Date Type File Size
QIG 1.10 Revision A1 Quick Installation Guide 03.10.2018 - - Download
1.01 Revision A Quick Installation Guide 31.10.2017 - - Download
QIG Quick Installation Guide 03.2.2017 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.01 Firmware 01.2.2018 - Download
Version Description Date
CE doc 1.10 Revision A1 CE document 12.11.2018 Download
1.01 Revision A CE document 04.12.2017 Download
1.00 Revision A CE document 12.7.2017 Download
CE doc DAP-1635 CE DoC - Download
