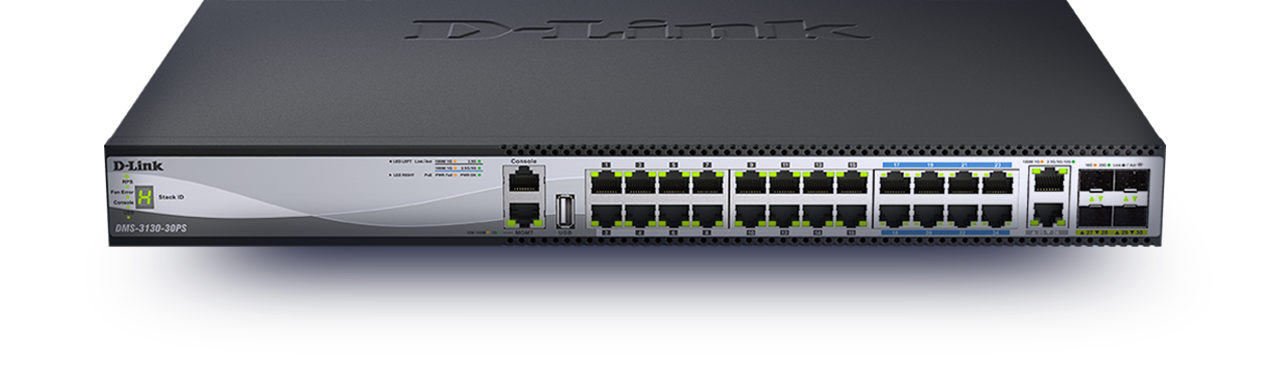

Switch Multi-Gigabit Managed L3 apilable PoE de 30 puertos

DMS-3130-30PS, DMS-3130-30TS

  • Estado del producto (Revision A1): Activo
  • Multi-Gigabit 1G/2.5G/5G/10G/25G
  • PoE 802.2af/at en los puertos 2.5GBASE-T y PoE++ (802.3bt, 60W) en los puertos 5GBASE-T
  • 4 puertos de uplink/stack 25 Gigabit SFP28
  • Protección contra sobretensiones de 6 kV en puertos PoE 2.5G/5G
  • Capacidad de switching de hasta 400 Gbps
  • Stacking físico hasta 9 unidades con 200 Gbps ancho de banda
  • Imagen de software integrada con potentes funciones L2 y L3
  • Opciones PoE hasta 60W por puerto (740W PoE Budget) y hasta 960W con fuente RPS opcional
  • QoS y D-Link Safeguard Engine
  • Garantía limitada de por vida tras registro con Next Business Day gratuito

icono canal youtube VER VÍDEO


Descargar ficha técnica

Lista de puntos de venta
Multi-Gigabit 1G/2.5G/5G/10G/25G

Conecte a velocidades de 2.5G/5G/10G/25G. Utilice puertos de cobre 10G y cuatro puertos SFP28 de fibra 25G para enlaces y apilado físico

Multi-Gigabit 2.5G PoE+ y 5 Gigabit PoE++ (hasta 60W por puerto)

DMS-3130-30PS tiene 16 puertos PoE+ de 2.5G, 8 puertos 5G PoE++ (60W) y admite Perpetual PoE y Fast PoE.

Apilamiento físico

Hasta 9 unidades por pila para un máximo de 234 puertos Multi-Gigabit, hasta 200 Gbps de ancho de banda de apilamiento. Apilamiento a larga distancia por fibra

Características Layer 2 y gestión

Como flow control, Private VLAN, agregación de enlaces, DHCP Server, Ethernet Ring Protection Switching (ERPS), Spanning Tree (STP/RSTP/MSTP), Loopback Detection, Flow Mirroring e IGMP/MLD Snooping, etc.

Managed Layer 3

Hasta 128 interfaces IP configurables, VRRP, routing estático y dinámico (RIPng, OSPF) IGMP y PIM-SM, L3 Multicasting, PBR, etc.

L2 & L3 Multicasting

IGMP Snooping v1/v2/v3, MLD Snooping, PIM-SM

Routing completo

Static routing (enruta el tráfico de Layer 3 entre switches, incluso si están segmentados en VLANs) y Dynamic routing (RIP/OSPF)

Múltiples imágenes y configuraciones

Pruebas de configuración y firmware sin riesgos.

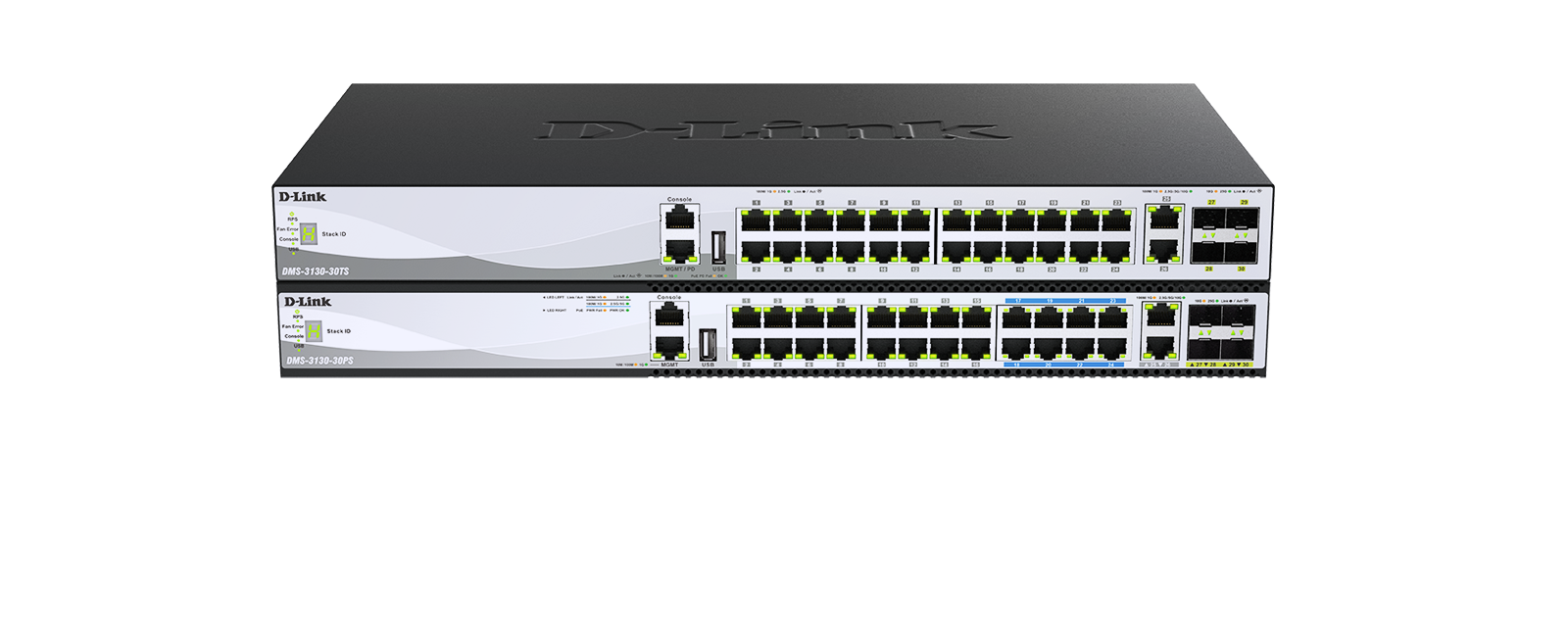

Accelerate your network with Multi-Gigabit Ethernet.

With two 10GBASE-T ports and four 10G/25G SFP28 ports, up to 400Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DMS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

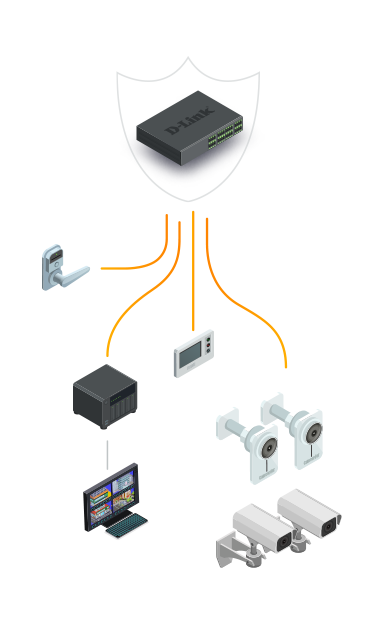

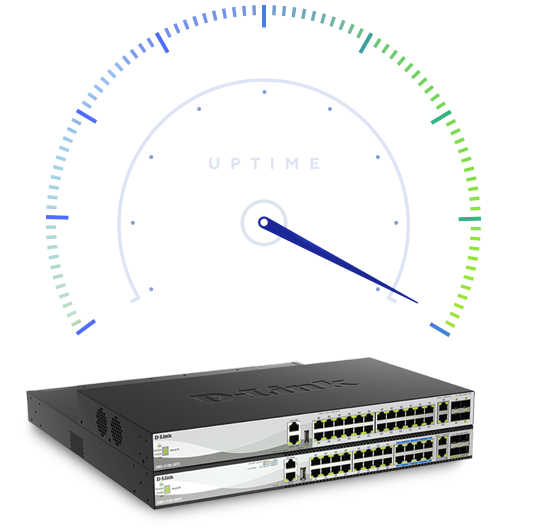

World-class reliability.

Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.

x4 25G SFP28 uplink ports, physical stacking for redundancy, and have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime. DMS-3130-30PS even supports PoE PD function on the MGMT port, allowing it to be powered by a PoE switch.

Comprehensive security.

Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.

IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Electrical surge protection.

Featuring built-in 6 kV surge protection on all PoE and non-PoE 2.5G/5G Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimising the need for expensive equipment repairs or replacements.

Easy Access Control policies.

They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

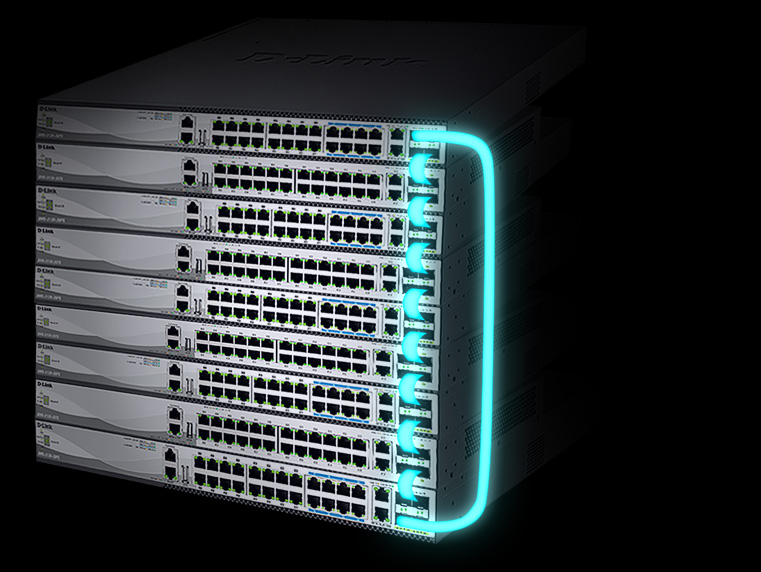

A stack above the competition.

Unlock the full potential of your network infrastructure. Utilise the high switching capacity of up to 400Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.

Versatile traffic management.

The DMS-3130 Series has a rich set of multi-layer QoS/CoS features to ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. L2/L3 Multicast support enables your network to handle growing IPTV applications.

Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface, while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and provide better security to the backbone network.




PoE+ /PoE++ with budgets up to 960W

PoE+ /PoE++ with budgets up to 960W DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies.

Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting, or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.

Estamos para ayudarle

¿Qué ventajas tiene ser miembro de VIP+?

¿Aún no eres VIP+?

Tendrás acceso a la herramienta de planificación WiFi Planner Pro y un equipo técnico y comercial te asesorará en cada proyecto.

Asesoramiento desde el fabricante

Chat B2B de preventa en esta página, llámanos al 93 409 07 70 o mándanos un email.





Garantía Limitada de por vida

Reemplazamos tu equipo de forma indefinida y te enviamos el producto de sustitución en el siguiente día laborable (Next Business Day Service). Requiere registro previo.

Otros usuarios también vieron

Switch Multigigabit 2,5G de 5 puertos, sin gestión
DMS-105
Más información
Switch de sobremesa multigigabit 2,5G de 8 puertos
DMS-108
Más información
Switch Multi Gigabit sin gestión de 7 puertos
DMS-107
Más información
Switch Multi-Gigabit PoE Smart Managed de 10 puertos
DMS-1100-10TP
Más información
Type
Managed
Number of ports
16 to 30 ports
Layer
Layer 3
Stacking
Physical
Virtual
Main type of ports
2.5GBASE-T Ethernet
5GBASE-T Ethernet
Type of uplink ports
10GBASE-T
25GbE SFP28
Switching capacity
360 Gbps
400 Gbps
PoE options
802.3af
802.3at
802.3bt draft
Number of PoE ports
24
PoE power budget
740W
960W with DPS-PWR740AC
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Apilamiento físico
Up to 9 devices
Virtual stacking (up to 32 devices)
Supported
Jumbo frame
Supported
MAC address
32K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
MAC-based
Port-based
Protocol-based
GVRP
Advanced VLAN
Auto Surveillance VLAN
Asymmetric VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Super VLAN
Voice VLAN
IPv4/IPv6 routing table
IPv4 - 1K
IPv6 - 512
IPv4/IPv6 forwarding table
IPv4 - 4K
IPv6 - 2K
IP interfaces
128
Static route for IPv4/IPv6
IPv4 - 512
IPv6 - 256
AV over IP
Supported
PIM-SM
Supported
RIP v1/v2
Supported
RIPng
Supported
OSPF
Supported
OSPFv3
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
8 Kbps minimum granularity
Port-based QoS
Supported
Three colour marker
8 Kbps minimum granularity
ACL type
Egress
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP
Supported
LLDP-MED
Supported
ICMPv6
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
