Wireless PoE Access Point

DWL-3200AP

  • състоянието на продукта (Revision A): End of Life

For Business-Class Environments

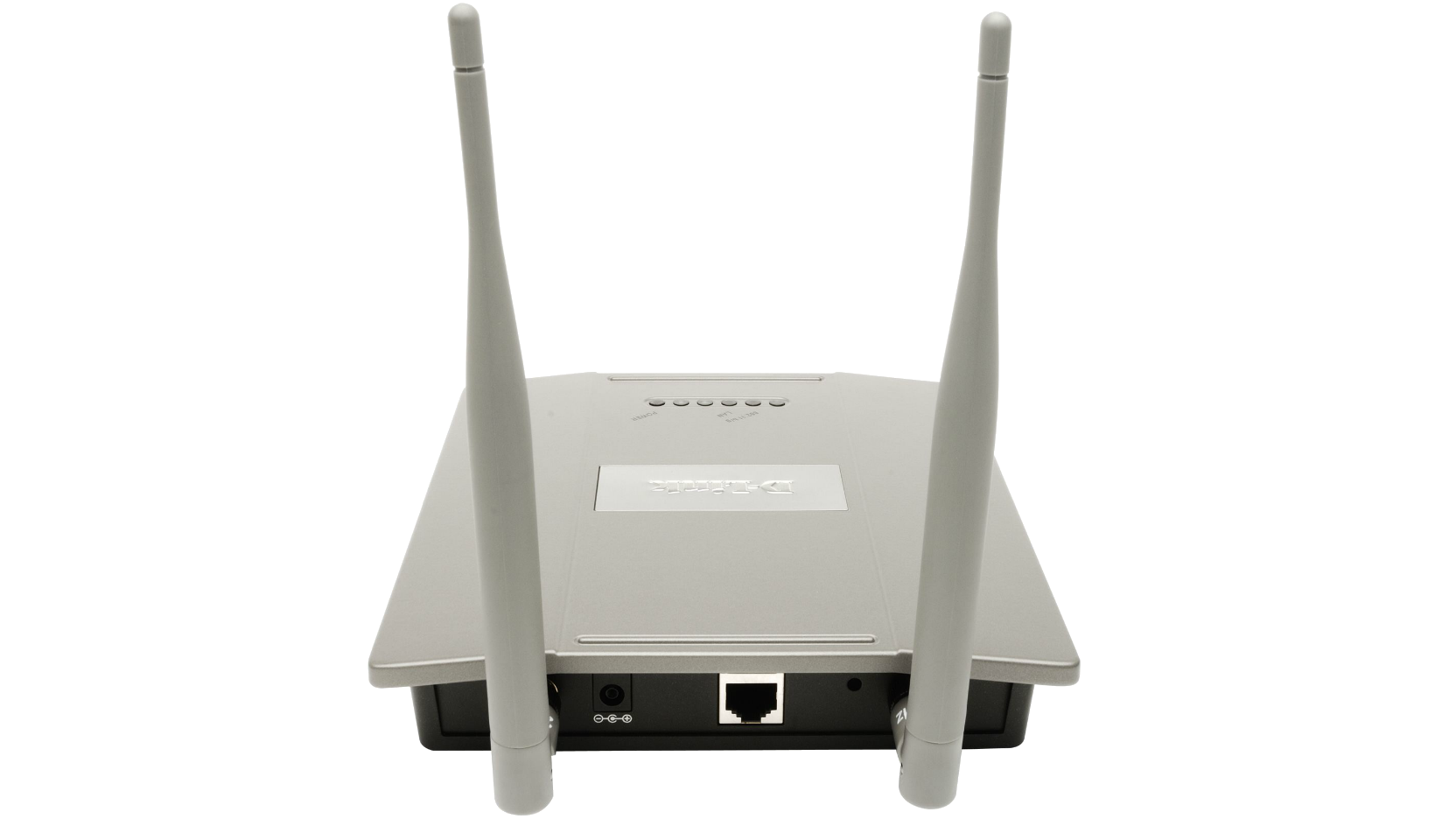

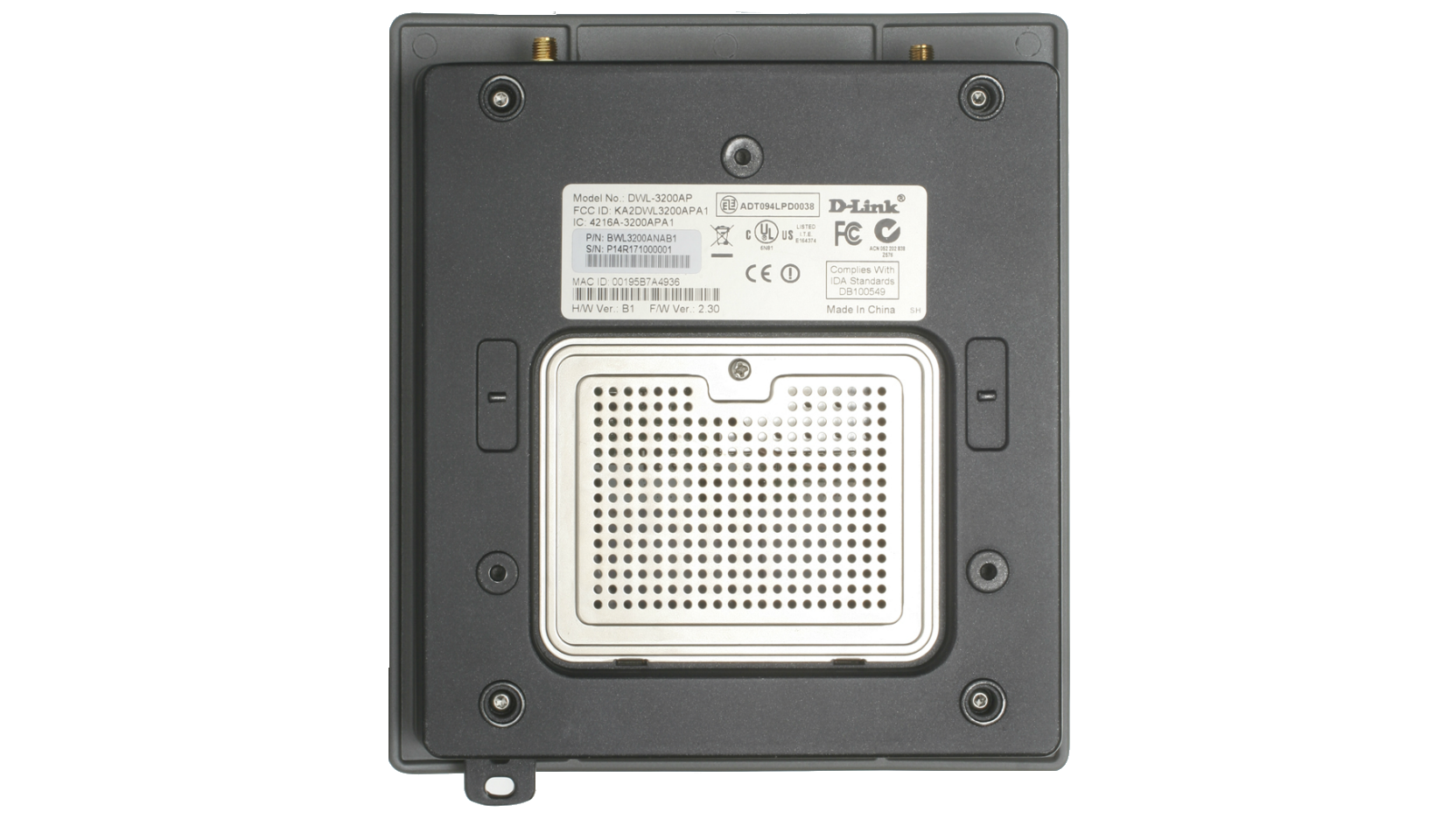

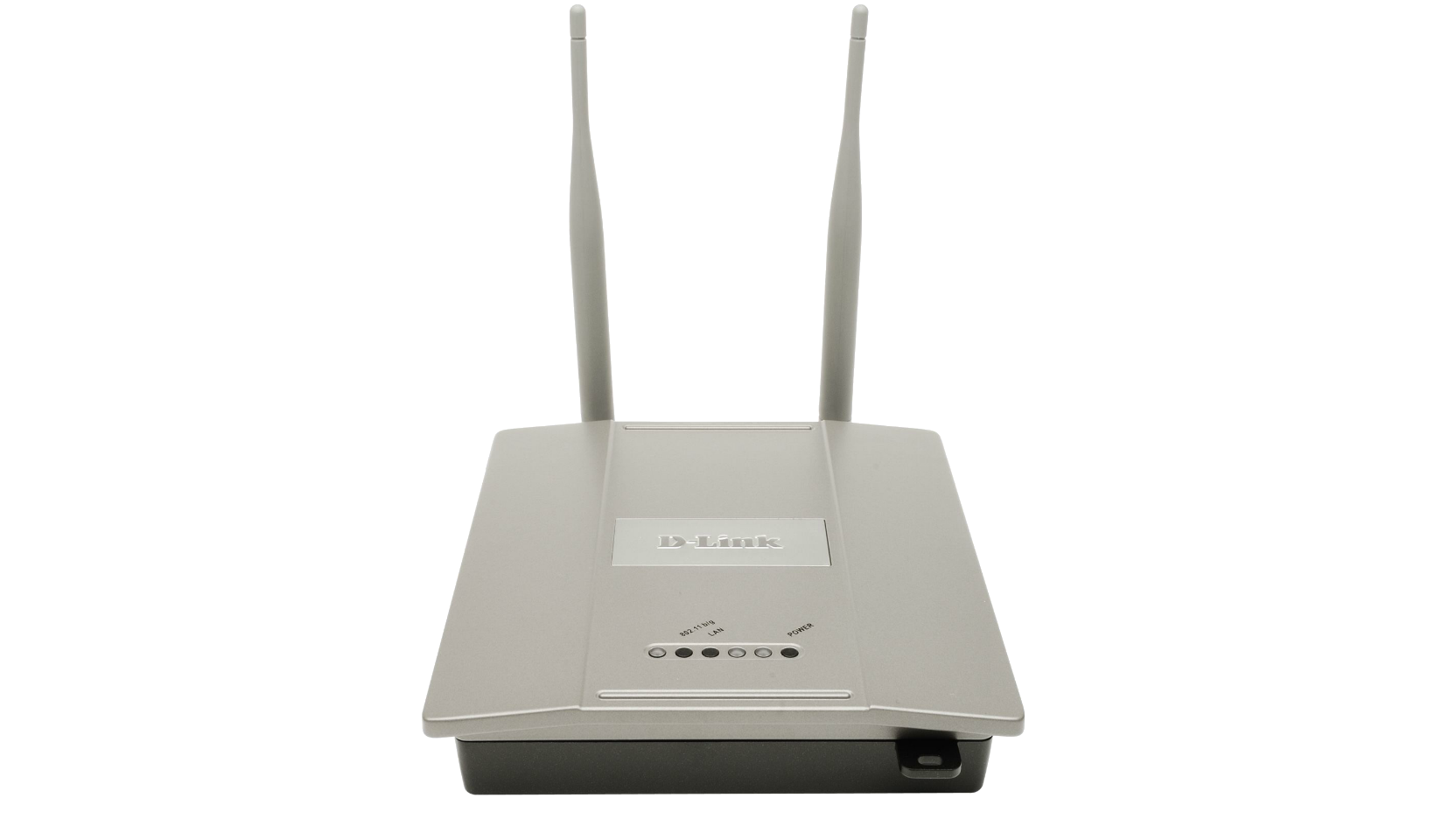

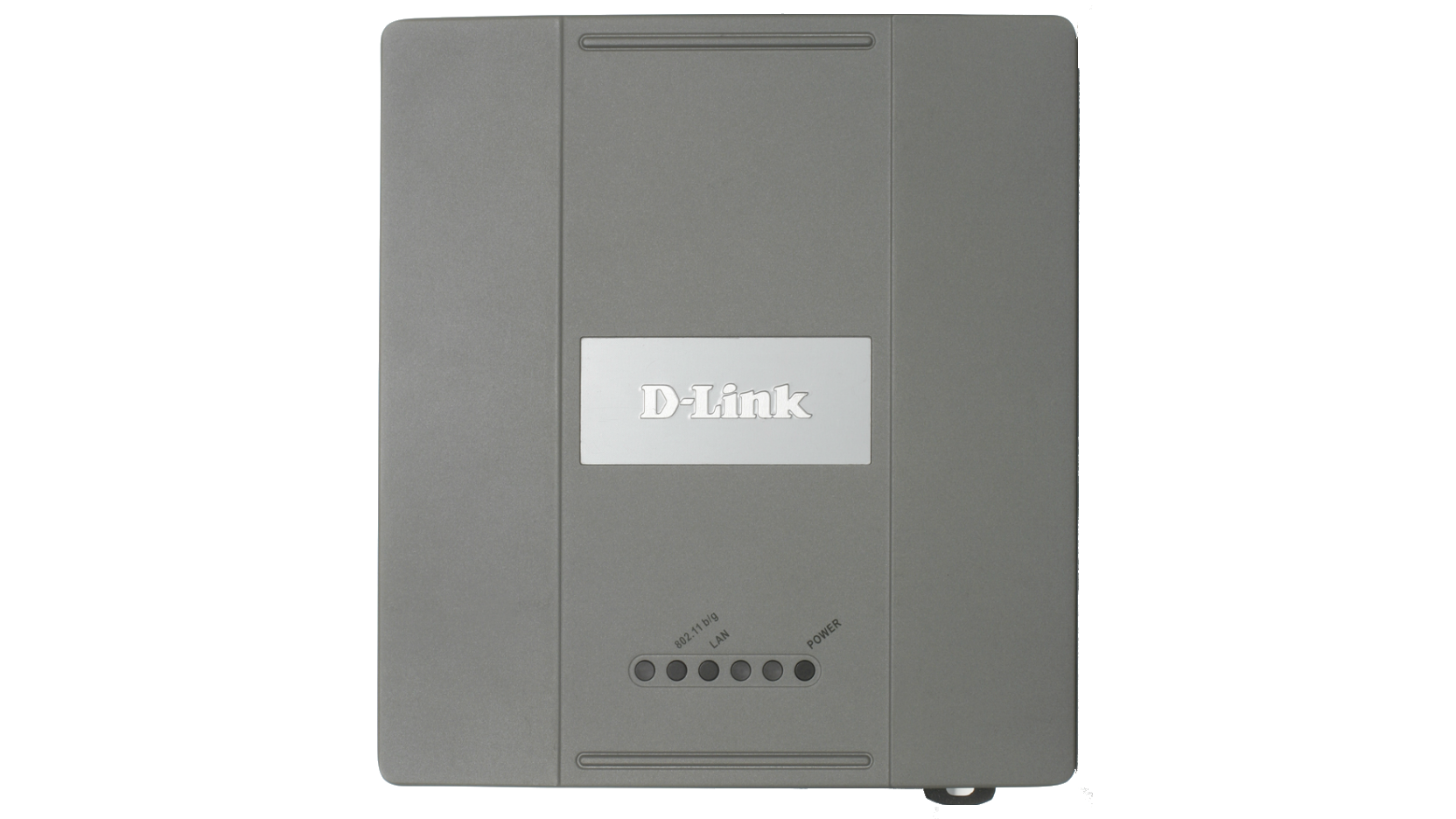

The DWL-3200AP Wireless PoE Access Point is a powerful and reliable wireless access point for business-class enterprise environments. Designed for indoor installation, this access point provides secure options for network administrators to deploy a highly manageable and extremely robust wireless network. This access point supports Power over Ethernet (PoE) and provides two high-gain antennas for optimal wireless coverage.

PoE Support

Enclosed in a plenum metal chassis, the DWL-3200AP adheres to strict fire codes and ensures complete safety. For advanced installations, this high- speed access point has an integrated 802.3af Power over Ethernet (PoE) support to allow installation in areas where power outlets are not readily available.

Up to 108Mbps Wireless Speed

The DWL-3200AP delivers extremely reliable wireless performance with standard 802.11g wireless throughput rates of up to 54Mbps. It has the added capability of reaching maximum wireless signal rates of up to 108Mbps (Turbo mode) powered by D-Link 108G technology. At the same time, the DWL- 3200AP remains fully compatible with the IEEE 802.11b and 802.11g standards.

Advanced Wireless Security

Since wireless security remains a strong concern among businesses, the DWL-3200AP provides the latest wireless security technologies by supporting both WPA Enterprise and 802.1x to ensure complete network protection. In addition, the DWL-3200AP currently comes 802.11i-ready to fully support industrial grade wireless security.

Advanced Network Management

Network administrators can manage all the DWL-3200AP's settings via its web-based configuration utility or with Telnet. For advanced network management, the administrators can use D-Link's AP Manager or D-View SNMP management module to configure and manage multiple access points from a single location. In addition to a streamlined management process, network administrators can also verify and conduct regular maintenance checks without wasting resources by sending personnel out to physically verify proper operation.

WDS (Wireless Distribution System) Support

To maximize total return on investment, the DWL-3200AP can be configured to operate as an access point (AP mode), a point-to-point bridge or a point-to-multipoint bridge (WDS mode). In the WDS mode, the DWL-3200AP communicates only with wireless bridges, without allowing for wireless clients or stations to access them.


Actual product appearance may differ from the image displayed on this page

Технически характеристики

Type
Software Managed AP
Wireless standard
Wireless G
Frequency band mode
Single-band
Antenna type
2 detachable omni-directional antennas
Antenna gain
5 dBi for 2.4 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Fast Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Metal
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Maximum number of SSIDs
8
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)
Supported

Product Support Section

Този продукт ще бъде прекратен на: 22/09/2015
Последната дата на поддръжка на този продукт е: 20/09/2020
Версия Дата Тип Размер на файла
Datasheet (English) - PDF 0.89mb Свали
Версия Описание Дата Тип Размер на файла
Manual (English) Manual (English) - PDF 3.56mb Свали
Версия Описание Дата Тип Размер на файла
Quick Installation Guide (English) - PDF 0.83mb Свали
Версия Описание Дата Тип
Firmware 2.56 rc550 Firmware 4.4.2012 г. - Свали
Версия Описание Дата
APManagerfor firmware v2.55-rc515 2.55-r31

AP Manager for firmware v2.55-rc515

9.12.2011 г. Свали
MIB File for AP Manager 2.55 rc515 MIB File for AP Manager II for Firmware
2.55
9.6.2010 г. Свали
D-View Module for Firmware 2.55 2.55 r19 D-View Module for Firmware 2.55 7.6.2010 г. Свали
D-View MIB file for firmware 2.55 rc515 D-View MIB file for firmware 2.55 7.6.2010 г. Свали
Версия Описание Дата
CE Declaration vers B2 - (English, French) CE Declaration vers B2 - (English, French) 17.9.2009 г. Свали
CE Declaration vers B1 CE Declaration vers B1 30.7.2008 г. Свали
CE Declaration ver A1 CE Declaration ver A1 31.3.2005 г. Свали
