Wireless PoE външна точка за достъп

DAP-3320

  • състоянието на продукта: End of Life

The DAP-3320 Wireless PoE Outdoor Access point is the ideal solution for expanding the coverage and signal strength of any wireless network. Built to withstand outdoor environments, the DAP-3320 also excels in connecting separate networks that cannot be joined using physical wiring.

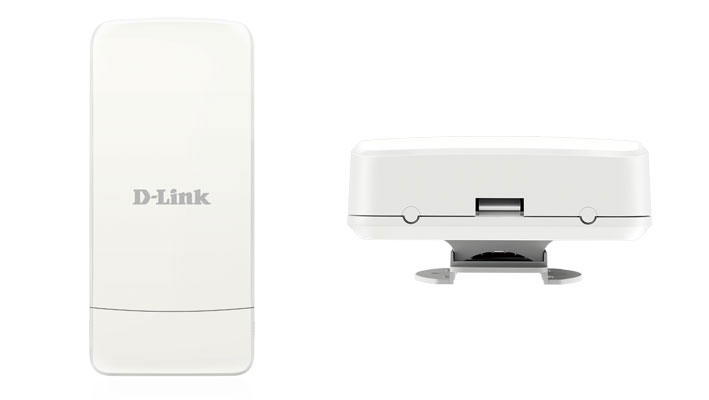

Convenient Design

Built for outdoor use, the DAP-3320 has an IP552 weatherproof housing that protects it from weather. In addition, the DAP-3320 is powered by PoE which allows for convenient installation, especially in places where a power supply is not available.

Simplified outdoor connectivity

Low cost Outdoor Access Point, with high power radio design the DAP-3320 is ideal for providing wireless connectivity between two locations.

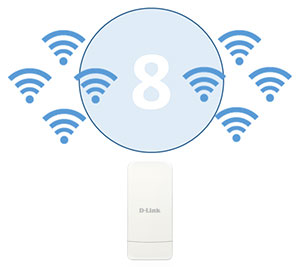

Broadcast on 8 SSIDs Simultaneously

Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.

Product Highlights

Flexible Operation

Configure to use as an access point, a wireless distribution System (WDS) with access point, a WDS bridge or a wireless client

Full Featured Security

Includes industry standard wireless encryption along with support for multiple SSIDs and VLANs, allowing for complete control over network access

Rugged Construction

IP55 weatherproof housing and weathershield2 makes the DAP-3320 ideal for demanding networking environments

2.4Ghz Single-Band Wireless

The built-in 2 dBi omnidirectional antenna ensures that wireless signal will cover a wide area.

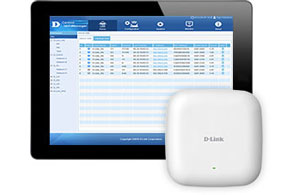

Free Wireless AP Controller software

D-Link’s free Central Wifi Manager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

Manage up to 1000 APs

Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.

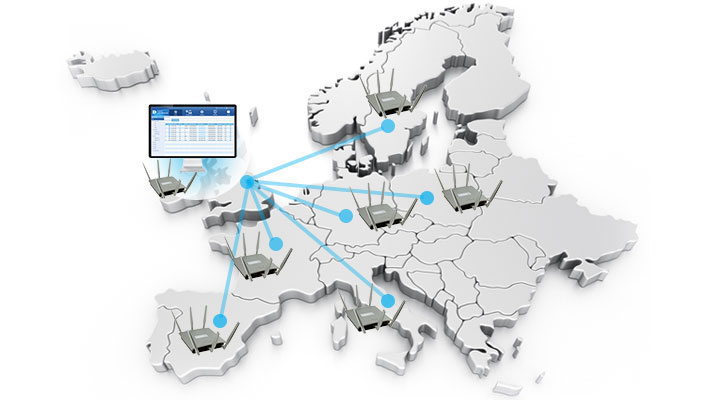

Scalable, flexible, centralised AP management

Manage up to 1000 Access Points from a central location, regardless of geography.

Технически характеристики

Type
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
2 dBi for 2.4 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Fast Ethernet LAN
Indoor/outdoor
Outdoor
Type of housing
Plastic
IP rating
IP55
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
MIMO
Maximum number of SSIDs
8
Auto channel selection
Supported
Wi-Fi scheduler
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Management platform
Central WiFiManager (CWM-100)
WEB
Supported
Този продукт ще бъде прекратен на: 23/09/2019
Последната дата на поддръжка на този продукт е: 21/09/2024
Версия Дата Тип Размер на файла
Datasheet - PDF 0.73mb Свали
Версия Описание Дата Тип Размер на файла
Product manual Product manual 28.8.2015 г. PDF 7.83mb Свали
Версия Описание Дата Тип Размер на файла
1.00 Quick installation guide 28.8.2015 г. PDF 1.64mb Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
1.05rc019

Release notes included and MIB file included

28.10.2016 г. - Свали
1.01rc014

Release notes included and MIB file included

23.5.2016 г. - Свали
MIB-file 1.00 MIB-file 28.8.2015 г. - Свали
Firmware Release notes included 1.00rc011 Firmware
Release notes included
28.8.2015 г. - Свали
Версия Описание Дата
AP Manager 2.01r10 AP Manager 28.8.2015 г. Свали
Версия Описание Дата
CE Document CE declaration 14.11.2017 г. Свали
