Professional.
Simple.
Affordable.
High-definition professional surveillance and security solution.
Using a high-sensitivity 3-megapixel progressive scan CMOS sensor to deliver superior quality video.
Rugged design makes this camera ideal for reliable deployment in all weather surveillance applications.
Features
![]() |
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
|
![]() |
Weatherproof
Durable IP66 rated casing for surveillance in any weather
|
![]() |
65 Ft Night Vision
16 built-in IR LEDs guarantee bright & clear images, even in total darkness
|
![]() |
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
|
![]() |
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancement
|
![]() |
3D Filter
Reduce noise in low-light environments for clear, smooth images
|
Security in High Definition
Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4703E Ideal for small, medium and large enterprise installations.

*Screen images simulated

Continuous Monitoring with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.
Combined with the IR-Cut filter, the DCS-4703E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.

Anytime, Anywhere Surveillance
Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and a glare-reducing sun shield, the DCS-4703E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.

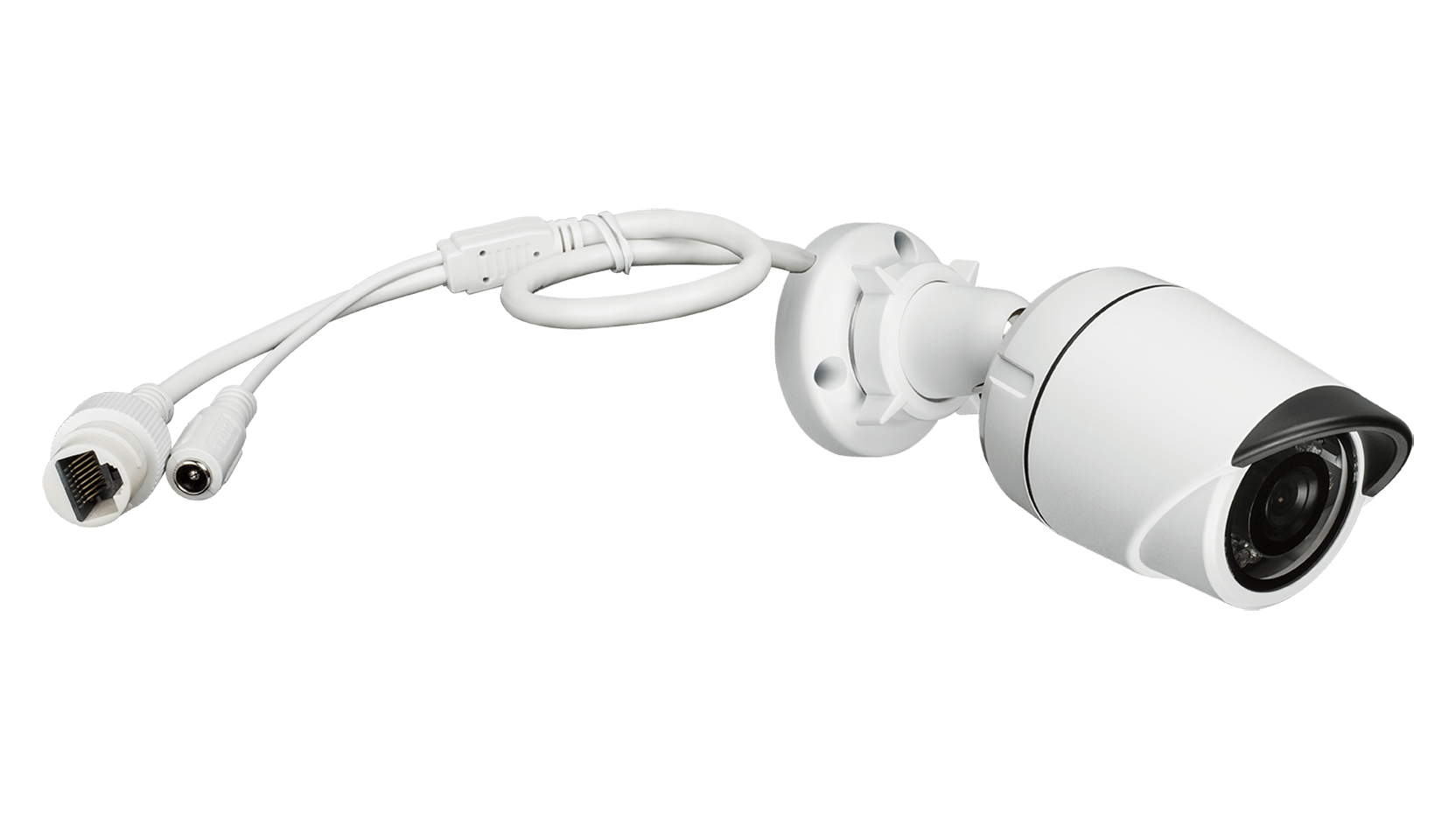

3-Axis Adjustment
The Full HD Outdoor PoE Mini Bullet Camera's unique design with 3-axis cable management bracket allows for flexible and secure mounting options.

PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4703E has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4703E can also be powered by a standard 12V DC, 1.5A power adapter (not included).
Video Management Software (VMS)
The Full HD PoE Dome Network Camera includes a free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4703E is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.

Gerelateerde Producten

Specs
Indoor/outdoor
|
Indoor Outdoor |
---|---|
Type
|
Bullet |
Connectivity
|
Wired PoE |
Resolution
|
3 megapixel |
Image sensor
|
1/3" 3 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) 2048 x 1536 (other) |
Advanced Light features
|
Wide Dynamic Range |
Lens
|
3.6 mm F1.8 Fixed |
Angle of View (H/V/D)
|
70° / 40° / 80° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
20 m |
Wide Dynamic Range(WDR)
|
Supported
|
LowLight+
|
Supported
|
Privacy Masks
|
3 zones |
Power Consumption
|
6.4 W |
App Support
|
JustConnect+ |
Features
|
D-ViewCam D-Link NVR compatible ONVIF |
Video Format
|
H.264 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
