How to configure Voice VLAN on my DGS-1210

Description - Voice VLAN allows you to easily prioritize IP voice traffic through the switch

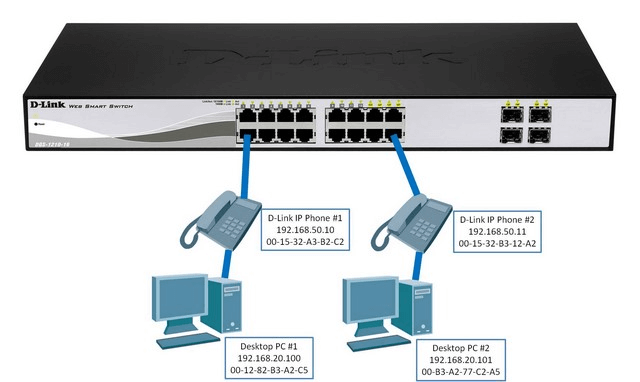

Example – In our example we have created two VLANs:

- Data VLAN - VID 20
- Voice VLAN - VID 50

Ports 2 and 16 are added to the data VLAN (because we have phones connected to these ports)

Every phone has been configured with the VLAN 50 (voice VLAN)


Step 1 - Enter the web configuration interface DGS-1210

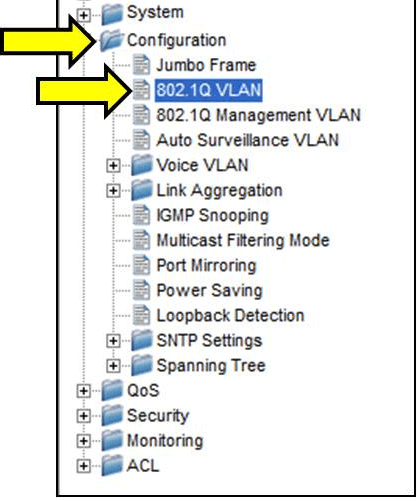

Step 2 - Please go to Configuration > 802.1Q VLAN


Step 3 - Click on VLAN 1

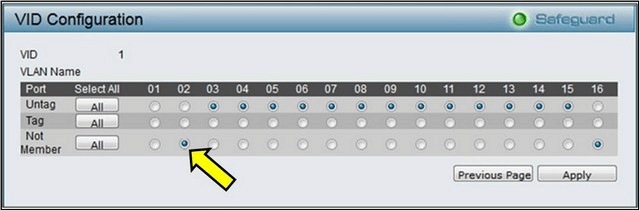

Step 4 - Set as “Not Member” on all ports where phones are connected (in this example ports 2 and 16, then click “Apply”

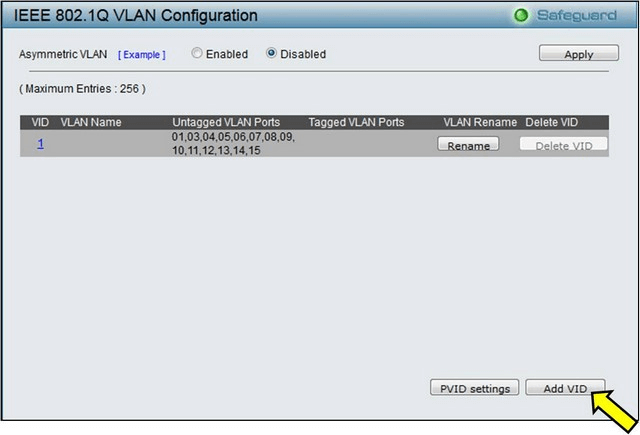

Step 5 - Click “Add VID”

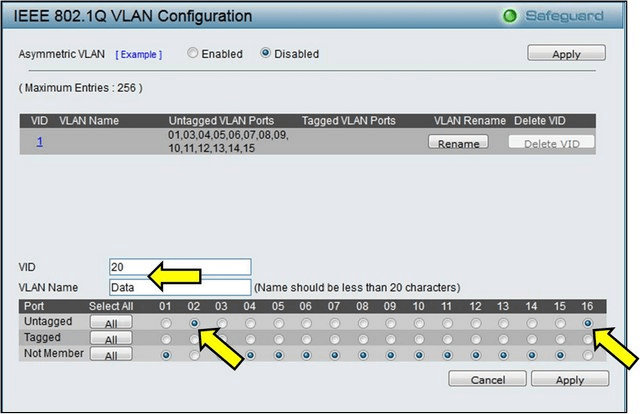

Step 6 - Create the “Data” VLAN, adding ports as “Untagged” where phones are connected (ports 2 and 16), then click “Apply”.

Step 7

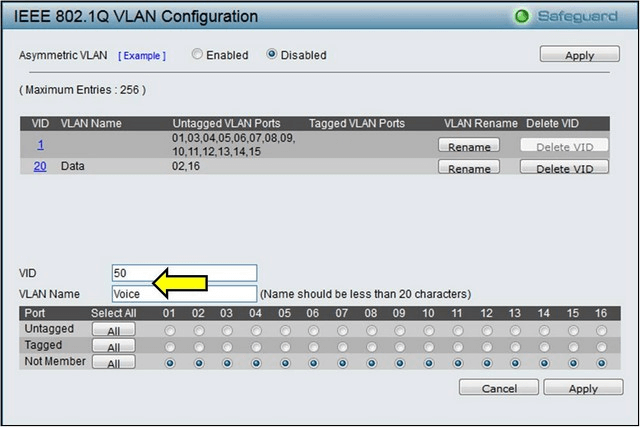

- Create Voice VLAN (leaving all ports as Not Member), then click “Apply”

Step 8

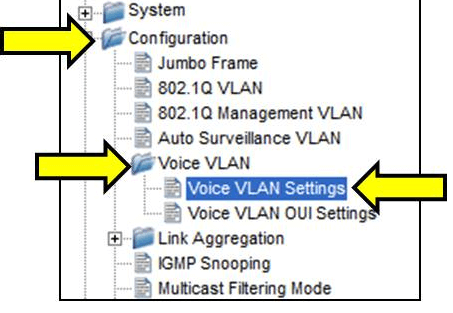

- Please go to Configuration > Voice VLAN > Voice VLAN Settings

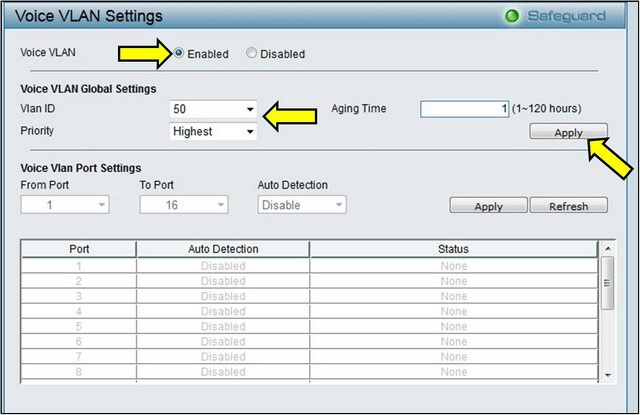

Step 9 - Set the Voice VLAN with the following parameters

• Voice VLAN: Enable
• VLAN ID: Enter the ID of the VLAN previously created voice (in this example VID 50)
• Priority: Specify the priority
Then click “Apply”

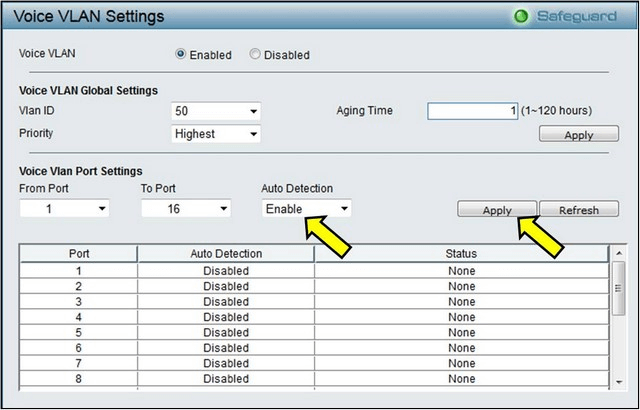

Step 10 - In Voice VLAN Port Settings, change Auto Detection to “Enabled”, and then click “Apply”.

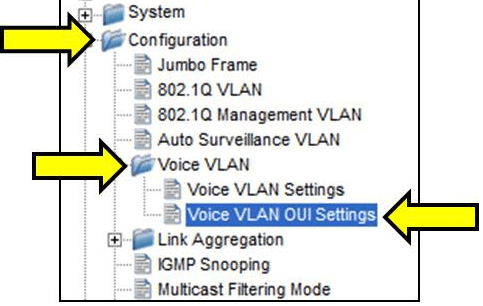

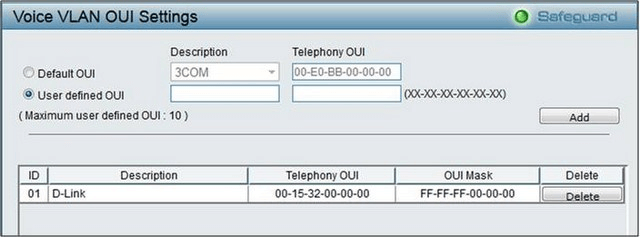

Step 11 - Please go to Configuration > Voice VLAN > Voice VLAN OUI Settings

Step 12 - Is this section, specify the type of device to be connected to the switch, so the switch will know which traffic to prioritize

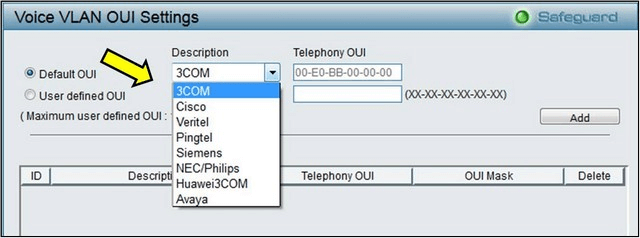

Note: If you select a predefined mark, be sure what is in “Telephony OUI” match your phone.

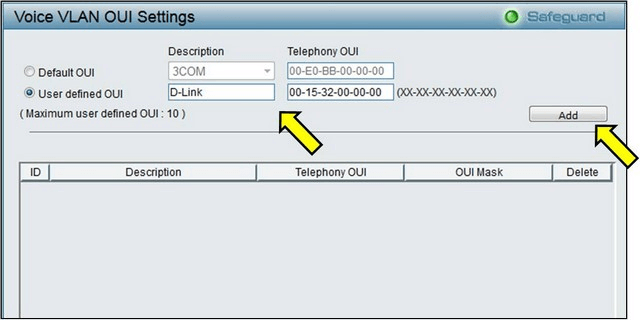

If your brand is not on the list, select “User defined OUI”, then enter a description and OUI

Step 13 - Once configured, the phone will be displayed in the list
