Requirements:

• Internet Connection
• D-Link Software License Keys

This example activating the license via “Online activation” and “Input SN”

Step 1 – Click on Start and open “Main Console”

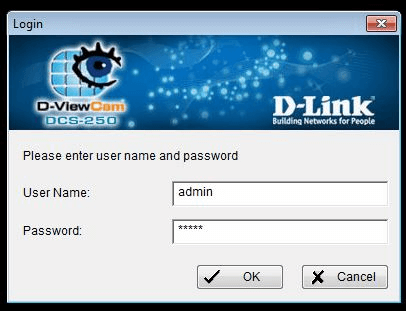

Step 2 – Login

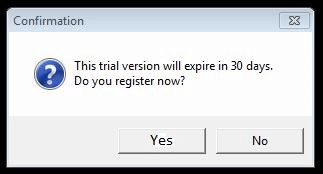

Step 3 – You should be presented with a prompt to register this version (you have a free trial 30 days)



Click “Yes”

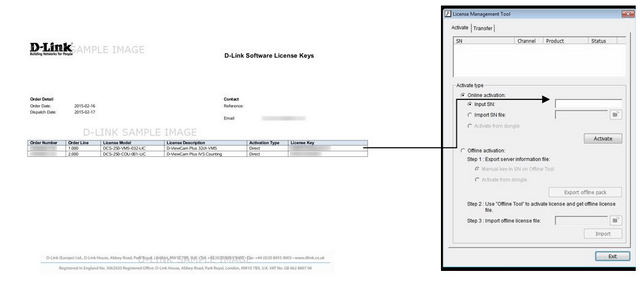

Step 4 – Enter the D-ViewCam Plus 32ch VMS license into the “Input SN:” box



Click “Activate”

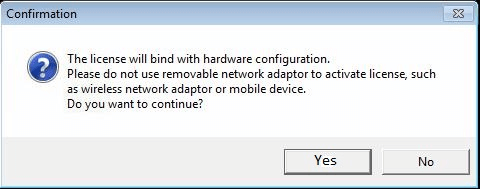

Step 5 – You should be presented with the following message. If you agree to this, click “Yes”

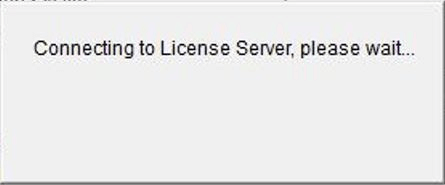

Step 6 – Once agreed, the system will commence connection with the License Server



Step 7 – If the activation is successful, you should get the following confirmation



Click “OK”

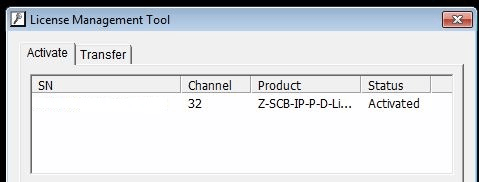

Step 8 – Once updated, you should see the first license in “License Management Tool” window

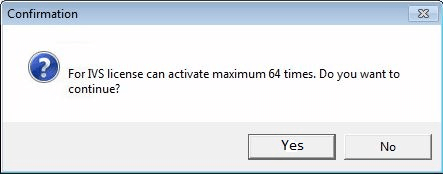

Step 9 – To add the second license D-ViewCam Plus 32 IVS Counting, repeat Step 4



Click “Yes”



Click “Yes”

Step 10 – Once agreed, the system will commence again connection with the License Server



Click “OK”

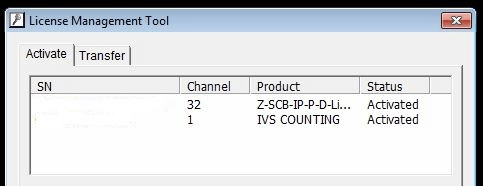

Step 11 – Once updated, you should see the ALL licenses in “License Management Tool” window

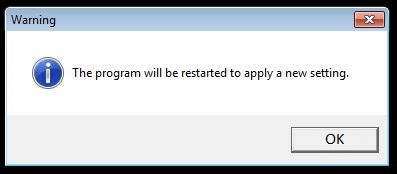

Step 12 – When you close “License Management Tool” you will be prompted that the program with be restarted



Click “OK”
