10 Gigabit Ethernet Smart Managed Switches

DXS-1100 Series

  • Product Status (Revision A): End of Sale

There's a new version of this product:

10G Multi-Gigabit Smart Managed Switches

DXS-1210 Series

See Newer Product

There's a new version of this product:

DXS-1210 Series

10G Multi-Gigabit Smart Managed Switches

Overview

  • Free centralised management with Nuclias Connect
  • 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
  • Layer 2 management and security, with Layer 3 Lite features
  • Industry standard full CLI, web-based GUI, console port
  • Static Routing and MSTP
  • D-Link Limited-Lifetime Warranty after registration
See Newer Product

Overview

  • Free centralised management with Nuclias Connect
  • 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
  • Layer 2 management and security, with Layer 3 Lite features
  • Industry standard full CLI, web-based GUI, console port
  • Static Routing and MSTP
  • D-Link Limited-Lifetime Warranty after registration
See Newer Product

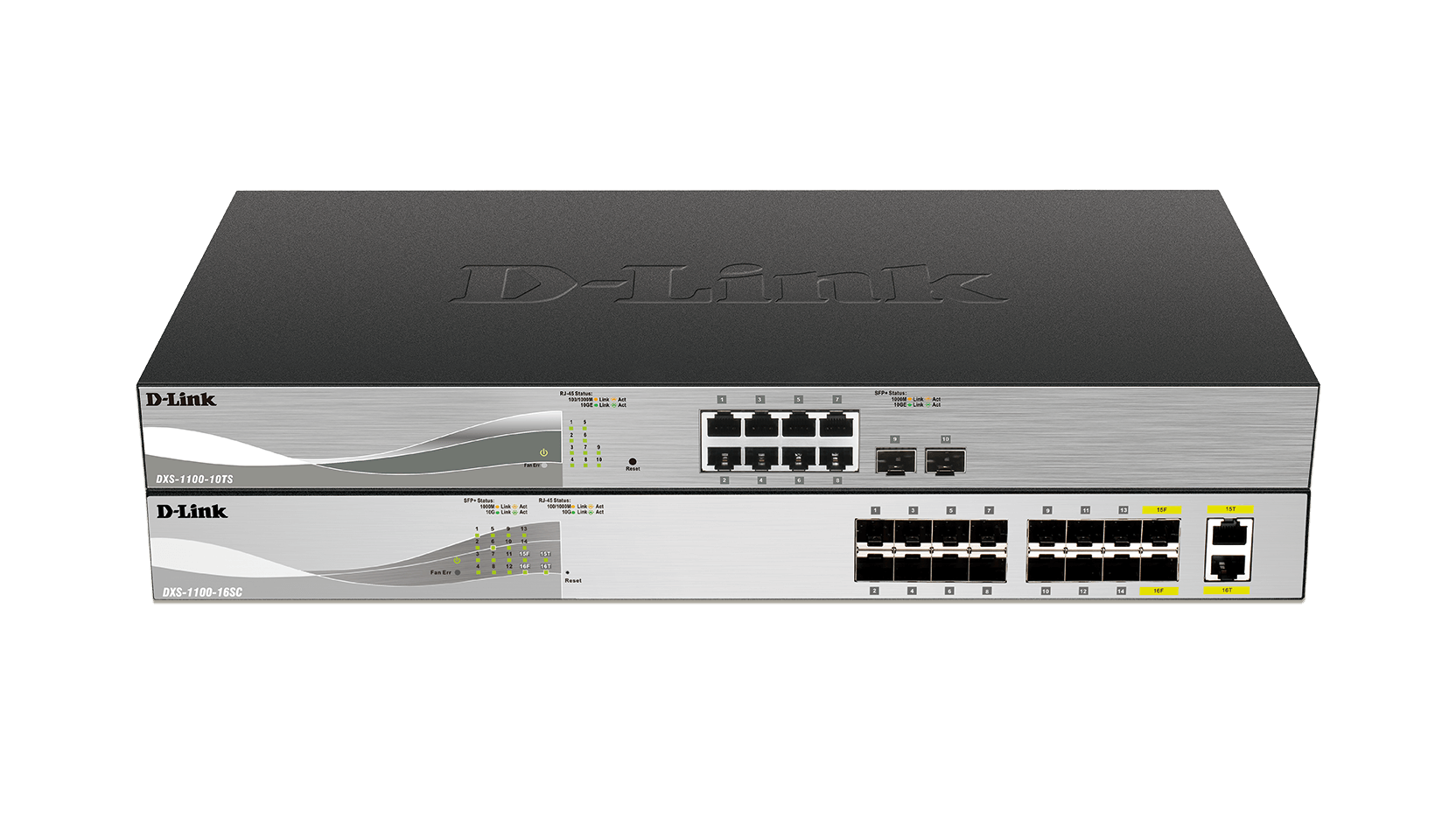

The DXS-1100 Series 10 Gigabit Ethernet Smart Managed Switches are a set of Smart Layer 2 10 Gb Ethernet switches that provide an entry-level solution for Small and Medium Businesses (SMB) wishing to deploy 10 Gb Ethernet. These switches are ideal for server farms or as network aggregation devices, and provide a cost-effective and feature-rich solution to 10 Gb Ethernet requirements.

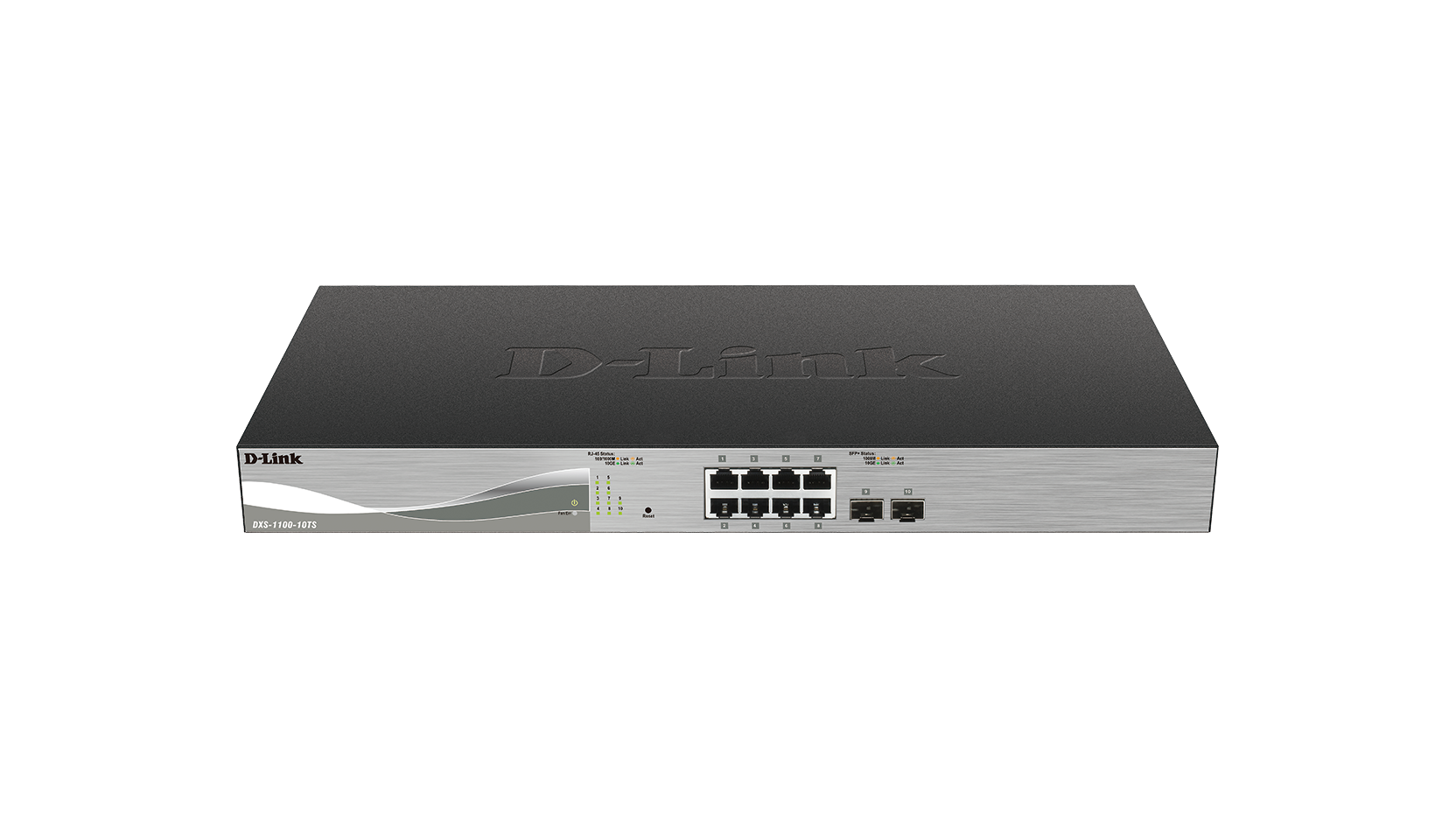

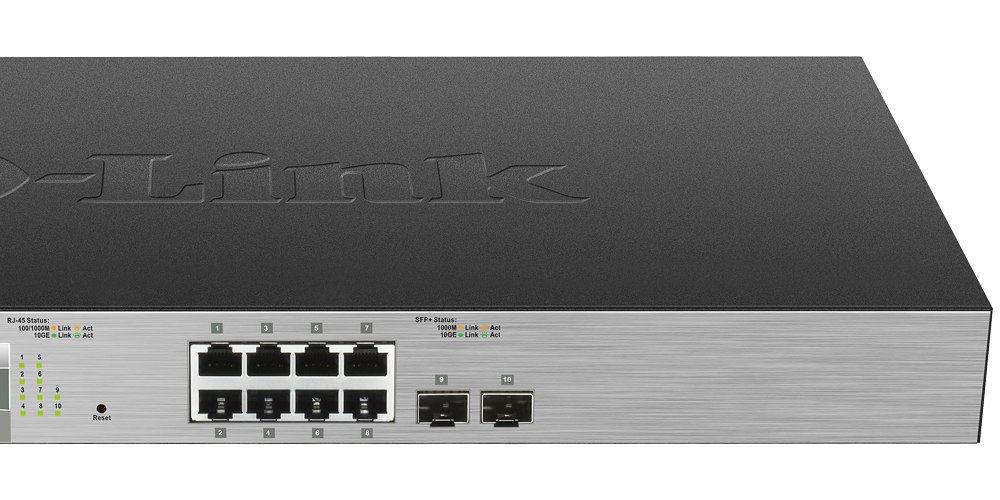

The series includes DXS-1100-10TS with 8 x 10GBase-T ports and 2 x 10 Gigabit SFP+ fibre ports. The copper 10GBase-T ports instantly increase network bandwidth over standard Cat 6a cabling without the need to overhaul existing network infrastructure wiring, whilst fibre SFP+ ports provide additional network connection flexibility.


The switch is ideal for server farms or as a network aggregation device and it provides a cost-effective but feature-rich solution to growing and demanding network environments.

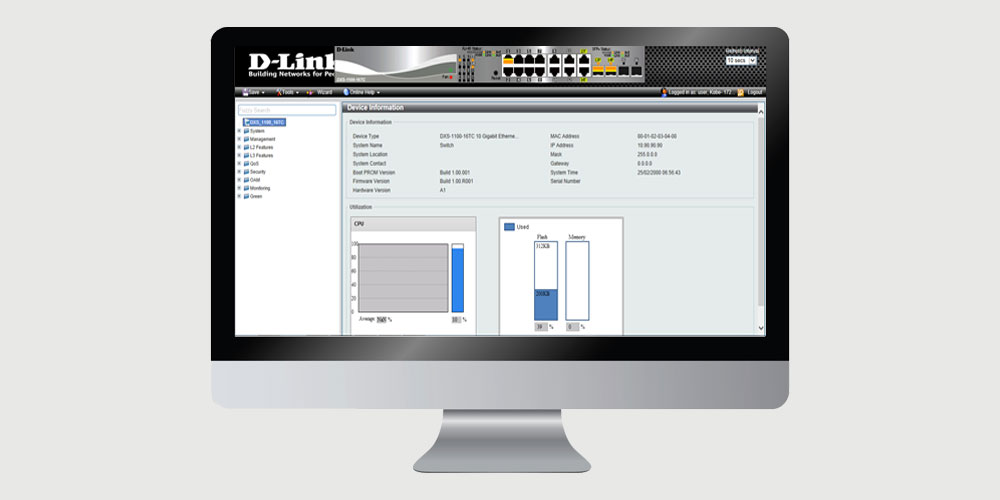

The DXS-1100-10TS supports intuitive client-based utilities (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.


The DXS-1100 Series switches supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are ideal for Voice over IP (VoIP) and video surveillance deployments. Auto Surveillance VLAN is an industry-leading technology that automatically prioritises video surveillance data traffic. The Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN.


The DXS-1100 Series switches is equipped with advanced security features such as Static MAC, Storm Control and IGMP Snooping, protecting your network from malicious attacks.


Related Products

Dual Port 10 Gigabit Ethernet PCIe Adapter
DXE-820T
Find out more
10G Multi-Gigabit Smart Managed Switches
DXS-1210-10TS, DXS-1210-12TC, DXS-1210-12SC, DXS-1210-16TC
Find out more
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Number of ports
16 to 30 ports
5 to 14 ports
Layer
Layer 2
Main type of ports
10GBASE-T 10 Gigabit Ethernet
10GbE SFP+
Type of uplink ports
10GbE SFP+
Combo 10GBASE-T/SFP+
Switching capacity
200 Gbps
320 Gbps
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
8
Bandwidth control
64 Kbps minimum granularity
Encryption protocol supported
SSL (v1/v2/v3)
ARP spoofing
Supported
BPDU attack protection
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
LLDP
Supported
LLDP-MED
Supported
ICMPv6
Supported
This product was phased out on: 11/05/2022
This product's last date of support is on: 10/05/2027
