Nuclias Cloud SD-WAN Gateway


  • Product Status (Revision A1): Live
  • Nuclias cloud-based remote management (1-year license included)
  • Point-to-point VPN options for flexible deployments
  • Security Firewall, Intrusion Prevention System (IPS)
  • Dynamic Web Content Filtering, Application Control
  • SD-WAN with WAN load balancing
  • Zero-Touch Deployment, plug & play deployment

Download the datasheet.

Where to buy
Intuitive Interface

Automated Monitoring & Alerts

Cloud Multisite Management

End to End Encryption

Multilingual Support

Over-the-Air Firmware Upgrades

Role-Based Administration

99.9% Service-Level Agreement (SLA)

Traffic Reporting & Analytics

Unlimited Scalability

Visualised Geolocation

Zero-Touch Deployment

Convenient, software-defined networking.

Traditional WAN architecture can be complex and expensive when connecting remote sites. SD-WAN not only lowers operational costs but also optimises bandwidth utilisation and efficiency without compromising on network security.

100% Cloud-Managed.

Compatible with Nuclias Cloud solution, this product is ideal for business networks of any size. Deploy networks easily with zero-touch deployments and remote management from a web browser or the free app.

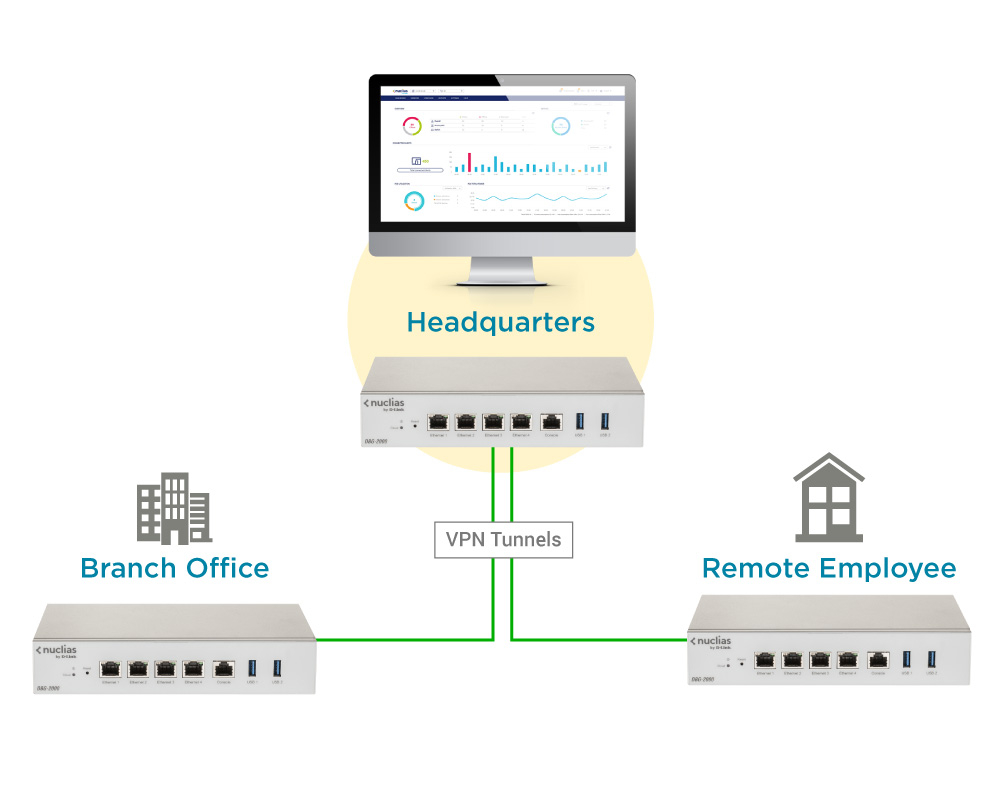

Quick VPN enables the modern decentralized workforce

Nuclias enables easy P2P VPN tunneling for better business privacy and remote working. Rapidly establish your VPN via the Nuclias dashboard for more secure connections.

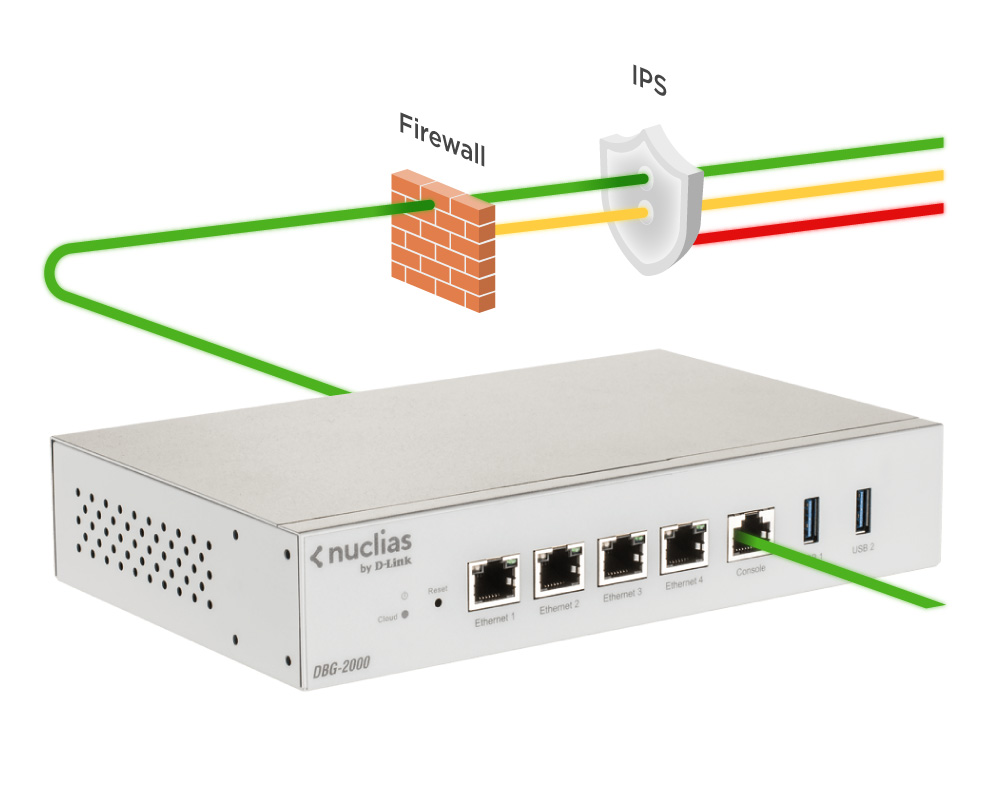

Strong network security features

The DBG-2000 is adept at keeping business networks more secure. The powerful network firewall filters traffic, blocking anything that shouldn’t be there.

Meanwhile, the Intrusion Prevention System (IPS) actively shields the network from modern day threats such as DDoS attacks, brute force attacks or vulnerability exploits, as well as raising the alarm alerting administrators to irregularities.

Simplified management policies

Nuclias Cloud empowers you with essential tools, such as Content Filters, Firewalls or Application Control. Define your policies as necessary, and then roll them out across the entire network for greater network-wide consistency.

Application Topology:

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
Find out more
AX1800 Wi-Fi 6 Cloud-Managed Access Point
Find out more
Nuclias Cloud-Managed Switches
DBS-2000-10, DBS-2000-10MP, DBS-2000-28, DBS-2000-28P, DBS-2000-28MP, DBS-2000-52, DBS-2000-52MP
Find out more
Nuclias Wireless AC2600 Cloud-Managed Access Point
Find out more
Nuclias Wireless AC1900 Wave 2 Cloud-Managed Access Point
Find out more
SD-WAN Gateway
Wired interface
1 x Gigabit Ethernet LAN

1 x Gigabit Ethernet WAN

2 x Gigabit Ethernet WAN/LAN/DMZ
USB ports
1 x USB 2.0

1 x USB 3.0
Console port
Firewall throughput
1.8 Gbps
VPN throughput (3DES)
450 Mbps
Concurrent sessions
Firewall system
Intrusion prevention system (IPS)

Web content filtering
WAN load balancing
VPN tunnels
IPSec tunnels
PPTP/L2TP tunnels
VPN features
IPSec/PPTP/L2TP Server


Quick VPN
Controller managed features
Captive portal
Management platform
Nuclias Cloud Networking Solution
Version Date Type File Size
Datasheet EN - PDF 0.26mb Download
Version Description Date Type File Size
Manual RevA1 Product Manual 22.11.2023 - - Download
Manual RevA1 Product Manual 26.07.2021 - - Download
Version Description Date Type File Size
QIG 1.00 RevB1 Quick Install Guide 21.02.2023 - - Download
QSG 1.02 RevA1 Quick Setup Guide 05.11.2021 - - Download
QSG 1.01 RevA1 Quick Setup Guide 27.10.2021 - - Download
QSG 1.00 RevA1 Quick Setup Guide 14.05.2021 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 2.22.002 RevA1 Firmware and Release note included 09.01.2023 - Download
FW 1.00.008 RevB1 Firmware and Release note included 13.12.2022 - Download
FW 2.21.b021 RevA1 Firmware 23.03.2022 - Download
Version Description Date
CE doc UKCA 1.00 RevA1 CE document 12.10.2021 Download
