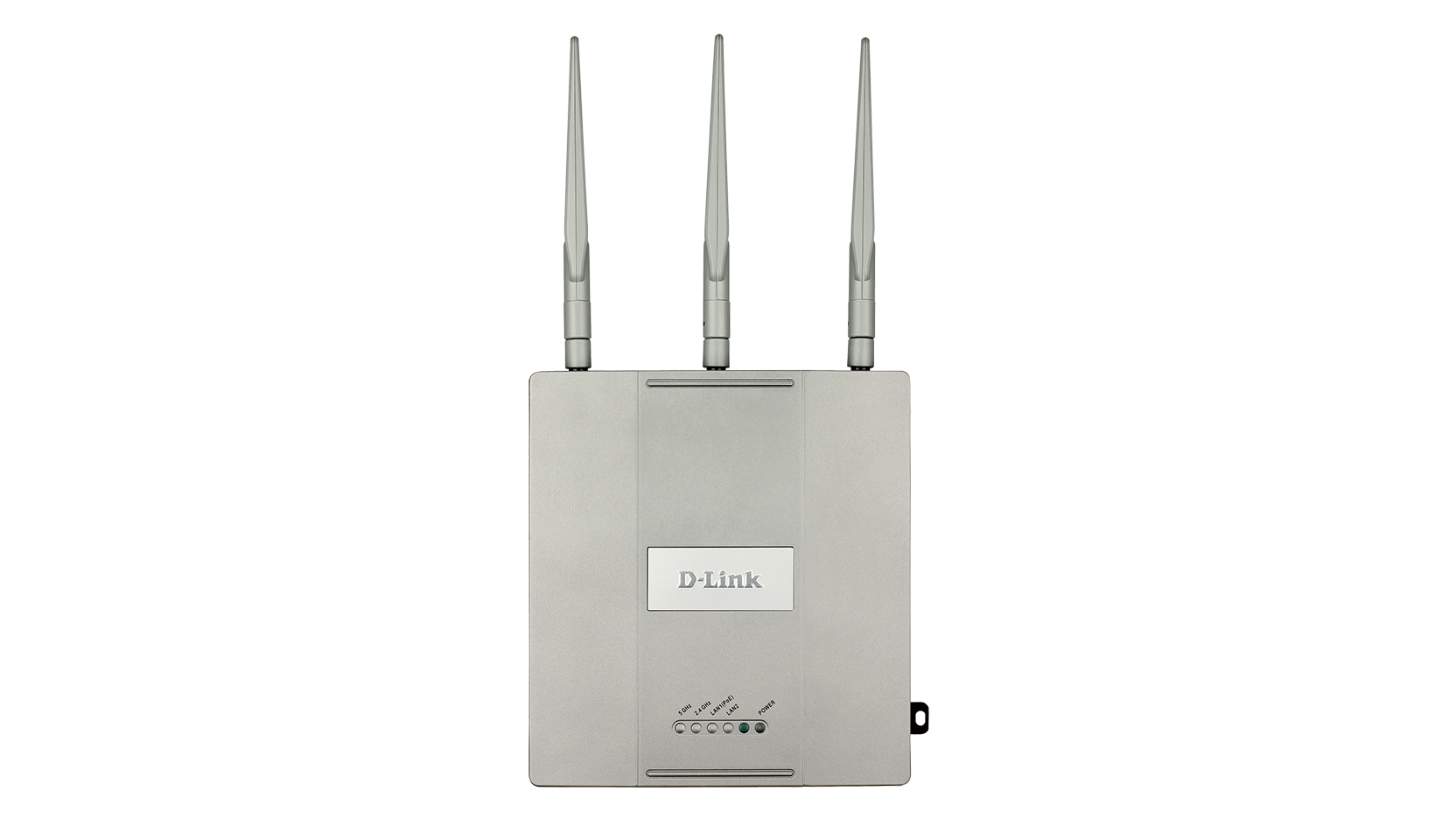

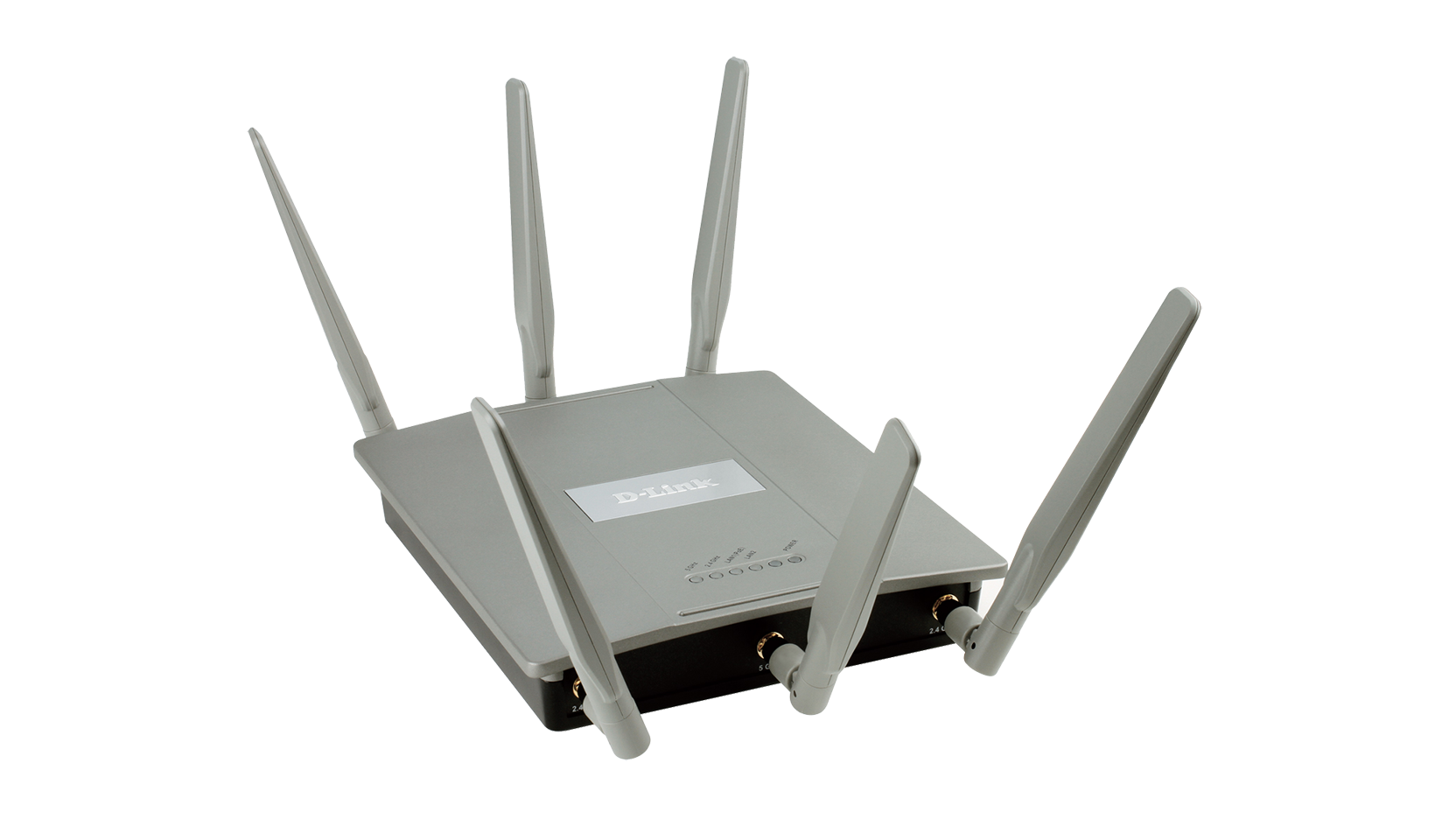

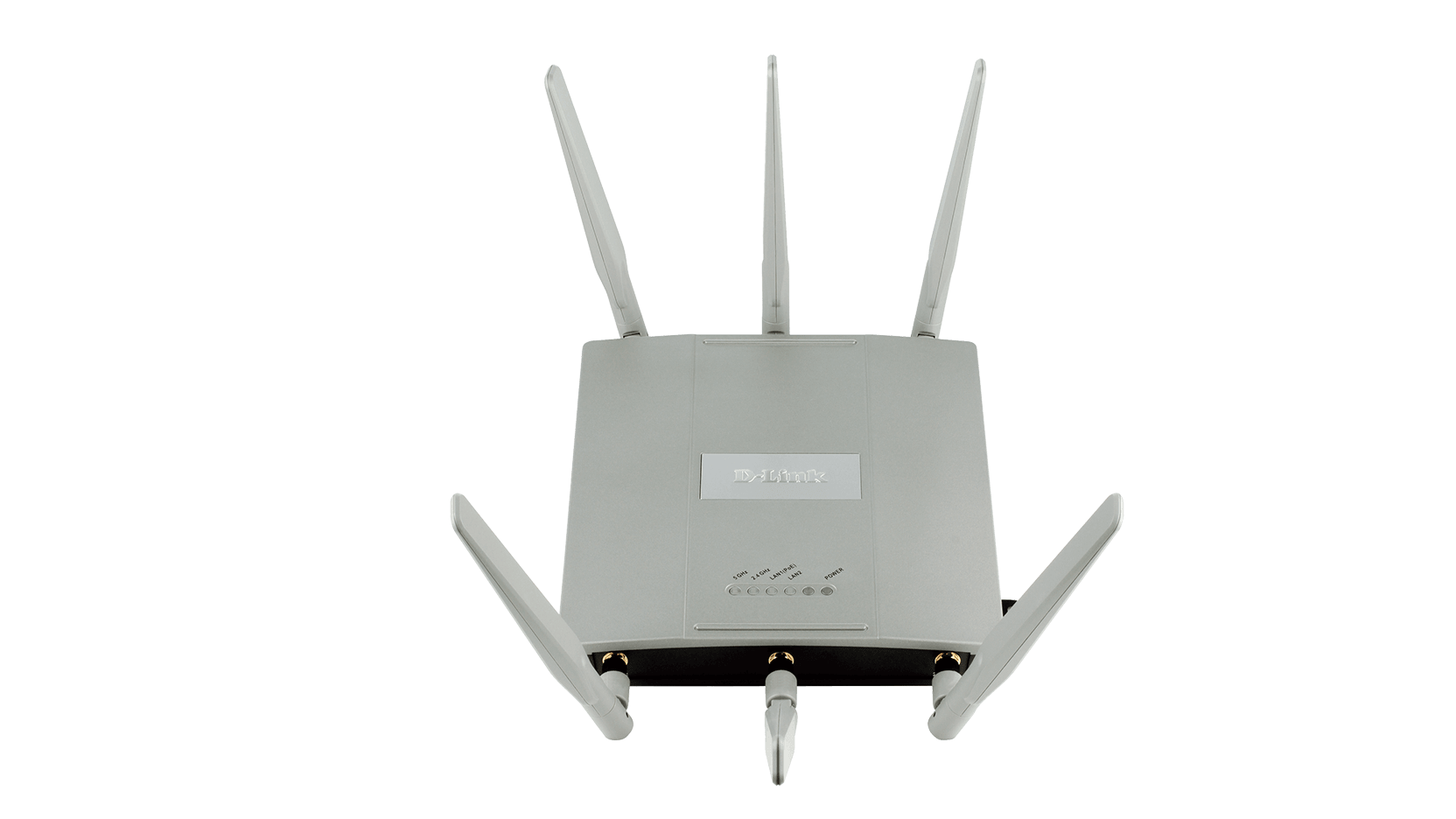

Wireless AC1750 Simultaneous Dual-Band PoE Access Point

DAP-2695

  • Product Status (Revision A): End of Sale

This product is compatible with Nuclias Connect*

Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

*An upgrade to the latest product firmware is required.

Download

Nuclias hardwarecontroller

De DNH-100 Wireless Controller is een voordelige, kant-en-klare oplossing die installatie en onderhoud van Nuclias Connect op extra hardware, zoals een server of pc, overbodig maakt. Hij ondersteunt maximaal 100 AP's, detecteert apparaten automatisch, pusht configuraties en biedt robuust hardwarebeheer. Gewoon aansluiten en inschakelen.

Learn more

Performance without Compromise

Incorporating industry leading Wireless AC Chipset, the DAP-2695 delivers up to 4 times* the performance of Wireless N by supporting simultaneous dual-band operation

Broadcast on 16 SSIDs Simultaneously

Supports up to 16 SSIDs, 8 per Band, including station isolation

Flexible Wireless

The DAP-2695 is a robust and versatile indoor access point, designed and built to withstand the harshest environments. It can be deployed anywhere from manufacturing plants and stadia, to school campuses and golf courses, virtually any venue requiring a robust wireless solution.



Simultaneous Dual-Band Wireless

Supports up to 1300Mbps for the 5Ghz band and up to 450Mbps for the 2.4Ghz band


Smart Design

The DAP-2695 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.



Scalable, flexible, centralised AP management

Manage up to 1000 Access Points from a central location, regardless of geography.

* When compared to Wireless N300



Product Comparison

<>Wireless AC


  DAP-2660 DAP-2695
Wireless Standard B, G, N, AC B, G, N, AC
Frequency 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps
5GHz Throughput 867Mbps 1300Mbps
Aspect Indoor Indoor
Range* 100m 100m


<>Wireless N


  DAP-2310 DAP-2360 DAP-2690
Wireless Standard B, G, N B, G, N B, G, N
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps
5GHz Throughput - - 300Mbps
Aspect Indoor Indoor Indoor
Range* 100m 100m 100m

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.



Gerelateerde Producten

Nuclias Connect Hub
DNH-100
Meer lezen
Nuclias Connect
DNC-100
Meer lezen
Gigabit Smart Switches met Glasvezelpoorten | D-Link
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Meer lezen
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Meer lezen
Gigabit PoE injector
DPE-101GI
Meer lezen
Type
Software Managed AP
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Antenna type
6 detachable omni-directional antennas
Antenna gain
4 dBi for 2.4 GHz
6 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Metal
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Geavanceerde Eigenschappen
MIMO
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
This product was phased out on: 10/04/2020
Versie Datum Type Bestandsgrootte
Blad in het Engels Nuclias Connect - - - Download
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Handleiding in het Engels met Nuclias Connect Handleiding in het Engels met Nuclias Connect - - - Download
Handleiding in het Engels Handleiding in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Installatiehandleiding Installatiehandleiding - - - Download
Beknopte installatiegids Beknopte installatiegids - - - Download
Dit D-Link product bevat software code welke ontwikkeld is door derden, waaronder software code die valt onder de GNU General Public License ("GPL") of GNU Lesser General Public License ("LGPL"). Indien van toepassing: de voorwaarden van de GPL en LGPL en informatie over het verkrijgen van toegang tot de GPL-code en LGPL-code die in dit product zijn gebruikt, zijn hier voor u beschikbaar:

http://tsd.dlink.com.tw/GPL.asp

De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie Beschrijving Datum Type
2.00b05r140 Actual firmware for using the DAP-2695 Rev.A in a Nuclias Connect environment
Can't be used in a CWM-100 or AP-Array environment.
Please note the manual for upgrade the firmware
1-3-2022 - Download
1.20b36r137 Huidige firmware 28-5-2021 - Download
Versie Beschrijving Datum
GPL Firmware Sourcecode GPL Firmware Sourcecode - Download
GPL Firmware Sourcecode NC-Firmware GPL Firmware Sourcecode voor Nuclias Connect Firmware - Download
Versie Beschrijving Datum
Conformiteitsverlaring Rev.A2 Conformiteitsverlaring Rev.A2 - Download
