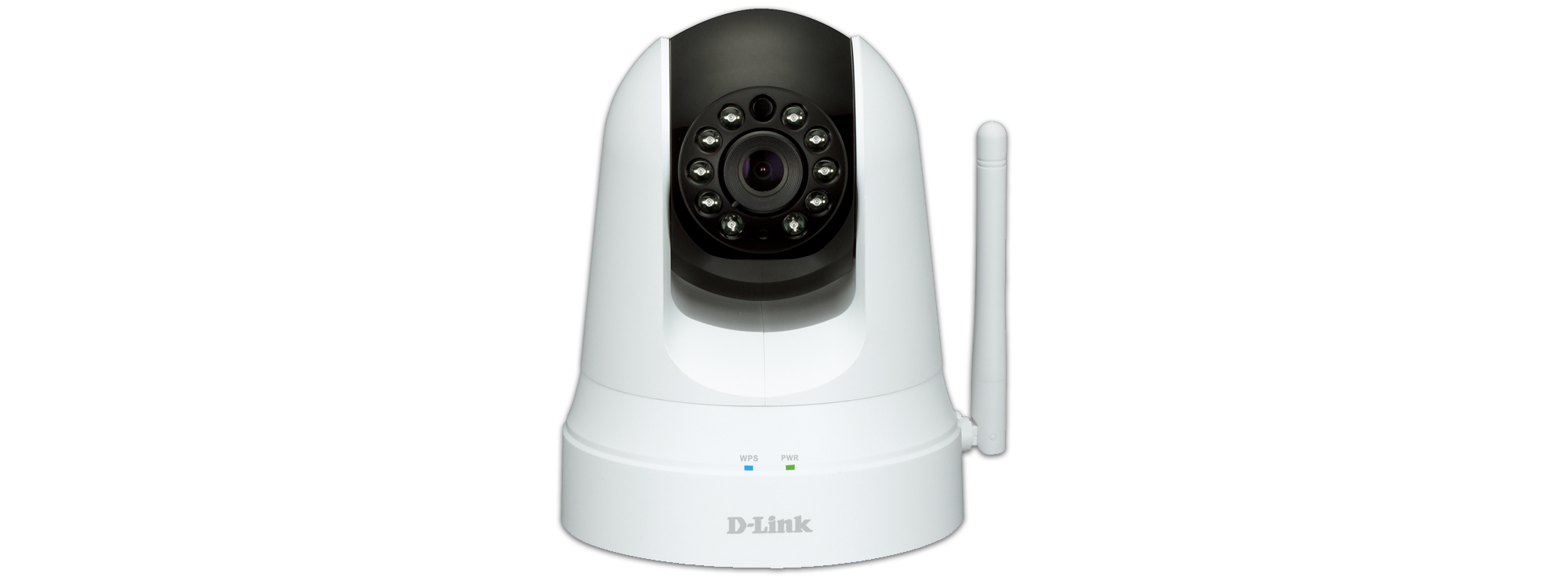

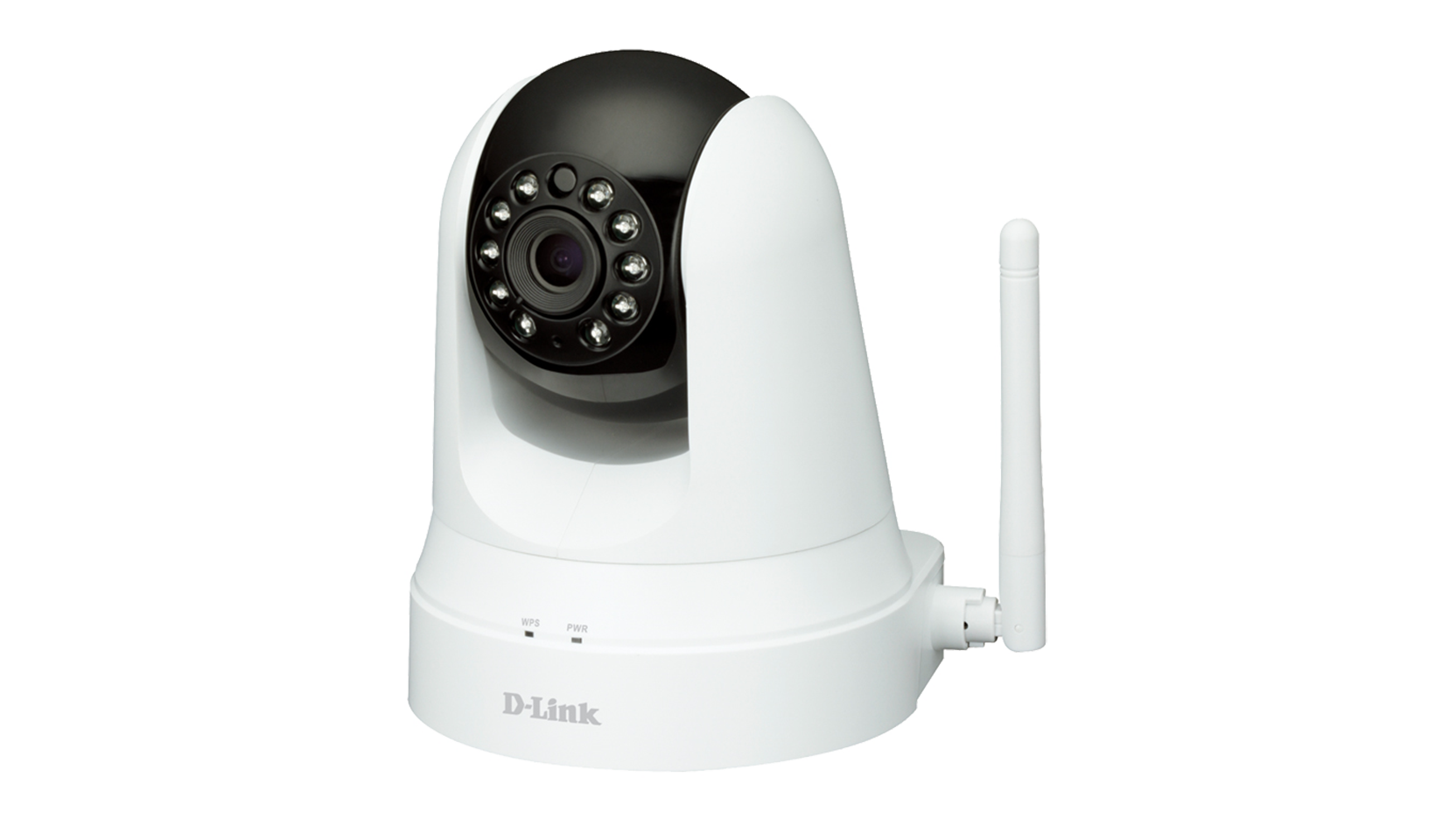

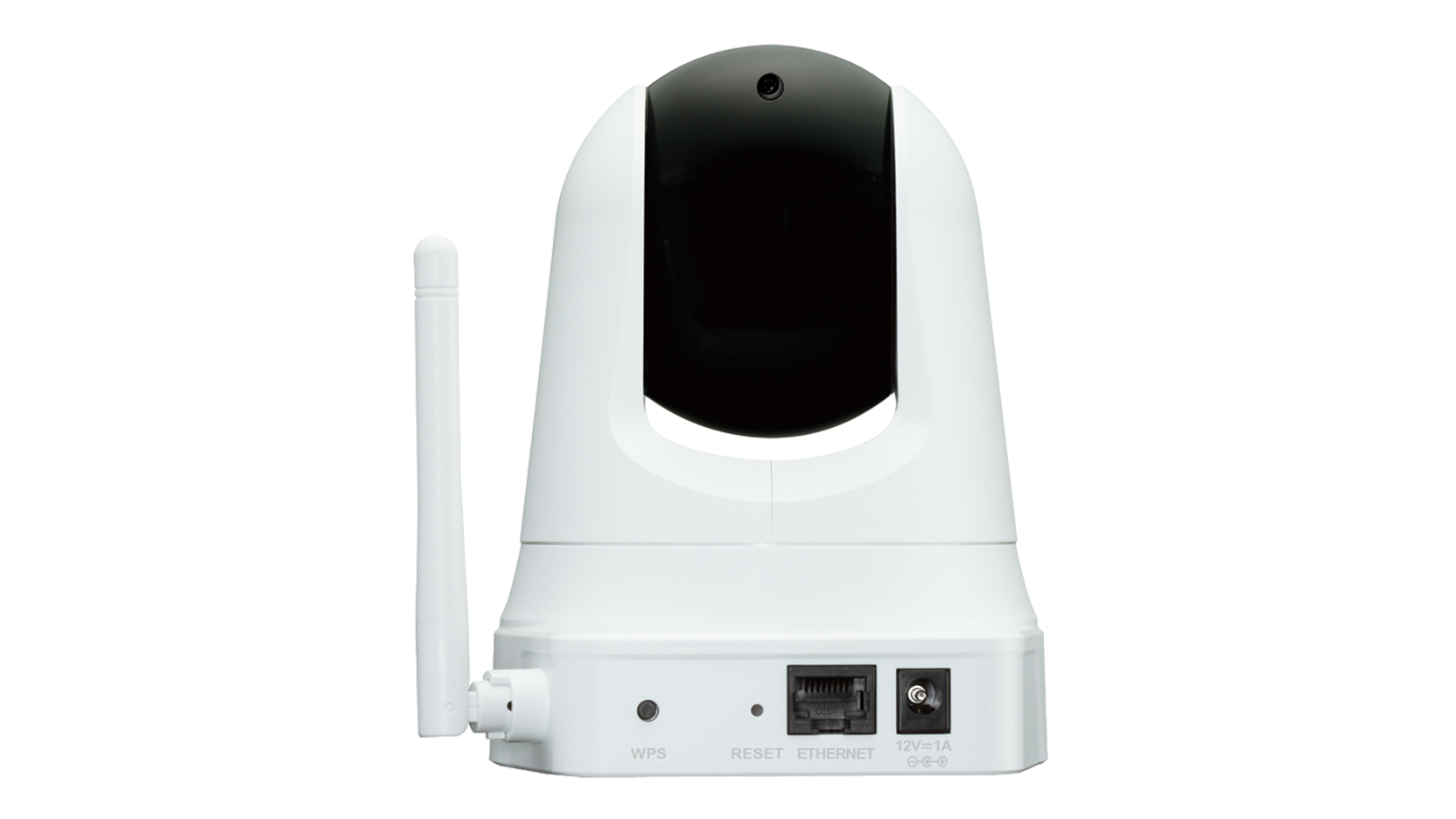

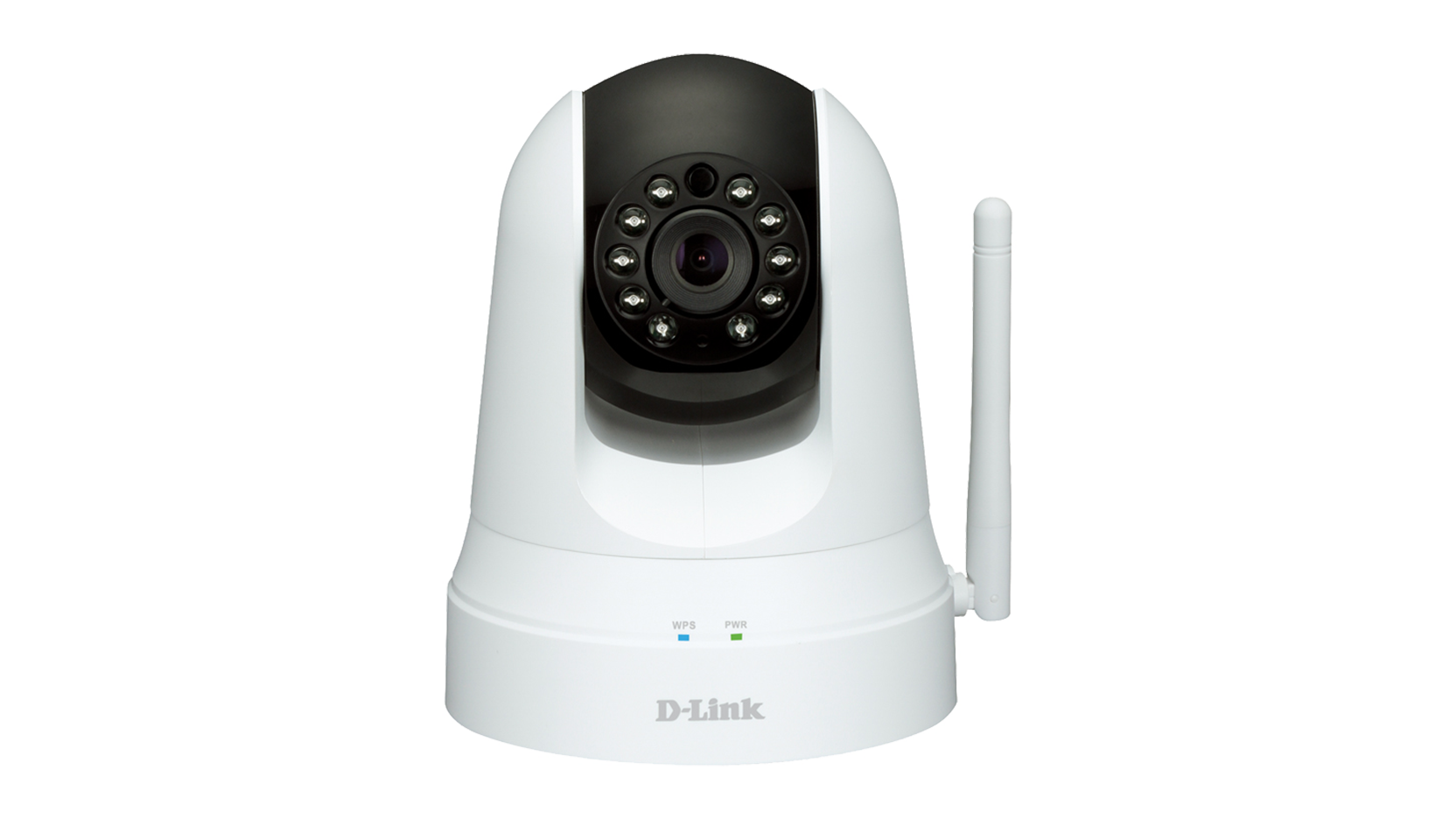

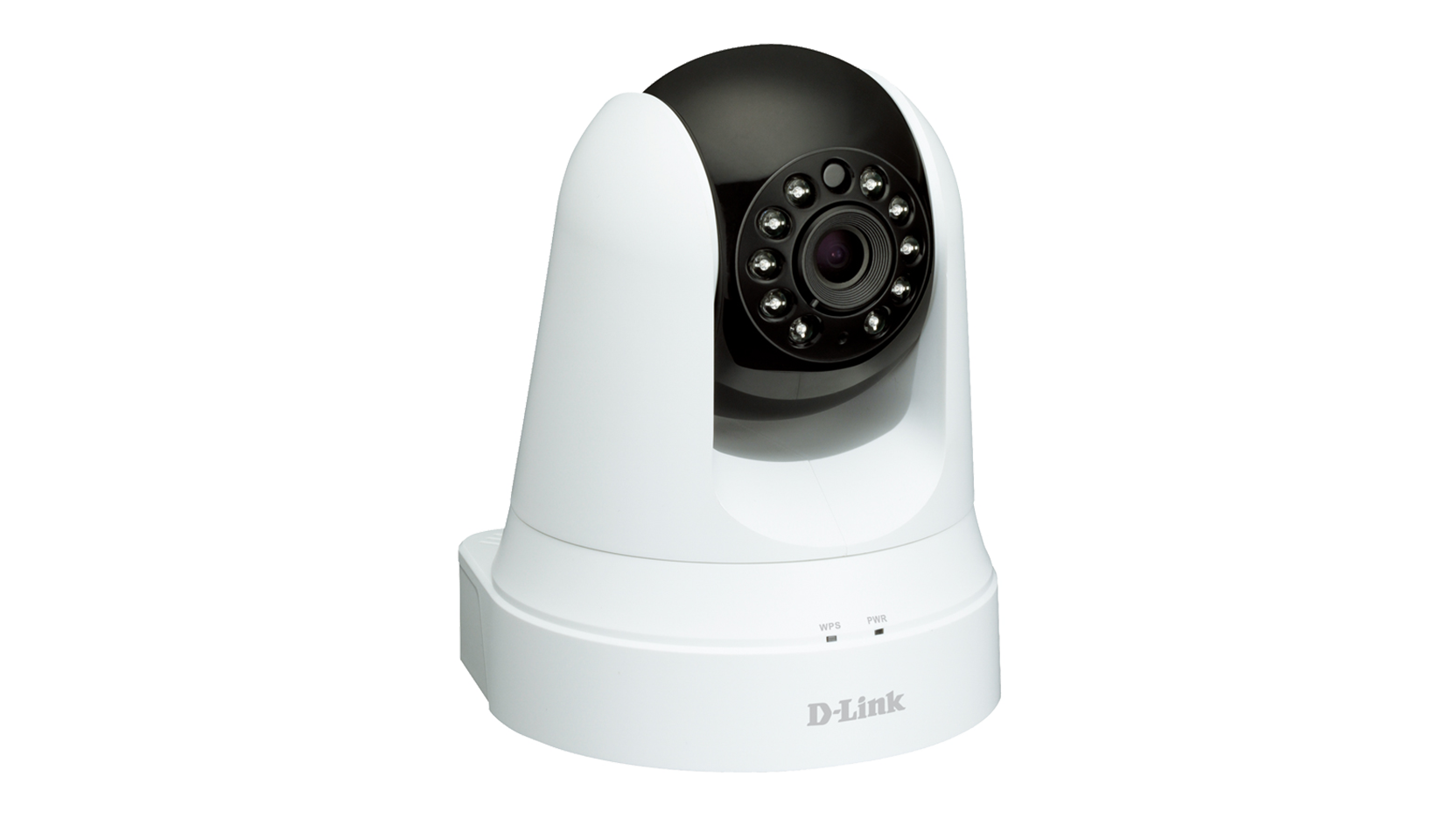

Wireless N Day & Night Pan/Tilt Cloud Camera

DCS-5020L

  • Product Status: End of Life

The perfect angle, at your fingertips.

The DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera easily connects to your existing home network for remote viewing on a range of mobile devices. It features pan, tilt and digital zoom function to allow you to see a wider area with a single camera.

Wireless N Connectivity And Extender

Not only can the DCS-5020L connect to your wireless via your WPS-enabled router with a single press of a button, the extender mode can extend the range of your existing wireless network. This eliminates wireless dead spots to give you a more complete wireless coverage.

Built-in Wi-Fi extender to effortlessly expand your wireless coverage, night vision up to 8 metres, sound and motion detection for the ultimate in peace of mind, and H.264 video compression for a high-quality image. And with its wireless connectivity, you can place your camera almost anywhere in your home to keep an eye on the things you love most.

24/7 Day And Night Monitoring

The DCS-5020L is a standalone surveillance camera that can run without the need of a computer and requires no special hardware or software. When connected to the Internet, the DCS-5020L can send e-mail notifications with snapshots or video clips whenever motion or sound is detected. You can choose areas of interest for motion detection or set the sound volume level for when you want to be alerted. Night time monitoring is possible with the built-in infrared LEDs which allow for night time viewing of up to 8 metres, enabling round-the-clock monitoring, even in complete darkness.

Sharp Image Monitoring from Different Angles

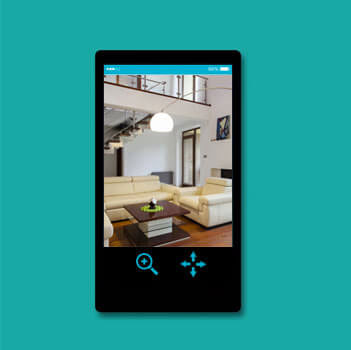

By providing you with sharp, responsive pan/tilt movement and digital zoom, the Wireless N Day & Night Pan/Tilt Cloud Camera gives you full control. You can quickly scan a wide area from a variety of angles, and 4x digital zoom lets you zoom in on specific areas for more detail. The DCS-5020L can also be set to move to specific preset positions, allowing the camera to focus on particular areas of interest within the surveillance area.

Indoor/outdoor
Indoor
Connectivity
Wired
Wireless
Resolution
VGA 0.3 megapixel
Image sensor
1.5" VGA progressive scan CMOS
Maximum Video Resolution
640 x 480 (other)
Lens
2.2 mm
F2.0
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
8 m
Motorised Pan/Tilt
Supported
Built-in Microphone
Supported
Built-in Wireless extender
Supported
App Support
mydlink
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
4x
Motion Detection
Supported
Sound Detection
Supported
E-mail Notification
Supported
This product was phased out on: 07/11/2018
This product's last date of support is on: 06/11/2020
How to install and use the Mydlink Lite app on your iPhone/iPad
How to remove a camera from your Mydlink account
How to Log into a Mydlink camera
How to Setup and Install a Mydlink camera
How to configure time on a Mydlink camera
How to configure Motion Detection on a Mydlink camera
Version Date Type File Size
- PDF 0.75mb Download
Version Description Date Type File Size
DCS-5020L manual DCS-5020L manual - PDF 5.71mb Download
Version Description Date Type File Size
1.00 Quick installation guide - PDF 1.54mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.15.12 Firmware 16.7.2018 - Download
Version Description Date
Setup Wizard Find the latest Setup Wizard on our Mydlink site.
Make sure to select the correct model and version.
13.1.2016 Download
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.2.2014 Download
Version Description Date
CE doc 2.10 RevisionA CE document 02.6.2016 Download
DEU_Quick_Guide_on_mydlink_Cameras_Rev Quick Guide on mydlink Cameras 03.12.2014 Download
CE declaration CE declaration 17.10.2014 Download
DEU_IP_Surveillance_Cheat_Sheet

IP Surveillance Cheat Sheet

25.4.2014 Download
How to enable Java on Mac OS X for mydlink How to enable Java on Mac OS X for mydlink 29.7.2013 Download
