Wireless AC1200 Dual-Band Outdoor Unified Access Point

DWL-8710AP

  • Termék Státusz (Revision A): End of Sale

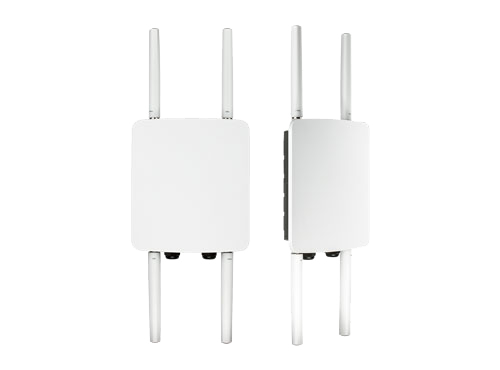

The DWL-8710AP is an outdoor dual-band Wireless AC1200 Access Point designed specifically for deployment in business and campus environments. Highly manageable and capable of blazing speeds, the DWL-8710AP integrates seamlessly into an existing network infrastructure and can be easily scaled to meet future demands.

Convenient Installation

The DWL-8710AP can be installed on a wall or pole with the included mounting brackets. The DWL-8710AP is IP67-compliant and is designed to operate in harsh outdoor environments and temperatures ranging from -30 up to 60˚C. For easy installation, it has integrated 802.3at Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.

Superior Wireless AC Performance

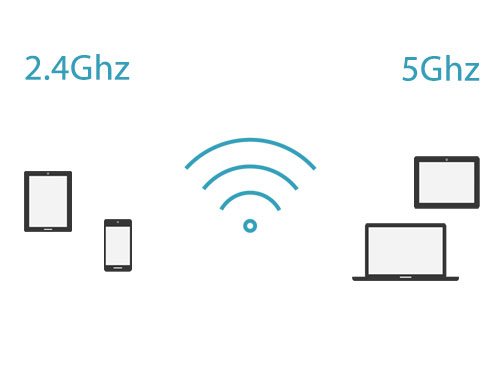

The DWL-8710AP delivers reliable, high-speed wireless performance using the latest 802.11ac standards. Band steering ensures 5GHz-enabled clients can achieve their maximum performance without being bottle-necked by legacy 2.4 GHz 802.11b/g/n clients. AC SmartBeam™ technology enables the DWL-8710AP to have even greater reach than ever before.

Simultaneous Dual-Band Wireless

Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps over the 2.4 GHz band, and 867 Mbps over the 5 GHz band

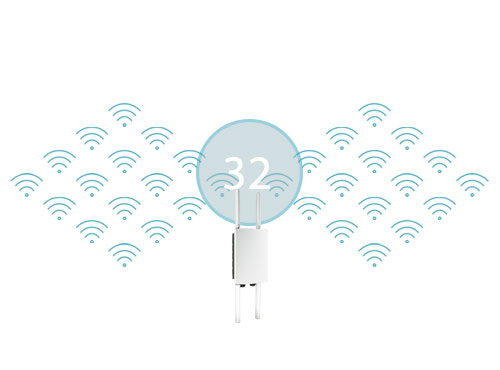

Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including Station Isolation

Centrally Manage your Wireless Network

When working in conjunction with a D-Link Unified Switch or Wireless Controller, the DWL-8710AP, like other D-Link Unified Access Points, may be centrally managed. This allows up to 1,024 D-Link Unified Access Points to be deployed and managed easily and efficiently3. This managed wireless solution offers self-organising, self-optimising and self-healing network capabilities to increase the stability of the entire wireless network.

Related Products

Wireless Controller
DWC-1000
Tudj meg többet!
DWC 1000 Front

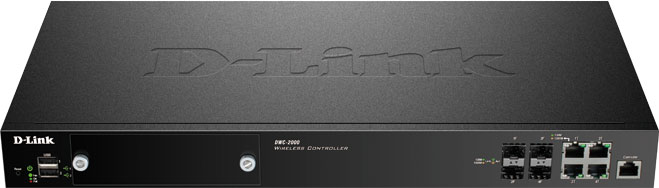

Wireless Controller
DWC-2000
Tudj meg többet!
Wireless AC1200 Dual-Band Unified Access Point
DWL-6610AP
Tudj meg többet!
Type
Hardware-managed AP
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
4 detachable omni-directional antennas
Antenna gain
5 dBi for 2.4 GHz
7 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Indoor/outdoor
Outdoor
Type of housing
Metal
Plastic
IP rating
IP67
Wireless modes
Access Point (AP)
WDS bridge
Advanced features
Fast Roaming
MIMO
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
DWS-3160
DWS-4026
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
Telnet
Supported
SSH
Supported
