Wireless Controller

DWC-2000

  • Termék Státusz (Revision A): Live

D-Link's DWC-2000 Unified Wireless Controller is a cost-effective wireless management solution suitable for large Access Point deployments.  Capable of managing 64 Unified Wireless Access Points Out of the box, it provides a Reliable, Secure, Self-Healing, Scalable wireless network suitable for education, hospitality and businesses of any size.



Download the datasheet.

Partner üzleteink

Business Benefits

  • Simplified wireless LAN management enhanced user experience
  • Segment guest and corporate access with multiple SSIDs, Guest Captive Portal, and standard based VLAN configurations
  • Free Integrated Payment Gateway
  • Optimise network with automatic RF channel settings and adjustments of AP output power setting

Product Features

DWC 1000 Front

 APower LED
 BFan LED
 CUSB Ports to Upgrade Firmware and export configuration

 D

Gigabit LAN SFP ports (1-4)
 EGigabit LAN RJ-45 ports (1-4)
 FConsole/Management Ports

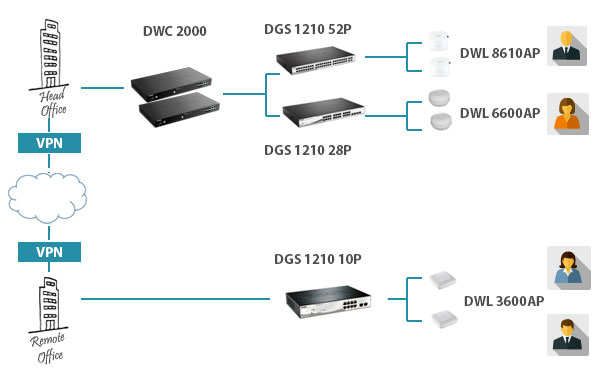

Centralised Monitoring and Management

Whether you intend to use a single Access Point or roll out a large corporate network, all compatible D-Link Unified Wireless Access Points* can be managed using a D-Link Wireless Controller.

DWC 1000 Front

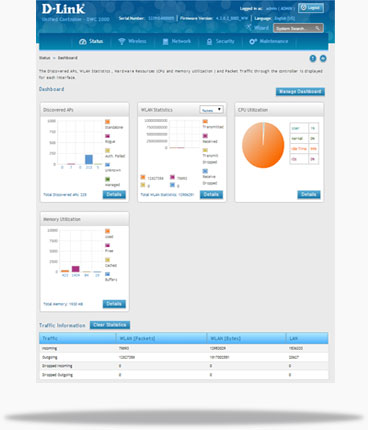

Functionality without Complexity

Simplified and Intuitive GUI with integrated configuration wizards make deployment and monitoring a simple task.

DWC 1000 Front

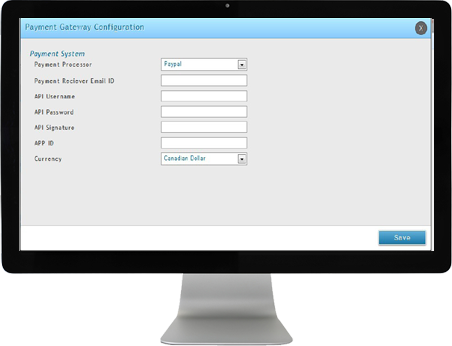

Integrated Payment Gateway

Monetising your wireless investment is simple using the integrated payment gateway. D-Link’s Family of Wireless Controllers enable you to charge for Wireless access by using one of the integrated payments services making PCI-DSS compliance easy.

DWC 1000 Front

Self-Healing Wireless

With D-Link’s Self-Healing Wireless network, the Wireless Controller can detect if a surrounding access point has failed and boost their power output to compensate for the failure, minimising the effect of the failed AP.

DWC 1000 Front

Scalability

The ideal solution for businesses of any size, starting with just 8 Access Points and scaling to support 1024 APs in a clustered configuration. The DWC-2000 is the perfect solution for any business looking to enhance their wireless network with the minimal service disruption. With an extensive range of D-Link Unified Access Points and simplified management and monitoring tools the DWC-2000 is deployable anywhere, across any geography.

DWC 1000 Front

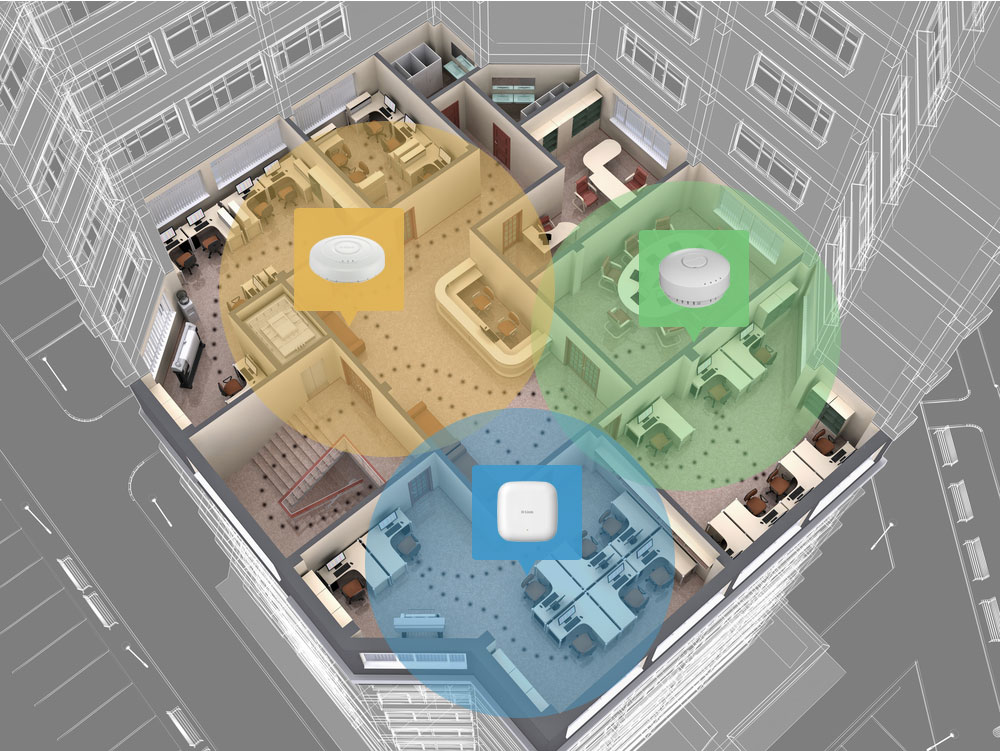

Fast Seamless Roaming

Combining a Unified Access Point with a DWC-2000 Unified Wireless Controller enables you to create a wireless network that enables you to roam around a building or even outside without affecting your video call.

DWC 1000 Front

* Selected D-Link Access Points Only

Related Products

Wireless Controller
DWC-1000
Tudj meg többet!
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
Tudj meg többet!
Wireless AC1300 Wave 2 Dual-Band Unified Access Point with Smart Antenna
DWL-6620APS
Tudj meg többet!
Wireless AC1200 DualBand Unified Access Point
DWL-6610APE
Tudj meg többet!
Wireless AC1200 Dual-Band Unified Access Point
DWL-6610AP
Tudj meg többet!
Number of ports
5 to 14 ports
Layer
Layer 3
Main type of ports
1000BASE-T Gigabit Ethernet
SFP
Type of uplink ports
Combo 1000BASE-T/SFP
Management platform
Hardware
Access point management - number supported per unit (default/upgradeable)
64/256 APs
Supported access points
DWL-2600AP
DWL-3610AP
DWL-6600AP
DWL-6610AP
DWL-6610APE
DWL-6620APS
DWL-6700AP
DWL-7620AP
DWL-8610AP
DWL-8620AP
DWL-8620APE
DWL-8710AP
DWL-8720AP
Maximum number of device clustering per group
4
Access point management - number supported per cluster (default/upgradeable)
256/1024
AP auto discovery and monitoring
Supported
AP authentication by local database and external RADIUS
Supported
Auto channel and power management
Supported
Centralised AP firmware upgrade
Supported
Fast roaming
L2
WPA/WPA2-personal/enterpise
Supported
TKIP/AES encryption
Supported
Rogue AP/Client detection and mitigation
Supported
WIDS
Supported
VLAN group (max static)
255
VLAN type
GVRP
MAC-based
Port-based
Protocol-based
Advanced VLAN
Double VLAN (Q-in-Q)
Voice VLAN
Routing table size
2048
Number of QoS queues per port
4
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
WMM
Supported
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
802.1X access control
Supported
External user databae - POP3 and LDAP
Supported
RADIUS/TACACS+ authentication
Supported
Captive portal
Supported
SNMP (v1/v2c/v3)
Supported
