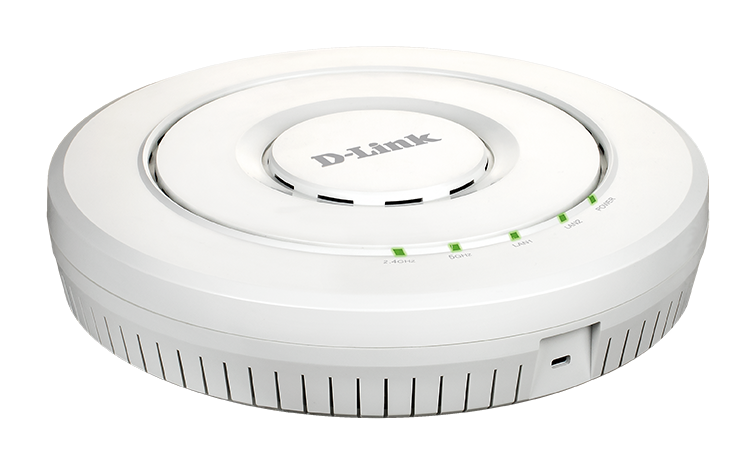

Wireless AC2600 Wave 2 Dual-Band Unified Access Point

DWL-8620AP

  • Termék Státusz (Revision A): Live
  • 802.11ac Wave 2, Dual-Band, up to 2.5 Gbps2
  • 4 Internal Omnidirectional Antennas
  • Up to 64 dynamic VLANs per access point
  • 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
  • Link Aggregation
  • Limited Lifetime Warranty with registration

Download the datasheet.

Partner üzleteink
AC2500 Wave 2

Combined wireless speeds of up to 2.5 Gbp2 with 802.11ac Wave 2 technology

Dual-Band Wi-Fi

Two bands to improve throughput and coverage. Reduces co-channel interference.

4 x 4 MU-MIMO

Improved efficiency in handling throughput distribution to multiple devices connected to the network

Automatic Radio Frequency (RF) Management

Greatly reduces RF interference and enables denser AP deployments.

802.11k Fast Roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1

Centrally Managed

Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.

Enjoy Faster Business with Wave 2

The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.

Greater Speeds and Reliable Connectivity

Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.

It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput.

Increase Network Efficiency

The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.

Rapid Deployments

It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.

Robust Management

When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.

Automatic Radio Frequency (RF) Management

Radio Frequency (RF) resource management1 allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.

When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power1. If an AP goes down, others will increase their transmission power to expand coverage.

Band Steering

It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.

Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.

802.11k Fast Roaming1
Allows the wireless client to roam seamlessly between access points.

802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.

Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.



We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Wireless Controller
DWC-1000
Tudj meg többet!
DWC 1000 Front
Wireless Controller
DWC-2000
Tudj meg többet!
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
Tudj meg többet!
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
Tudj meg többet!
Wireless AC1300 Wave 2 Dual-Band Unified Access Point with Smart Antenna
DWL-6620APS
Tudj meg többet!
Type
Hardware-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
1733 Mbps 5 GHz
800 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes

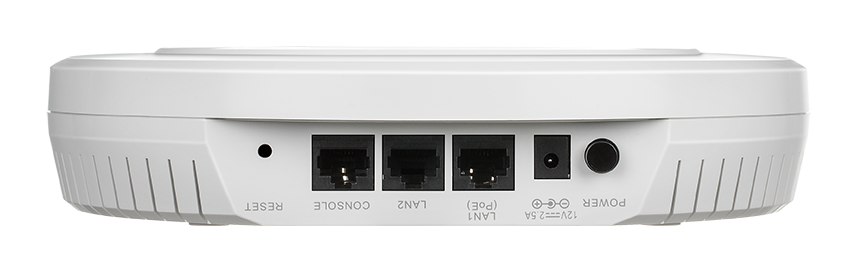

Wired interface
2 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Wireless extender
Advanced features
Fast Roaming
MU-MIMO
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported

1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
2 Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors my adversely affect wireless signal range.
