Wireless AC1200 DualBand Unified Access Point
DWL-6610APE
- Termék Státusz (Revision B): Live
Partner üzleteink
Performance without Compromise
The DWL-6610APE is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610APE can be discreetly deployed anywhere.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dcs8300lh_01_intro.png?h=725&w=2000&la=hu-HU&hash=839FD4C8D7A3C2B795774BFD9EB6DC8B)
Key Features
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl6610apeiconsac1200.png)
Wireless AC 1200
Maximum combined wireless speed of 1200 Mbps.*
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl6610apeiconsbroadcast32.png)
Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl6610apeiconsdualband.png)
Dual Band
Supports both 2.4Ghz and 5Ghz bands simultaneously.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl6610apeiconsunifiedwireless.png)
Unified Wireless
Access points can be managed by unified wireless controller.
Smart Design
The DWL-6610APE can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610APE adheres to strict fire codes for placement in air passageways.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl6610apea1_top_bottom.png?h=2730&w=4817&la=hu-HU&hash=DCF2C0245E2B18B97A14047AAC7E4D24)

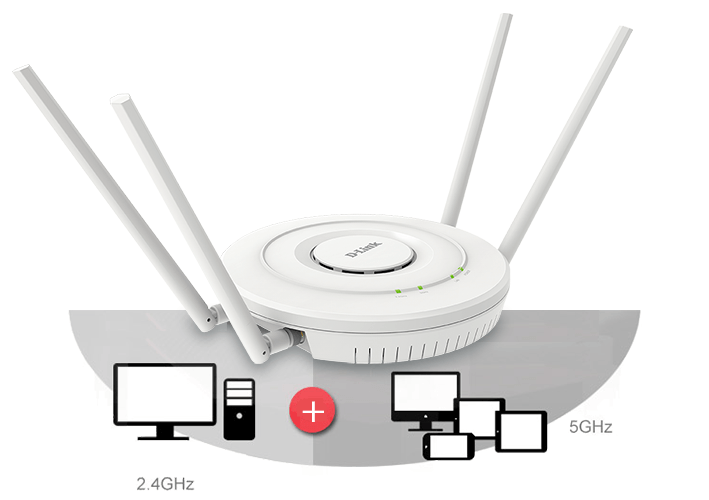

Band Steering technology
With band steering, the DWL-6610APE detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl_6610ape_band_steering.png?h=500&w=709&la=hu-HU&hash=C8F3983ED7705B6763BCC54D1E328FCE)

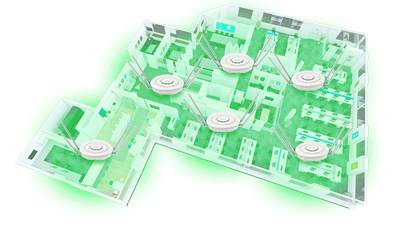

Versatility Built as standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610APE coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl_6610ape_versatility.png?h=225&w=400&la=hu-HU&hash=5D9960BD7D6D35DD9D46ADA4DF4A0B75)

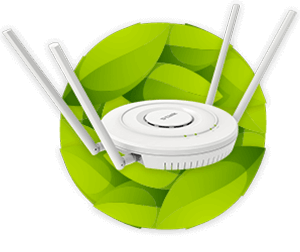

Secure and Green Design
The DWL-6610APE has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
![](/hu/hu/-/media/product-pages/dwl/6610ape/powersaving.png?h=252&w=300&la=hu-HU&hash=B7AA451469B286D36B368851356748E9)

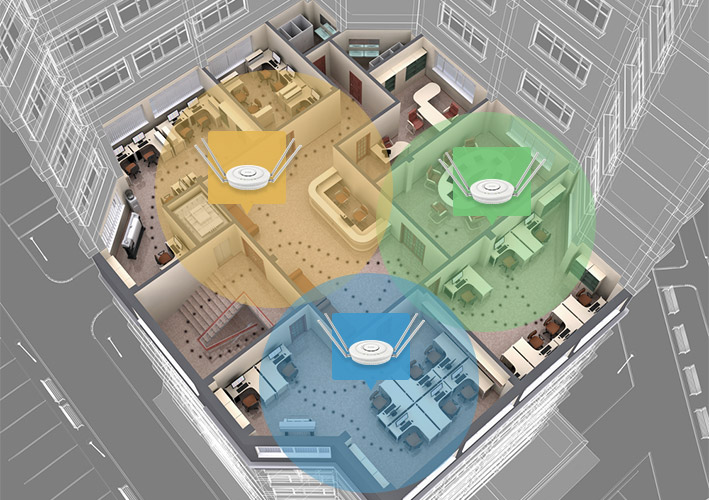

Fast Seamless Roaming
Combining the DWL-6610APE with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl6610apefastseemlessroaming.jpg?h=500&w=709&la=hu-HU&hash=A3098485B65C81FE29DDC2180CD50761)
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl_6610ape_unified_wireless_controllers.png?h=200&w=300&la=hu-HU&hash=0270AE71E8C3CF988F1CAC02A81D0FF5)
Management platforms
D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.
![](/hu/hu/-/media/product-pages/dwl/6610ape/dwl_6610ape_dual_band_wireless.png?h=200&w=300&la=hu-HU&hash=AC7F7F4B774ED7D034FAEF30ACB7F177)
Simultaneous Dual-Band
Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band
* Maximum wireless signal rate derived from IEEE standard 802.11ac specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
Related Products
![](/hu/hu/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=hu-HU&hash=F0FE579B776876E8A02415C3D22BACEC)
![DWC 1000 Front](/hu/hu/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=hu-HU&hash=068B7C8E0D0B974D2915E35C31852EE6)
![](/hu/hu/-/media/product-pages/dwl/6610ap/b1/dwl6610apb1image-lfront.png?h=100&w=178&la=hu-HU&hash=8A163F61D74D28F98F253A48B1614279)
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
4 detachable omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Advanced features
|
Fast Roaming MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-4026 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
