2-Port Gigabit PoE Extender
DPE-302GE
- Termék Státusz (Rev_A): Live
The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power-over-Ethernet connection to be extended up to 500 m. With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.
Partner üzleteink
Extend your network
The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power-over-Ethernet connection to be extended by up to 100 m per extender, to a massive maximum of 500 m in a daisy chain of extenders.1
Connect huge spaces

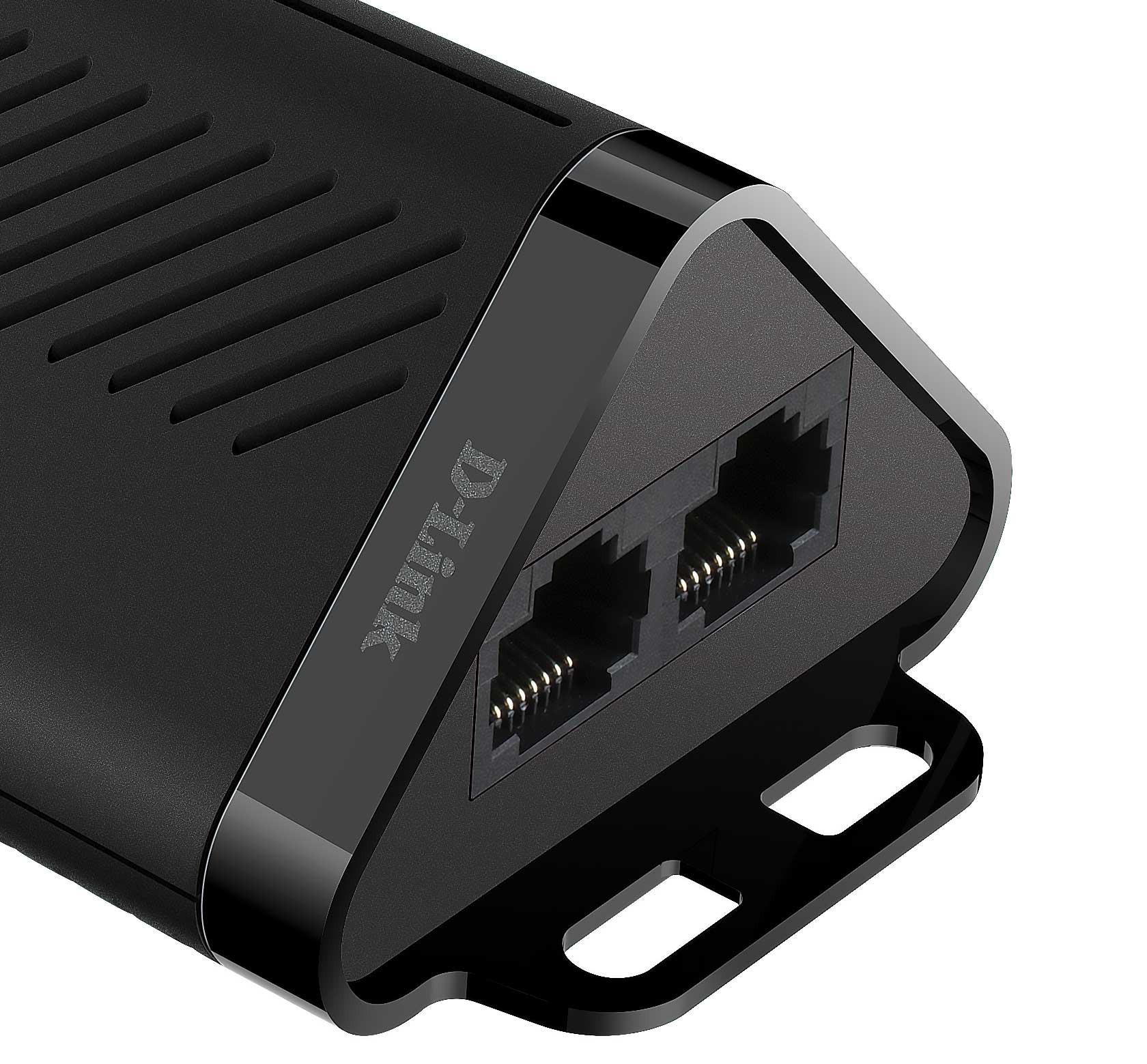

Two ports in combination with more connected extenders enable you to bring power and data to security cameras, and monitoring and telecommunication systems, even across vast areas like university campus sites, large retail stores, libraries, airports and transportation tunnels.
Protected
The extender has D-Link’s highest built-in 4kV surge protection, and is also capable of operating in temperatures of up to 60 °C (140 °F), allowing it to be deployed in harsher environments.
Ready to go
Combined with three flexible methods of mounting: a powerful built-in magnet with anti-slip rubber feet, supplied screw anchors, and included velcro, the DPE-302GE is ready to use straight out of the box and can be deployed virtually anywhere.
With Networks in Mind
Designed to supply data, whether you need 10 to 1000 Mbps, and PoE power to devices such as IP surveillance cameras and wireless access points over extended distances.
Power to Devices
Because the DPE-302GE is powered by consuming a very small fraction of PoE power, you can extend the connection distance beyond 100 m as well as power devices without worrying about finding a nearby power outlet, giving you the freedom to design your network layout.
Robust design

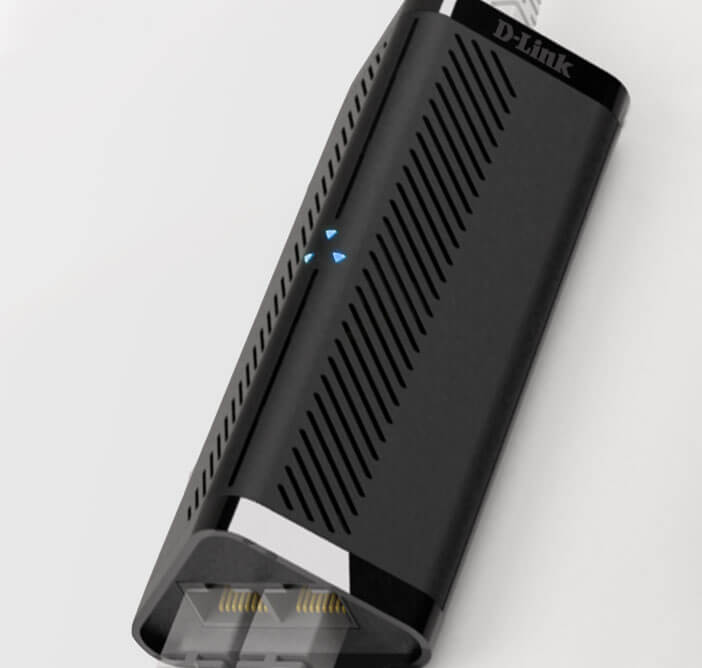

A discreet matte black design with jet black rims, air vents to regulate airflow, and 3 digital blue LED lights to indicate the connected power supply and show you exactly which direction your power and data flows.
1. Up to 500 m extension requires 802.11at PSE source. Maximum distance as per IEEE 802.3u specifications. Distances exceeding 100 m can be reached by linking additional DPE-302GE units.
Related Products
Specs
Main type of ports
|
1000BASE-T Gigabit Ethernet |
---|---|
Type of uplink ports
|
1000BASE-T Gigabit Ethernet |
Powered by PoE
|
Supported
|
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
2 |
