Gigabit Smart Managed Switches

DGS-1100 Series

  • Termék Státusz (Revision V2): Live
  • Free centralised management with Nuclias Connect
  • Simple Layer 2 Management
  • Web-based User Interface
  • PoE options up to 370W power budget
  • Limited-Lifetime Warranty after registration

Download the datasheet.

Partner üzleteink
Web UI

Easy to use web interface to access management features

VLANs

Segment your network into VLANs.

Easy deployment with automatic configuration

Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration

Energy Efficient Design

Automatic power saving features to reduce power usage

Simple. Easy. Smart.

DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.

Smart Web UI

The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Free Nuclias Connect remote network management software.

Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.



Learn more

PoE and PoE+, with budgets up to 370W

The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

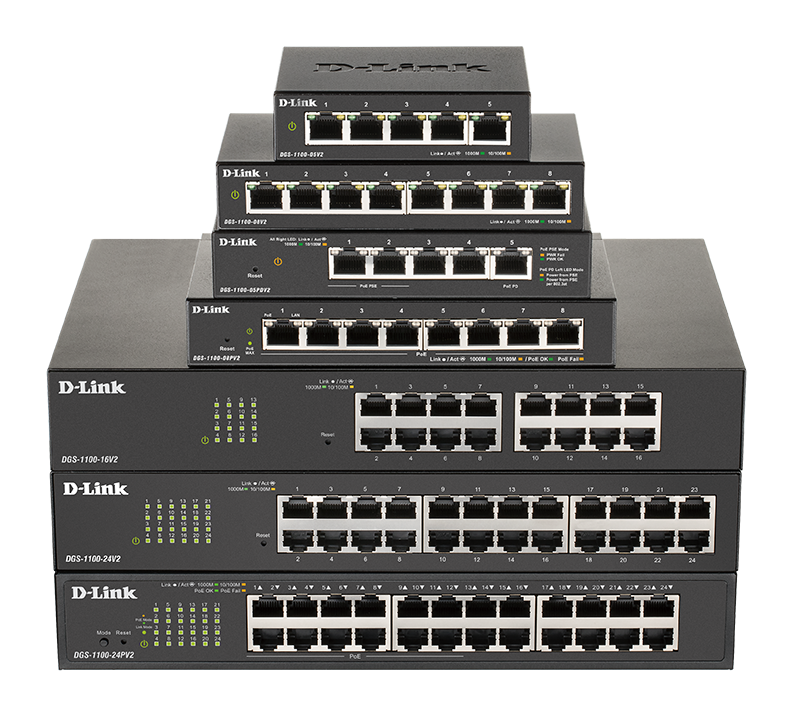

DGS-1100V2 Smart switch series

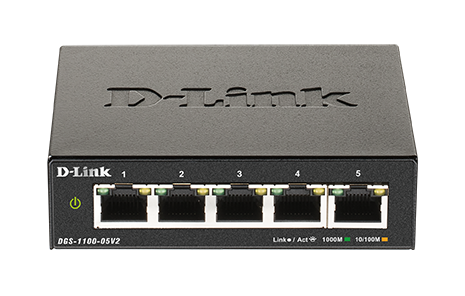

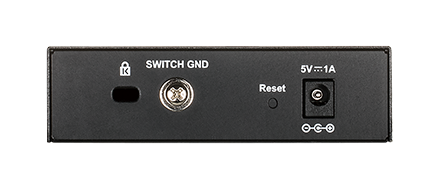

DGS-1100-05V2

· 5 x 1000Base-T
· Fanless

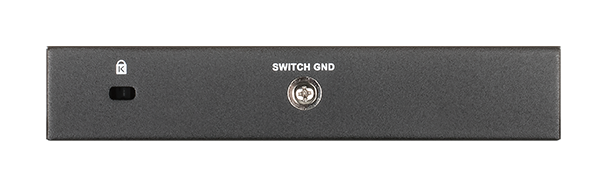

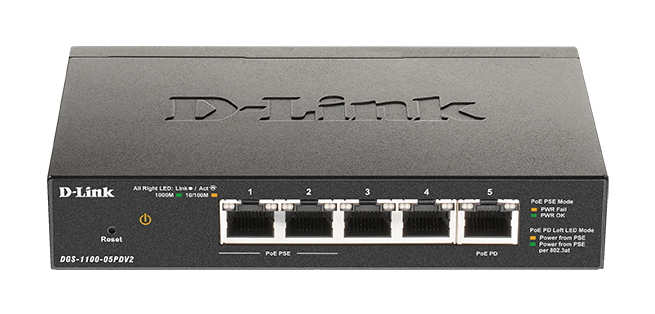

DGS-1100-05PDV2

· PoE Powered
· 3 x 1000Base-T
· 2 x 1000Base-T PoE
· Power Budget: 18W with 802.3at / 8W with 802.3af input power
· Fanless

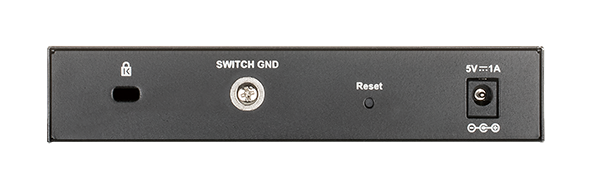

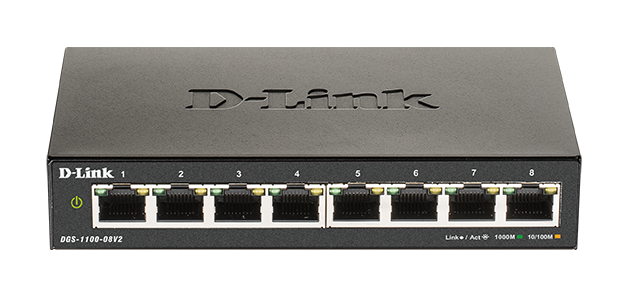

DGS-1100-08V2

· 8 x 1000Base-T
· Fanless

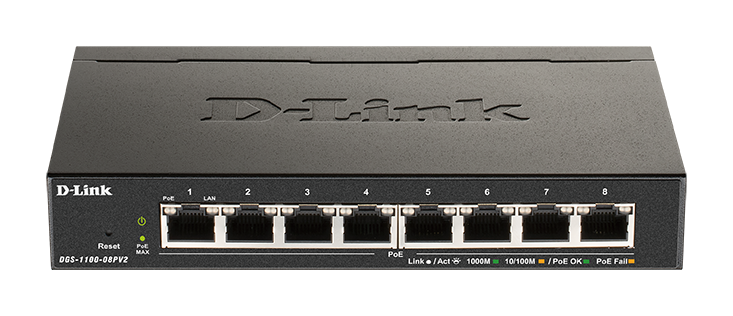

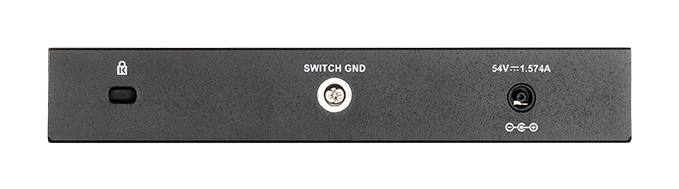

DGS-1100-08PV2

· 8 x 1000Base-T 802.3at PoE
· 64W PoE budget
· Fanless

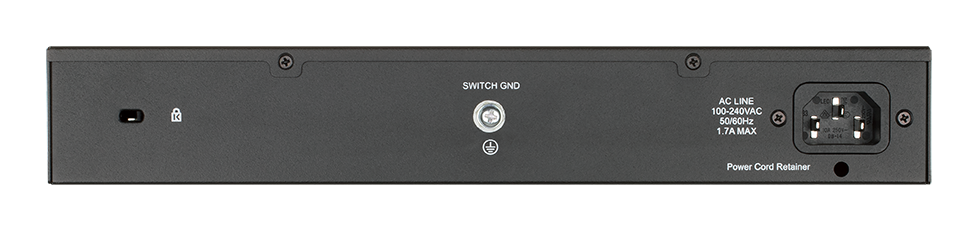

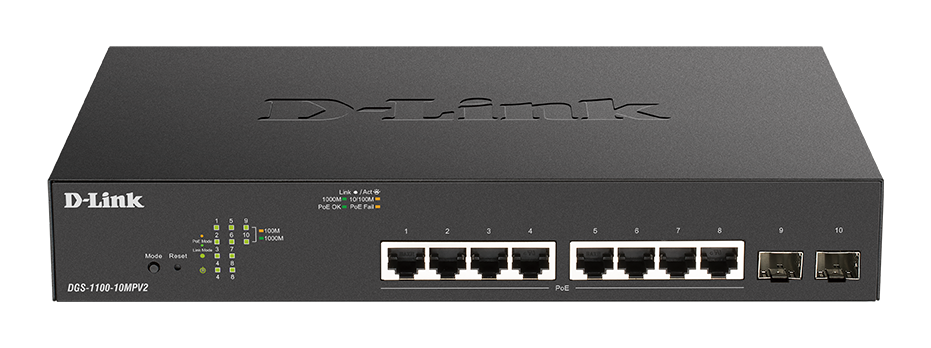

DGS-1100-10MPV2

· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 130W PoE budget

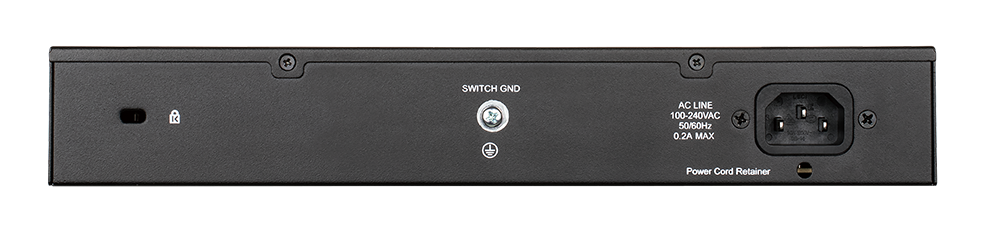

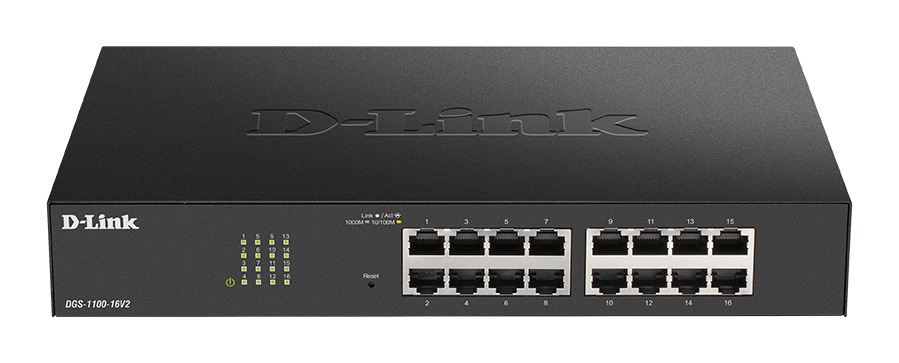

DGS-1100-16V2

· 16 x 1000Base-T
· Fanless

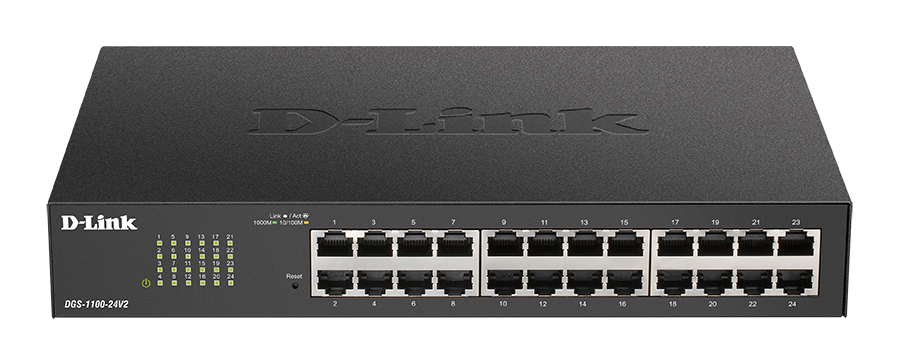

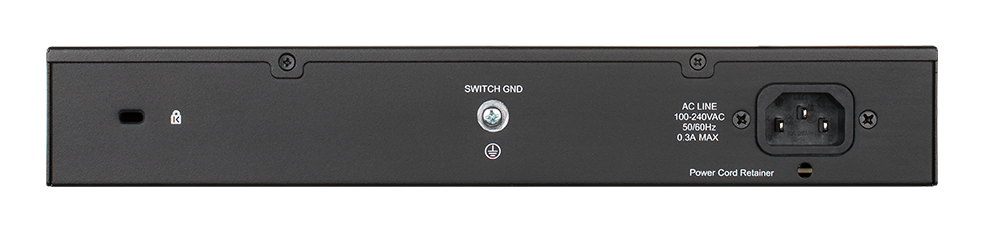

DGS-1100-24V2

· 24 x 1000Base-T
· Fanless

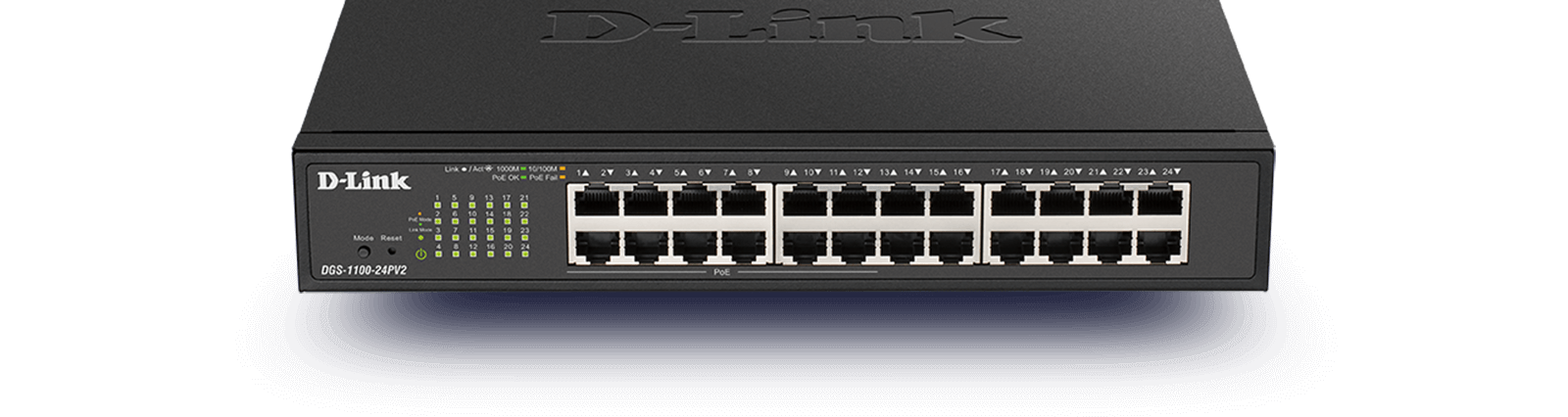

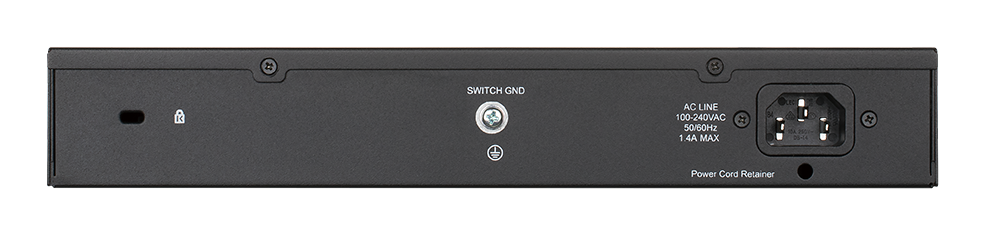

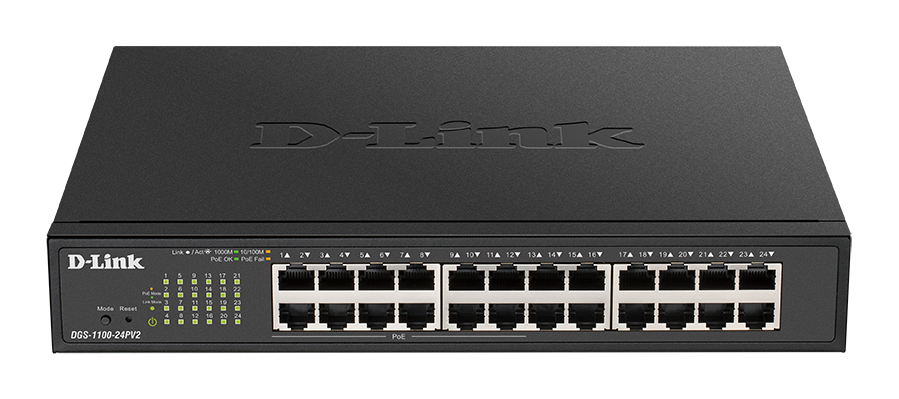

DGS-1100-24PV2

· 12 x 1000Base-T
· 12 x 1000Base-T 802.3af/802.3at PoE
· 100W PoE budget

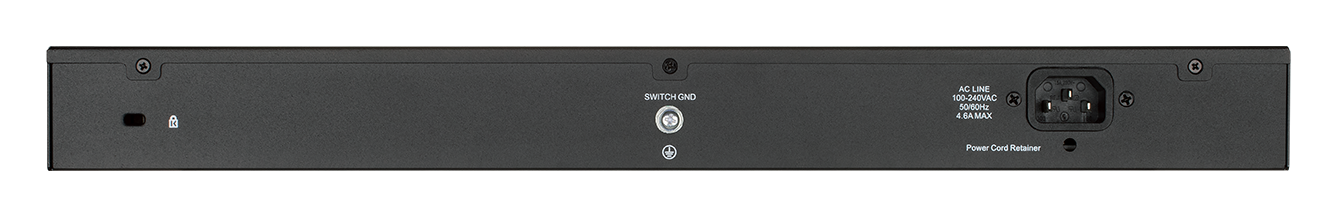

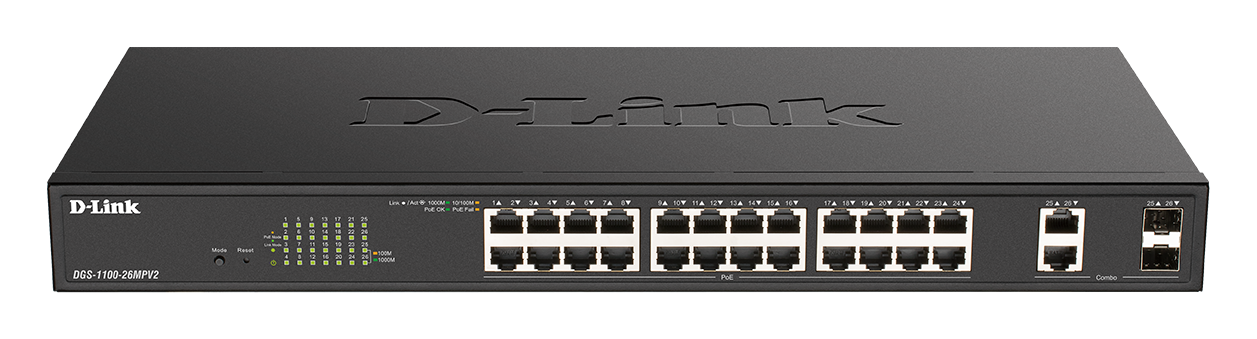

DGS-1100-26MPV2

· 24 x 1000Base-T 802.3af/802.3at PoE
· 2 x Combo
· 370W PoE budget

Related Products

Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Tudj meg többet!
Smart Managed Gigabit Switches
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Tudj meg többet!
D-View 7 Network Management System
DV-700
Tudj meg többet!
Type
Smart managed
Number of ports
16 to 30 ports
5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP
SFP
Switching capacity
16 Gbps
20 Gbps
32 Gbps
36 Gbps
48 Gbps
52 Gbps
Powered by PoE
Supported
PoE options
802.3af
802.3at
Number of PoE ports
24
8
PoE power budget
See datasheet
See datasheet
See datasheet
Fanless
Supported
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Rackmountable
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
8K
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Link aggregation
802.3ad
Static trunk
VLAN group (max static)
128
32
VLAN type
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
4
Bandwidth control
8 Kbps minimum granularity
Encryption protocol supported
SSL (v1/v2/v3)
