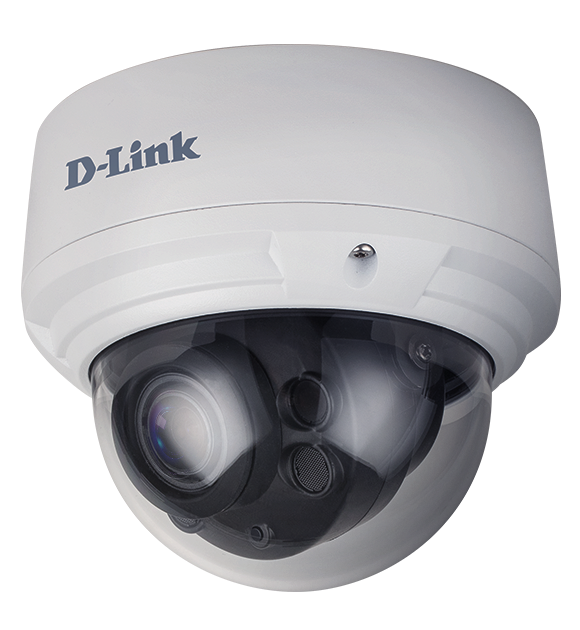

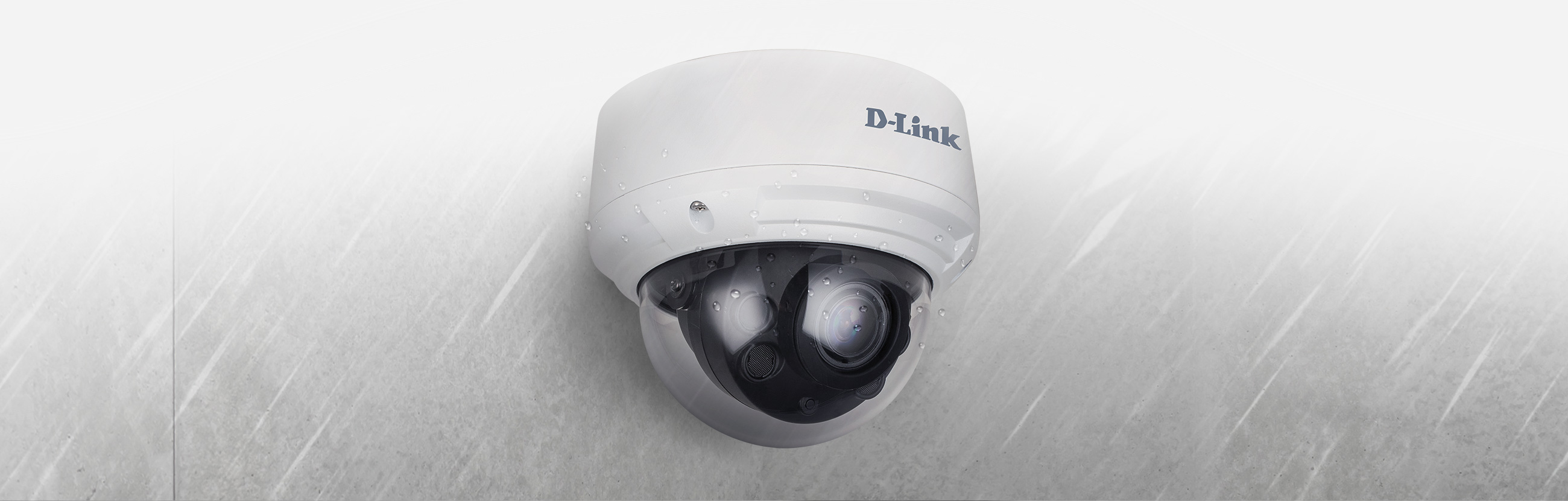

Vigilance 2 Megapixel H.265 Outdoor Dome Camera

DCS-4612EK

  • Termék Státusz (Revision A1): End of Sale

Professional Surveillance in Vandal-proof 2MP High Definition

A 2 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.

2MP HD Resolution

2-megapixel sensor with High Definition resolution up to 1920 x 1080 for detailed footage

Vandal-proof

IK10-rated housing for protection against physical impacts

Weather-Resistant

IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C

Day & night surveillance

Built-in IR LED illuminators with 30-meter range for pitch-black areas

PoE Capable

Supports 802.3af PoE for flexible and simple installation

Storage options

Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.

Wide Dynamic Range with LowLight+

Improved image quality in high-contrast conditions with WDR & optimised for low-light environments

Free Video Management Software

Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive

High quality videos, whatever the lighting

Video resolutions of up to 1920 x 1080 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4612EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.

Viewing Angles
(H) 106.8°
(V) 58°
(D) 126°

High Quality Lens
2.8 mm lens with an F2.0 aperture

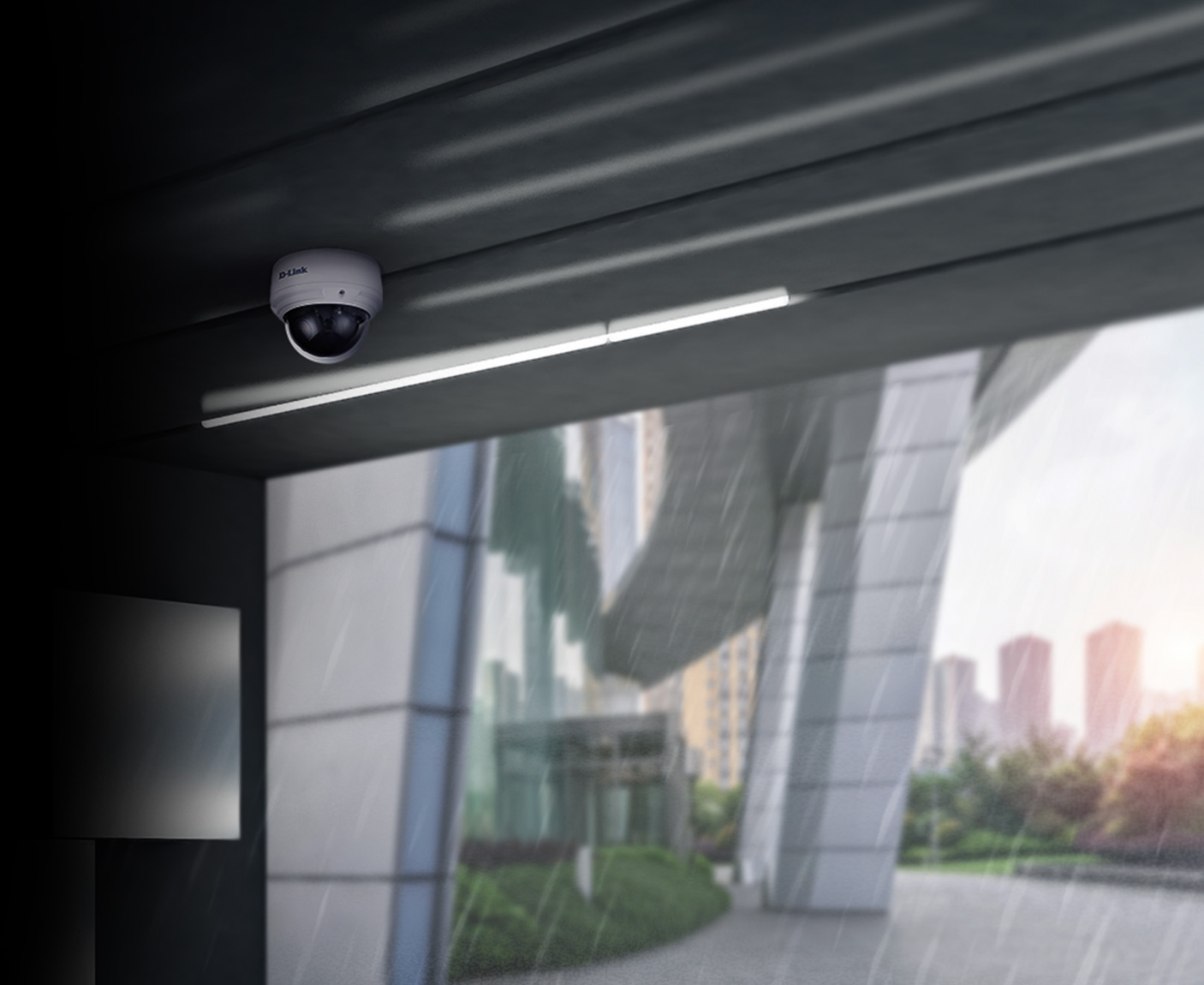

Versatile Monitoring in All Environments

IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.

Vandal-proof

The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

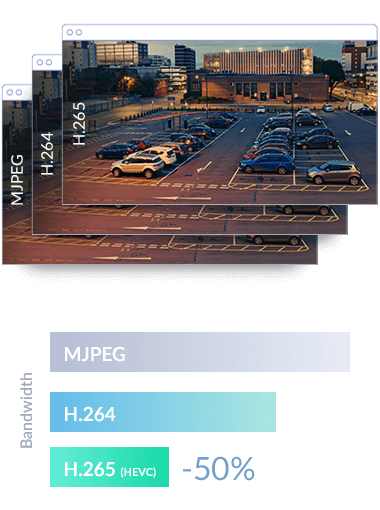

Optimising Bandwidth and Storage

To maximise bandwidth efficiency and improve image quality, the DCS-4612EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.

Flexible Connectivity

Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.

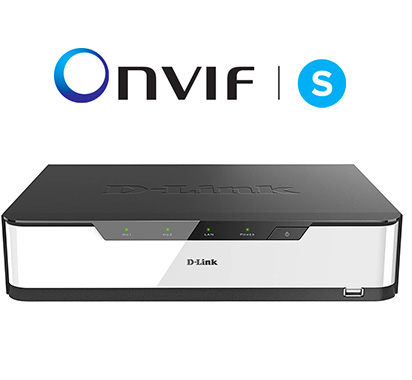

Optional recording to an NVR, VMS or NAS system

Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.

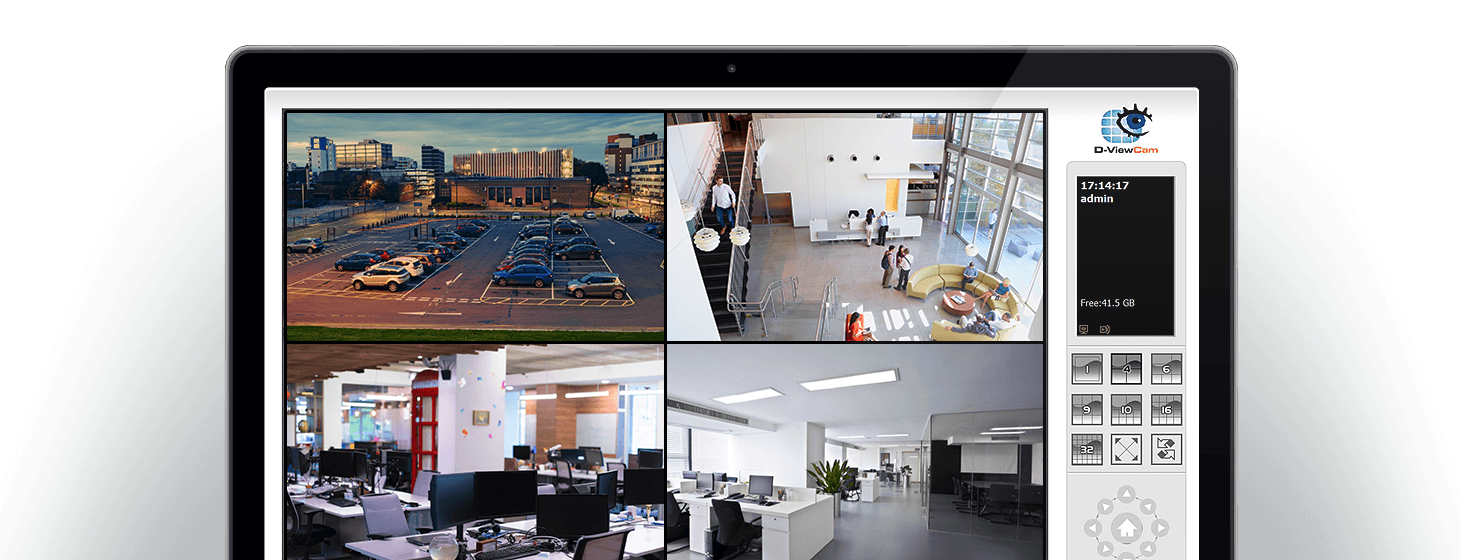

Free Surveillance Management Software

D-Link Network Cameras include D-Viewcam - a complete surveillance software package to view, manage and record up to x64 cameras on a single computer from a central location.

Learn more

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

2‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

Related Products

D-ViewCam
DCS-100
Tudj meg többet!
Indoor/outdoor
Outdoor
Type
Dome
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.8" 2 megapixel WDR progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)
Advanced Light features
Corridor Mode
LowLight+
Wide Dynamic Range
Lens
2.8 mm
F2.0
Fixed
Angle of View (H/V/D)
106.8° / 58° / 126°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
30 m
Wide Dynamic Range(WDR)
Supported
LowLight+
Supported
Privacy Masks
3 zones
Vandal Proof
Supported
External Card Slot
MicroSD SDHC SDXC (max 256 GB)
Power Consumption
5 W
App Support
JustConnect+
Features
ONVIF
Video Format
H.264
H.265
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
18x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
This product was phased out on: 31/05/2023
This product's last date of support is on: 30/05/2025
