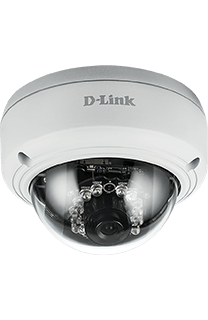

Vigilance Full HD PoE Dome Camera
DCS-4603
- Termék Státusz: End of Sale
Full HD PoE Dome Camera
The Vigilance Full HD PoE Dome Camera is a professional, full featured HD Camera, that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Featuring a high resolution 3-Megapixel sensor, the camera supports resolution up to 2048 x 1536. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 10 metres night vision and clear detailed images in contrasting and low light environments.

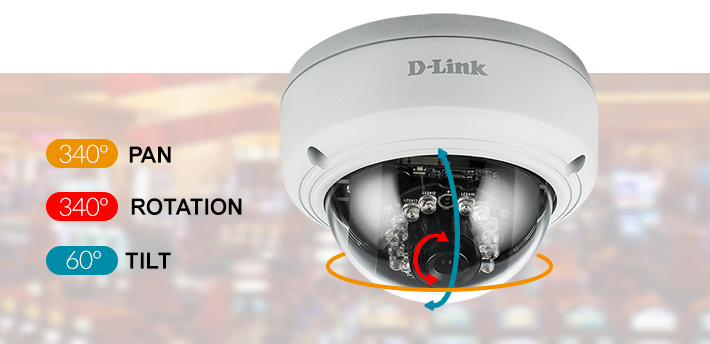

Manual 3-Axis Adjustment
The Full HD PoE Dome Network Camera's unique design with 3-axis adjustment allows for precise positioning of the lens, supporting non-motorized 340° pan, 340° rotation and 60° tilt.
Vigilance range
The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.
Security Installer Focused
Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.
Compatible Accessories for the Vigilance Cameras
DCS-37-1 Fixed Dome Wall Mount Bracket |
DCS-37-2 Fixed Dome Junction Box |
|
| DCS-4201 | ||
| DCS-4602EV | • | • |
| DCS-4603 | • | • |
| DCS-4701E | ||
| DCS-4802E | • | • |
Specs
|
Indoor/outdoor
|
Indoor |
|---|---|
|
Type
|
Dome |
|
Connectivity
|
Wired PoE |
|
Resolution
|
3 megapixel |
|
Image sensor
|
1/3" 3 megapixel progressive scan CMOS |
|
Maximum Video Resolution
|
1920 x 1080 (16:9) 2048 x 1536 (other) |
|
Advanced Light features
|
Wide Dynamic Range |
|
Lens
|
2.8 mm F1.8 Fixed |
|
Angle of View (H/V/D)
|
84° / 48° / 97° |
|
Infrared-Cut Removable Filter
|
Supported
|
|
Night vision
|
Supported
|
|
Night vision range
|
10 m |
|
Wide Dynamic Range(WDR)
|
Supported
|
|
Privacy Masks
|
3 zones |
|
Power Consumption
|
4.2 W |
|
App Support
|
JustConnect+ |
|
Features
|
D-ViewCam D-Link NVR compatible ONVIF |
|
Video Format
|
H.264 MJPEG |
|
Multi-Stream
|
Supported
|
|
Mobile Stream
|
Supported
|
|
Digital Zoom
|
10x |
|
Motion Detection
|
Supported
|
|
Event Recording
|
Supported
|
|
E-mail Notification
|
Supported
|
|
Recording to NAS
|
Supported
|
| Version | Leírás | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual 1.02 RevA1 | Product Manual | 2019. 07. 02. | - | - | Letölt |
http://tsd.dlink.com.tw/GPL.asp
Ezen termékben használt GPL és LGPL kódok GARANCIA NÉLKÜL lettek terjesztve, és azok egy vagy több szerző szerzői jogi védelme alatt állnak. Részletekért tekintse meg ezen termék GPL és LGPL kódját és a GPL és LGPL felhasználási feltételeit.
| Version | Leírás | Date | |
|---|---|---|---|
| Setup Wizard for Windows | Setup Wizard for Windows | 2016. 11. 02. | Letölt |
| Version | Leírás | Date | |
|---|---|---|---|
| CE doc 1.20 RevA2 | CE document | 2020. 02. 13. | Letölt |
| CE doc 1.10 RevA2 | CE document | 2019. 07. 19. | Letölt |
| CE doc 1.01 Revision A1 | CE document | 2018. 10. 08. | Letölt |
| DNR_2020_04P_Cam_Support_list | DNR-2020-04P Camera Support List | 2016. 09. 22. | Letölt |
| CE doc 1.00 RevisionA | CE document | 2016. 08. 26. | Letölt |
