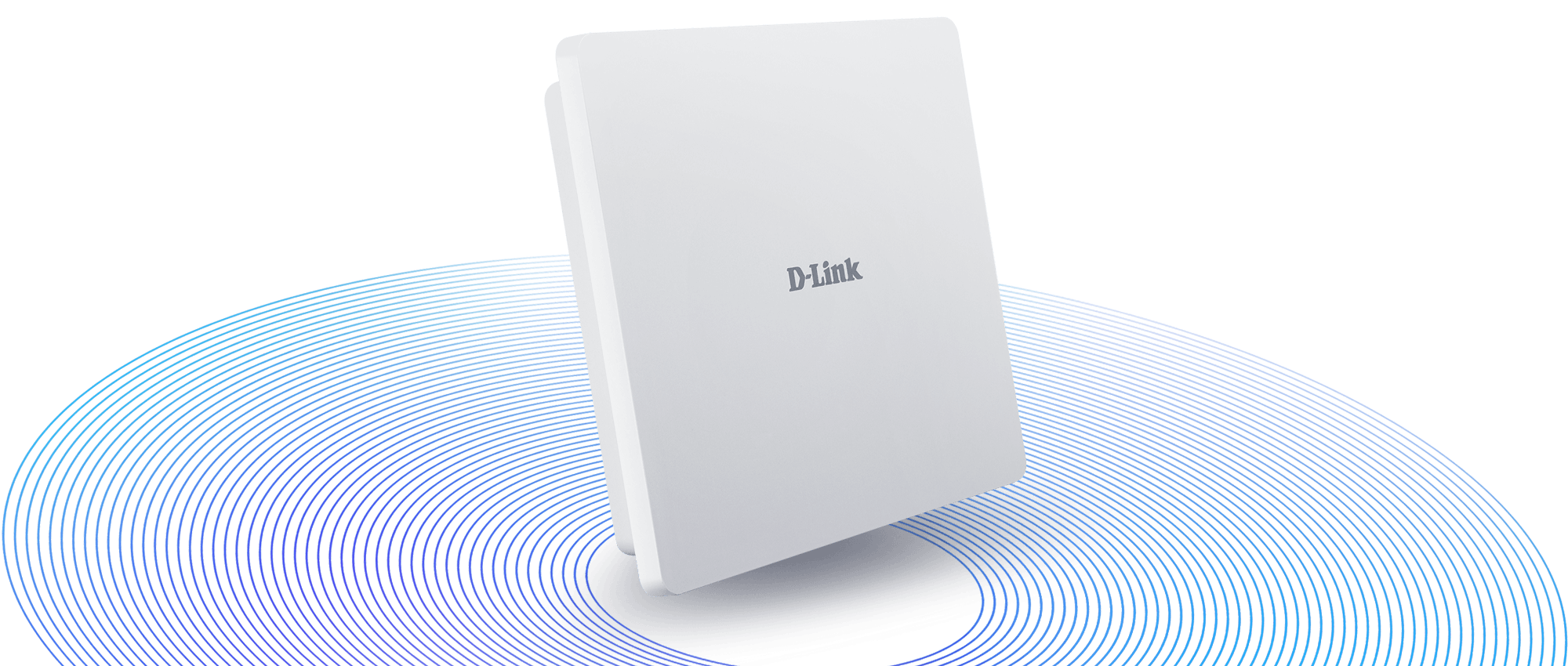

Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points

DAP-3666

  • Termék Státusz (Revision A1): Live
  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 internal antennas, MU-MIMO with beamforming
  • IP68 water, dust-proof, weather-resistant housing (-30 to 60°C)

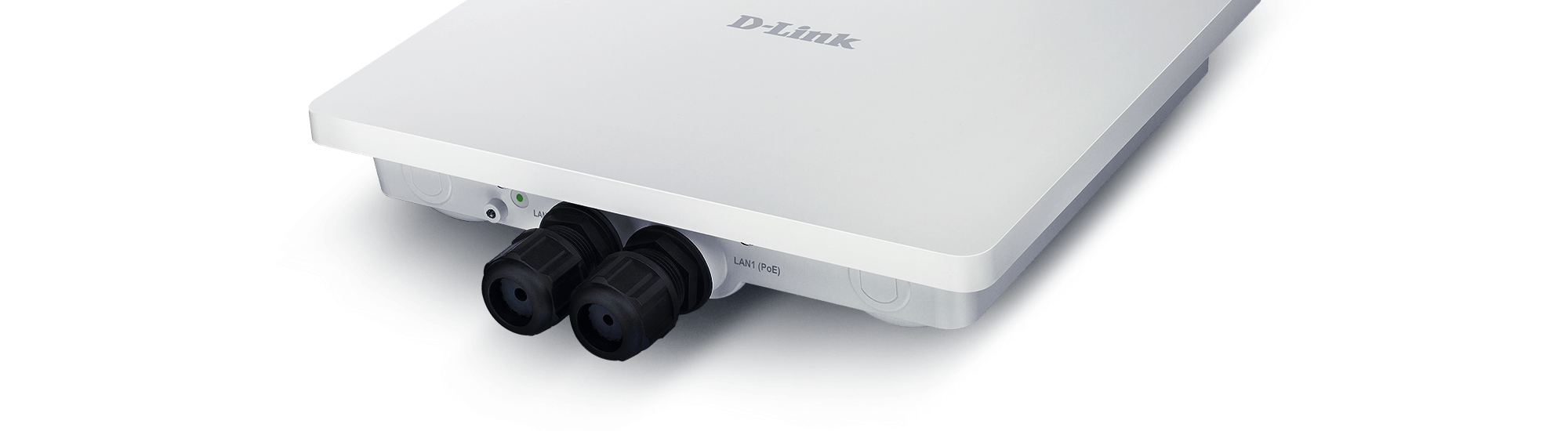

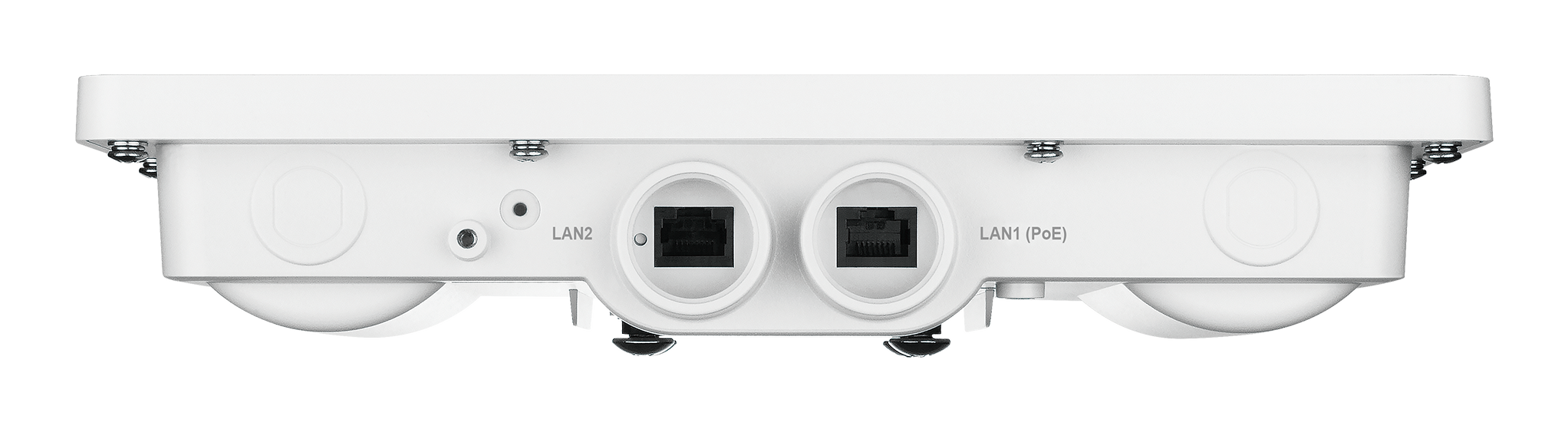

  • 2x Gigabit LAN Ports (LAN 1 supports PoE)
  • Free Nuclias Connect network management software

Download the datasheet.

Partner üzleteink
WiFi4EU Ready

Meets or exceeds all WiFi4EU requirements. Supports all required IEEE standards. Complies with Hotspot 2.0 (Wi-Fi CERTIFIED Passpoint®).

Wave 2 Wi-Fi with Band Steering

Fast wireless speeds of up to 1200 Mbps1. Automatically steers traffic to the fastest, least congested band.

MU-MIMO & Beamforming

Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.

Multiple Operational Modes

Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).

Strong security, with centralised network management

Use as a standalone AP or manage centrally via free Nuclias Connect software. Supports WPA2/WPA, wireless LAN segmentation and VLAN.

Network Security & Data Privacy

All communications over the system are encrypted. User data never leaves your possession.

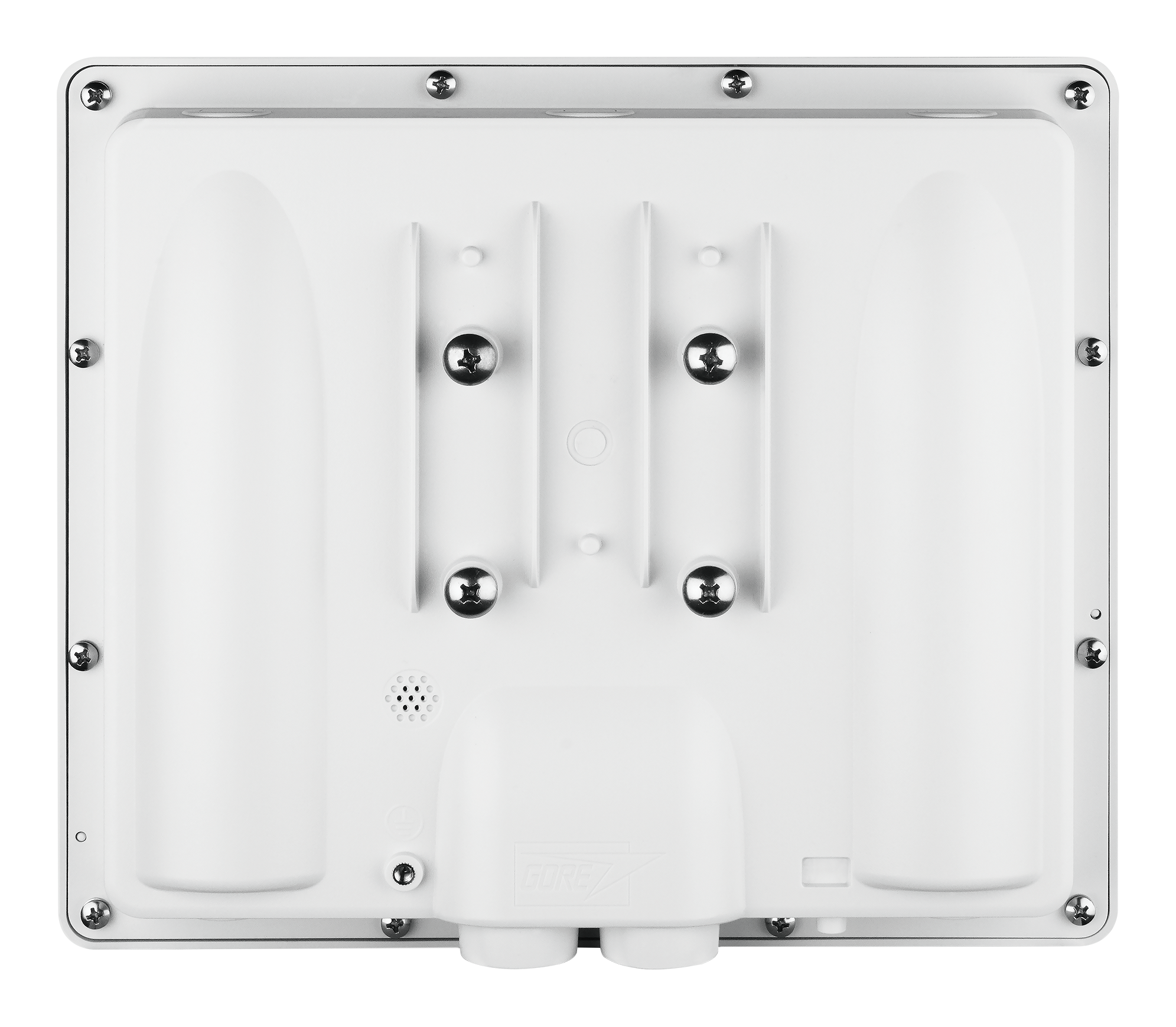

Weatherproof & easy-mount setup

IP68 water and dust-proof housing. 802.3af Power over Ethernet (PoE) enables the device to be deployed with a single cable and where power outlets aren't available.

Limited Lifetime Warranty & Next Day Service

Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Learn more

Connect WiFi4EU municipalities to outdoor Wi-Fi they enjoy.

Deliver outdoor wireless connectivity for public places with this IP68 weather-proof, secure and centrally manageable WiFi4EU Access Point. Provide dual-band 802.11ac Wave 2 Wi-Fi speeds, and achieve greater network security and efficiency for users. Ideal for approved WiFi4EU municipalities.

Reliably faster Wireless AC performance.

Designed for reliable, high-speed wireless connectivity using the latest 802.11ac Wave 2 technology. It uses maximum wireless signal rates of up to 867 Mbps over the 5 GHz band and 300 Mbps over the 2.4 GHz band1.

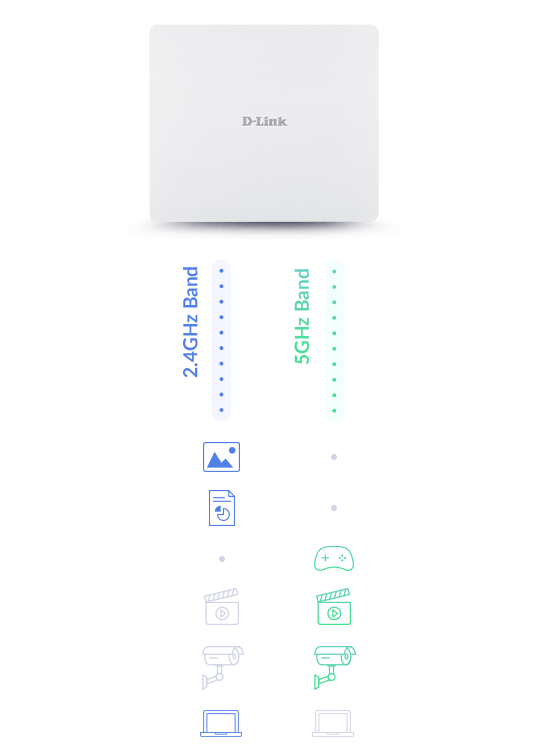

 Band SteeringBand steering
Detects dual-band capable devices and automatically connects them to the less congested, faster 5 GHz band.
 MU-MIMOMU-MIMO
Sends high-bandwidth Wi-Fi to multiple devices at the same time, for greater network data efficiency and a superior Wi-Fi experience for your clients.
 Quality of Service (QoS)Quality of Service
The Wi-Fi Multimedia (WMM) Quality of Service (QoS) feature enables you to create rules for automatically prioritising audio, video, and voice traffic for even greater efficiency.
 Load balancingLoad Balancing
Distribute the workload between two or more APs to optimise resource utilisation, throughput and response times.

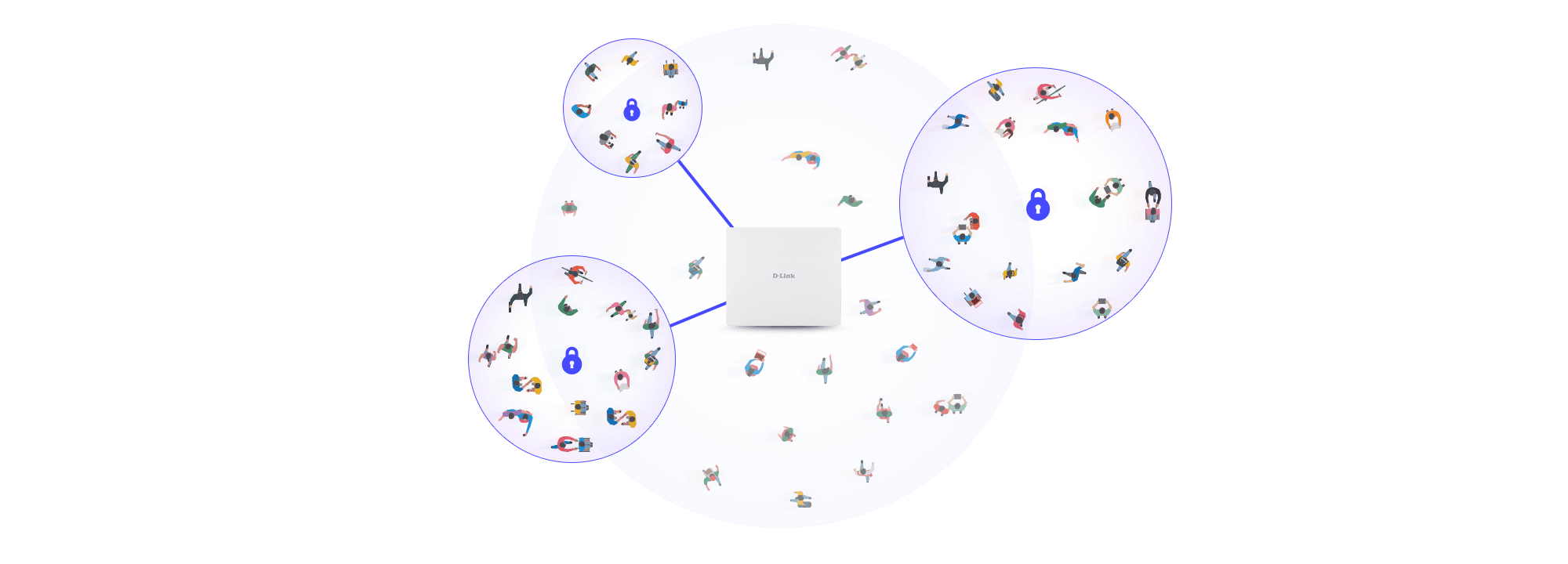

Connect entire crowds to a safer and faster internet.

It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Moreover, Network Access Protection (NAP), a feature of Windows Server® 2008 and upwards, allows multiple levels of network access to be defined based on a client’s needs.

Bring free Wi-Fi to Europeans with our WiFi4EU range.

In order to promote free Wi-Fi connectivity in public spaces, the European Commission’s WiFi4EU initiative aims to provide EU municipalities with funding for Wi-Fi equipment.

We have over 30 years of experience in helping people get connected, so we’ve designed products specifically for this initiative.

Our WiFi4EU ready range of indoor and outdoor access points include:

£120M

Allocated funding
Over the period of 5 application rounds between 2018 and 2020.

For more info, please visit: www.wifi4eu.eu

€15,000

Per municipality
Granted to 6,000 - 8,000 towns and cities

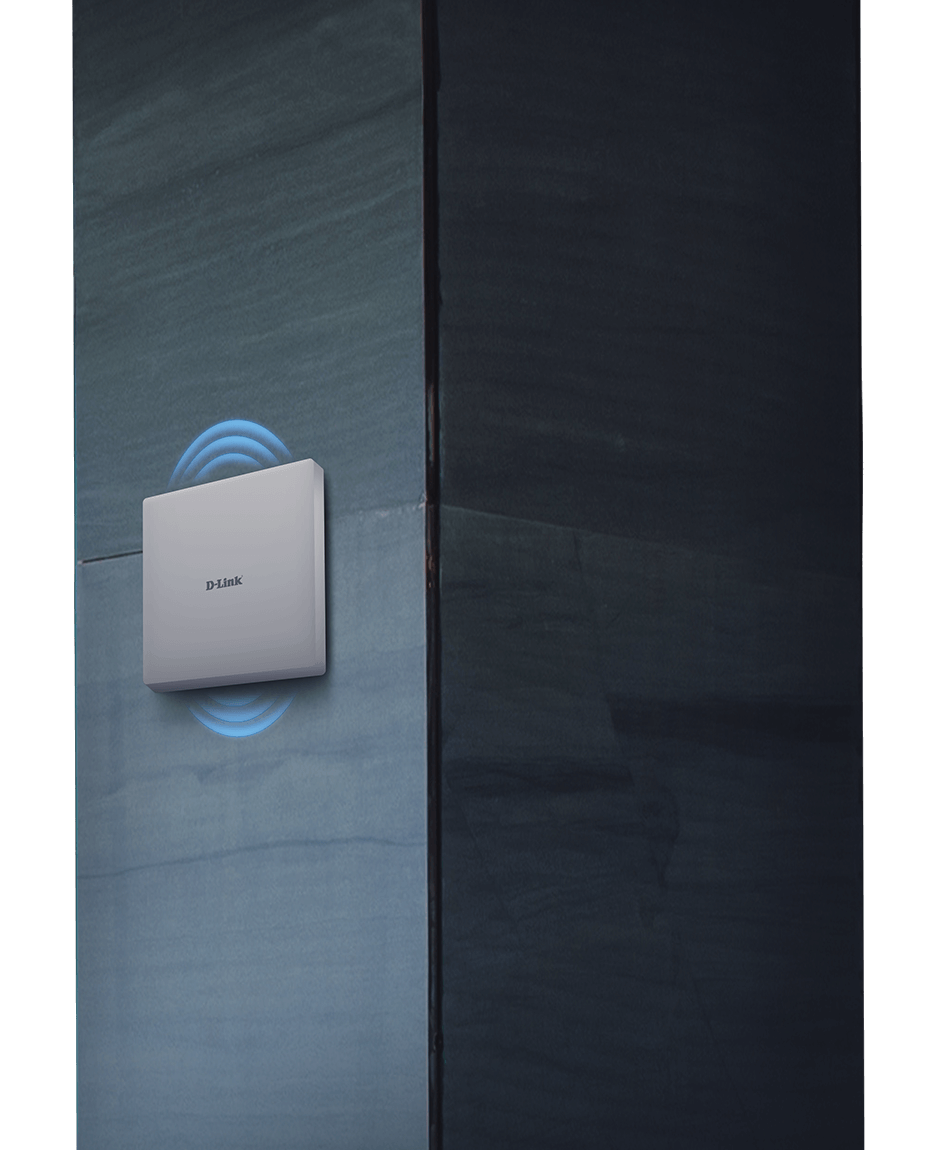

Reliable connectivity, whatever the weather.

Its rugged IP68-certified weather-proof housing offers dust, rain, heat, snow and rust protection, even during extreme summers or freezing winters between -30 to 60°C. And GORE-TEX® protection repels rain and dust while allowing heat and humidity to dissipate. Thanks to the AP’s high-powered antennas and integrated 802.3af PoE, you can deploy it exactly where the network needs wireless coverage and where power outlets aren’t available.

Best-in-class security.

Create highly secure wireless networks with Personal and Enterprise versions of WPA and WPA2.

The AP also supports a built-in RADIUS server, RADIUS server (backend), MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to protect the network.

Your network, your way.

Customise your network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

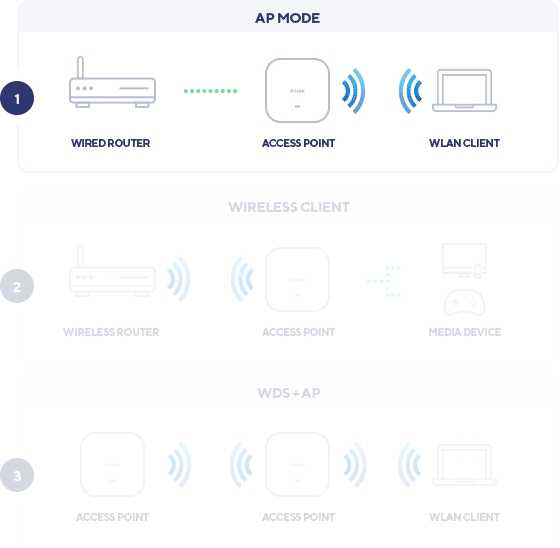

Configure the AP to optimise network performance based on any one of its multiple operational modes:

Access Point
Add wireless connectivity to an existing wired network.

Wireless Client
Add wireless connectivity to one device which doesn’t have a Wi-Fi adapter.

WDS
Wirelessly combine two separate networks.

WDS with AP
Wirelessly combine two separate networks while also providing wireless connectivity to both networks.

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

Free Nuclias Connect remote network management software.

Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)3 provides hardware-based, centralised network management.



Learn more

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
Tudj meg többet!
Nuclias Connect
DNC-100
Tudj meg többet!
Nuclias Connect Hub
DNH-100
Tudj meg többet!
Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
6 dBi for 2.4 GHz
6 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Indoor/outdoor
Outdoor
Type of housing
Plastic
IP rating
IP68
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
802.11k/r Roaming
MU-MIMO
SmartBeam
WiFi4EU
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2 Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-3662 may not support the 5.25-5.35 GHz and 5.47-5.725 GHz frequency ranges in certain regions. Compatibility with 802.11ac devices from other manufacturers is not guaranteed. All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
4 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.
