AC1300 Wave 2 Dual-Band Outdoor Unified Access Point

DWL-8720AP

  • Product Status (EU_RevA1): Live
  • 802.11ac Wave 2, up to 1.3 Gbps*
  • IP67 weatherproof housing
  • 2x2 MU-MIMO, detachable omni-directional antennas
  • Up to 32 virtual access points per access point
  • 802.11k Fast Roaming, and QoS with WMM
  • WPA3 security
  • Limited Lifetime Warranty

Download the datasheet.

Where to buy

Outdoor Wi-Fi for your business, in any weather.

Designed for SMBs and enterprises, this outdoor wireless access point delivers high bandwidth, flexibility, and fast throughput even in high-density areas so your clients can enjoy a better Wi-Fi experience.

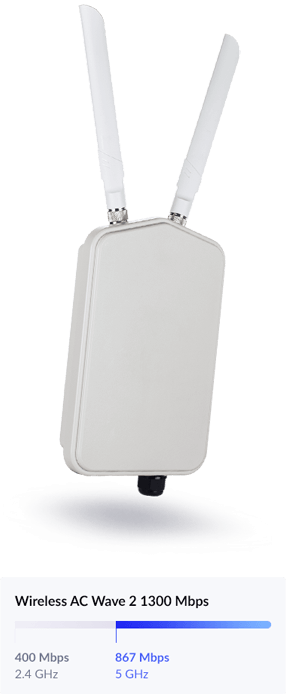

Wireless AC Wave 2


Up to 1.3 Gbps* combined throughput.

Dual-Band with band steering

Two bands to improve throughput and coverage as well as reduces co-channel interference.

2 x 2 MU-MIMO

Improved efficiency in handling throughput distribution to multiple devices connected to the network.

PoE & flexible installation

It can be wall or pole mounted and power over Ethernet enables installation in hard to reach locations.

802.11k Fast Roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1

Self-healing

Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.

Latest Wireless Security

Supports WPA3, MAC address filtering & Rogue AP detection.

Dual-Band Wireless for efficient performance

The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers.

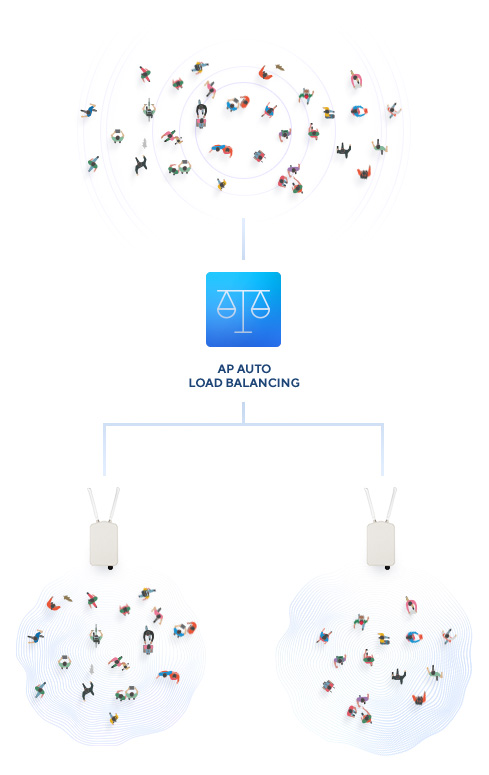

Increase network speeds and efficiency, efficiently.

Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network.

  • Seamless roaming
  • Airtime Fairness
  • High-Density Connectivity

Rugged & Weather-Resistant For Installation Anywhere

The AP’s IP67-rated weatherproof housing safeguards against dust and water so it can operate in harsh outdoor environments ranging from temperatures from -40°C up to 60°C. PoE support allows for easy installation with a single Ethernet cable, which is ideal for areas where power outlets are not readily available.

Dustproof
Everyday dust particles are prevented from entering the AP’s housing.

Heat/Waterproof
Substantial protection from high levels of water and can withstand extremely low and high temperatures.

Quality of Service for smoother video calls.

Video conference calls and VoIP are the mainstay of any busy office. The Quality of Service feature ensures time-sensitive data is intelligently prioritised over other traffic such as email or web browsing ensuring seamless calls and video.

Effective Management

The AP includes a Console port for debugging and configuration. It can be used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller, allowing centralised management of up to 256 access points.

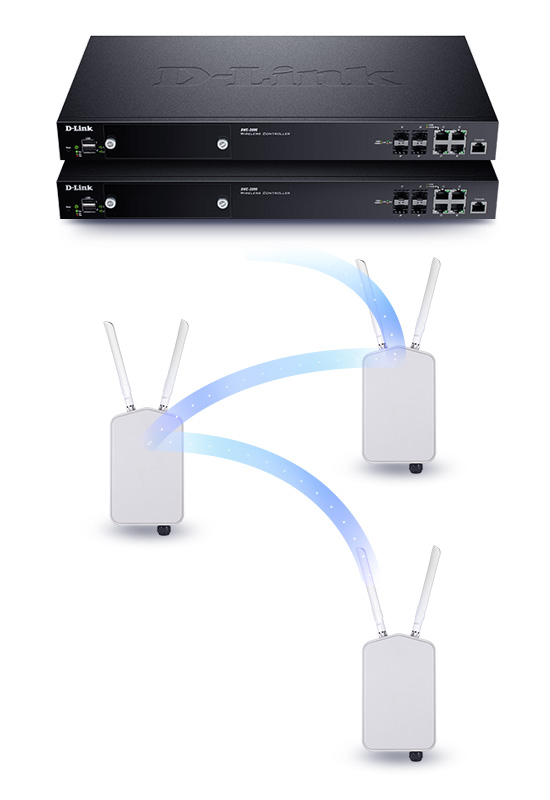

Robust Centralised Management

Versatile management significantly cuts down configuration and administration time. Paired with the robust DWC-2000 Unified Wireless Controller, the APs can be managed remotely and makes for a more customisable network. Roll out new configurations or keep your APs’ firmware up-to-date easily with remote batch configuration to save time.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

DWC 1000 Front
Wireless Controller
DWC-2000
Find out more
Wireless Controller
DWC-1000
Find out more
AX3600 Wi-Fi 6 Dual-Band Unified Access Point
DWL-X8630AP
Find out more
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
Find out more
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620AP
Find out more
Type
Hardware-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
400 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
3.5 dBi for 2.4 GHz
5 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Outdoor
Type of housing
Metal
IP rating
IP67
Wireless modes
Access Point (AP)
Advanced features
Fast Roaming
MU-MIMO
SmartBeam
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported

1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Version Date Type File Size
Datasheet EN - PDF 0.67mb Download
Version Description Date Type File Size
QIG 1.00 RevA1 Quick Install Guide 3.11.2020. - - Download
QSG 2.00 RevA1 Quick Setup Guide 28.9.2020. - - Download
QSG 1.00 RevA1 Quick Setup Guide 17.3.2020. - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 4.7.3.0 RevA1 Firmware 18.11.2020. - Download
FW 4.7.2.9 RevA1 Firmware 16.3.2020. - Download
Version Description Date
CE doc 1.00 RevA1 CE documentation 14.10.2020. Download
