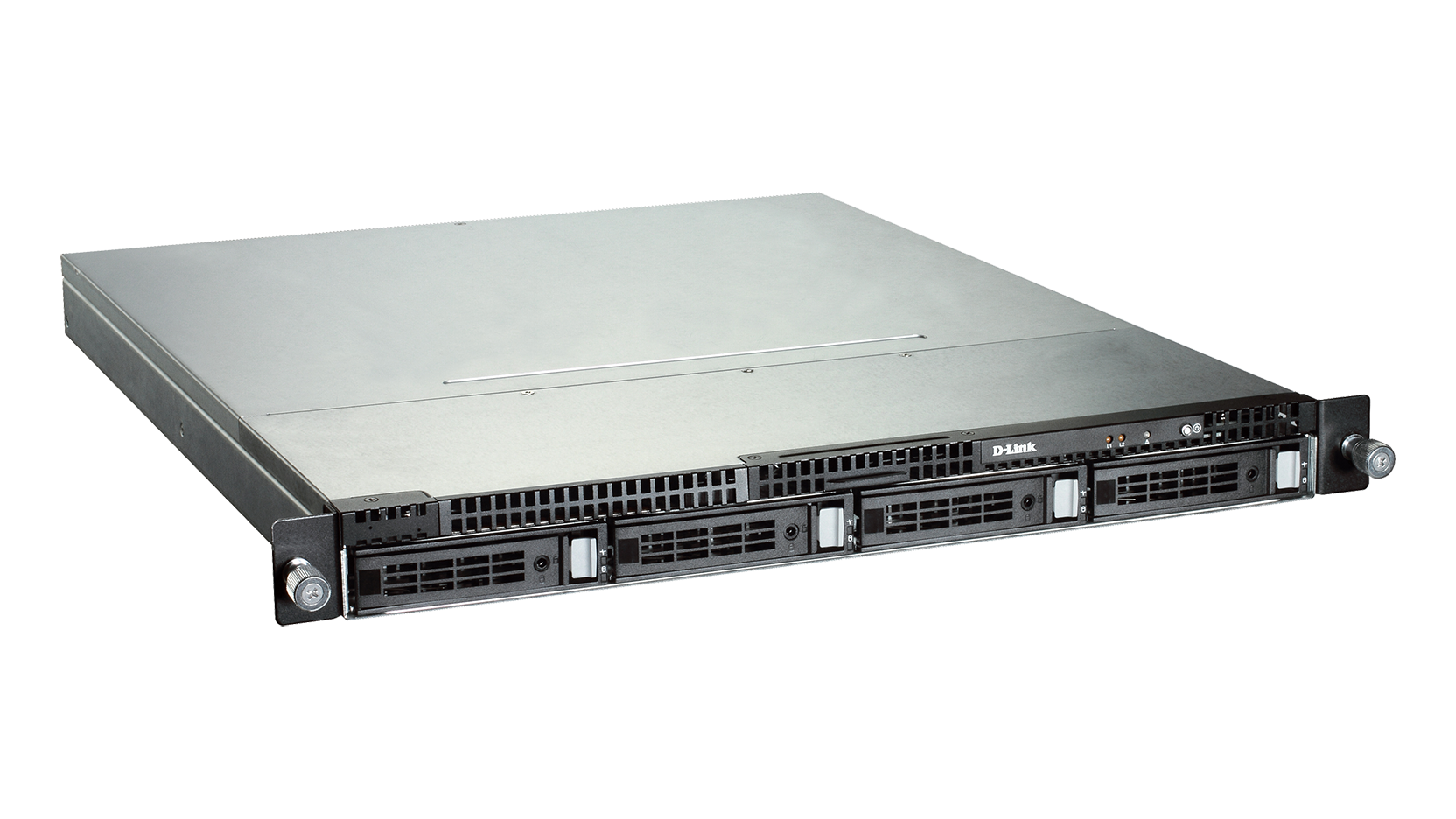

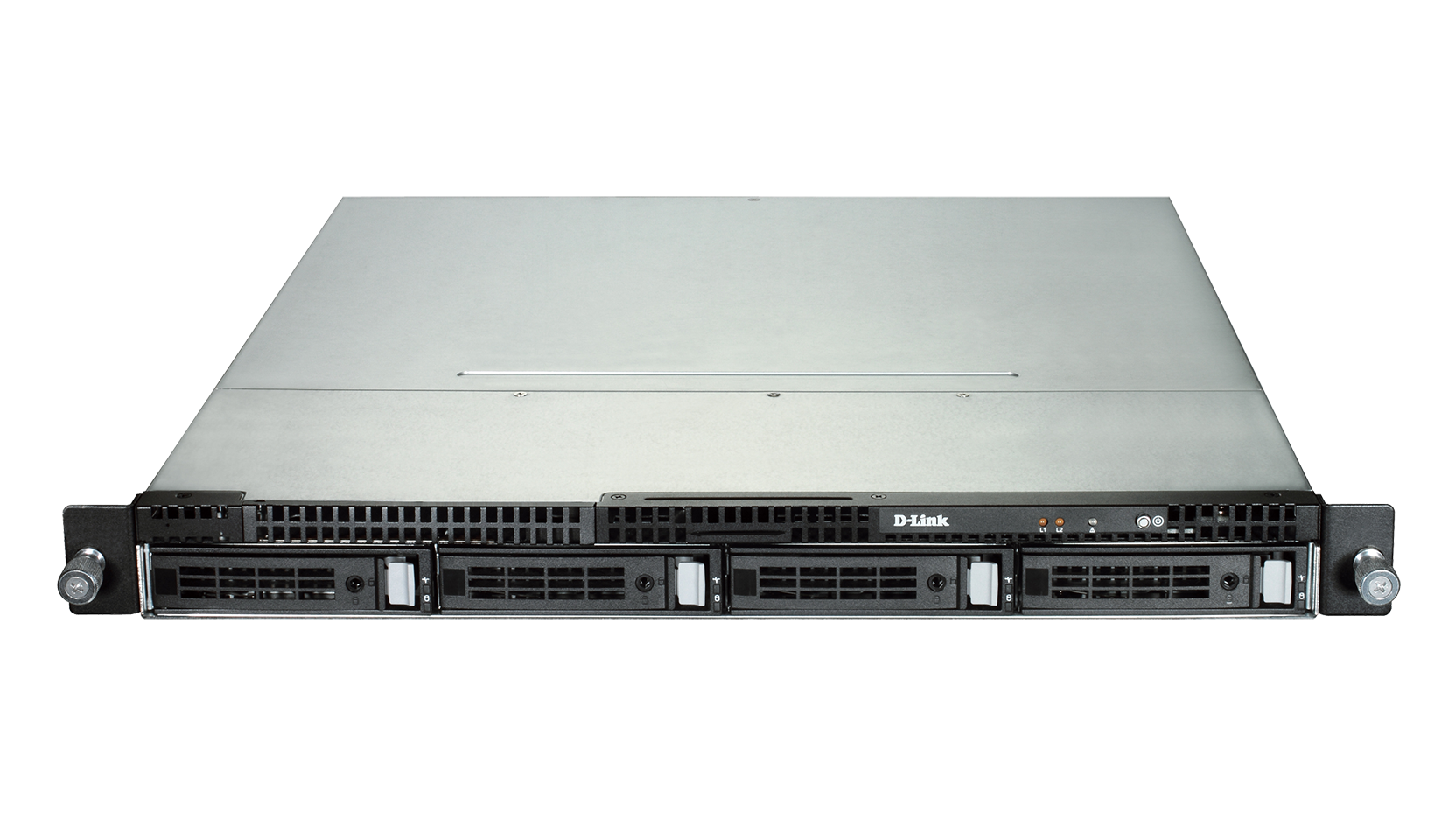

Small and medium sized businesses face an ever-increasing need for data consolidation and sharing. D-Link’s DNS-1560-04 is a unified solution for these growing data storage requirements, and provides a multitude of options for managing and securing important files. The ShareCenter™ Pro 4-Bay 1U Rackmount Unified Storage enables users to safely share and back-up mission critical data. This NAS/iSCSI storage solution includes advanced features such as ZFS file system, thin provisioning, compression, snapshots and replication usually found only in higher-end devices, with no need to purchase additional licenses. The DNS-1560-04 also includes an intuitive user interface to ensure it can be quickly installed, and easily managed, even by users with limited IT experience.
Unified Storage Solution
The DNS-1560-04 is a unified solution that provides iSCSI and NAS functionalities. It boasts strong iSCSI read/write performance with average data throughput higher than many competing products. It also provides versatile RAID support meaning you never run the risk of losing valuable data. It features 4 Serial ATA (SATA) disk drive bays that support hard drives in RAID level 0, 1, 5, 6, 10, or JBOD configurations. DNS-1560-04 supports multiple protocols including SMB, NFS, AFP, FTP, WebDAV as well as iSCSI. This combination delivers storage solutions with great performance, manageability and efficiency
Variety of Backup Options
The DNS-1560-04 offers several backup options which allow administrators and users to control how, when, and where their data is stored. Share files across the network or over the Internet via FTP or access them via the easy-to-use web file manager. Remote back-up enables users to keep a copy of their files on a remote NAS for a disaster recovery solution, providing extra data protection, and volume snapshots can restore a whole volume in a matter of minutes; in contrast to traditional backup schemes that can take hours. Users can also take a volume snapshot, backup to Amazon S3 cloud storage, or remotely back up to a server by using an rsync backup utility.
Efficiency and Redundancy
The DNS-1560-04 features thin provisioning allocating disk storage space in a flexible manner based on the minimum space required. It also addresses the explosion of unstructured data and files, where reads/writes are random, by treating random writes as sequential blocks.
Furthermore, the 4 Serial ATA (SATA) disk drive bays supports RAID level 0, 1, 10, 5, 6 or JBOD configurations. Administrators can quickly deploy a network storage solution using inexpensive SATA disk drives, and depending on storage needs, can add more drives as they go. Additionally, S.M.A.R.T. disk diagnostics help to ensure data integrity.
![](/hr/hr/-/media/product-pages/dns/1560-04/80_plus_bronze.png)
Energy Efficient
The DNS-1560-04 is 80 PLUS certified. 80 PLUS certification is granted to products that have more than 80% energy efficiency at certain levels of rated load. This enables the DNS-1560-04 to run more efficiently by using less electricity, allowing it to run cooler and with reduced operating costs.
Manageability
The DNS-1560-04 has an intuitive web user interface, which dramatically increases usability for enterprise users, making it easy to setup, configure and manage. It also integrates Windows Active Directory and LDAP for IT administrators to easily manage accounts in enterprise environments.
Specs
Type
|
NAS/iSCSI Unified Storage |
---|---|
Enclosure form factor
|
1 U rack-mountable |
CPU
|
Intel Atom D2550 |
SDRAM
|
4 GB |
Number of drive bays
|
4 |
Drive interface
|
SATA I/II |
Drive form factor
|
3.5/2.5 inch |
Maximum storage capacity
|
16 TB |
Network interface
|
2 x Gigabit Ethernet |
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
|
2 |
Link aggregation group (LAG) support
|
Supported
|
CHAP
|
Supported
|
802.1 q VLAN
|
Supported
|
Multiple drive configuration
|
JBOD RAID 0/1/5/6/10 standard |
Drive format
|
EXT3 EXT4 ZFS |
SMART
|
Supported
|
Windows Active Directory service support
|
Supported
|
User account management
|
Supported
|
Group account management
|
Supported
|
Maximum number of group accounts
|
512 |
User/group quota management
|
Supported
|
Network share management
|
Supported
|
Maximum number of managed shared forlders
|
256 |
Maximum concurrent connections via FTP
|
512 |
Maximum concurrent connections via Samba
|
512 |
Schedule local backups
|
Supported
|
Schedule remote backups
|
Supported
|
Cloud storage backup
|
Amazon S3 D-Link Vault Dropbox Google Drive |
Built-in snapshot
|
Supported
|
Replication
|
Supported
|
Thin provisioning
|
Supported
|
SSL
|
Supported
|
Web interface through browser
|
Supported
|
E-mail/SMS notification
|
Supported
|
System/FTP log
|
Supported
|
SNMP
|
Supported
|
Resource monitor
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 0.33mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
1.00 | Quick installation guide | 19.11.2014. | 6.99mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
