Requirements:

Firmware: DGS-1510_Run_1_20_B013(0417145727).had (used in this example)

PuTTY: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html

Tftp Server: http://tftpd32.jounin.net/tftpd32_download.html

Choose the “Standard Edition” for either 32Bit or 64Bit OS

Note: Please always remember to check if there are new firmware updates by going to our website:

http://www.dlink.com/uk/en/

Once you have downloaded the correct firmware and installed the above mentioned software, please continue to Step 1

Step 1 – Connect to console port of DGS-1510-Series and configure PuTTy as follows:

Note: COM7 is used in our example, however it may be different on you PC/Laptop. (To check this, you will need to go to Device Manager)


Step 2 – Once configured, click on “Session” and enter a name in “Saved Sessions”. Click “Save” then “Load”


Click “Open”

Step 3 – Once loaded, hit the enter key and create a user


Switch>enable
Switch#configure terminal

Step 4 – Create user with correct privileges

(If you have already done this please go to Step 5)

Switch(config)#username admin password admin
Switch(config)#username admin privilege 15
Switch#copy running-config startup-config
Destination filename startup-config? [y/n]:  y
Saving all configurations to NV-RAM.......... Done.
Switch#end

Step 5 – Open tftp server and transfer files to root directory:

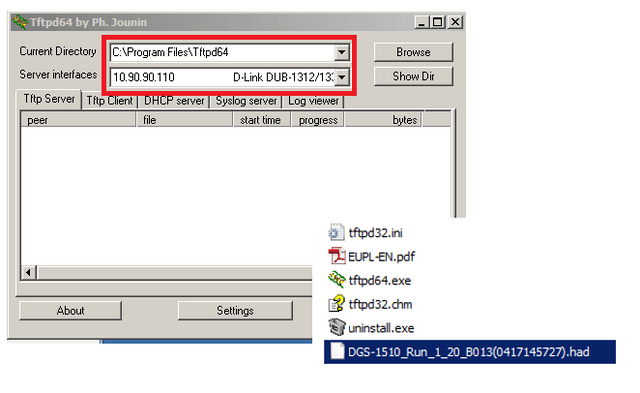

Current Directory: C:\Program Files\Tftp64

Server interfaces: 10.90.90.110 (This is where the tftp server resides)

Step 6 – Upgrade firmware procedure

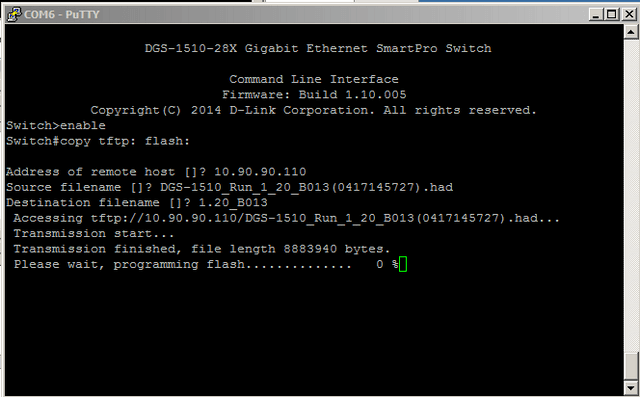

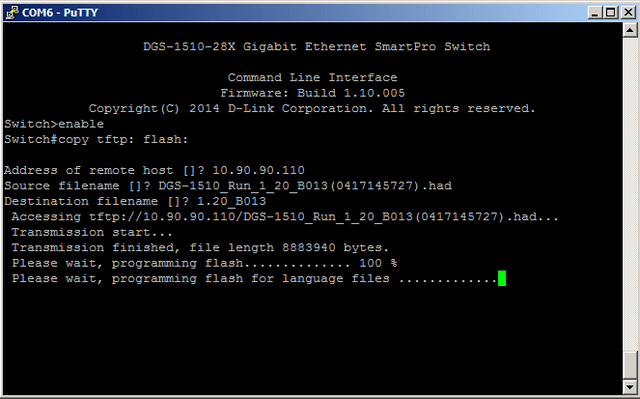

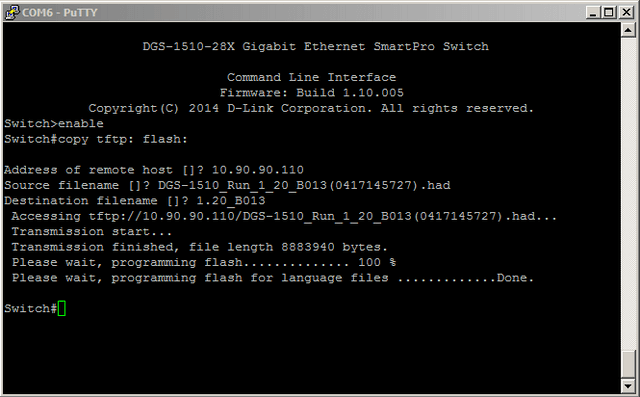

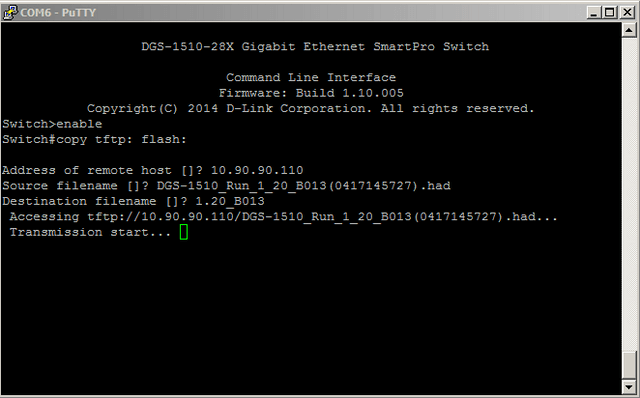

Switch#copy tftp: flash:
Address of remote host []? 10.90.90.110 (this is the address of the tftp server)
Source filename []? DGS-1510_Run_1_20_B013(0417145727).had
Destination filename []? 1.20_B013

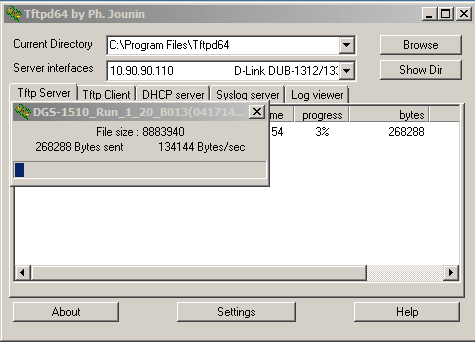

You will also notice the tftp server will commence the transfer process (as below)




Step 7 – Save configuration to NVRAM

Switch#copy running-config startup-config
Destination filename startup-config? [y/n]: y
Saving all configurations to NV-RAM.......... Done.

Step 8 – Check which firmware is used to on boot

Switch#dir
Directory of /c:
1   -rw       8419464 Jan 01 2000 0001 2000 00:05:25  1.20_B013 In this example we are changing to this firmware
2   -rw       8071740 Jan 01 2000 0001 2000 00:08:35  runtime.had
3   -rw         34486 Jan 01 2000 0001 2000 00:15:57  config.cfg
4   d--             0 Jan 01 2000 0001 2000 00:00:02  system
30656000 bytes total (13521408 bytes free)

Step 9 – Change the boot file

Switch(config)#boot image 1.20_B013
Switch(config)#end
Switch#reboot
Are you sure you want to proceed with the system reboot?(y/n) y

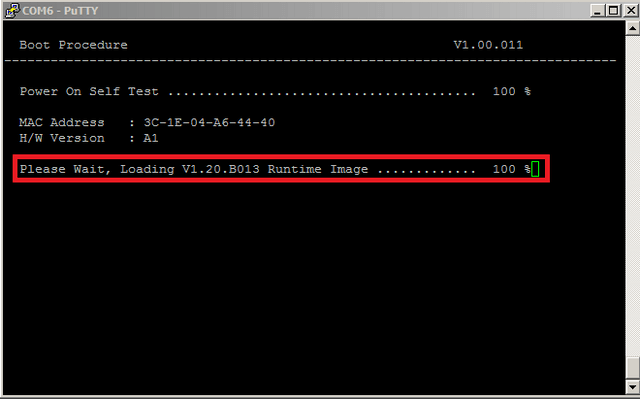

Step 10 – Check the firmware has been used on boot



If you miss the above screen then enter the following command:
Switch# show boot
Unit 1
 Boot image: /c:/1.20_B013
 Boot config: /c:/config.cfg
