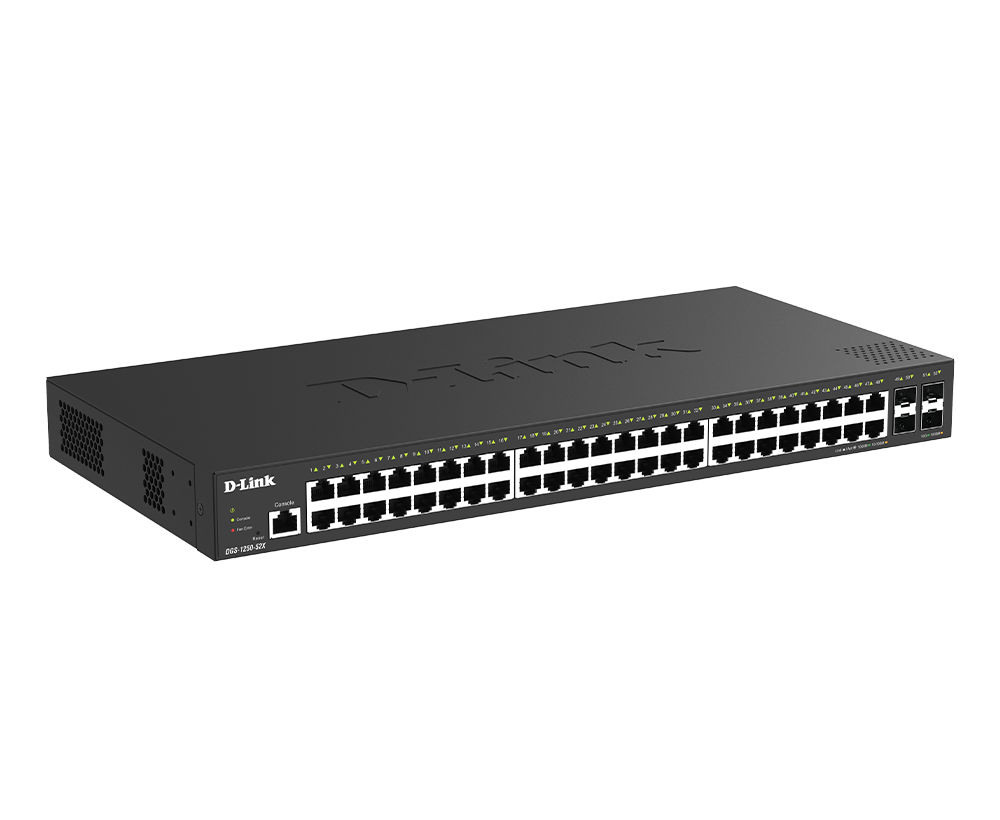

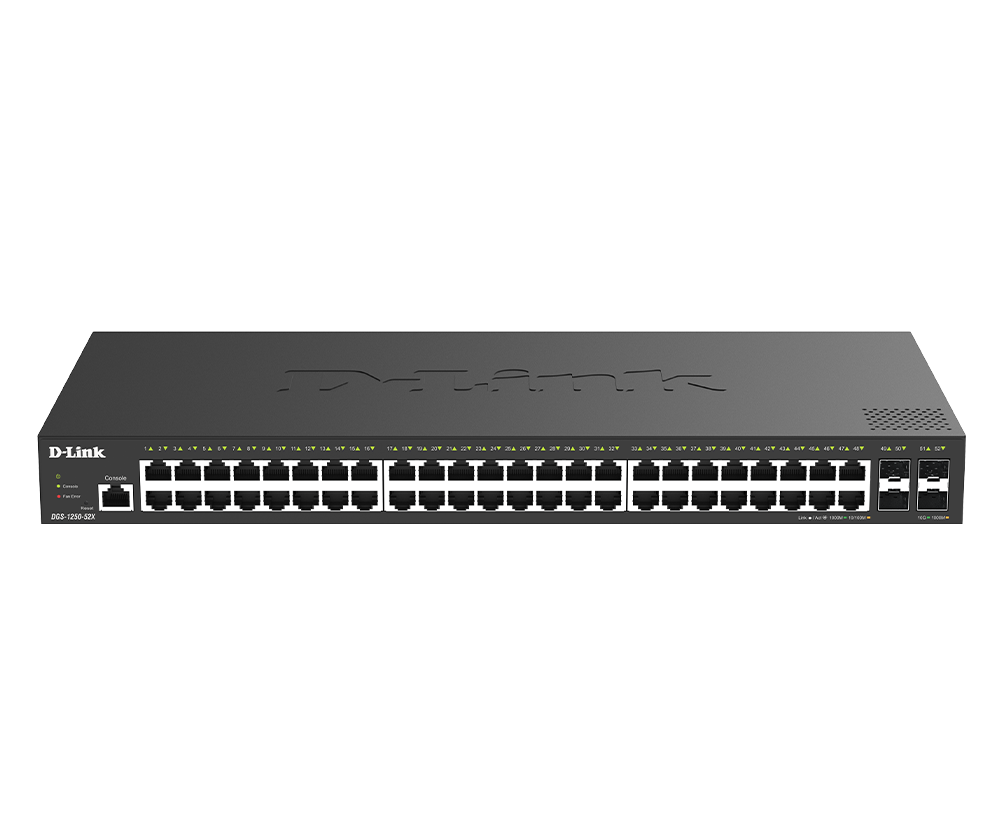

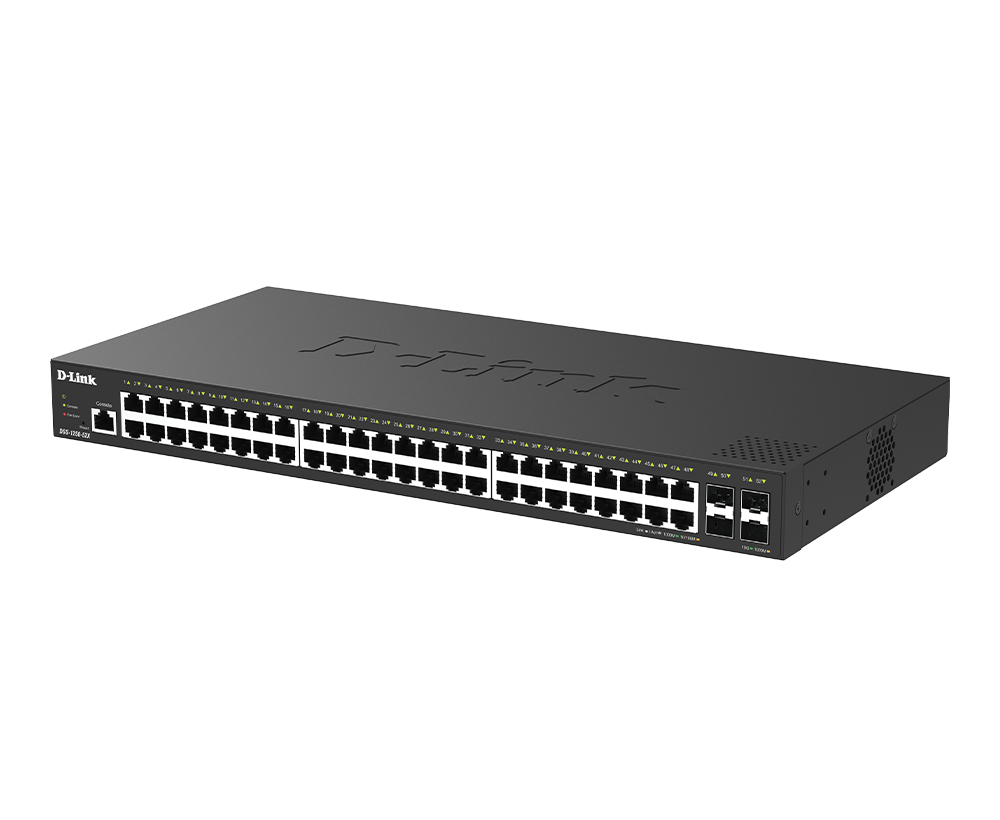

52-Port Gigabit Smart Managed Switch
DGS-1250-52X
- Statut produit: Live
- 48 Ports Gigabit for downlink
- 4 Ports 10G SFP+ for uplink
- 6kV surge protection on all Gigabit Ethernet ports
- 5-speed smart fan auto-adjusts for optimal cooling
- Spanning Tree Protocol (STP/RSTP/MSTP)
- Access Control List (ACL) feature
- Ethernet Ring Protection Switching (ERPS)
- Support Static Route and Layer 3 features
- Full command line support via console port
- Manage through the Nuclias Network Controller
User Benefits
Flexible Connectivity
The 10G SFP+ modules enable versatile network configurations that can scale to support growing data traffic
Simplified Management
Nuclias Network Controller enables centralized control for flexible and multiple device management
6kV Surge Protection
Effectively guards against power surges, minimizing downtime and costs, ideal for unstable regions
Advanced Security for Access
Provides versatile, advanced features to strengthen and safeguard network security for modern environments
Contrôle intelligent du trafic
Les ACL protègent le réseau en autorisant l’accès de confiance et en bloquant efficacement le trafic non autorisé
Routage statique
performance réseau optimisée grâce à une gestion locale du trafic

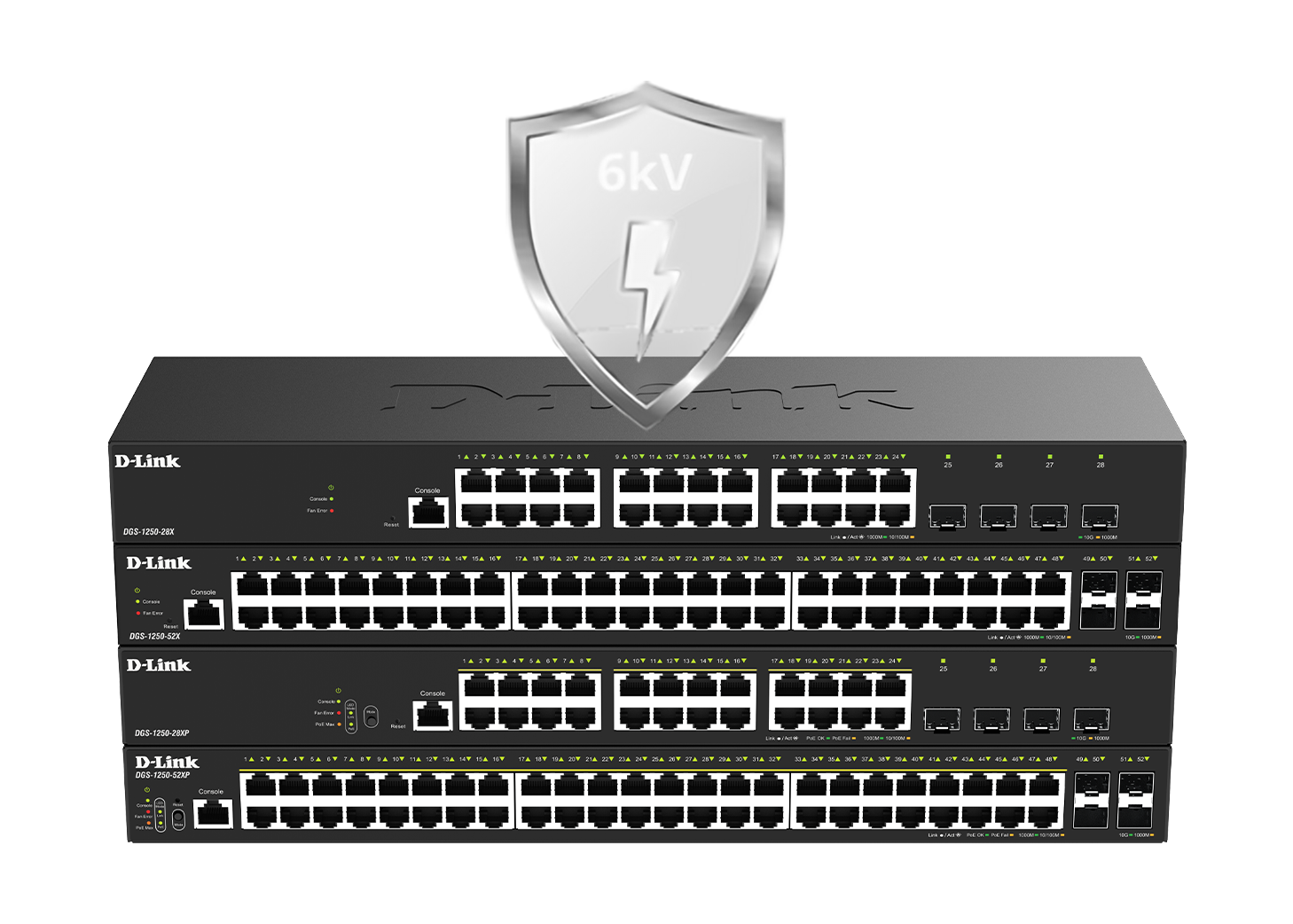

6kV Surge Protection for All Ethernet Ports
The DGS-1250-52X switch delivers enhanced 6kV surge protection across all Gigabit Ethernet access ports, ensuring a resilient network and safeguarding connected devices from electrical surges and power spikes. This robust protection helps prevent hardware damage and maintains reliable operations even in regions with unstable power conditions.

Enhanced Layer 2 Capabilities
The DGS-1250-52X switch offers a comprehensive set of Layer 2+ capabilities, including:
- GVRP
- ISM VLAN
- VLAN Translation
- Double VLAN (Q-in-Q)
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping

Traffic Prioritization with QoS
The DGS-1250-52X switch accelerates deployment with Auto Surveillance and Voice VLANs, utilizing QoS prioritization to ensure seamless, reliable VoIP and video traffic while automatically segmenting streams and maintaining optimal performance in high-traffic environments.

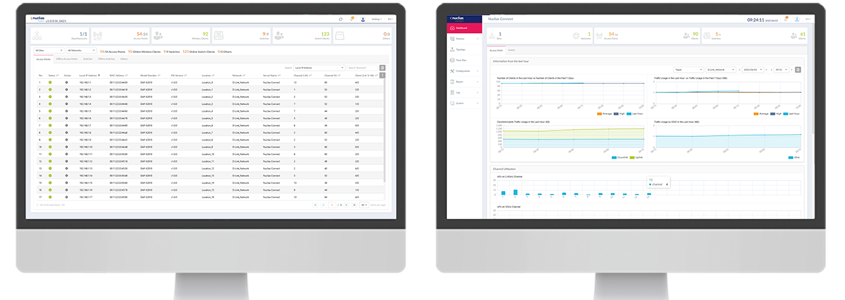

Nuclias Network Controller
The DGS-1250-52X switch supports the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.

Produits apparentés

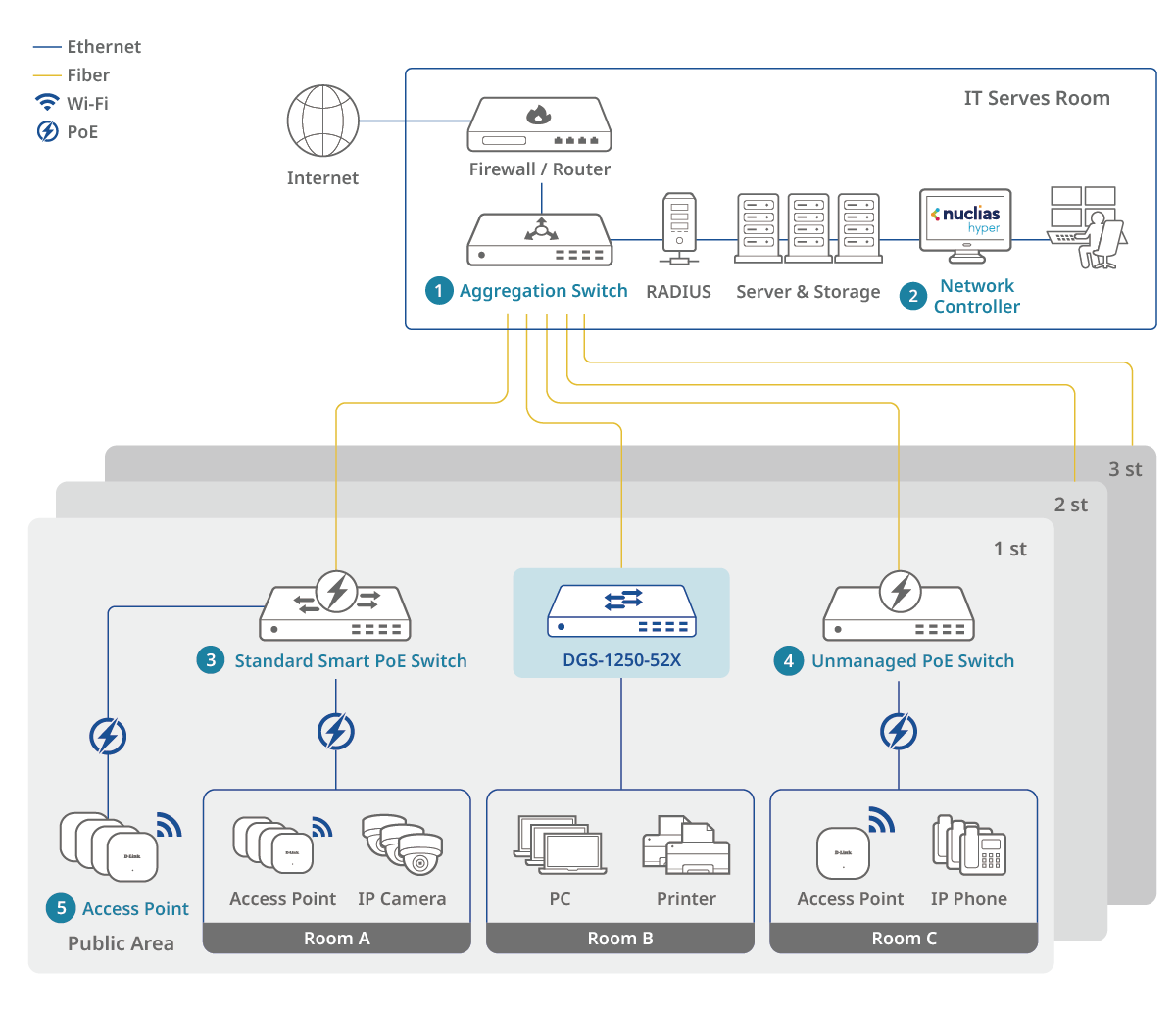

K-12 School (Education)
User benefits :
- Scales easily to meet growing network demands
- Advanced features for enhanced network security
- Simplified management for greater efficiency
- Support for VLANs and QoS for traffic prioritization
Learn more :
- Aggregation Switch : DXS-3130-32S
- Network Controller : DNH-1000
- Standard Smart Switch : DGS-1250-28XP
- Unmanaged PoE Switch : DGS-1018P
- Access Point : DAP-X2810

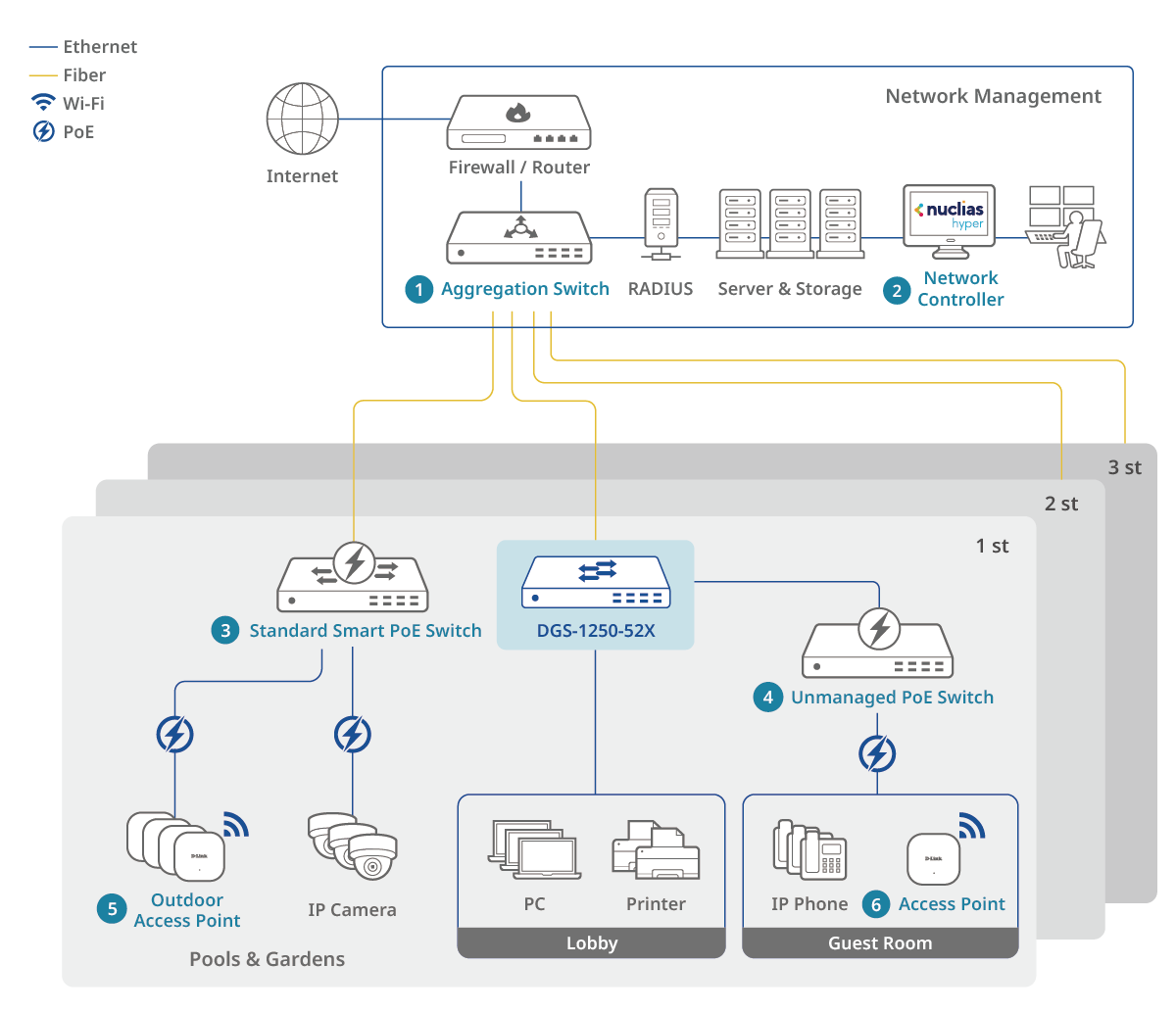

Hotel (Buildings)
- Rapid fault recovery for reliable performance
- Comprehensive security to protect critical data
- Supports long-distance connectivity
- VLAN and QoS to optimize the learning experience
Learn more :
- Aggregation Switch : DXS-3130-32S
- Network Controller : DNH-3000
- Standard Smart PoE Switch : DGS-1250-28XP
- Unmanaged PoE Switch : DGS-1008P
- Outdoor Access Point : DAP-X3060OU
- Access Point : DAP-X2810

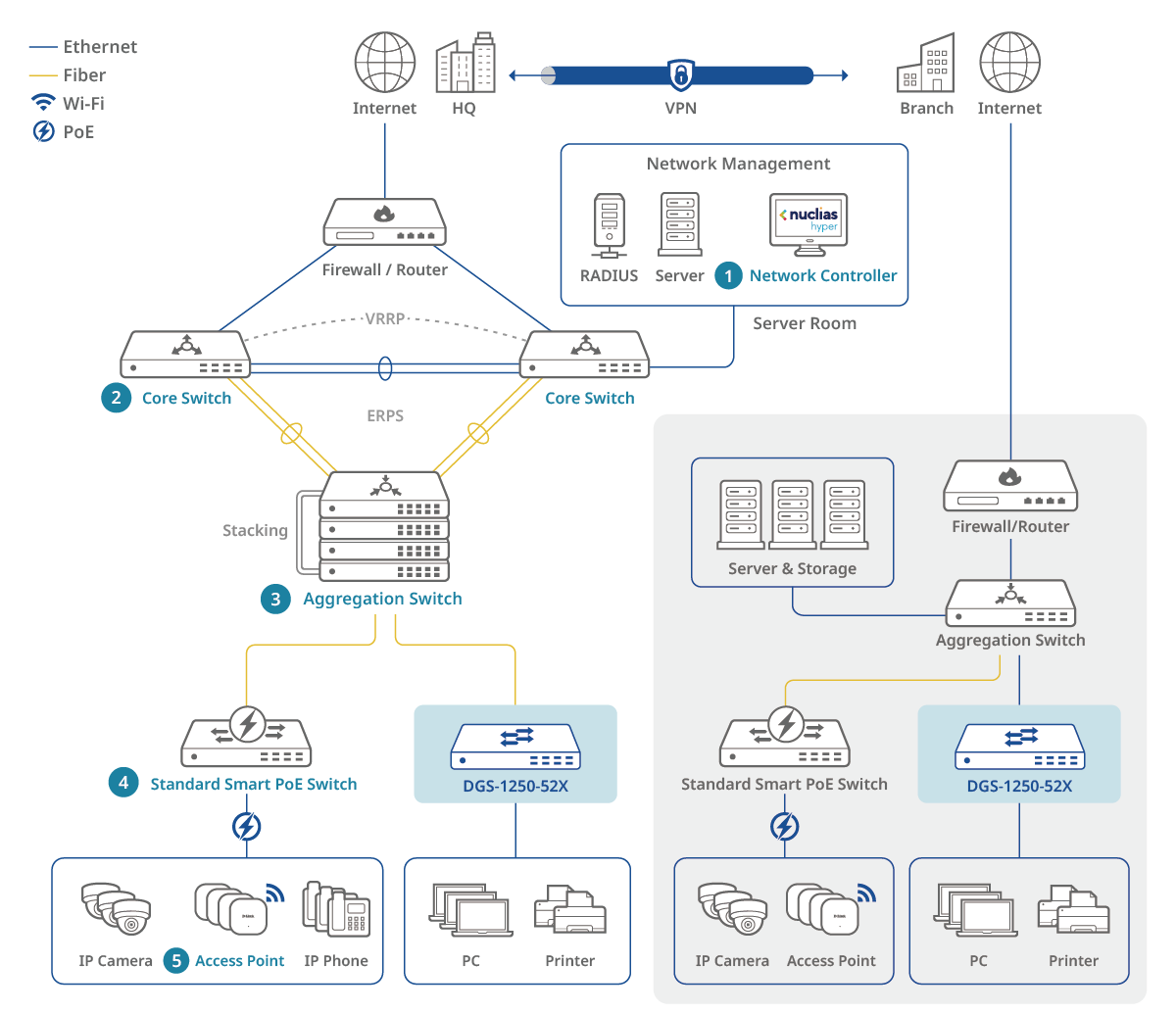

Office (Enterprise)
- Centralized switch management reduces IT complexity
- Support for VLANs and QoS for traffic prioritization
- OAM tools streamline issue detection and resolution
- 6kV surge protection for enhanced reliability
Learn more :
- Network Controller : DNC-5000
- Core Switch : DXS-3610-54S
- Aggregation Switch : DGS-1530 Series
- Standard Smart PoE Switch : DGS-1250-28XP
- Access Point : DAP-X2810

Specs
|
Interfaces
|
48 x 1GE 4 x 10G SFP+ |
|---|---|
|
Capacité du switch
|
176 Gbps |
|
Taux max. de transfert de paquets
|
130.95 Mpps |
|
Consommation électrique maximale
|
31.534 W/100 V 31.534 W/240 V |
|
Dimensions
|
440 x 140 x 44 mm (17.32 x 5.51 x 1.73 in) |
|
Poids
|
3.13 kg (6.90 lbs) |
|
Protection contre les surtensions
|
Tous les ports Ethernet RJ-45 prennent en charge la protection contre les surtensions de 6 kV selon la norme IEC61000-4-5 |
|
Ventilateur
|
1 Smart Fan |
|
Température de fonctionnement
|
-5 à 50°C |
|
Température de stockage
|
-20˚C à 70˚C |
|
Humidité de fonctionnement
|
0% à 95% humidité relative |
|
Humidité de stockage
|
0% à 95% sans condensation |
|
Port console
|
Port console RJ-45 |
|
Type d’alimentation électrique
|
Interne |
|
