This easy-to-deploy Desktop VPN Firewall solution is designed for small-to-medium sized businesses and is readily integrated into established networks.

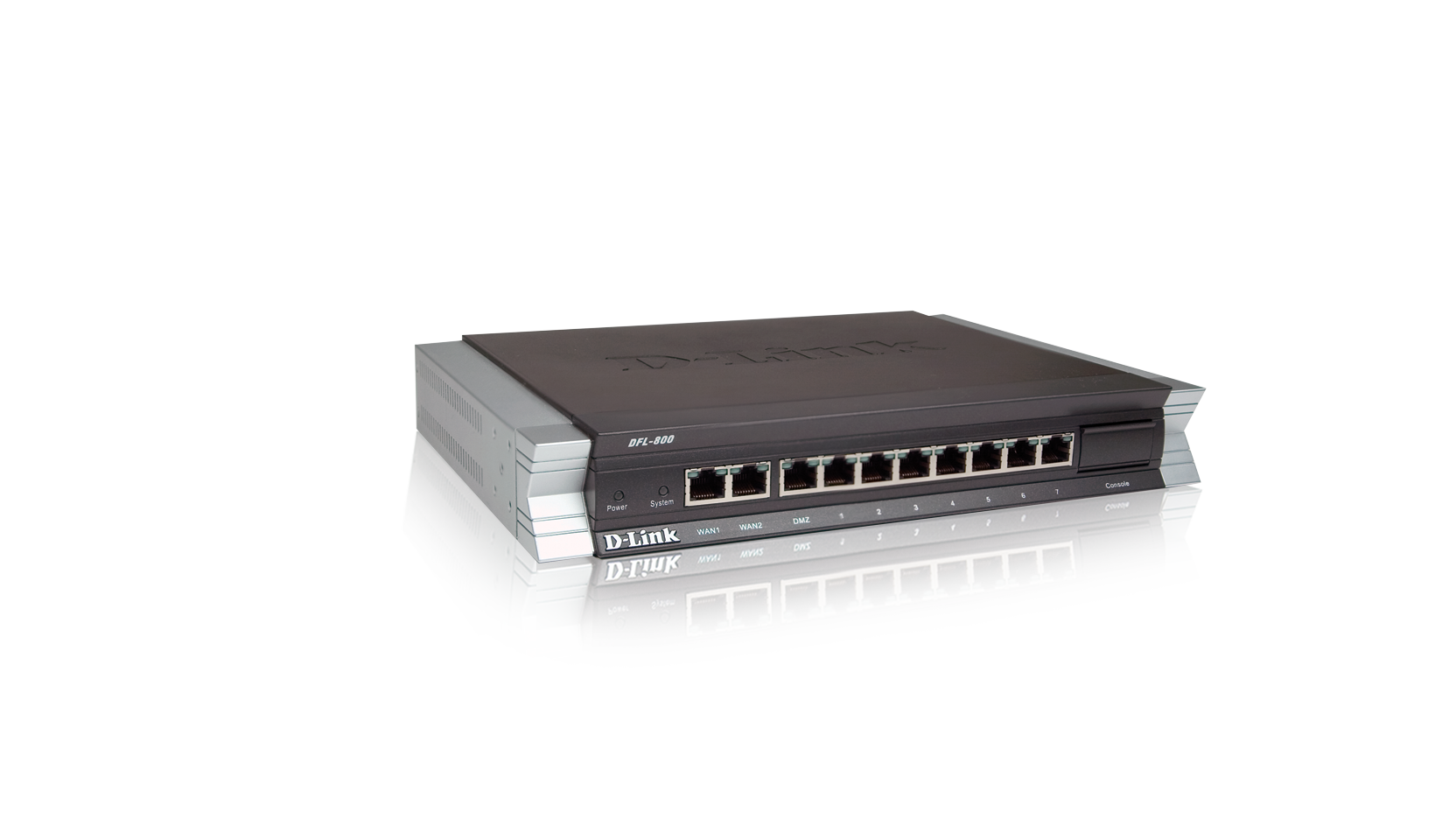

The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new D-Link DFL-800 Network Security Desktop VPN Firewall network security appliance is an easy-to-deploy VPN and firewall solution designed for small-to-medium sized businesses that demand superior performance and security.
Advanced Hardware Features
The DFL-800 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-800 hardware includes seven trusted LAN ports, dual-WAN ports for load balancing, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.
Enterprise-class Security
To provide enterprise-class network security, the DFL-800 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-800 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features along with a firmware backup function provide and maintain maximum network performance and security.
VPN Performance
For optimal VPN configuration, the DFL-800 has both an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 300 VPN connections. The DFL-800 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.
Configurable User Interface
The DFL-800 can be configured via the D-Link Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-Only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-800.
With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-800 NetDefend Network Security Desktop VPN Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection.
The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new D-Link DFL-800 Network Security Desktop VPN Firewall network security appliance is an easy-to-deploy VPN and firewall solution designed for small-to-medium sized businesses that demand superior performance and security.
Advanced Hardware Features
The DFL-800 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-800 hardware includes seven trusted LAN ports, dual-WAN ports for load balancing, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.
Enterprise-class Security
To provide enterprise-class network security, the DFL-800 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-800 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features along with a firmware backup function provide and maintain maximum network performance and security.
VPN Performance
For optimal VPN configuration, the DFL-800 has both an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 300 VPN connections. The DFL-800 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.
Configurable User Interface
The DFL-800 can be configured via the D-Link Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-Only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-800.
With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-800 NetDefend Network Security Desktop VPN Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection.
Firewall Mode of Operation
• Layer 3 Mode: Route Mode, NAT Mode
• Layer 2 Mode: Transparent Mode
• Network Address Translation (NAT)
• Port Address Translation (PAT)
• Static Address Translation (SAT)
• Policy-Based NAT
• Port Forwarding
• Time Scheduled Policies
VPN Security
• VPN Tunnels: 300 (IPSec, PPTP, L2TP with IPsec)
• IPSec LAN-to-LAN / Roaming User
• PPTP/L2TP Server/Client
• IPsec Hub and Spoke
• IPSec NAT-Traversal
• DHCP over IPSec
• Encryption Transform: DES, 3DES, AES, Twofish, Blowfish, CAST-128
• XAUTH (Extended Authentication) for IPSec Authentication
Firewall Security
• Stateful Packet Inspection (SPI)
• Policy-Based User Authentication
• DoS/DDoS Attack Protection
• RADIUS, LDAP, IAS
• HTTP Traffic Filter: Keyword, URL, Exempt List
• Script Filter: Java Applet, Java Scripts, VB Scripts, Cookies, ActiveX
Network Service
• Static IP address
• PPPoE for xDSL
• PPTP Client for xDSL
• DHCP Client for WAN Interface
• BigPond Cable, Telia Compliance
• Internal DHCP Server
• DHCP Relay
• WAN Failover/Load Sharing
• IP Alias
• Static Routes
• OSPF Dynamic Routing
• Policy-Based Routing
• DNS Resolving of Remote Gateway
• Dynamic DNS Poster
• Custom Application Layer Gateway
• Support IEEE 802.1q VLAN Tag (16)
• Firewall Policies per VLAN Tag
• DHCP Server per VLAN Tag
Bandwidth Management
• Guaranteed Bandwidth
• Maximum Bandwidth
• Priority-Bandwidth Utilization
• Policy-Based Traffic Shaping
• Time-Scheduled Traffic Shaping
• Bandwidth Management in VPN Tunnel
System
• SYSLog Support
• Firmware Configuration Backup
• E-mail Alerts
• Management – HTTP/HTTPS, SSH
• Simple Network Time Protocol (SNTP)
• Simple Network Management Protocol (SNMP)
• Configuration Consistency Checks
Intrusion Detection System
• NIDS Pattern Auto Update
• Attack Alarm via E-mail Notification
Physical & Environmental
Diagnostic LEDs
• Power
• System
• WAN (Link/Activity per Port) (2)
• LAN (Link/Activity per Port) (7)
• DMZ (Link/Activity per Port) (1)
Device Ports
• WAN: 2 10/100BASE-TX ports
• LAN: 7 10/100BASE-TX ports
• DMZ: 10/100BASE-TX port
• Console Port: Serial COM port
Power Input
• 5VDC, 4.0A switching external power supply
Power Consumption
• 20 Watts Maximum
Dimensions
• 11.0in x 8.43in x 1.73in
Weight
• 2.8 lbs (Device Only)
Temperature
• Operating: 32°F to 140°F (0° to 60°C)
• Storage: -4°F to 158°F (-20° to 70°C)
Humidity
• 5% to 95% (Non-Condensing)
Emission (EMI)
• FCC Class A
• CE
• C-Tick
Safety
• UL
• LVD (EN60950)
Warranty
• Limited Lifetime*
* Limited Lifetime Warranty available only in the USA and Canada if purchased on or after October 1, 2010.
Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
• Layer 3 Mode: Route Mode, NAT Mode
• Layer 2 Mode: Transparent Mode
• Network Address Translation (NAT)
• Port Address Translation (PAT)
• Static Address Translation (SAT)
• Policy-Based NAT
• Port Forwarding
• Time Scheduled Policies
VPN Security
• VPN Tunnels: 300 (IPSec, PPTP, L2TP with IPsec)
• IPSec LAN-to-LAN / Roaming User
• PPTP/L2TP Server/Client
• IPsec Hub and Spoke
• IPSec NAT-Traversal
• DHCP over IPSec
• Encryption Transform: DES, 3DES, AES, Twofish, Blowfish, CAST-128
• XAUTH (Extended Authentication) for IPSec Authentication
Firewall Security
• Stateful Packet Inspection (SPI)
• Policy-Based User Authentication
• DoS/DDoS Attack Protection
• RADIUS, LDAP, IAS
• HTTP Traffic Filter: Keyword, URL, Exempt List
• Script Filter: Java Applet, Java Scripts, VB Scripts, Cookies, ActiveX
Network Service
• Static IP address
• PPPoE for xDSL
• PPTP Client for xDSL
• DHCP Client for WAN Interface
• BigPond Cable, Telia Compliance
• Internal DHCP Server
• DHCP Relay
• WAN Failover/Load Sharing
• IP Alias
• Static Routes
• OSPF Dynamic Routing
• Policy-Based Routing
• DNS Resolving of Remote Gateway
• Dynamic DNS Poster
• Custom Application Layer Gateway
• Support IEEE 802.1q VLAN Tag (16)
• Firewall Policies per VLAN Tag
• DHCP Server per VLAN Tag
Bandwidth Management
• Guaranteed Bandwidth
• Maximum Bandwidth
• Priority-Bandwidth Utilization
• Policy-Based Traffic Shaping
• Time-Scheduled Traffic Shaping
• Bandwidth Management in VPN Tunnel
System
• SYSLog Support
• Firmware Configuration Backup
• E-mail Alerts
• Management – HTTP/HTTPS, SSH
• Simple Network Time Protocol (SNTP)
• Simple Network Management Protocol (SNMP)
• Configuration Consistency Checks
Intrusion Detection System
• NIDS Pattern Auto Update
• Attack Alarm via E-mail Notification
Physical & Environmental
Diagnostic LEDs
• Power
• System
• WAN (Link/Activity per Port) (2)
• LAN (Link/Activity per Port) (7)
• DMZ (Link/Activity per Port) (1)
Device Ports
• WAN: 2 10/100BASE-TX ports
• LAN: 7 10/100BASE-TX ports
• DMZ: 10/100BASE-TX port
• Console Port: Serial COM port
Power Input
• 5VDC, 4.0A switching external power supply
Power Consumption
• 20 Watts Maximum
Dimensions
• 11.0in x 8.43in x 1.73in
Weight
• 2.8 lbs (Device Only)
Temperature
• Operating: 32°F to 140°F (0° to 60°C)
• Storage: -4°F to 158°F (-20° to 70°C)
Humidity
• 5% to 95% (Non-Condensing)
Emission (EMI)
• FCC Class A
• CE
• C-Tick
Safety
• UL
• LVD (EN60950)
Warranty
• Limited Lifetime*
* Limited Lifetime Warranty available only in the USA and Canada if purchased on or after October 1, 2010.
Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Support
Ce produits est en fin de vie depuis le : 05/03/2012
Dernière date de support technique 04/03/2017
Version | Date | Type | Taille de fichier | |
---|---|---|---|---|
Fiche Technique | - | 0.34mb | Télécharger |
Version | Description | Date | Type | Taille de fichier | |
---|---|---|---|---|---|
User Manual (English) | User Manual (English) | 11/11/2010 | 8.78mb | Télécharger | |
Manuel en Francais | Manuel en Francais |
- | 2.02mb | Télécharger |
Version | Description | Date | Type | Taille de fichier | |
---|---|---|---|---|---|
Quick Installation Guide (English) | - | 3.80mb | Télécharger |
Version | Description | Date | Type | |
---|---|---|---|---|
Firmware upgrade v2.27.03.25 2.27.03.25 | Firmware upgrade v2.27.03.25 | 09/12/2011 | - | Télécharger |
Firmware upgrade v2.26.00.02 2.26.00.02 | Firmware upgrade v2.26.00.02 | 23/09/2009 | - | Télécharger |
Firmware upgrade v2.20.02.12 2.20.02.12 | Firmware upgrade v2.20.02.12 | 06/08/2008 | - | Télécharger |
Version | Description | Date | |
---|---|---|---|
DEU_CLI_Ref_Guide_RevA | CLI Reference Guide (English) v2.27.03 | 10/11/2010 | Télécharger |
DEU_Log_Ref_Guide_RevA | Log Reference Guide (English) V2.27.03 | 10/11/2010 | Télécharger |
DEU_CE_A2_A3_EN_FR_RevA | Certificate of Declaration A2 & A3 (English and French) | 04/12/2009 | Télécharger |
FR_Release_Notes_2_20 | Firmware version 220 y inclu les notes sur la release | 28/01/2008 | Télécharger |
FR_Certificate | DFL-800 Certification | - | Télécharger |
