How to Setup Bandwidth Optimization - CWM-100

Scenario:

CWM_100_how_to_setup_bandwith_optimization

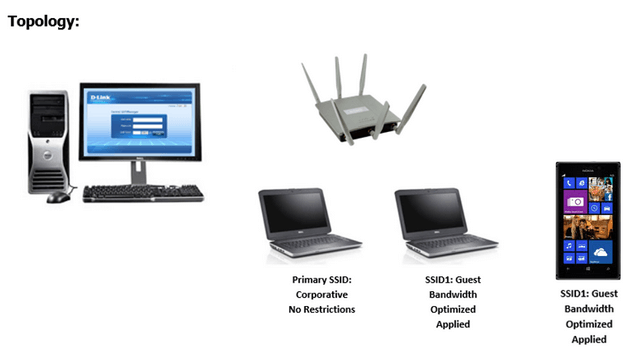

2x SSIDs (Corporative and Guest)

Software and Hardware Used:
CWM-100 - Central WifiManager
DAP-2695 HW:A1
AP Module for DAP-2695A1

OS and Browser Compatibility:
Windows 7, Windows Server 2008R2 and Windows Server 2012R2
IE11, Firefox and Sarfari
As this document will be published on our site, it is also recommended at the time to check if newer releases of software and firmware have be published on our site.
Download the above to a folder (for example CWM-100). Once the above has been downloaded to your PC or USB storage, then proceed with the following:

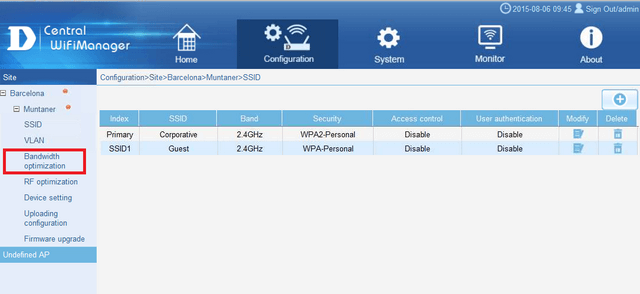

Step 1 – Log into CWM-100 and go to “Bandwidth optimization”  Configuration > Site > Network > Bandwidth optimization
D-Link

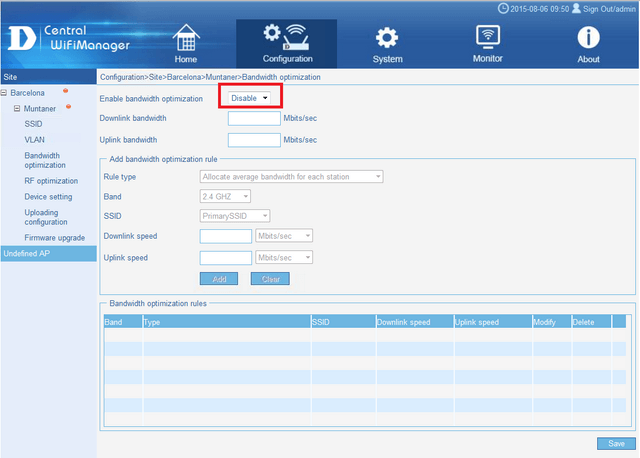

Click “Bandwidth optimization”
D-Link

Click to select “Enable” then “Save”

Step 2 – In our example we are going to restrict to 1Mbits/sec on “Allocated specific bandwidth for SSID”, apply it to our SSID1 and only to 2.4 GHz Band

Rule type: (Available Options):
D-Link

Band: (Available Options): - This will depend on bands supported per access-point
CWM_100_how_to_setup_bandwith_optimization

Downlink and Upload Speed: (Available Options):
D-Link

D-Link

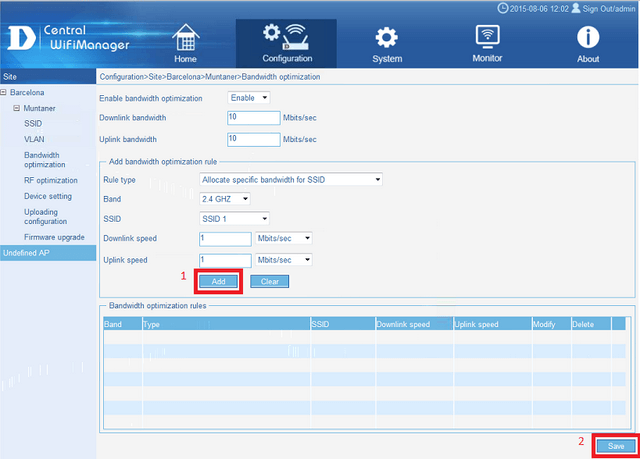

Click “Add” then click “Save”

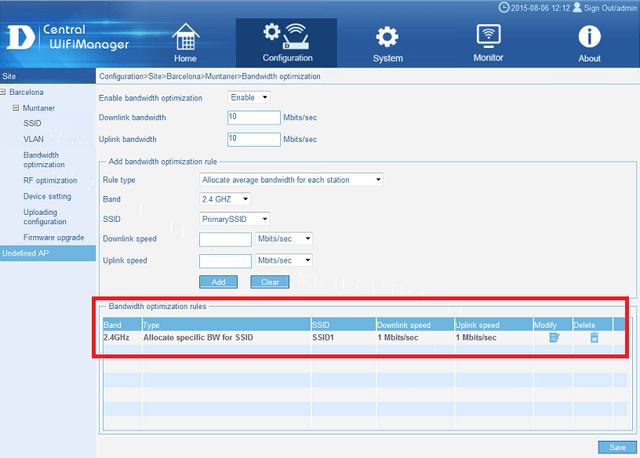

You should have a similar screen as shown below
D-Link

Step 3 – Upload configuration to access-points(s) to apply this rule

Configuration > Site > Network > Upload configuration
D-Link

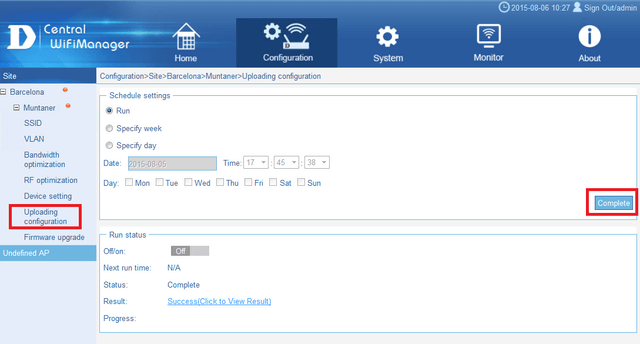

Click “Upload configuration” then “Complete”

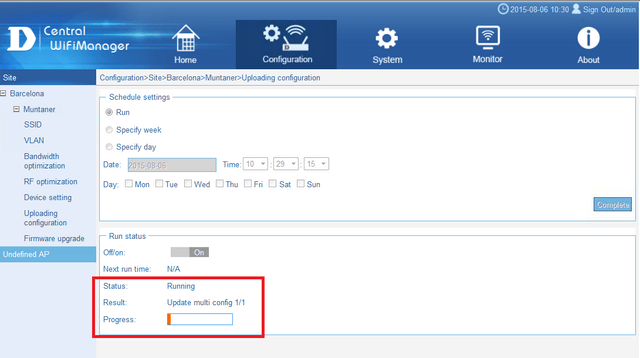

The process will go through a stage of “Rebooting”.
D-Link

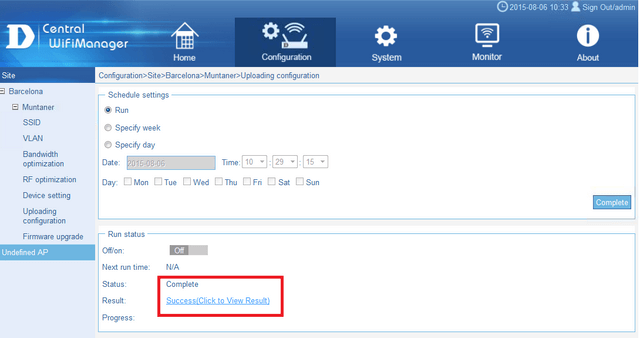

Once complete, you should get the following output:
D-Link

If you don’t receive the above and you get a “Fail”, you will need to check the following:
1) Network connections
2) VLANs are correctly setup (if any)
3) Correct Module has be installed

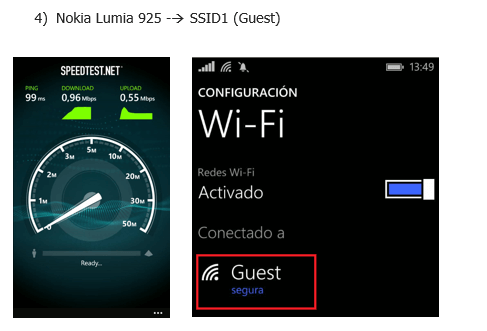

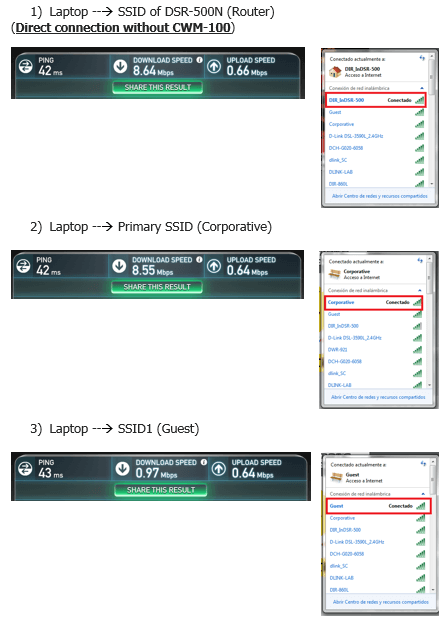

Step 4 – To give you an idea of the test results and to illustrate the differences, the following results are shown:
D-Link
D-Link
