32-Port 10G Layer 3 Stackable Aggregation Managed Fiber Switch
DXS-3130-32S
- Estado del producto (EU RevA): Activo
- 28 Ports 10G/multi-Gigabit for downlink
- 4 Ports 10/25G SFP28 for uplink
- Physical stack of up to 9 units via four 25G ports
- 200 Gbps per-device physical stacking bandwidth
- Ethernet Ring Protection Switching (ERPS)
- RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
- Support 802.1X and Web/MAC-based access control
- IEEE 802.1ag for Connectivity Fault Management
- Green features for reduced power consumption
- Manage through the Nuclias Network Controller
Lista de puntos de venta
User Benefits
Administración de tráfico versátil
Optimiza los servicios críticos con QoS, conformado de tráfico, soporta Multicast e ISM VLAN para una mayor eficiencia
Administración simplificada
La función SIM permite gestionar múltiples switches como un apilado virtual con una única IP, soportando diversas herramientas de gestión
Redundancia para entornos críticos
Las opciones RPS de CA o CC garantizan un funcionamiento ininterrumpido y aumentan la fiabilidad del switch al evitar interrupciones de alimentación
Seguridad avanzada para el acceso
Soporta mecanismos de autenticación como 802,1X, control de acceso basado en web/MAC para una implementación sencilla
Alta disponibilidad y fiabilidad
Apile hasta 9 switches con 200 Gbps de ancho de banda e IP unificada para un control simplificado, una rápida conmutación por error (failover) y una sólida redundancia
Enrutamiento en capa 3
Permite el enrutamiento de capa 3 entre diferentes partes de su red, mejorando la eficiencia al dirigir el tráfico a su destino óptimo
High-Speed Versatile Switching
Featuring flexible combinations of 10G SFP+ and 10GBase-T downlink ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic. The full optical interface design optimizes speed and handles heavy traffic.
Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.
Unified the Power, Stack for Success
Scale your network with the DXS-3130 series by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.
Built for Unbreakable Networks
The DXS-3130-32S ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loopback detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
Optimized Performance for Critical Services
The DXS-3130-32S switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
QoS avanzado
Prioriza el tráfico crítico como VoIP y vídeo, garantizando un rendimiento fluido y una latencia mínima para aplicaciones sensibles al tiempo
IGMP/MLD Snooping
El tráfico de streaming Multicast solo se transmite a los destinatarios previstos, lo que reduce el uso innecesario del ancho de banda y mejora la eficiencia de la red
ISM VLAN
Controla el tráfico Multicast en cada VLAN para reducir el tráfico y mejorar la seguridad robusta y el rendimiento
Otros usuarios también vieron

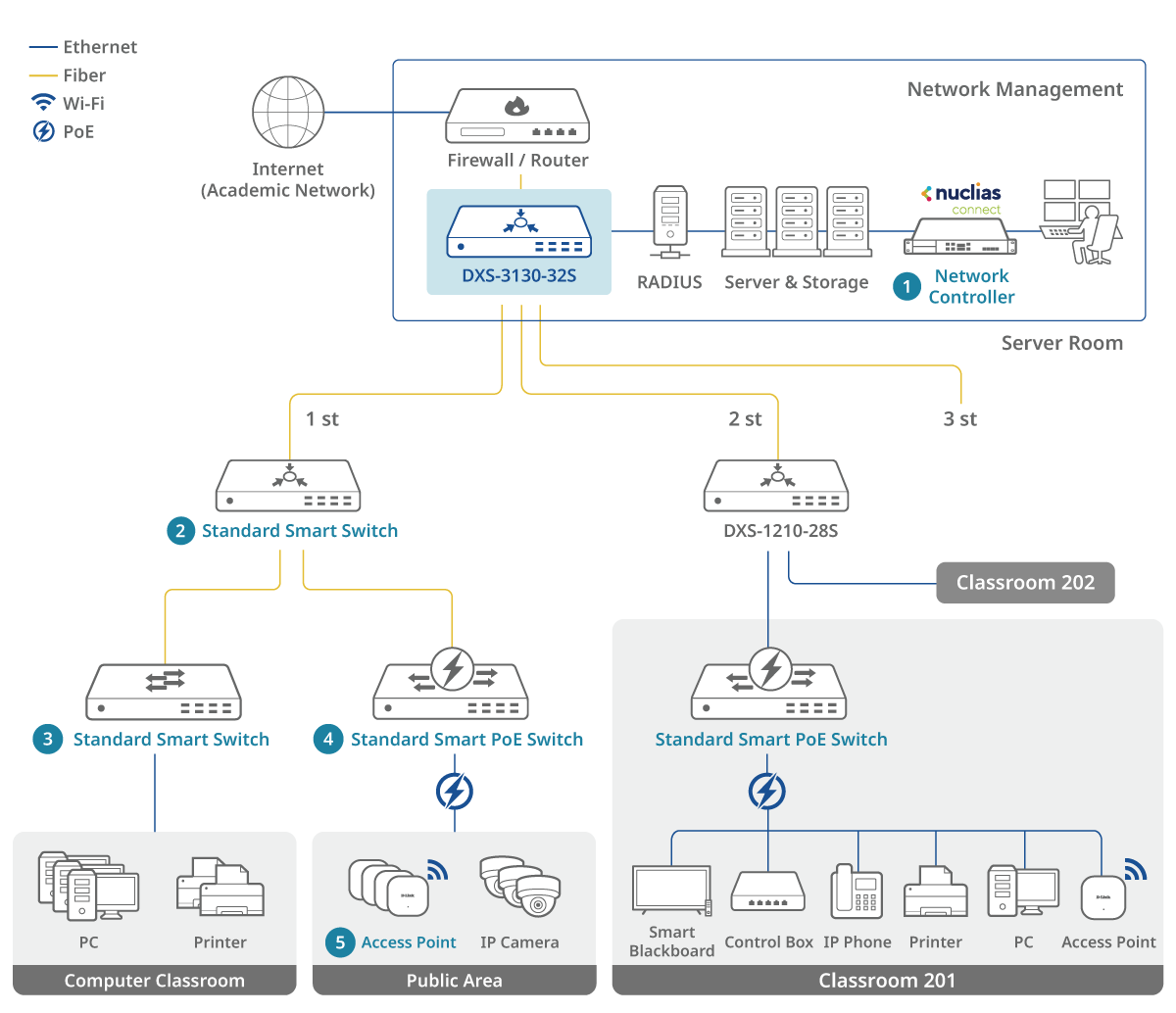

K-12 School (Education)
User benefits :
- VLAN and QoS for smarter traffic control
- Scalable design to grow network demands
- Easy management for streamlined administration
- Advanced security to protect against threats
Learn more :
- Network Controller : DNH-1000
- Standard Smart Switch : DXS-1210-28S
- Standard Smart Switch : DMS-1250-18
- Standard Smart PoE Switch : DMS-1250-18P
- Access Point : DAP-X3060
Office (Enterprise)
- Router offloading to boost efficiency
- Fast recovery for always-on connectivity
- Strong security to protect critical data
- Smart traffic Control for efficient data flow
Learn more :
- Network Controller : DNH-3000
- Standard Smart PoE Switch : DXS-1250-28YP
Standard Smart Switch : DXS-1210-12TC
Access Point : DAP-E9560
High-Rise Community (Buildings)
- Easy maintenance to minimize downtime
- 10G speed to handle growing bandwidth demands
- Strong security for reliable protection
- Scalable design for seamless expansion
Learn more :
- Core Switch : DQS-3630-56S ( Coming Soon )
- Network Controller : DNC-5000
Standard Smart PoE Switch : DMS-1250-18P
Unmanaged Switch : DMS-1016
Access Point : DAP-X3060
Specs
|
Interfaces
|
28 x 10GE SFP+ 4 x 10/25G SFP28 |
|---|---|
|
Switch Capacity
|
760 Gbps |
|
Max. Packet Forwarding Rate
|
560.44 Mpps |
|
Max Power Consumption
|
66.5W |
|
Dimensions
|
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
|
FAN
|
3 x Smart fans |
|
Operating Temperature
|
0 to 50 °C (32 to 122 °F) |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Operating Humidity
|
10% to 90% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
Yes |
|
Power Supply Type
|
Internal |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
